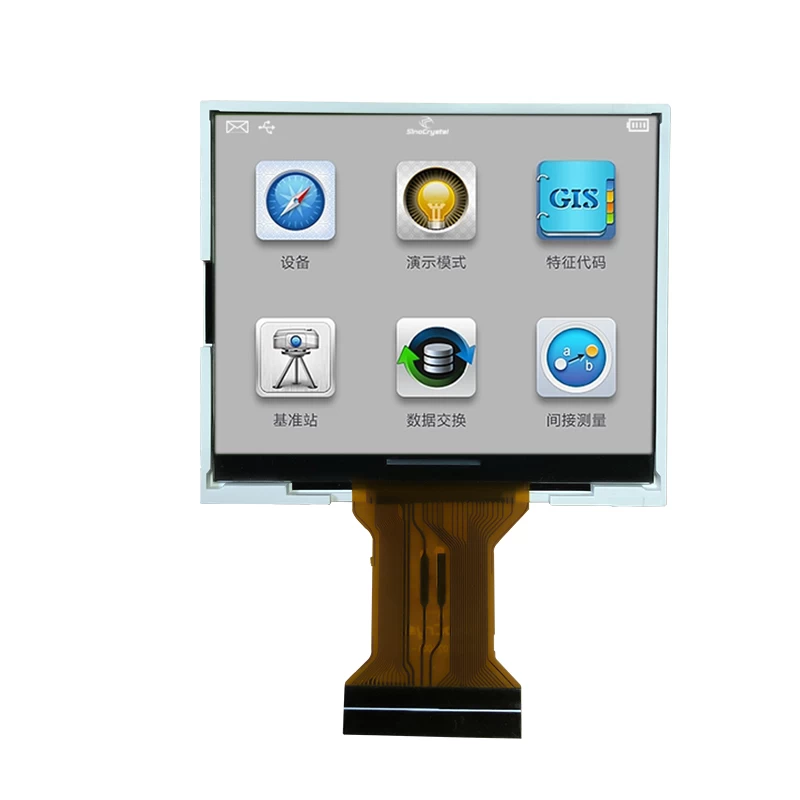

2.4'' TFT LCD Display with 480*234 resolution 8bit RGB interface OTA5182A IC

SCT024001-V01 is a 2.4'' TFT LCD Display with 480*234 resolution, it built in with OTA5182A IC, and it supports 8bit RGB interface, 40 PIN, 6 o'clock View direction.


  • IC Part No.OTA5182A
  • Interface8bit RGB
  • View Direction6
  • Active Area (mm)52.40*43.56
  • Viewing Area (mm)48.00*35.685
  • Outline Dimension (mm)55.20*47.55*2.80
  • Resolution480*234
  • Brightness (cd/m²)300
  • Touch ScreenNo
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    480*234

Outline Dimension:        55.20*47.55*2.80

Active Area:                  48.00*35.685

View area:                     52.40*43.56

Interface:                      8bit RGB

Driver IC:                       OTA5182A

View Direction:              6 o'clock

PIN:                                40

Backlight:                      White LED

Touch Screen:               No touch screen with standard module, But can be added if customer needed.

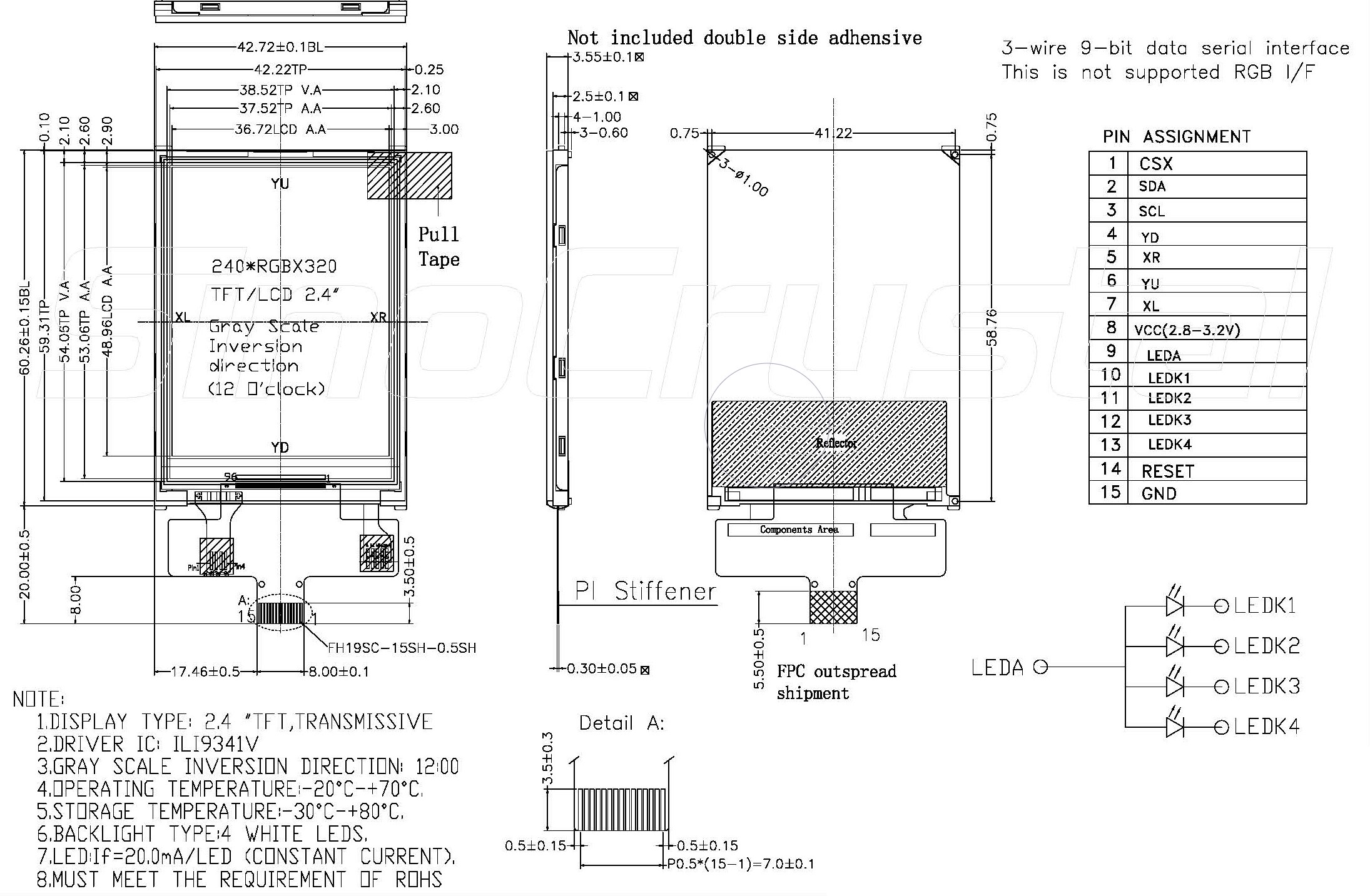

Drawing






General Specification

Item Nominal Dimension Unit
  Dot Matrix 240 x RGB x 320 Dots
  Module Size ( W×H×T ) 42.72 x 60.26 x 3.55 mm.
  Active Area ( W×H ) 36.72 x 48.96 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.153 x 0.153 mm.
  Color depth 262K(MAX) colors
  Interface 3-line SPI -
  Driving IC Package COG -
  Operating temperature -20 ~70
 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode TN/Normal White -
  Backlight Type LED x 4 PCS





Interface Definition

Pin No Pin Symbol Level Description
1 CSX 0V Chip select
2 SDA H/L SPI data
3 SCL H/L SPI clock
4 YD - Touch panel bottom
5 XR - Touch panel right
6 YU - Touch panel top
7 XL - Touch panel left
8 VCC 2.8-3.2V Power supply
9 LEDA - LED light, anode
10 LEDK1 - LED light, cathode.
11 LEDK2 - LED light, cathode.
12 LEDK3 - LED light, cathode.
13 LEDK4 - LED light, cathode.
14 RESET H/L Reset signal
15 GND 0V Ground
