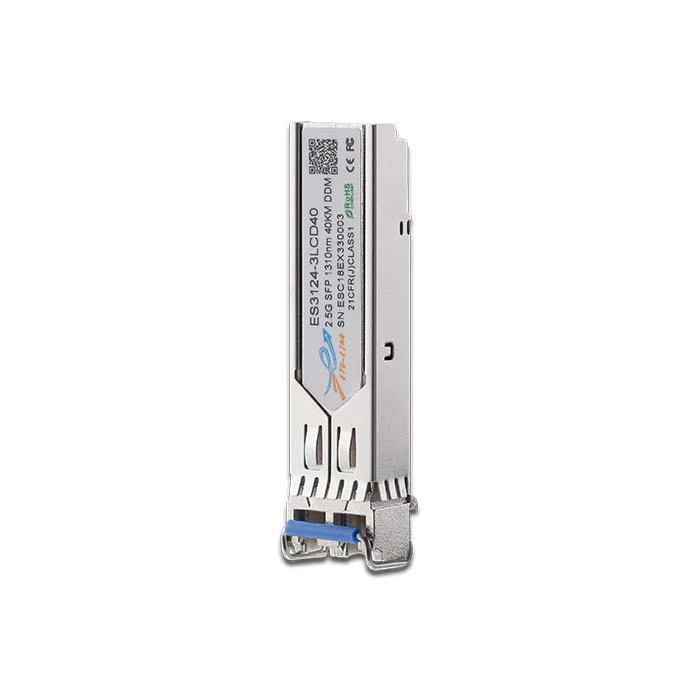

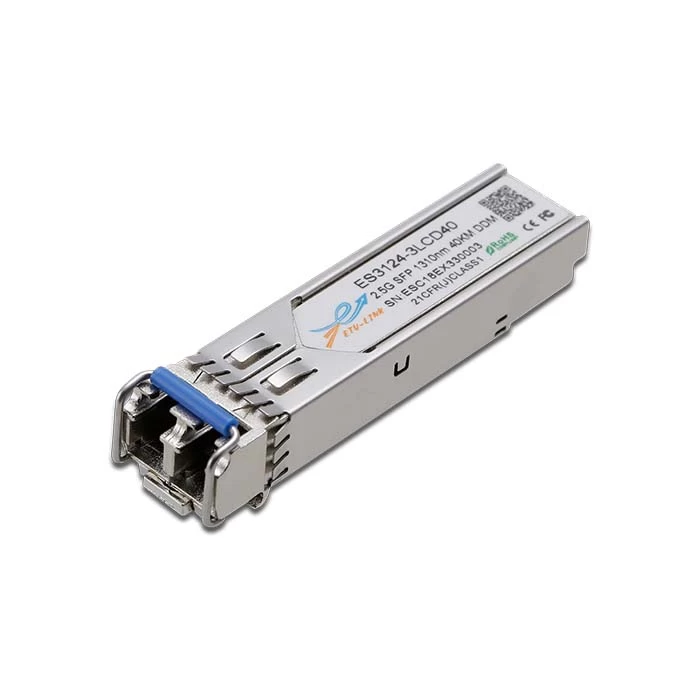

ES3124-3LCD40
2.67Gbps
SFP Optical Transceiver, 40KM Reach
Features
Ø Data-rate of 2.67Gbps operation
Ø 1310nm DFB laser and APD photo detector for 40km transmission
Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature:
Standard : 0 to +70°C
Applications
Ø SDH STM-16 and SONET OC-48 system
Ø 2X Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective
modules supporting dual data-rate of
2.67Gbps and 40KM transmission distance with SMF.
The transceiver consists of three sections: a DFB laser
transmitter, a APD photodiode integrated with a trans-impedance preamplifier
(TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source
Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
