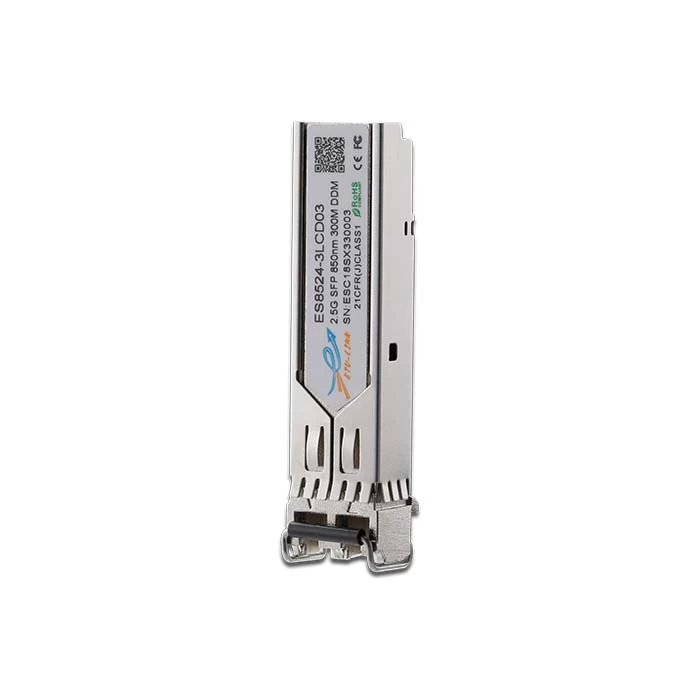

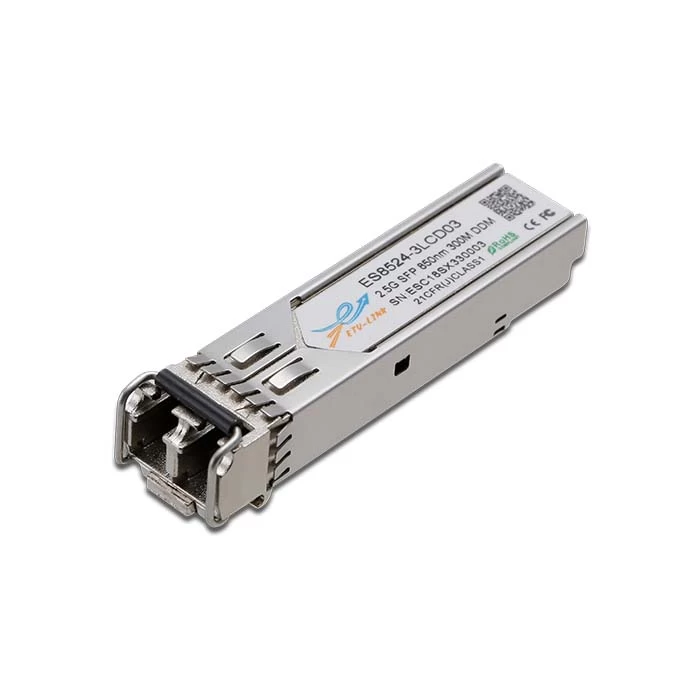

ES8524-3LCD03
2.67Gbps SFP Optical Transceiver, 300M Reach
Features
Ø Up to 2.67Gb/s bi-directional data links
Ø 850nm VCSEL and PIN photo detector
Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø 300m transmission with 50/125µm MMF
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature:
Standard : 0 to +70°C
Industrial: -40 to +85°C
Applications
Ø SDH STM-16 and SONET OC-48 system
Ø 2X Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of
2.67Gbps and 300m transmission distance with MMF.
The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For
further information, please refer to SFP MSA.
