UN project 30T lowbed semitrailer
China CEEC TRUCKS produced 2 axle low bed semitrailer, 3 axle Lowbed trailer, 4 axle gooseneck semitrailer and other heavy duty lowbody trailer mainly service for UN project. These 20 T low bed trailers, 30 T gooseneck semitrailers and 40 T lowbed semitrailers are used for heavy machine transportation and bulk goods transportation. And mainly worked in Congo, Kenya, Nigeria, South Africa, Afganistan, Iraq, etc.
UN 30 T lowbed semitrailer technical dimension as below
Whay choose CEEC produced 2 axle 30T Low Bed Semi Trailer?
★ We have well experienced in reseaching and developing different low bed trailers:2 axle low bed trailer, 3 axle low bed semitrailer, 20 T gooseneck semitraile, 30 T low bed semitrailer, etc.
★ High quality strength steel Q345B for I-beam
★ Axle: German BPW or American style from 12 tons to 20 tons
★ Suspension: Mechanical suspension, air suspension or bogie suspension.
★ Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
★ King pin: Optional for 2" or 3.5" Kingpin
★ Side wall height: Optional for 600mm, 800mm or 1000mm
★ Twist locks: Standard 4 sets and others for Optional

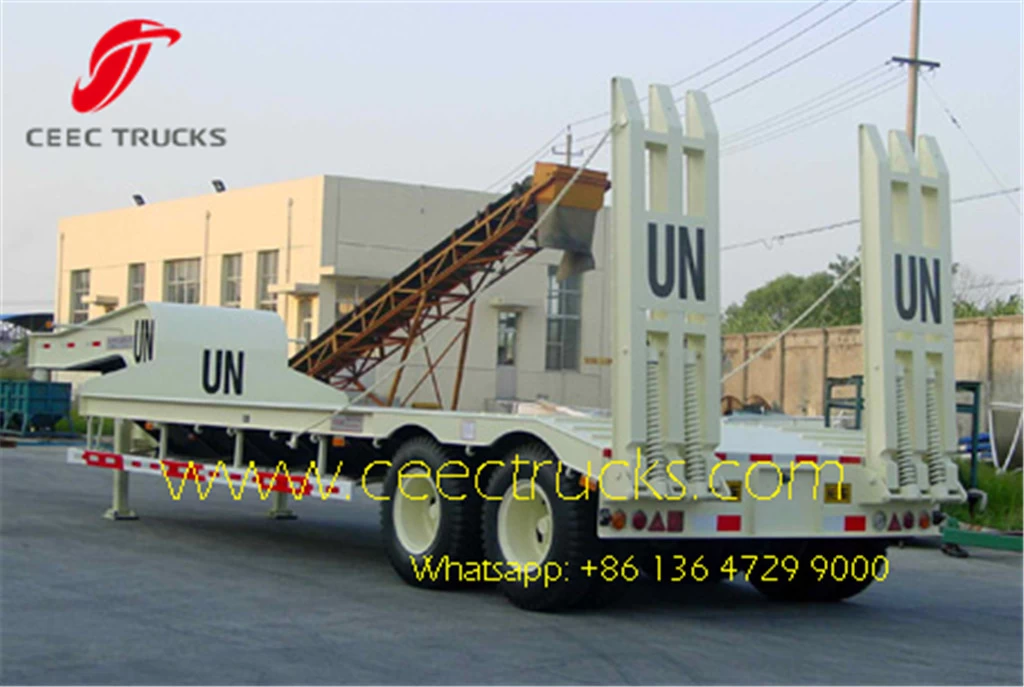

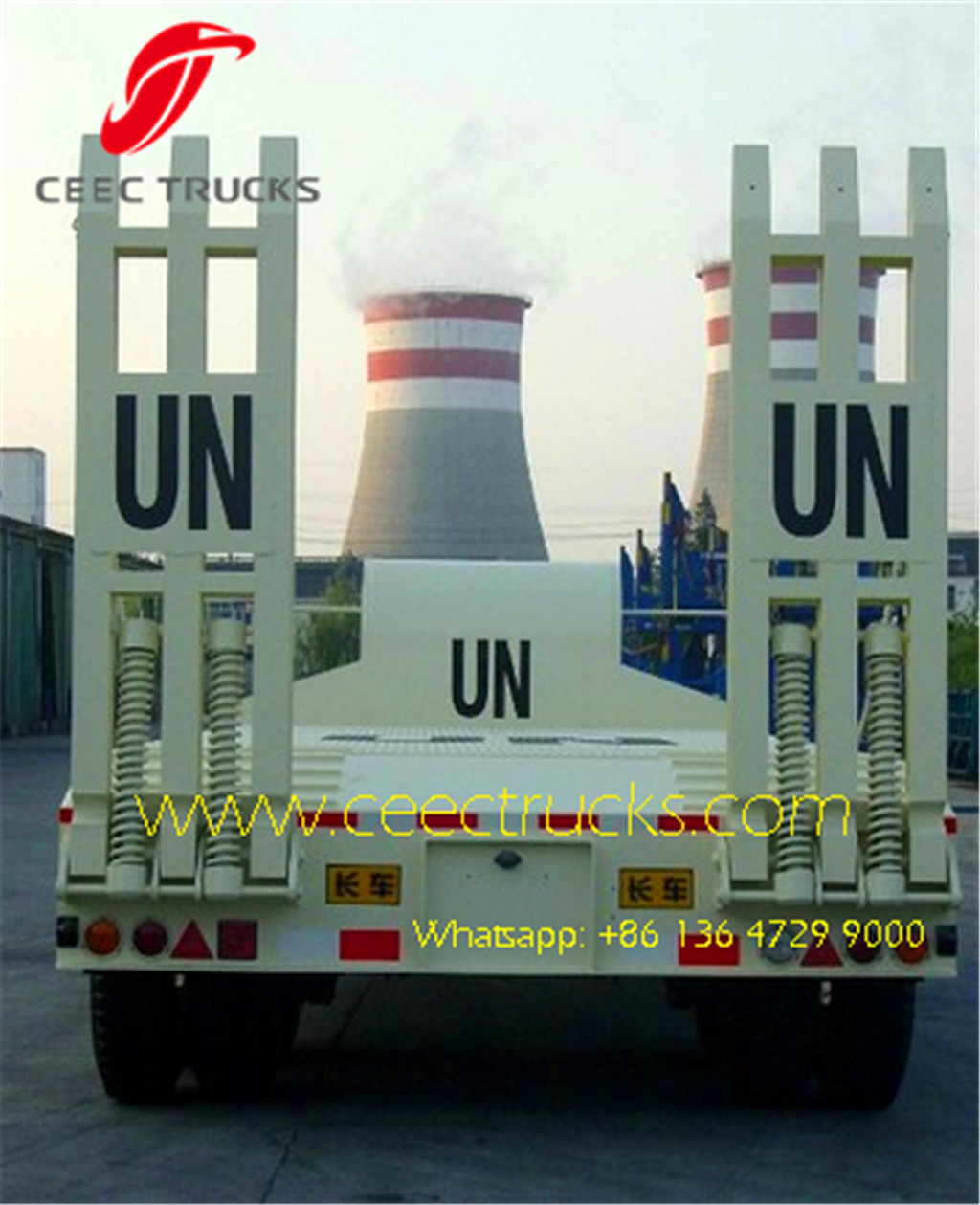

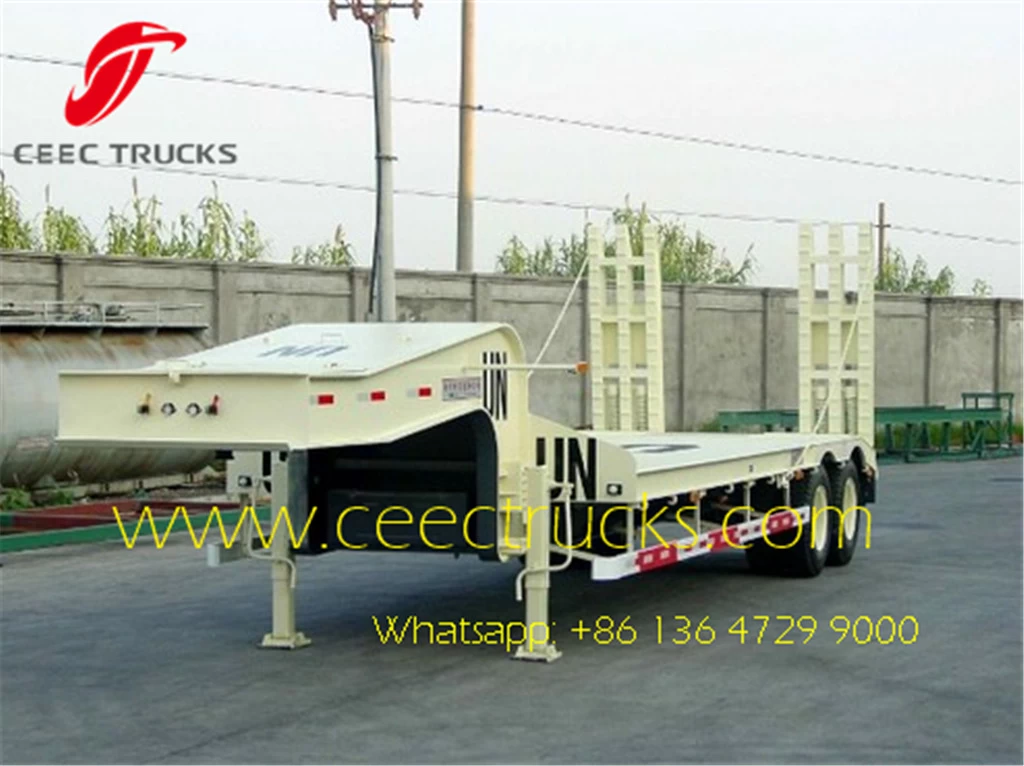

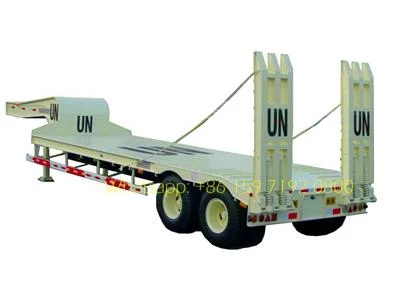

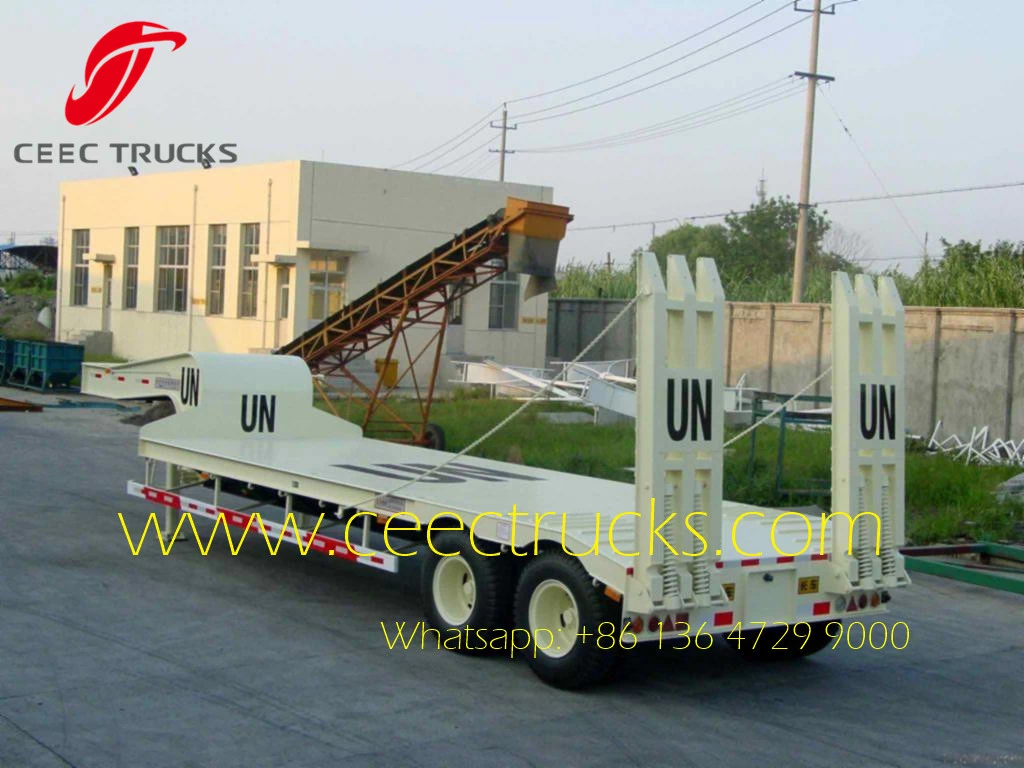

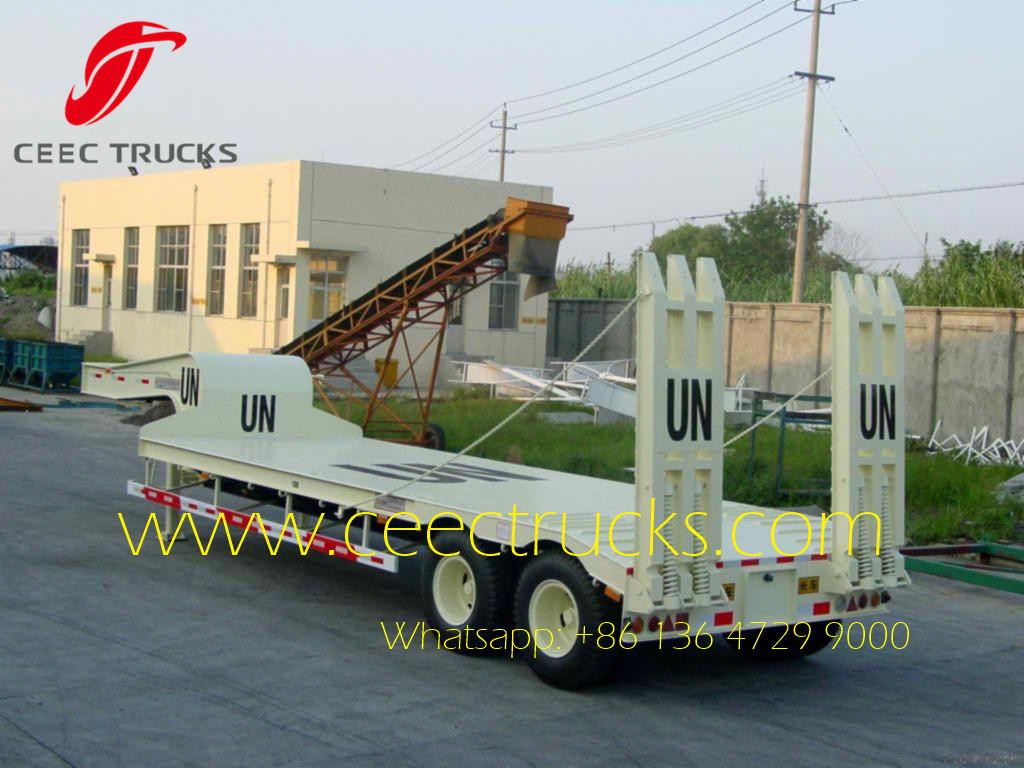

2 axle 30 T low bed semitrailer export UN:

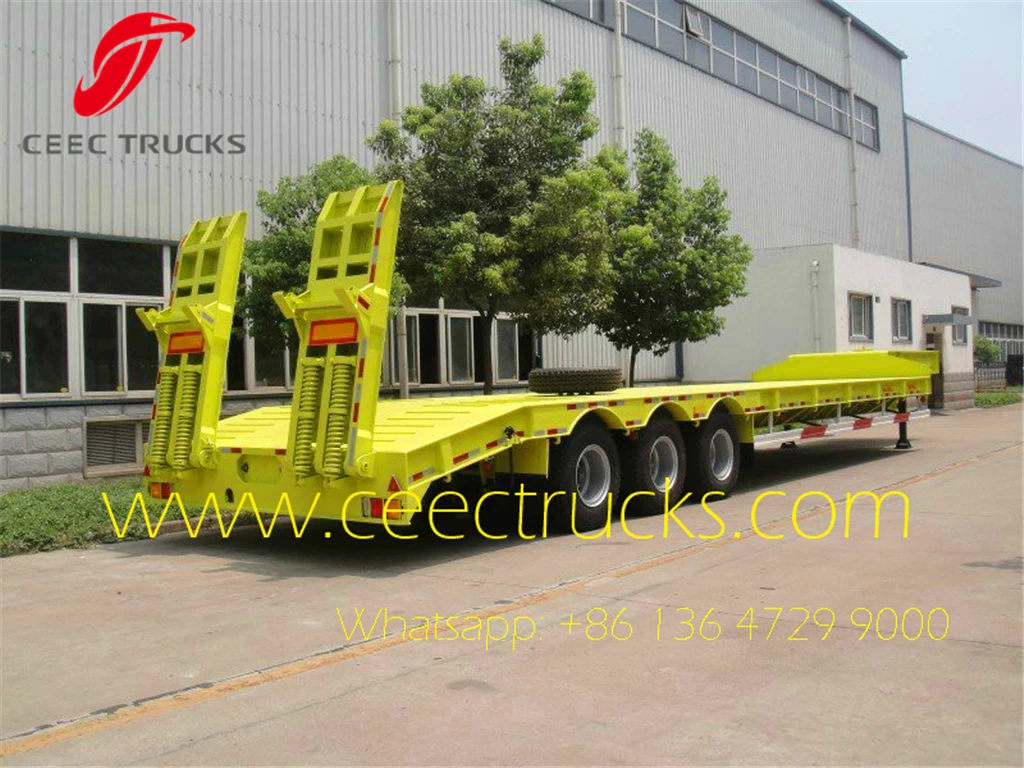

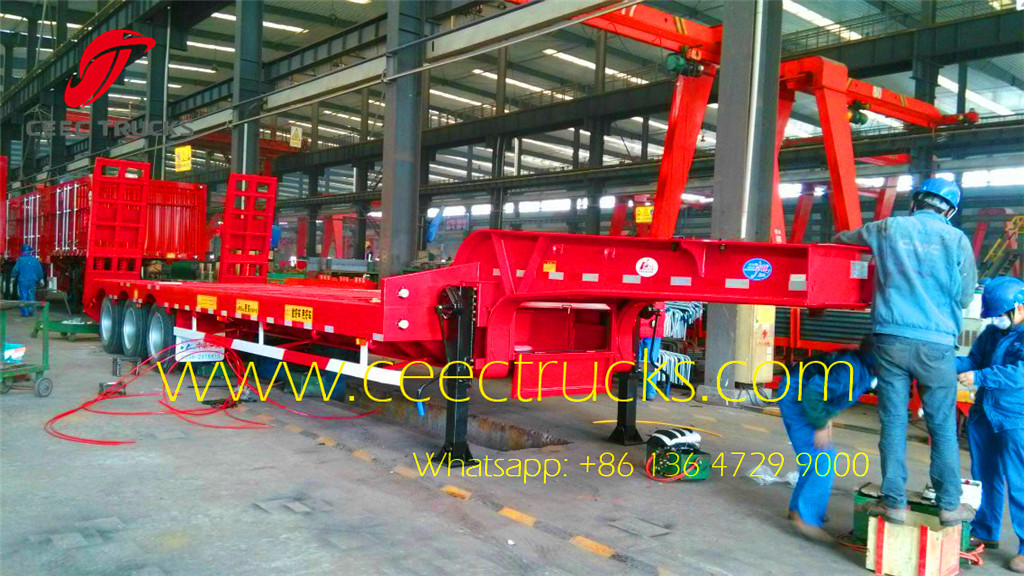

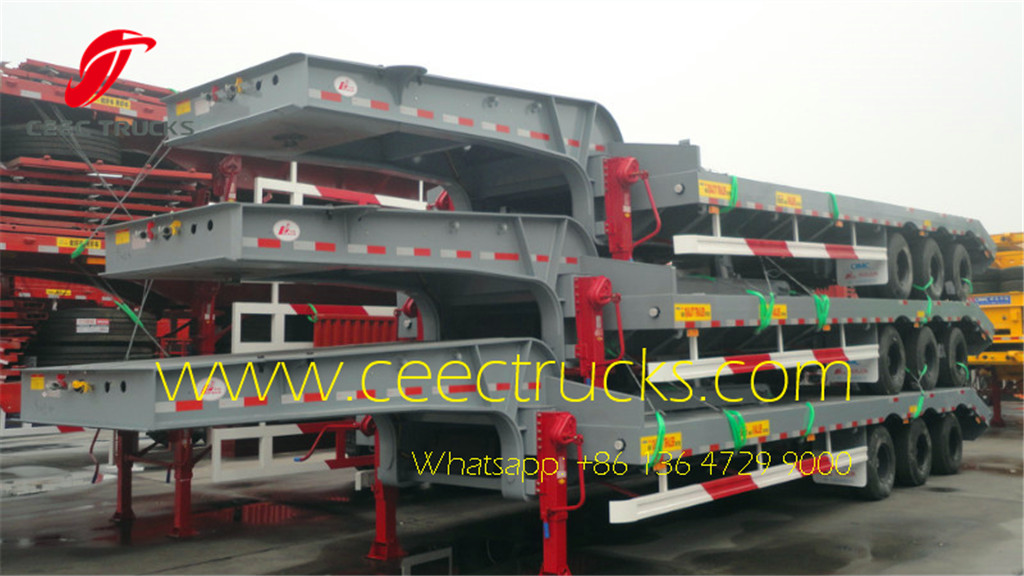

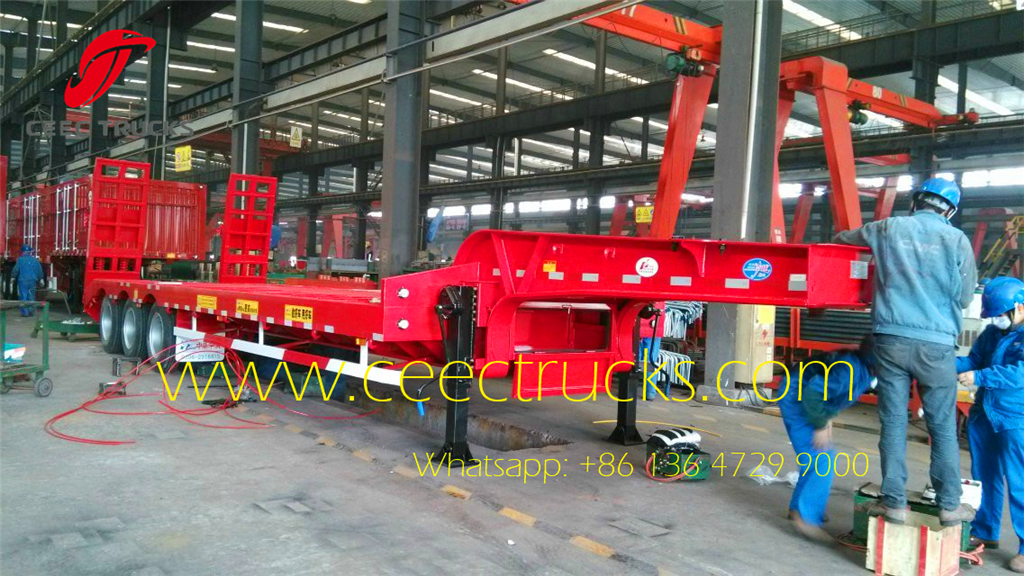

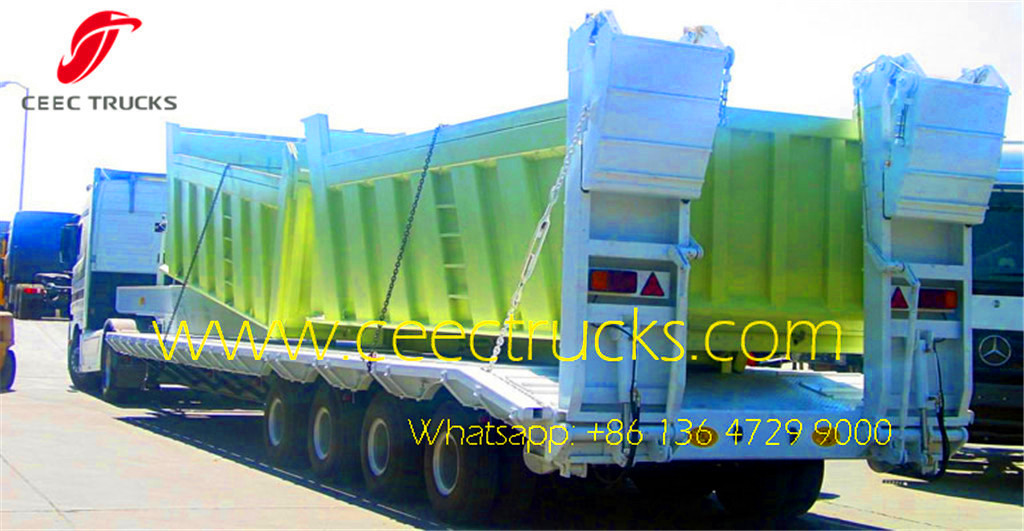

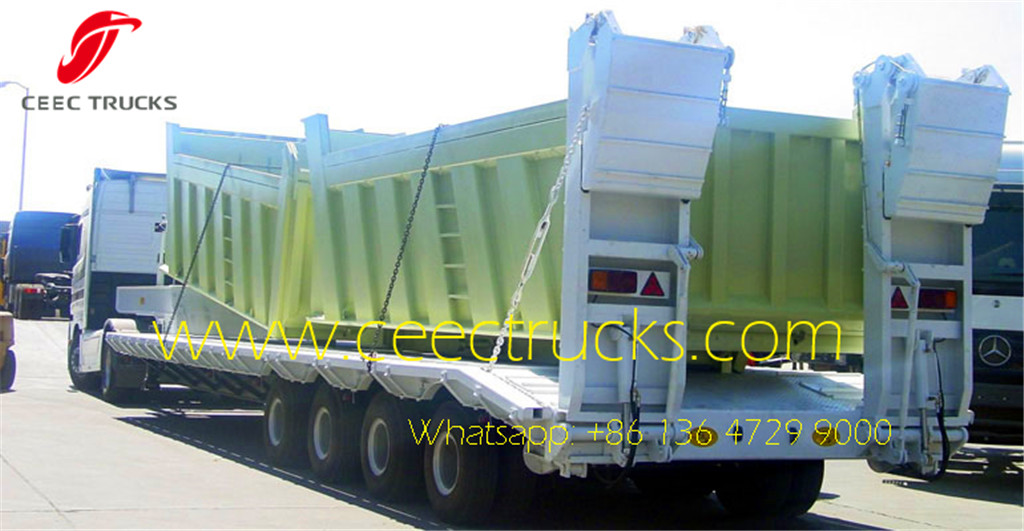

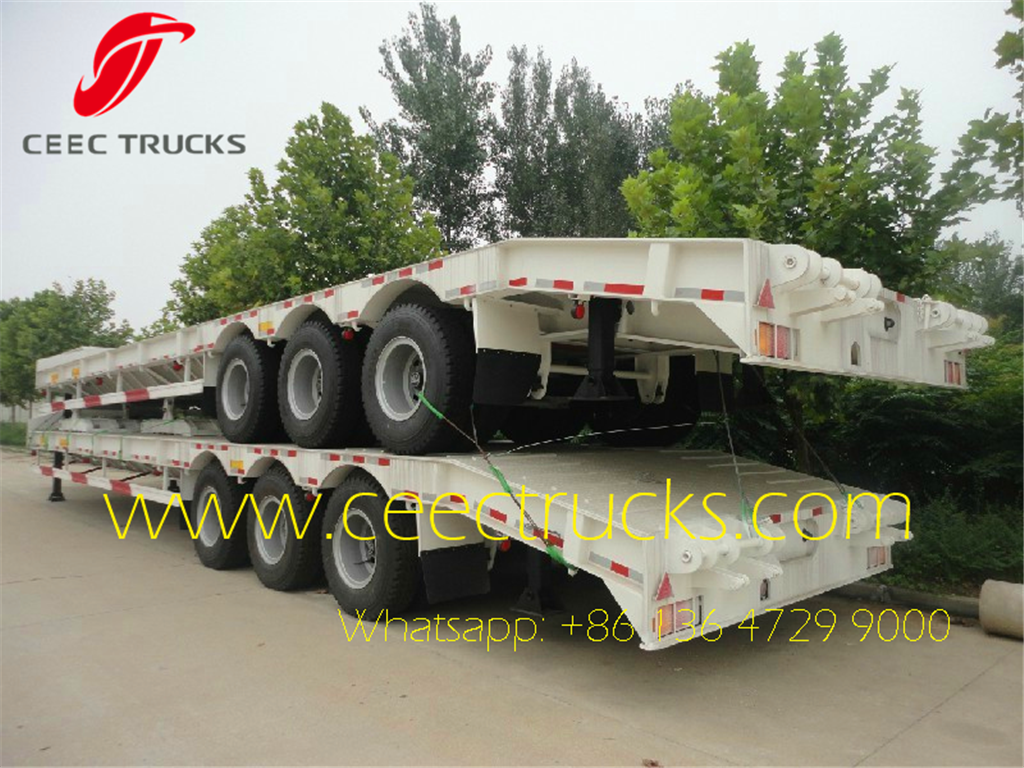

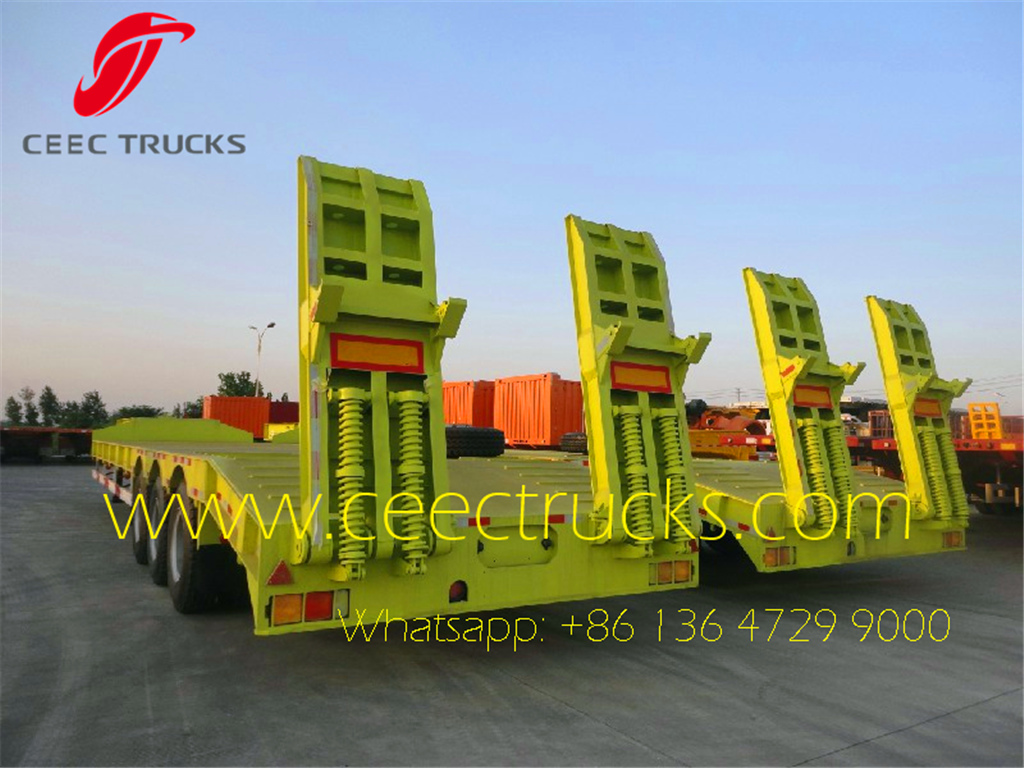

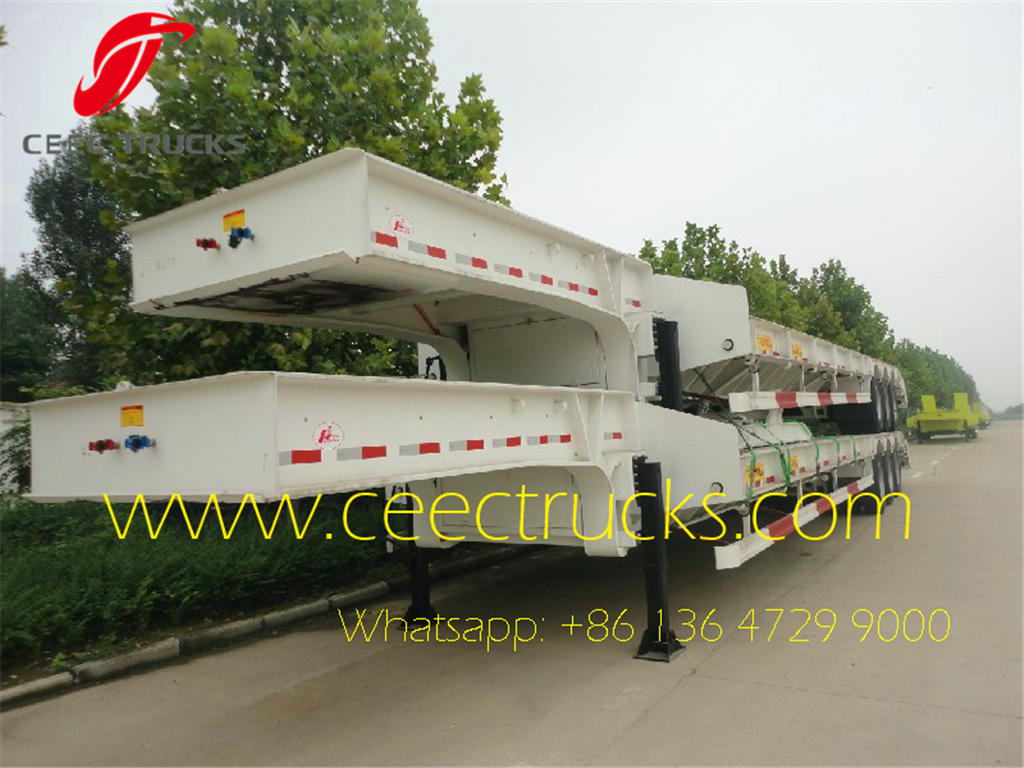

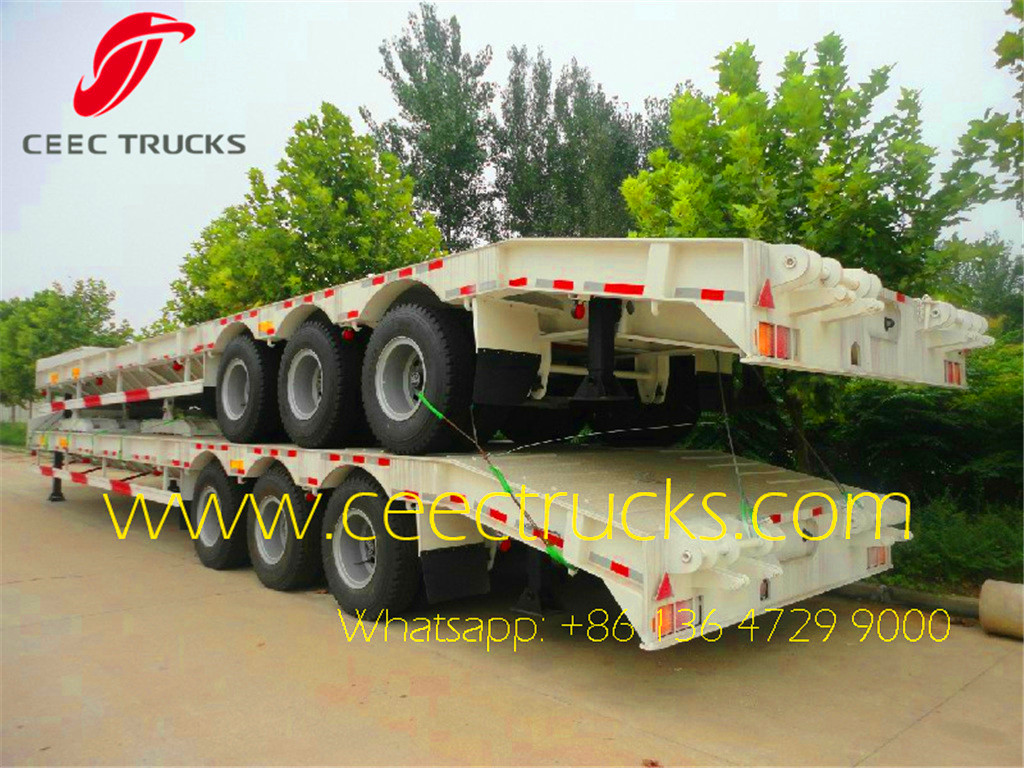

3 axle 30 T low bed semi trailer export Congo, Kenya, Ethiopia, Tanzania and South Africa:

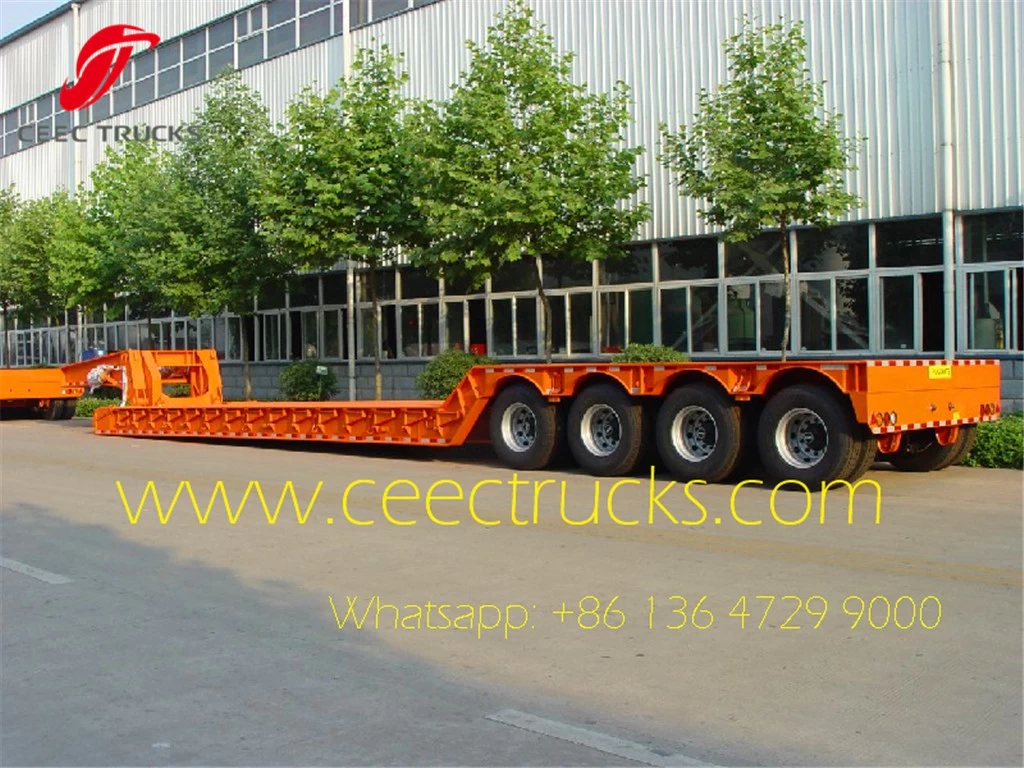

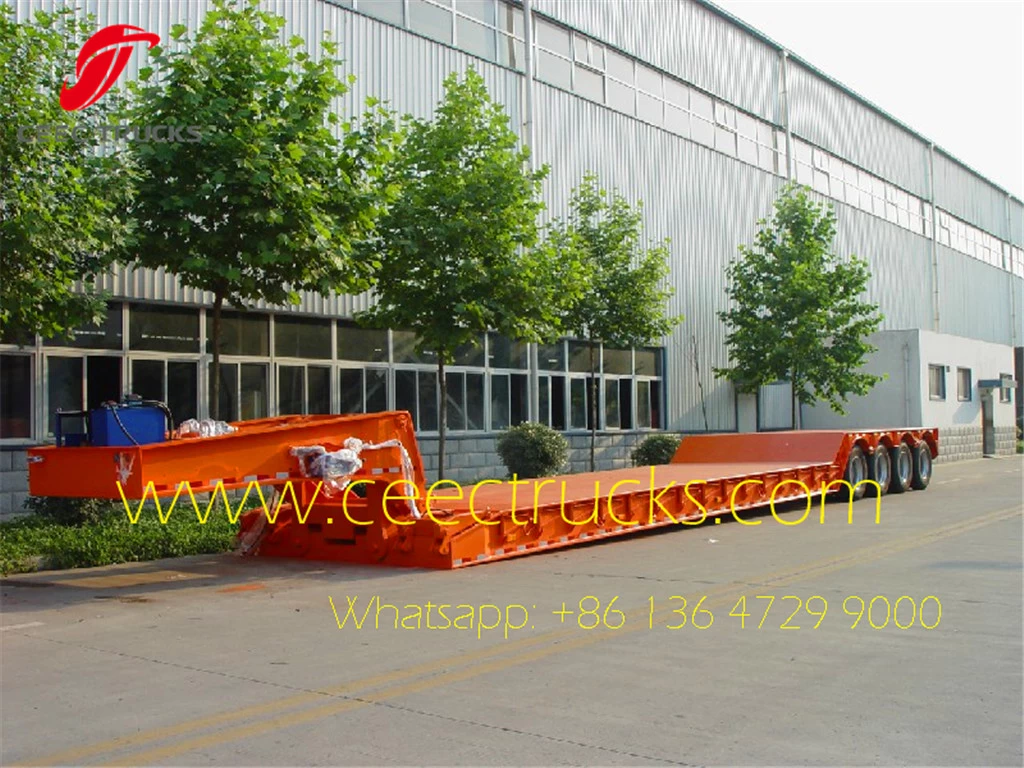

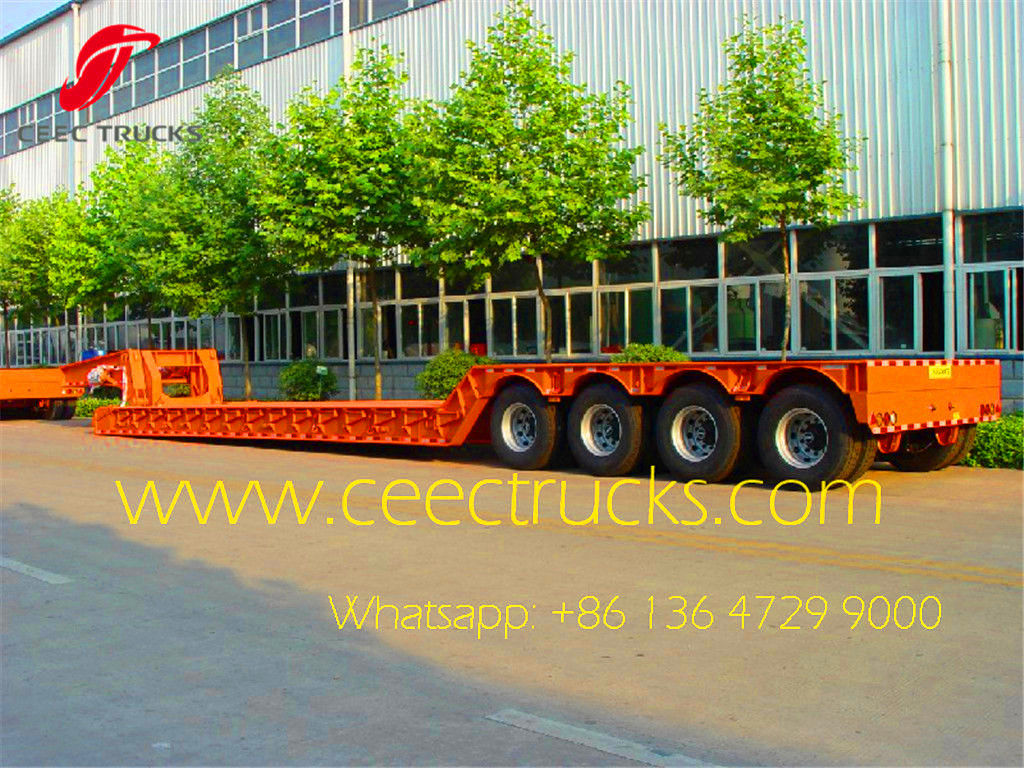

4 axle low bed semi trailer for heavy duty goods transportation:
Similar Key Works: 2 axle low bed semitrailer, 3 axle low bed trailers, 20 T bogie suspension trailer, 30T low bed semitrailers, 40T 2 axle heavy lowbed semitrailers
|
UN 2 axle 30 T Low Bed Semi Trailer
|
|
DIMENSIONS
|
|
Tare Weight
|
8500kg
|
|
Payload
|
40000kg
|
|
Total Weight
|
48500kg
|
|
Overall Length
|
13880mm
|
|
Overall Width
|
3400mm
|
|
Overall Height
|
3090mm
|
|
Wheel track
|
2060mm
|
|
Wheelbase
|
8500mm+1450mm
|
|
SPECIFICATION
|
|
Main Frame
|
Heavy duty and extra durability designed;
Opting for high tensile steel Q345B, welded by automatic Submerged-Arc
processes, 500mmHeight, Top Flange 14mm,width 140mm; Middle Flange 8mm
;Bottom Flange 20mm, width 140mm
|
|
Axle
|
2 Units of FUWA (brand) 13Ton axle.
|
|
Suspension
|
A couple of FUWA (brand) mechanical 3-axle
suspension
|
|
Leaf Spring
|
4 sets of reliable local brand, 8-piece
leaf spring,16x90mm
|
|
King Pin
|
One unit of SAE 2`` standard kingpin
|
|
Landing Gear
|
Two-speed ,manual operation, heavy duty
landing gear
|
|
Wheel Rim
|
9 units 8.25-22.5 rim.
|
|
Tyre
|
9 units 11R22.5 tubeless tyre.
|
|
Spare Wheel Carrier
|
One set of spare wheel carrier including a
riser.
|
|
Pneumatic Braking System
|
Two units of WABCO RE 4 relay valve; six
units of T30/30 chamber; two units of reliable local brand 40L air tank; two
units of reliable local brand standard coppery air-connector.
|
|
Electrical System
|
1.
One unit of JAEGER POWAY,24V 7-pin ISO 1185 socket; two sets of
reliable, local brand standard rear light, turn light, rear reflector, side
light, side reflector etc.
2.
One set of DAFA (brand ) 6-core standard Cable.
|
|
Painting
|
1.
Sand blasting before painting
2.
Two coats of primer, anti-corrosion
3.
One coat of finish painting
4.
Color advised by client
|
|
Accessary
|
One box with a set of standard trailer tool
|
