Low bed semi trailers are widely used for heavy duty goods transportation as its low working platform. So that, there's enough upper loading space. Its low gravity makes the vehicle running safety. We CEEC TRUCKS can design low bed trailer model according to your special goods transportation demands .

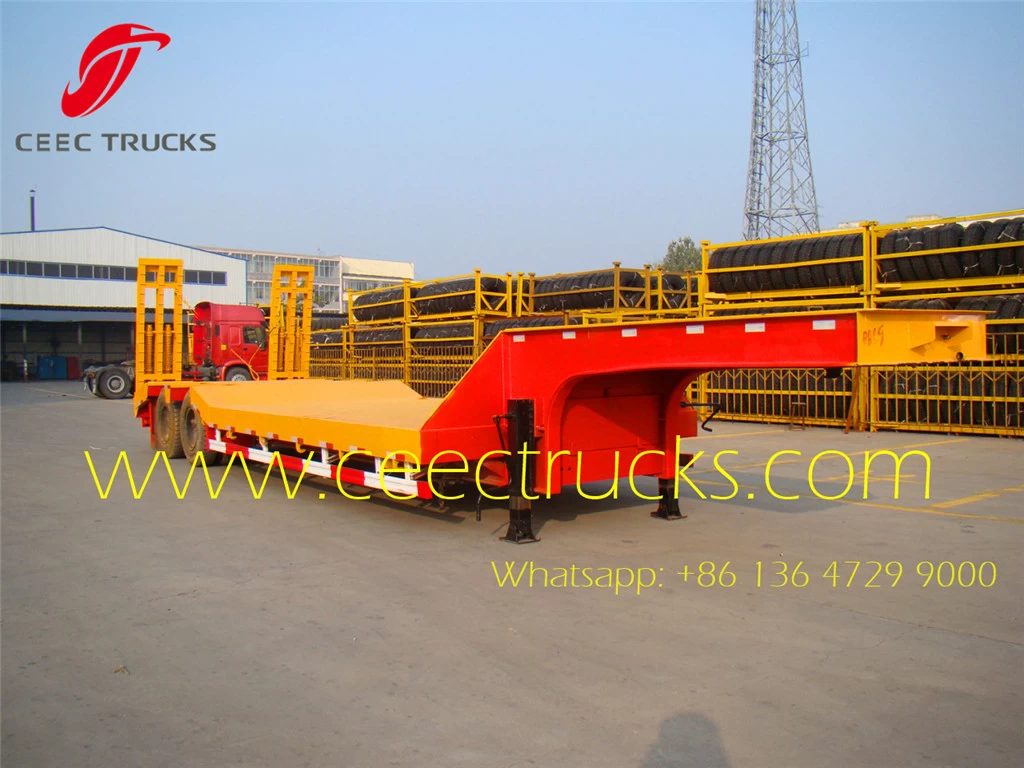

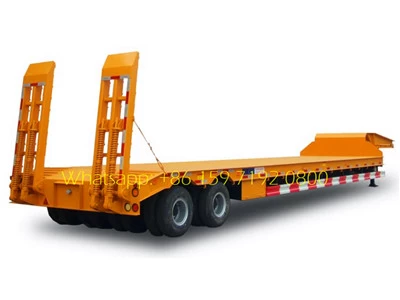

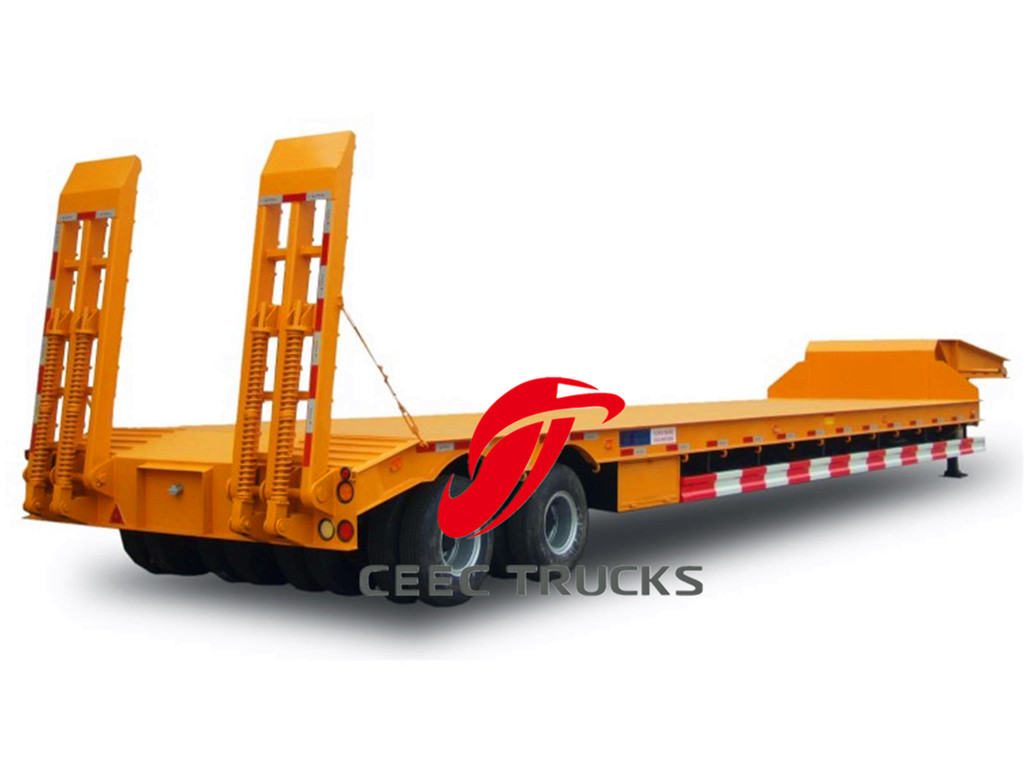

30T Low bed semi trailer manufacturer
Axle: Famous brand axle support trailer durable and high attendance rate.
FUWA brand, BPW brand optional
Chassis: select the best material support stronger beam and trailer chassis.
China best carton steel material Q234, Q345B, T700.
Tire: Famous brand tire and good quality support trailer running safety and smoothly for a variety of road conditions.
Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 optional
King pin: Detachable type support fast and easy replace, JOST brand optional.
Suspension: Mechanical suspension / Air suspension optional
Emergency valve: Fast response, low failure support safety and protect tire durable. WABCO brand.
– Main beam material: Q345b
CEEC TRAILER 2-axle low bed semi trailer main beam is used in carbon steel Q345B.
Q345– good mechanical properties, high mild, good ductility and weldability, is mainly used as the low-pressure containers, tanks, vehicles, cranes, mining machinery, power plants, bridges, etc. under dynamic load configuration
-Shot blasting and Painting
CEEC TRAILER trailer frame all shot blasting, shot peening.
Shot blasting and peening can improve use life, Improve the fatigue strength, Remove surface intensity and painting adhesion.
-Assembly
The entire frame is positioned in a dedicated carriage assembly, welded, reasonable structure, high strength, beautiful appearance

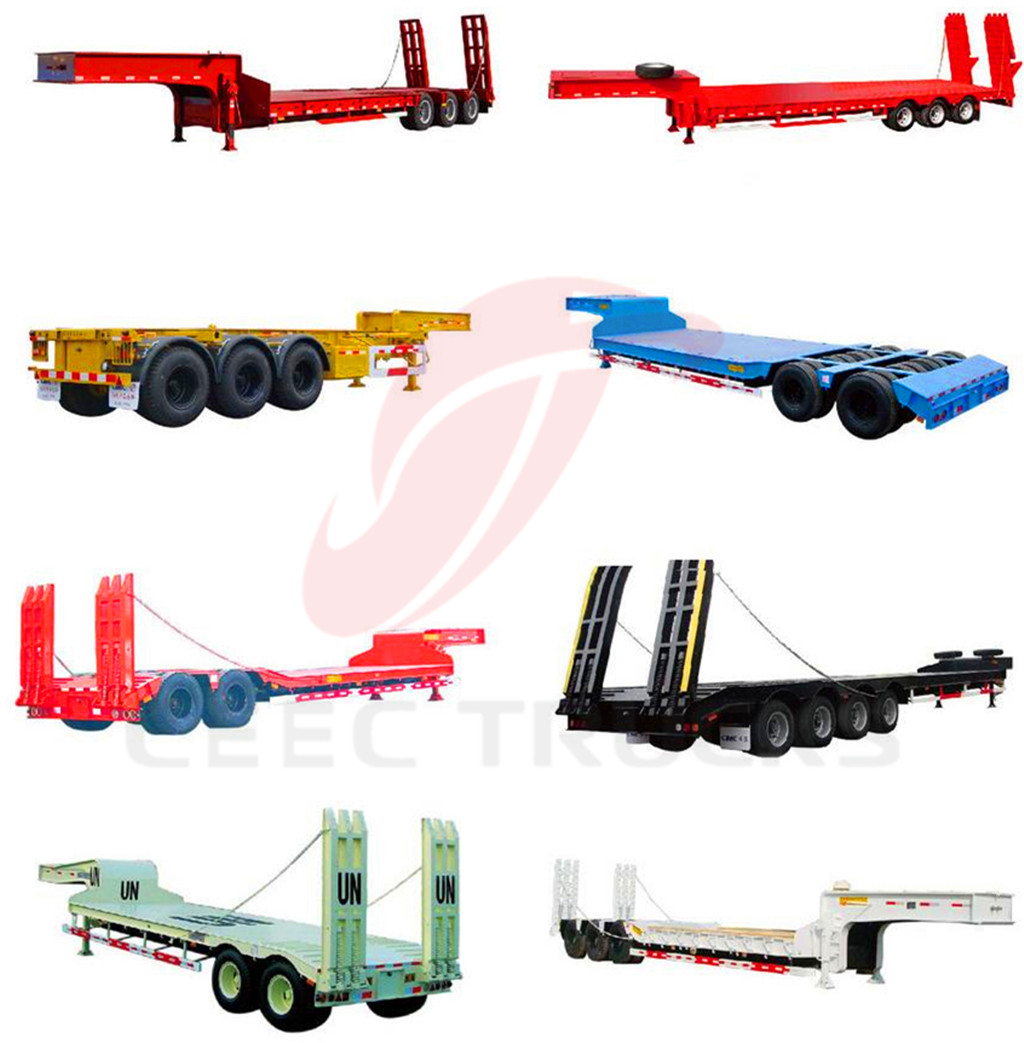

Similar Key Words: 40ton Platform lowboy trailer,50ton Extendable lowbed trailer, 60ton container low loader truck trailer,70-90ton Detachable goose neck trailer, 80ton hydraulic goose neck lowboy trailer, 100ton 2 lines 4 axles low bed trailer, 120ton 3 lines 6 axles low loader trailer,etc.

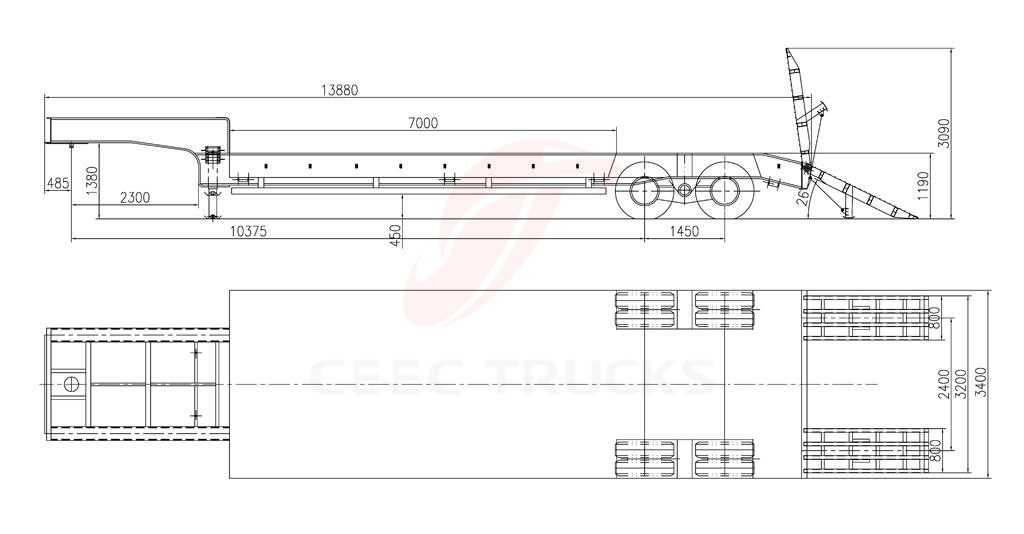

| 2 axle 30T low bed semitrailer DIMENSIONS
|
| Tare Weight
|
8500kg
|
| Payload
|
40000kg
|
| Total Weight
|
48500kg
|
| Overall Length
|
12000mm
|
| Overall Width
|
3000mm
|
| Overall Height
|
3100mm
|
| Wheel track
|
2160mm
|
| Wheelbase
|
7400mm+1300mm
|
| SPECIFICATION
|
| Main Frame
|
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
500mmHeight, Top Flange 14mm,width 140mm; Middle Flange 8mm ;Bottom Flange 20mm,width 140mm
|
| Axle
|
2 Units of FUWA(brand) 13Ton axle.
|
| Suspension
|
A couple of FUWA (brand) mechanical 3-axle suspension
|
| Leaf Spring
|
4 sets of reliable local brand, 8-piece leaf spring,16x90mm
|
| King Pin
|
One unit of SAE 2`` standard kingpin
|
| Landing Gear
|
Two-speed ,manual operation,heavy duty landing gear
|
| Wheel Rim
|
9 units 8.25-22.5 rim.
|
| Tyre
|
9 units 11R22.5 tubeless tyre.
|
| Spare Wheel Carrier
|
One set of spare wheel carrier including a riser.
|
| Pneumatic Braking System
|
Two units of WABCO RE 4 relay valve; six units of T30/30 chamber; two units of reliable local brand 40L air tank; two units of reliable local brand standard coppery air-connector.
|
| Electrical System
|
One unit of JAEGER POWAY,24V 7-pin ISO 1185 socket;two sets of reliable,local brand standard rear light,turn light,rear reflector,side light,side reflector etc.
One set of DAFA(brand ) 6-core standard Cable.
|
| Painting
|
Sand blasting before painting
Two coats of primer, anti corrosion
One coat of finish painting
Colour advised by client
|
| Accessary
|
One box with a set of standard trailer tool
|
