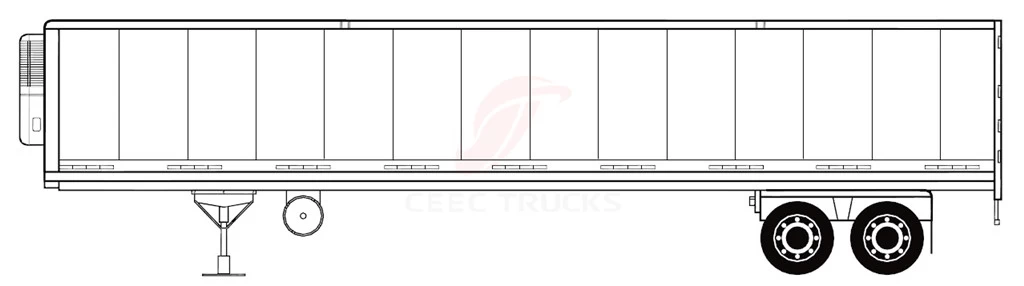

| 2-AXLE REFRIGERATED BOX-BODY SEMITRAILER
|
| Weights
|
| Gross train weight (perm.): 40 t
|
| Gross weight (techn.): 39 t
|
| Axle assembly load (techn.): 27 t
|
| Fifth-wheel load (techn.): 12 t
|
| Tare weight: approx. 7. 9 t
|
|
| Dimensions
|
| Box internal length: approx. 11,345 mm
|
| Box internal width: approx. 2,460 mm
|
| Box internal height: approx. 3,100 mm
|
| Total width: max. 2,600 mm
|
| Loading height: approx. 190 mm over fifth-wheel height
|
|
| Frame
|
| Lightweight welded steel construction with low frame neck
|
| for self-supporting refrigeration box
|
| Replaceable 2" kingpin (EC installation dimension, width across corners: 2,040 mm)
|
|
|
| Chassis
|
| Air suspension with lifting and lowering device (approx. +120/-80 mm)
|
| Automatic adjustment of driving level from 15 km/h
|
| air suspension unit with low-maintenance 430 mm disc brake axles
|
| 2 x 9 t rigid, wheelbase 1,310 mm
|
|
|
| Tyres :
|
| 8 x 385/65 R 22.5 160J, manufacturer as per factory specifications
|
| 8 steel wheel rims 11.75 x 22.5, 10-hole, 120 mm rim offset, silver
|
|
|
| Support fixtures
|
| Mechan. 2 x 12 t support jacks, single-sided operation and thrust compensation, manufacturer as per factory specifications
|
|
|
| Brake system
|
| Brake system according to EC Directive 71/320 or E CE R13
|
| Two-line brake
|
| EBS - electronic brake system
|
| Knorr 2S2M = one axle sensed
|
| RSS - stability program
|
| Spring-loaded parking brake on 2 axles
|
| Steel air tank
|
|
| "SOR" refrigerated model
|
| Side wall thickness: approx. 60 mm
|
| Front wall thickness: approx. 105 mm
|
| Rear door thickness: approx. 90 mm
|
| Roof thickness: approx. 80 mm
|
| Floor thickness: approx. 125 mm
|
| ATP-tested according to FRC - K-value less than 0.4 W
|
| All-plastic box in sandwich construction (GRP inner and outer shell with PU foam insulation, CFC-free, thermal bridge-free and vapour diffusion-resistant)
|
| Body coloured white, similar to RAL 9010
|
| Reinforced front wall for installation of cooling unit with air circulation ducts inside
|
| Stacker-bearing floor construction with sanded grey surface and approx. 5 00 mm aluminium panel covering at rear,
|
| Lateral aluminium skirting, approx. 250 mm high
|
|
|
| Rear portal frame with fully opening double door, each leaf equipped with 1 external espagnolette and lateral door stays, with customs sealing
|
| Frame and door fittings in blank stainless steel
|
| TIR certification
|
| Vertical and horizontal rubber buffers at rear
|
|
| Cooling unit and temperature recording
|
| Carrier Maxima 1300 with diesel engine (other options available at additional charge) , provided as standard,
|
| incl. electronic start/stop system,
|
| fuel tank, installation, commissioning and test operation
|
| Electr. "Euroscan" temperature recording with integrated printer on front wall
|
|
|
| Electrical equipment
|
| 24 V lighting system according to EC Directive 76/756/ EWG
|
| 2 seven-chamber tail lights in underride protection
|
| LED side marker lights
|
| 3 LED Box lighting with recessed interior roof lights incl.
|
| switch on outside front left
|
| 4 front LED clearance lamps (2 at top + 2 at bottom)
|
| 2 rear LED clearance lamps (2 at top)
|
| 2 contour lights on underride protection
|
| 2 x 7-pin and 1 x 15-pin socket
|
|
|
| Paintwork
|
| Blasted with steel granulate, treated with zinc dust primer and spray painted 2-component acrylic paints for commercial vehicles (standard RAL or truck colour)
|
| RAL 7021 black-grey = complete chassis
|
| Plastic and hot-dip galvanised parts unpainted,
|
| powder-coated attachments/installation parts black
|
| Reflective contour marking strips across entire length of sides and all-round contour marking at rear (white on sides and red at rear by default), according to ECE 48
|
|
| Accessories
|
| Rear markings as per ECE standards (horizontal on rear doors/rear wall)
|
|
| Attachments
|
| Wheel chock(s) as per regulations
|
| 1 x retractable step unit at rear right
|
| Single wheel plastic mudguards with spray protection as per regulations
|
| Aluminium underride protection, coated white
|
| Sealed steel pallet box for 36 Euro pallets with partition and door on both sides, black coated/hot-dip galvanised, also acts as side impact protection
|
| 1 spare wheel bracket for 1 spare wheel
|
| 1 plastic toolbox, lockable, unpainted
|
