Unit No.
|
Shaft Dia
|

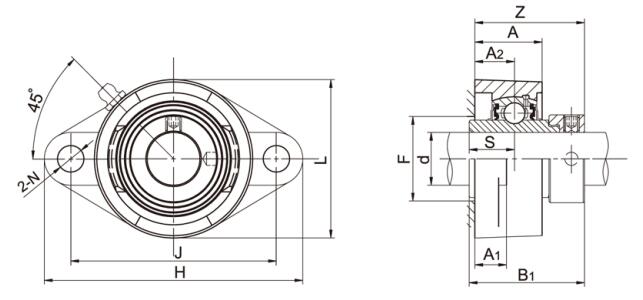

Dimensions (mm)
|
Bolt Size
|
Weight
|
|
d
|
H
|
J
|
A2
|
A1
|
A
|
N
|
L
|
B1
|
s
|
z
|
F
|
(kg)
|
|
(in)
|
(mm)
|
(mm)
|
|
NAFL201S
|
|
12
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
37.3
|
13.9
|
38.2
|
-
|
M10
|
0.48
|
|
NAFL201-8S
|
1/2
|
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
37.3
|
13.9
|
38.2
|
-
|
M10
|
0.48
|
|
NAFL202S
|
|
15
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
37.3
|
13.9
|
38.2
|
-
|
M10
|
0.48
|
|
NAFL202-10S
|
5/8
|
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
37.3
|
13.9
|
38.2
|
-
|
M10
|
0.48
|
|
NAFL203S
|
|
17
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
37.3
|
13.9
|
38.2
|
-
|
M10
|
0.48
|
|
NAFL203-11S
|
11/16
|
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
37.3
|
13.9
|
38.2
|
-
|
M10
|
0.48
|
|
NAFL201
|
|
12
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL201-8
|
1/2
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL202
|
|
15
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL202-10
|
5/8
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL203
|
|
17
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL203-11
|
11/16
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL204
|
|
20
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL204-12
|
3/4
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
43.7
|
17.1
|
41.6
|
32
|
M10
|
0.73
|
|
NAFL205
|
|
25
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
44.4
|
17.5
|
42.9
|
36
|
M14
|
0.80
|
|
NAFL205-14
|
7/8
|
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
44.4
|
17.5
|
42.9
|
36
|
M14
|
0.80
|
|
NAFL205-15
|
15/16
|
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
44.4
|
17.5
|
42.9
|
36
|
M14
|
0.80
|
|
NAFL205-16
|
1
|
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
44.4
|
17.5
|
42.9
|
36
|
M14
|
0.80
|
|
NAFL206
|
|
30
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
48.4
|
18.3
|
48.1
|
42
|
M14
|
1.2
|
|
NAFL206-17
|
1-1/16
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
48.4
|
18.3
|
48.1
|
42
|
M14
|
1.2
|
|
NAFL206-18
|
1-1/8
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
48.4
|
18.3
|
48.1
|
42
|
M14
|
1.2
|
|
NAFL206-19
|
1-3/16
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
48.4
|
18.3
|
48.1
|
42
|
M14
|
1.2
|
|
NAFL206-20
|
1-1/4
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
48.4
|
18.3
|
48.1
|
42
|
M14
|
1.2
|
|
NAFL207
|
|
35
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
51.1
|
18.8
|
51.3
|
50
|
M14
|
1.6
|
|
NAFL207-20
|
1-1/4
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
51.1
|
18.8
|
51.3
|
50
|
M14
|
1.6
|
|
NAFL207-21
|
1-5/16
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
51.1
|
18.8
|
51.3
|
50
|
M14
|
1.6
|
|
NAFL207-22
|
1-3/8
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
51.1
|
18.8
|
51.3
|
50
|
M14
|
1.6
|
|
NAFL207-23
|
1-7/16
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
51.1
|
18.8
|
51.3
|
50
|
M14
|
1.6
|
|
NAFL208
|
|
40
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
56.3
|
21.4
|
55.9
|
55
|
M14
|
1.9
|
|
NAFL208-24
|
1-1/2
|
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
56.3
|
21.4
|
55.9
|
55
|
M14
|
1.9
|
|
NAFL208-25
|
1-9/16
|
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
56.3
|
21.4
|
55.9
|
55
|
M14
|
1.9
|
|
NAFL209
|
|
45
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
56.3
|
21.4
|
56.9
|
60
|
M16
|
2.30
|
|
NAFL209-26
|
1-5/8
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
56.3
|
21.4
|
56.9
|
60
|
M16
|
2.30
|
|
NAFL209-27
|
1-11/16
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
56.3
|
21.4
|
56.9
|
60
|
M16
|
2.30
|
|
NAFL209-28
|
1-3/4
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
56.3
|
21.4
|
56.9
|
60
|
M16
|
2.30
|
|
NAFL210
|
|
50
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
62.7
|
24.6
|
60.1
|
64
|
M16
|
2.60
|
|
NAFL210-30
|
1-7/8
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
62.7
|
24.6
|
60.1
|
64
|
M16
|
2.60
|
|
NAFL210-31
|
1-15/16
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
62.7
|
24.6
|
60.1
|
64
|
M16
|
2.60
|
|
NAFL211
|
|
55
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
71.4
|
27.8
|
68.6
|
71
|
M16
|
3.80
|
|
NAFL211-32
|
2
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
71.4
|
27.8
|
68.6
|
71
|
M16
|
3.80
|
|
NAFL211-34
|
2-1/8
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
71.4
|
27.8
|
68.6
|
71
|
M16
|
3.80
|
|
NAFL211-35
|
2-3/16
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
71.4
|
27.8
|
68.6
|
71
|
M16
|
3.80
|
|
NAFL212
|
|
60
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
77.8
|
31
|
75.8
|
78
|
M20
|
4.80
|
|
NAFL212-36
|
2-1/4
|
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
77.8
|
31
|
75.8
|
78
|
M20
|
4.80
|
|
NAFL212-38
|
2-3/8
|
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
77.8
|
31
|
75.8
|
78
|
M20
|
4.80
|
|
NAFL212-39
|
2-7/16
|
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
77.8
|
31
|
75.8
|
78
|
M20
|
4.80
|
|
NAFL213
|
|
65
|
258
|
210
|
30
|
22
|
50
|
23
|
153
|
85.7
|
34.1
|
81.6
|
85
|
M20
|
6
|
|
NAFL213-40
|
2-1/2
|
|
258
|
210
|
30
|
22
|
50
|
23
|
153
|
85.7
|
34.1
|
81.6
|
85
|
M20
|
6
|
|
NAFL214
|
|
70
|
265
|
216
|
31
|
22
|
54
|
23
|
160
|
85.7
|
34.1
|
82.6
|
91
|
M20
|
6.3
|
|
NAFL214-44
|
2-3/4
|
|
265
|
216
|
31
|
22
|
54
|
23
|
160
|
85.7
|
34.1
|
82.6
|
91
|
M20
|
6.3
|
|
NAFL215
|
|
75
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
92.1
|
37.3
|
88.8
|
96
|
M20
|
7.2
|
|
NAFL215-48
|
3
|
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
92.1
|
37.3
|
88.8
|
96
|
M20
|
7.2
|
Notes:Bearing housing solid base optional,add suffix SB as designation.
Any interests to mounted bearing units, pls contact us directly.
