Unit No.
|
Shaft Dia
|

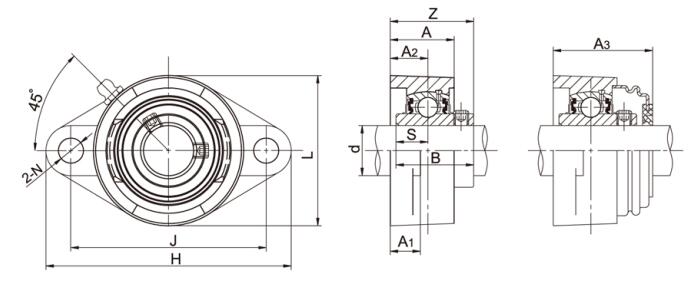

Dimensions(mm)
|
Bolt Size (mm)
|
Weight (kg)
|
|
d
|
H
|
J
|
A2
|
A1
|
A
|
N
|
L
|
B
|
s
|
z
|
A3
|
|
(in)
|
(mm)
|
|
UCWFL201
|
|
12
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
27.4
|
11.5
|
30.9
|
-
|
M10
|
0.52
|
|
UCWFL202
|
|
15
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
27.4
|
11.5
|
30.9
|
-
|
M10
|
0.48
|
|
UCWFL203
|
|
17
|
97
|
76.5
|
15
|
11
|
25.5
|
11.5
|
55
|
27.4
|
11.5
|
30.9
|
-
|
M10
|
0.37
|
|
UCFL201
|
|
12
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
-
|
M10
|
0.51
|
|
UCFL201-8
|
1/2
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
-
|
M10
|
0.51
|
|
UCFL202
|
|
15
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
-
|
M10
|
0.51
|
|
UCFL202-9
|
9/16
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
-
|
M10
|
0.51
|
|
UCFL202-10
|
5/8
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
-
|
M10
|
0.51
|
|
UCFL203
|
|
17
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
-
|
M10
|
0.51
|
|
UCFL203-11
|
11/16
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
-
|
M10
|
0.51
|
|
UCFL204
|
|
20
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
38.2
|
M10
|
0.51
|
|
UCFL204-12
|
3/4
|
|
113
|
90
|
15
|
11
|
25.5
|
12
|
60
|
31
|
12.7
|
33.3
|
38.2
|
M10
|
0.51
|
|
UCFL205
|
|
25
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
34.1
|
14.3
|
35.8
|
40
|
M14
|
0.6
|
|
UCFL205-14
|
7/8
|
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
34.1
|
14.3
|
35.8
|
40
|
M14
|
0.6
|
|
UCFL205-15
|
15/16
|
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
34.1
|
14.3
|
35.8
|
40
|
M14
|
0.6
|
|
UCFL205-16
|
1
|
|
130
|
99
|
16
|
13
|
27
|
16
|
68
|
34.1
|
14.3
|
35.8
|
40
|
M14
|
0.6
|
|
UCFL206
|
|
30
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
38.1
|
15.9
|
40.2
|
44
|
M14
|
0.9
|
|
UCFL206-17
|
1-1/16
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
38.1
|
15.9
|
40.2
|
44
|
M14
|
0.9
|
|
UCFL206-18
|
1-1/8
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
38.1
|
15.9
|
40.2
|
44
|
M14
|
0.9
|
|
UCFL206-19
|
1-3/16
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
38.1
|
15.9
|
40.2
|
44
|
M14
|
0.9
|
|
UCFL206-20
|
1-1/4
|
|
148
|
117
|
18
|
13
|
31
|
16
|
80
|
38.1
|
15.9
|
40.2
|
44
|
M14
|
0.9
|
|
UCFL207
|
|
35
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
42.9
|
17.5
|
44.4
|
48.5
|
M14
|
1.2
|
|
UCFL207-20
|
1-1/4
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
42.9
|
17.5
|
44.4
|
48.5
|
M14
|
1.2
|
|
UCFL207-21
|
1-5/16
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
42.9
|
17.5
|
44.4
|
48.5
|
M14
|
1.2
|
|
UCFL207-22
|
1-3/8
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
42.9
|
17.5
|
44.4
|
48.5
|
M14
|
1.2
|
|
UCFL207-23
|
1-7/16
|
|
160
|
130
|
19
|
15
|
34
|
16
|
90
|
42.9
|
17.5
|
44.4
|
48.5
|
M14
|
1.2
|
|
UCFL208
|
|
40
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
49.2
|
19
|
51.2
|
55.1
|
M14
|
1.5
|
|
UCFL208-24
|
1-1/2
|
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
49.2
|
19
|
51.2
|
55.1
|
M14
|
1.5
|
|
UCFL208-25
|
1-9/16
|
|
175
|
144
|
21
|
15
|
36
|
16
|
100
|
49.2
|
19
|
51.2
|
55.1
|
M14
|
1.5
|
|
UCFL209
|
|
45
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
49.2
|
19
|
52.2
|
57
|
M16
|
1.9
|
|
UCFL209-26
|
1-5/8
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
49.2
|
19
|
52.2
|
57
|
M16
|
1.9
|
|
UCFL209-27
|
1-11/16
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
49.2
|
19
|
52.2
|
57
|
M16
|
1.9
|
|
UCFL209-28
|
1-3/4
|
|
188
|
148
|
22
|
16
|
38
|
19
|
108
|
49.2
|
19
|
52.2
|
57
|
M16
|
1.9
|
|
UCFL210
|
|
50
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
51.6
|
19
|
54.6
|
60
|
M16
|
2.2
|
|
UCFL210-30
|
1-7/8
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
51.6
|
19
|
54.6
|
60
|
M16
|
2.2
|
|
UCFL210-31
|
1-15/16
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
51.6
|
19
|
54.6
|
60
|
M16
|
2.2
|
|
UCFL210-32
|
2
|
|
197
|
157
|
22
|
16
|
40
|
19
|
115
|
51.6
|
19
|
54.6
|
60
|
M16
|
2.2
|
|
UCFL211
|
|
55
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.0
|
|
UCFL211-32
|
2
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.0
|
|
UCFL211-34
|
2-1/8
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.0
|
|
UCFL211-35
|
2-3/16
|
|
224
|
184
|
25
|
18
|
43
|
19
|
125
|
55.6
|
22.2
|
58.4
|
63
|
M16
|
3.0
|
|
UCFL212
|
|
60
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
65.1
|
25.4
|
68.7
|
73.5
|
M20
|
4.0
|
|
UCFL212-36
|
2-1/4
|
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
65.1
|
25.4
|
68.7
|
73.5
|
M20
|
4.0
|
|
UCFL212-38
|
2-3/8
|
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
65.1
|
25.4
|
68.7
|
73.5
|
M20
|
4.0
|
|
UCFL212-39
|
2-7/16
|
|
250
|
202
|
29
|
18
|
48
|
23
|
140
|
65.1
|
25.4
|
68.7
|
73.5
|
M20
|
4.0
|
|
UCFL213
|
|
65
|
258
|
210
|
30
|
22
|
50
|
23
|
155
|
65.1
|
25.4
|
69.7
|
74.5
|
M20
|
5.0
|
|
UCFL213-40
|
2-1/2
|
|
258
|
210
|
30
|
22
|
50
|
23
|
155
|
65.1
|
25.4
|
69.7
|
74.5
|
M20
|
5.0
|
|
UCFL214
|
|
70
|
265
|
216
|
31
|
22
|
54
|
23
|
160
|
74.6
|
30.2
|
75.4
|
80
|
M20
|
5.6
|
|
UCFL214-44
|
2-3/4
|
|
265
|
216
|
31
|
22
|
54
|
23
|
160
|
74.6
|
30.2
|
75.4
|
80
|
M20
|
5.6
|
|
UCFL215
|
|
75
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
77.8
|
33.3
|
78.5
|
82.5
|
M20
|
6.2
|
|
UCFL215-47
|
2-15/16
|
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
77.8
|
33.3
|
78.5
|
82.5
|
M20
|
6.2
|
|
UCFL215-48
|
3
|
|
275
|
225
|
34
|
22
|
56
|
23
|
165
|
77.8
|
33.3
|
78.5
|
82.5
|
M20
|
6.2
|
|
UCFL216
|
|
80
|
290
|
233
|
34
|
22
|
58
|
25
|
180
|
82.6
|
33.3
|
83.3
|
89
|
M22
|
7.8
|
|
UCFL217
|
|
85
|
305
|
248
|
36
|
24
|
63
|
25
|
190
|
85.7
|
34.1
|
87.6
|
93.1
|
M22
|
9.8
|
|
UCFL217-52
|
3-1/4
|
|
305
|
248
|
36
|
24
|
63
|
25
|
190
|
85.7
|
34.1
|
87.6
|
93.1
|
M22
|
9.8
|
|
UCFL218
|
|
90
|
320
|
265
|
40
|
24
|
68
|
25
|
205
|
96
|
39.7
|
96.3
|
102
|
M22
|
12.4
|
|
UCFL218-56
|
3-1/2
|
|
320
|
265
|
40
|
24
|
68
|
25
|
205
|
96
|
39.7
|
96.3
|
102
|
M22
|
12.4
|

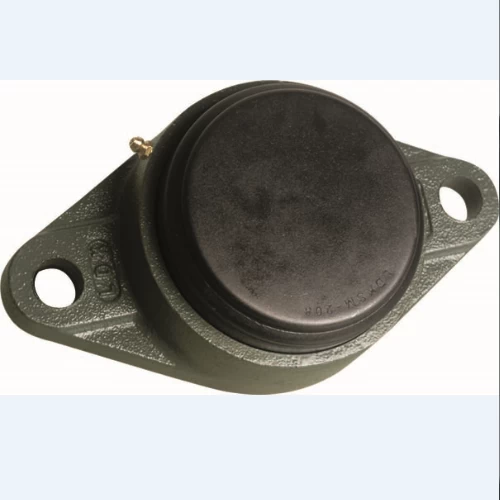

Notes:1. Pressed steel covers available at one end.S=Open cap,SM=Close cap. Ordering example:UCFL205+SM.
2. Bearing housing solid base optional,add suffix SB as designation.
