2-Bolt Flange Bearing Units UCFLX



UKFL+H  Standard duty,Tapered bore,Adapter sleeve locking,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.



Facebook Twitter Pinterest LinkedIn 分享

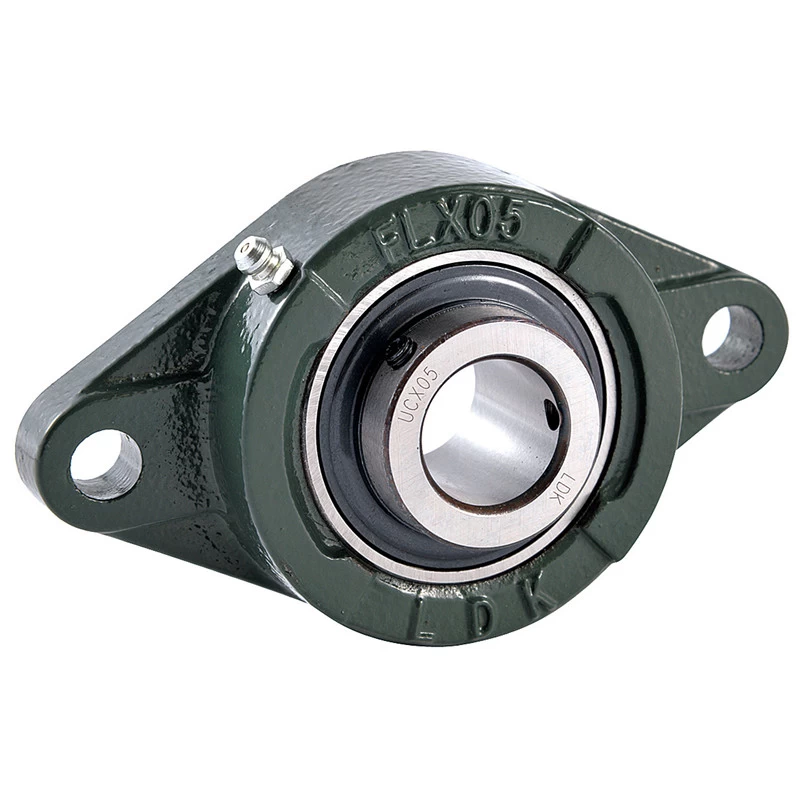

UCFLX08 2-Bolt Flange Bearing housing

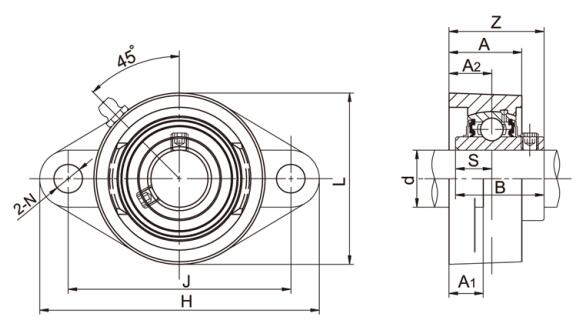

Unit No. Shaft Dia Dimensions (mm) Bolt Size Weight
d H J A2 A1 A N L B s z (mm) (in) (kg)
(in) (mm)
UCFLX05   25 141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1.0
UCFLX05-13 13/16    141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1.0
UCFLX05-14 7/8   141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1.0
UCFLX05-15 15/16   141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1.0
UCFLX05-16 1   141 117 18 13 30 12 83 38.1 15.9 40.2 M14 3/8 1.0
UCFLX06   30 156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-17 1-1/16    156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-18 1-1/8   156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-19 1-3/16   156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX06-20 1-1/4   156 130 19 15 34 16 95 42.9 17.5 44.4 M14 1/2 1.5
UCFLX07   35 171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2.0
UCFLX07-21 1-5/16    171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2.0
UCFLX07-22 1-3/8   171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2.0
UCFLX07-23 1-7/16   171 144 21 16 38 16 105 49.2 19 51.2 M14 1/2 2.0
UCFLX08   40 179 148 22 16 40 16 111 49.2 19 52.2 M14 1/2 2.2
UCFLX08-24 1-1/2    179 148 22 16 40 16 111 49.2 19 52.2 M14 1/2 2.2
UCFLX08-25 1-9/16   179 148 22 16 40 16 111 49.2 19 52.2 M14 1/2 2.2
UCFLX09   45 189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-26 1-5/8  189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-27 1-11/16   189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-28 1-3/4   189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX09-29 1-13/16   189 157 23 16 40 16 116 51.6 19 55.6 M16 1/2 2.4
UCFLX10   50 216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4
UCFLX10-30 1-7/8  216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4
UCFLX10-31 1-15/16   216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4
UCFLX10-32 2   216 184 26 18 44 19 133 55.6 22.2 59.4 M16 5/8 3.4
