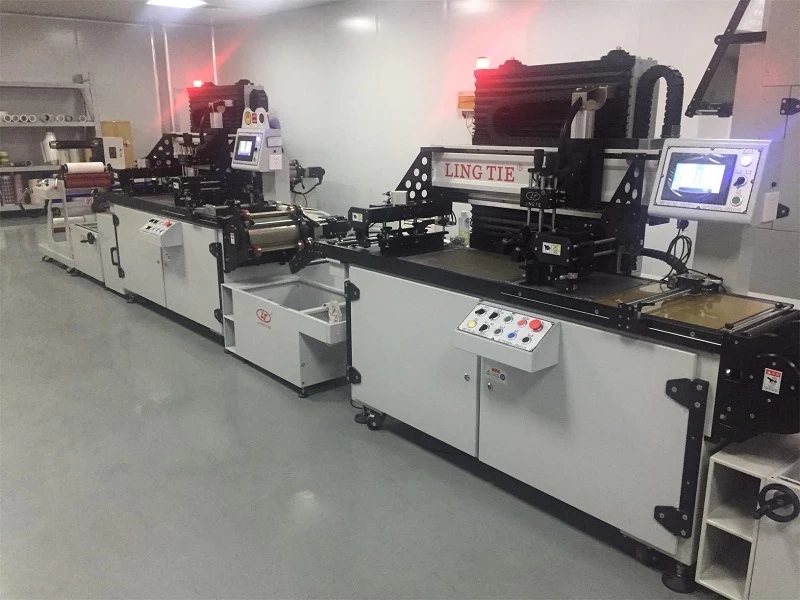

Product Name: Two Color Roll to Roll Screen Printing Machine

Material  Application Range

 All kinds of roll films, like PET, PVC, PC, PE, PP, and Roll Coated Paper, Leather,

Printing Label Range

 Heat Transfer Label, Electronic Alliances, Membrane Switches, Panels. Soft Circuit Board, IMD, IML, FPC, Rubber Vulcanization, Non-woven Fabric, Decal label for Cars, Ceramic, Decals, Adhesive Sticker, etc.

Product Description:

• 2-colors Fully Automatic Screen Printing combines with

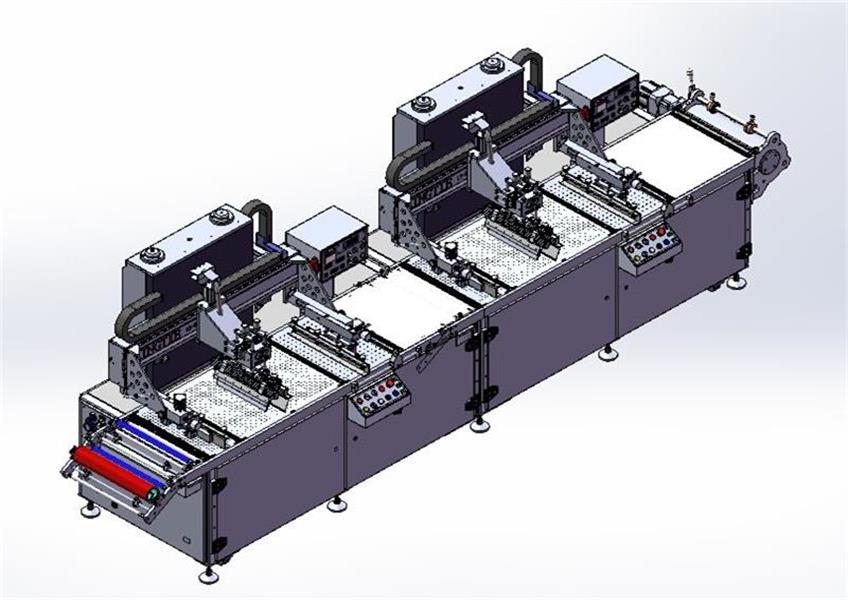

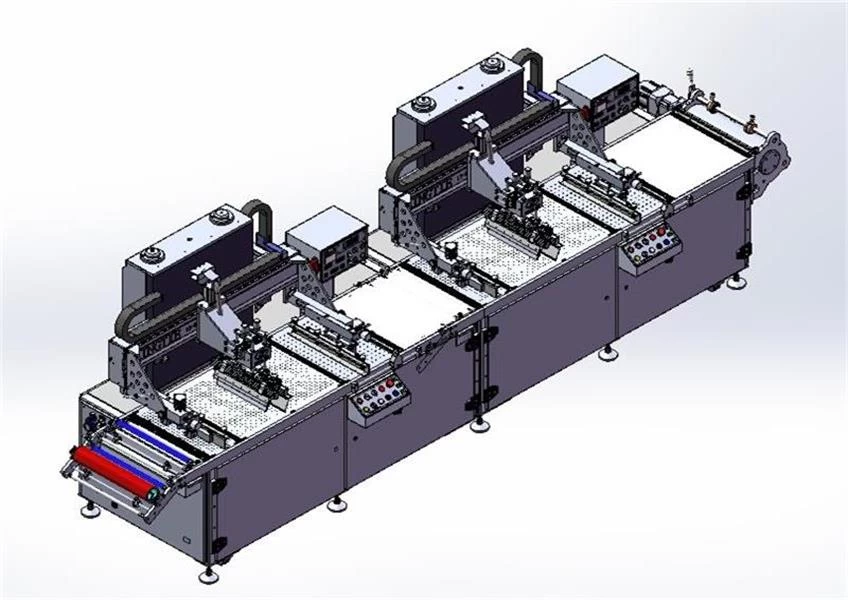

•  A feeding unit  + One Screen Printing Station & LED UV Dryer + One Screen Printing Station + Tunnel Oven
• A feeding unit  + One Screen Printing Station & LED UV Dryer + One Screen Printing Station & LED UV Dryer + Rewinder Collection Machine
• Yaskawa servo motor for film pitch feeding and no scratch.
• Mitsubishi PLC for machine control.
• Printing head horizontal movement by the servo motor.
• Vacuum table with air suction during the printing process.
• 3 sensors for the automatic register in X-Y directions to reach 0.01mm accuracy.
• Frame and printing head up-down by pneumatic.
• High precision rails and bearings for running parts.

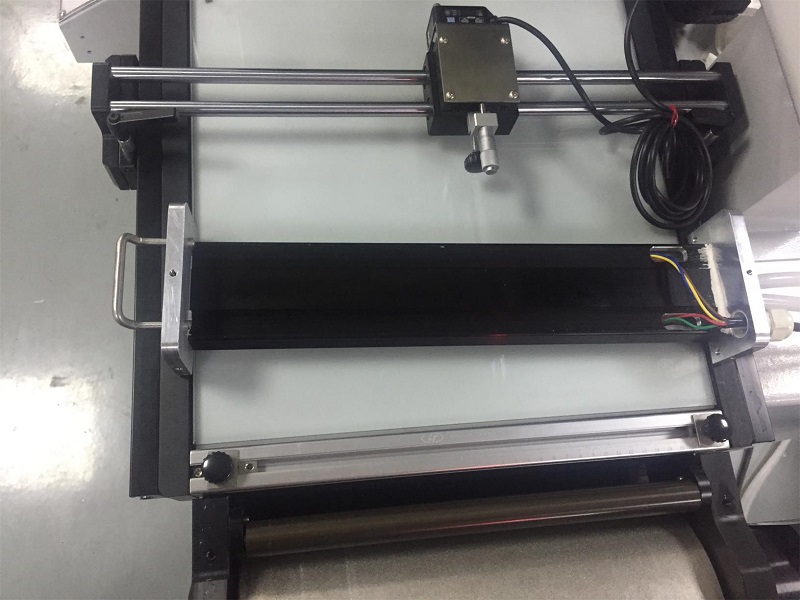

• Pitch Feeding Roller and Glass Table
• Glass table for printing quality inspection and punching device either to add.
• Touch screen control panel in the English language, and other 3 languages.
• Automatic reminding when the operation error occurs.
• Machine software can be upgraded if you need.

The parameter of the Roll to Roll Screen Printing Machine

• All models have right-to-left and left-to-right direction for option
• maximum printing area: 300 x 400mm
• maximum printing speed: 6000 impression/ hour
• max. screen frame area: 600 x 700mm
• power supply: single phase 220v, 3kw, 15A
• Gross weight: 3500kg
• Dimension: 9000 x 1500 x 2150mm

The Parameter of Tunnel Oven

• Power:14kw
• Max. temperature: 140
• Insulation Layer Thickness: 50mm
• Inner loop: 30 meter
• Uniform speed device for option
• Automatic double-sided dust elimination for option
• Web guiding function for option
• Automatic Laminating device optional
• Static electricity eliminating device
• Connect Powdering Machine available
