Compatible with EPSON ESC/POS command sets

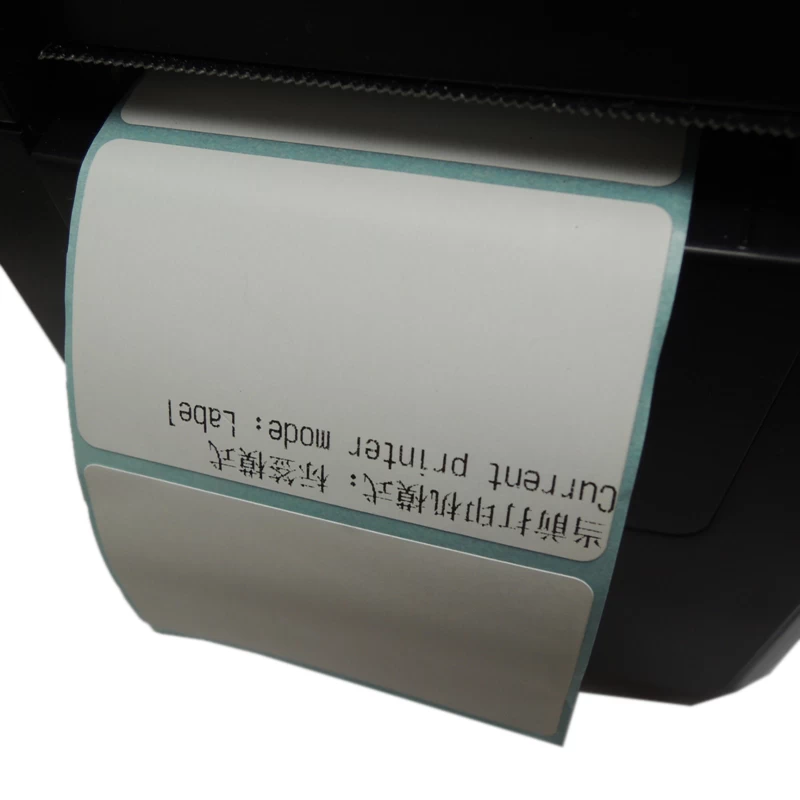

Thermal& label paper printing
Build-inUSB Flsh Disk and one-click setup
Automaticdetection of paper position
Manuallytearing
Compatiblewith EPSON ESC/POS command sets

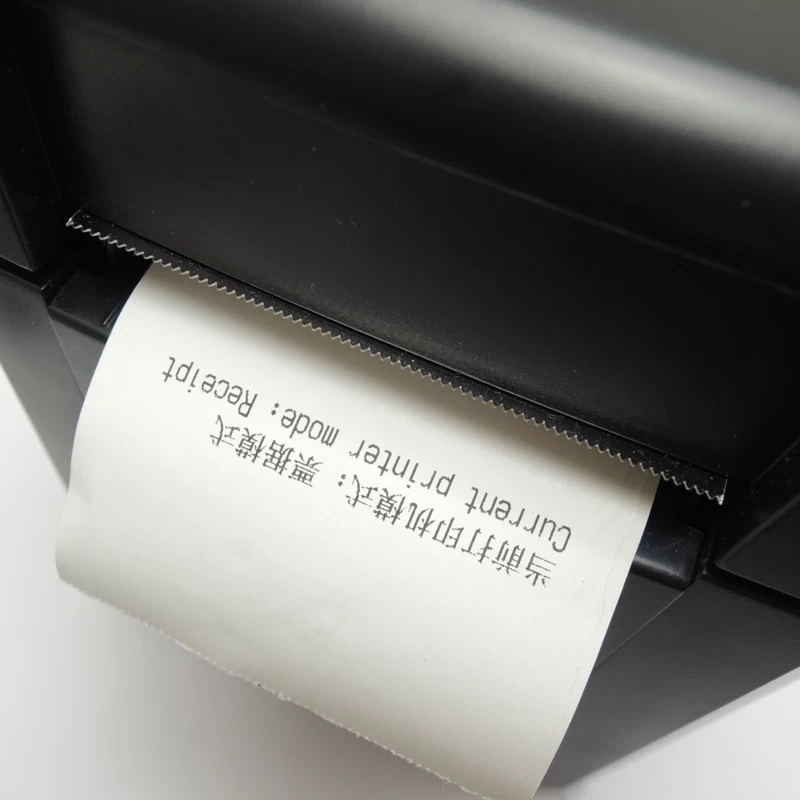

Asharp tearing area, tearing paper neatly
Overheatprotection and durable of the print head
Interfacetype:Serial port/USB/Bluetooth(Optional)
|
Specification:
|
|
|
|
Printing mode
|
Thermal Label Printing
|
Thermal Receipt Printing
|
|
Dot density
|
203dpi
|
384dot/line
|
|
Print width
|
56mm max.
|
48mm
|
|
Print speed
|
101~ 127mm/sec
|
90mm/sec
|
|
Buffer
|
Dram: 2M, Flash: 2M
|
Dram: 2M, Flash: 2M
|
|

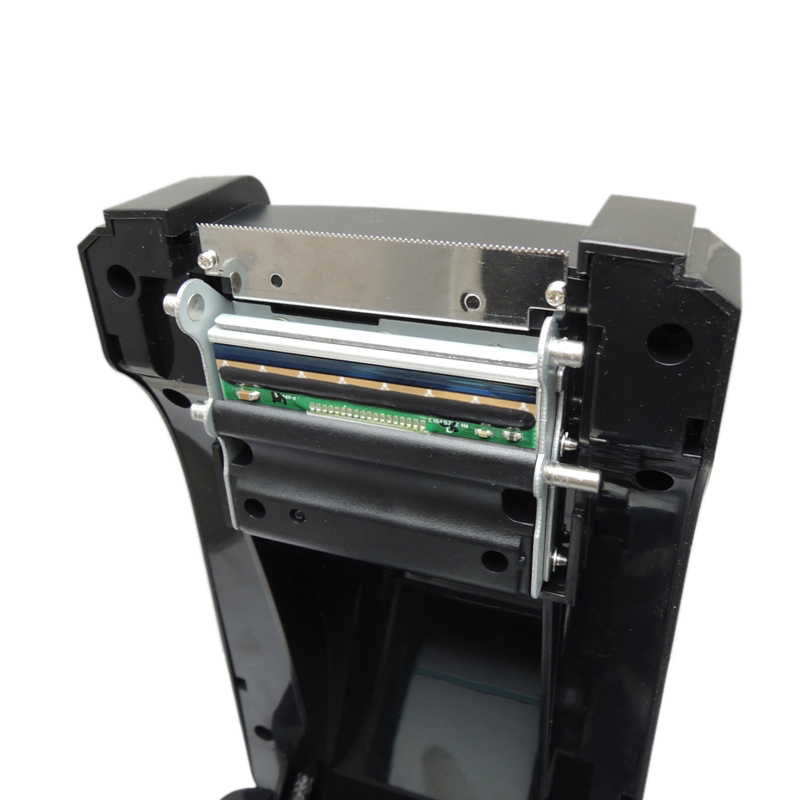

Print head
|
thermal sensitive resistance
|
thermal sensitive resistance
|
|
temperature detect
|
|
Print headposition detect
|
Microswitch
|
Microswitch
|
|
Paper sensor
|
Photoelectricity
|
Photoelectricity
|
|

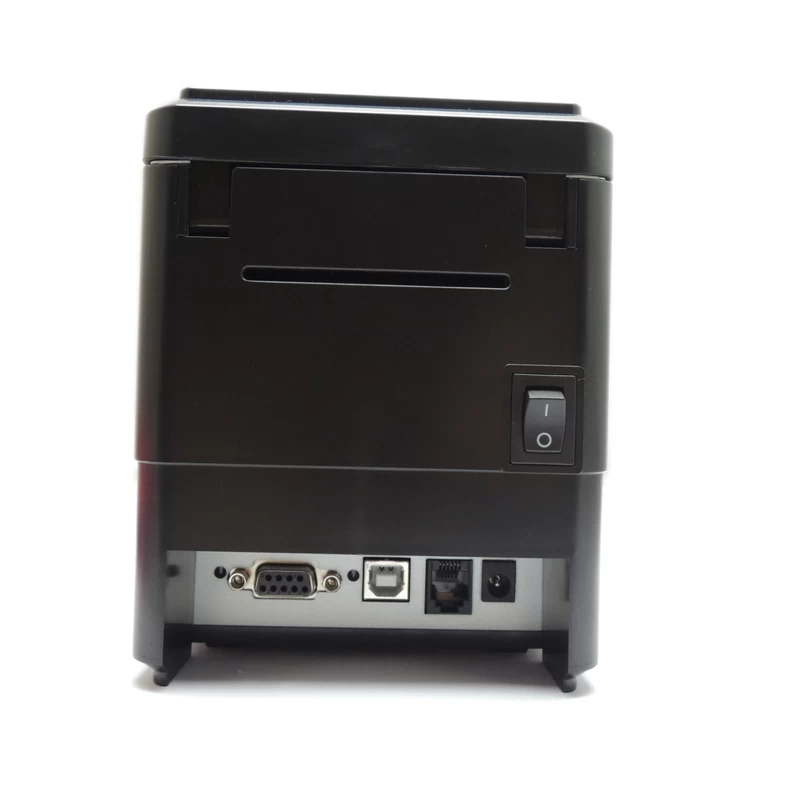

Interface
|
Serial+USB
|
Serial+USB
|
|
Serial+USB+Bluetooth (optional)
|
Serial+USB+Bluetooth (optional)
|
|
Barcode type
|
CODE128/EAN128/ITF/CODE39/CODE93
|
UPC-A/UPC-E /JAN13(EAN13) /JAN8/CODE39
|
|
/EAN13/EAN13+2/EAN13+5/EAN8/EAN8+2
|
/CODEBAR/ITF/CODE93/CODE128
|
|
/EAN8+5/CODEBAR/POSTNET/UPCA/ UPCA+2
|
|
|
/UPCA+5/UPC/UPCE+2/UPCE+5
|
|
|
/CPOST/MSI/MSIC/PLESSEY/ITF14/EAN14
|
|
|
Character font
|
Font 0 ~ Font 8
|
ASCII font: Font A: 12x24dot;
|
|
Font B: 9x17 dot Chinese(simplified and traditional): 24x24dot
|
|
Character enlargement
|
110 times enlargement in horizontal
|
1-8 times enlargement in
|
|
& rotation
|
and vertical directions; Rotation printing
|
horizontal and vertical directions;
|
|
|
(0°, 90°, 180°, 270°, 360° )
|
Rotation printing (0°, 90°, 180°, 270°, 360° )
|
|
|
Single color PCX, BMP image file can be download
|
Support different dot density bitmap and
|
|
into Flash and Dram
|
download bitmap to print
|
|

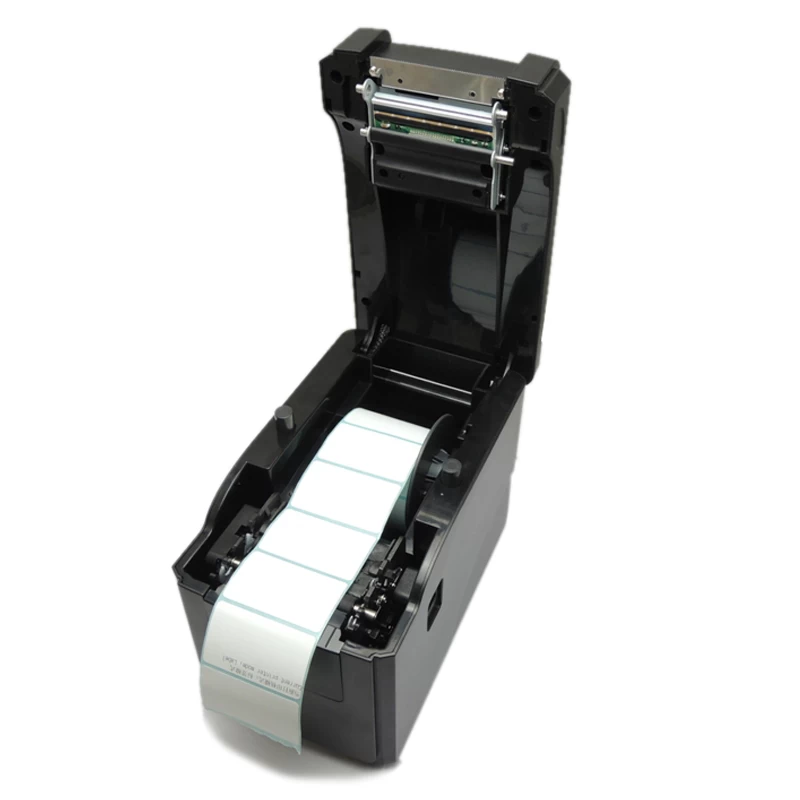

Paper type
|
Thermal paper roll / adhesive thermal paper
|
Thermal paper roll
|
|
Paper width
|
20~60mm
|
57.5±0.5mm
|
|
Paper diameter
|
110mm max.
|
110mm max.
|
|
Paper cutting way
|
Tear off
|
Tear off
|
|
Input
|
DC12V/4A
|
DC12V/4A
|
|
Cash drawer output
|
DC12V/1A
|
DC12V/1A
|
|
Work environment
|
5~45℃,
|
5~45℃,
|
|
Storage environment
|
0-10~50℃
|
0-10~50℃
|
|
Dimension
|
220x110x160mm (LxWxH)
|
220x110x160mm (LxWxH)
|
|
Weight
|
1.1kg
|
1.1kg
|
|
|
|
|
