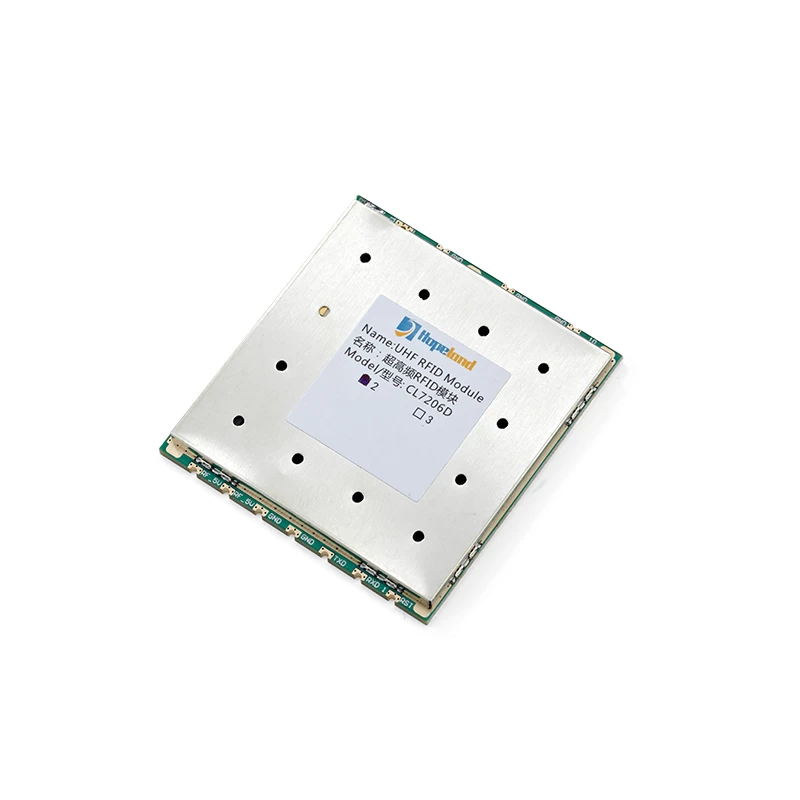

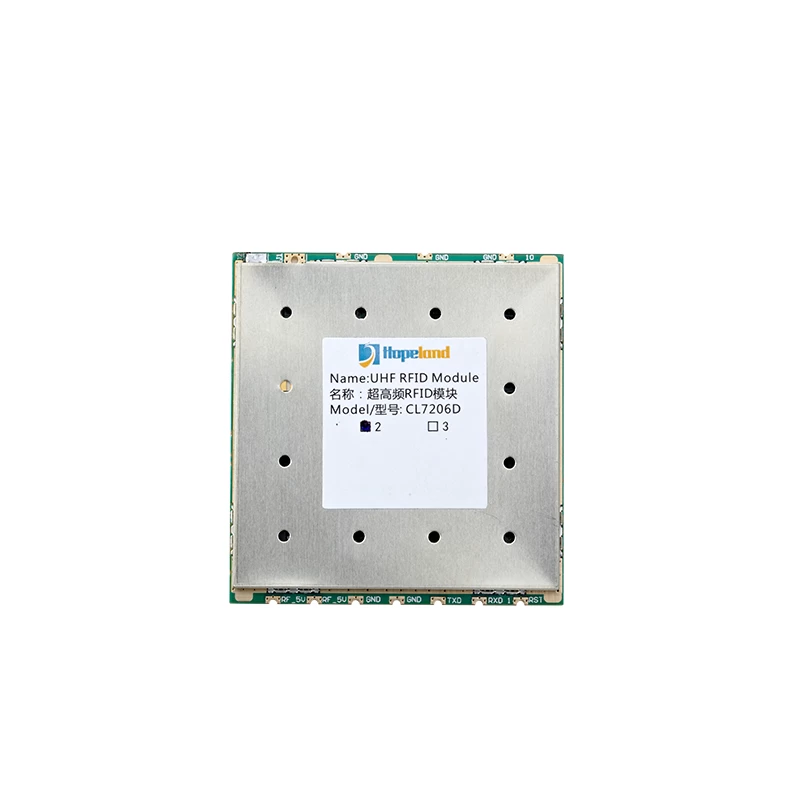

2-Port UHF RFID Module CL7206D2

The CL7206D2 module is a miniaturized UHF RFID reader. The core component adopts R2000 as the core platform. R2000 is a high-performance and highly integrated reader IC, integrating functions such as analog radio frequency front end and baseband digital signal processing module,etc.The user only needs to do power processing on the basis of the module, which can be easily controlled through the API function library, suitable for the development of various application scenarios.



General Description


The CL7206D2 module is a miniaturized UHF RFID reader. The core component adopts R2000 as the core platform. R2000 is a high-performance and highly integrated reader IC, integrating functions such as analog radio frequency front end and baseband digital signal processing module, etc. The user only needs to do power processing on the basis of the module, which can be easily controlled through the API function library, suitable for the development of various application scenarios.


Typical Applications


ü Handheld RFID Reader integration

ü Split-type Fixed RFID Reader integration

ü Integrated RFID Reader

ü RFID Tag Writer

ü RFID embedded equipment such as Tag Printer, ATM, anti-counterfeiting equipment, identification system equipment, WMS system channel equipment and so on, intelligent mobile phone, handheld terminal, desktop reader, industrial control device and so



Key Features


ü UHF RFID Transceiver

ü Frequency range: 840MHz - 960MHz

ü Power consumption: 650mA @ +27dBm

ü +5V single supply operation

ü ISO 18000-6B, EPC global UHF Class 1 Gen 2 / ISO 18000-6C support

ü Decoding: FM0, Miller 2/4/8

ü package:47.5mm x 45mm x 3.9mm

ü Fully interoperable in different global regulatory environments such as US, EU, GB

ü Data rate: 40k ,160k,320k, 400k
