General Description

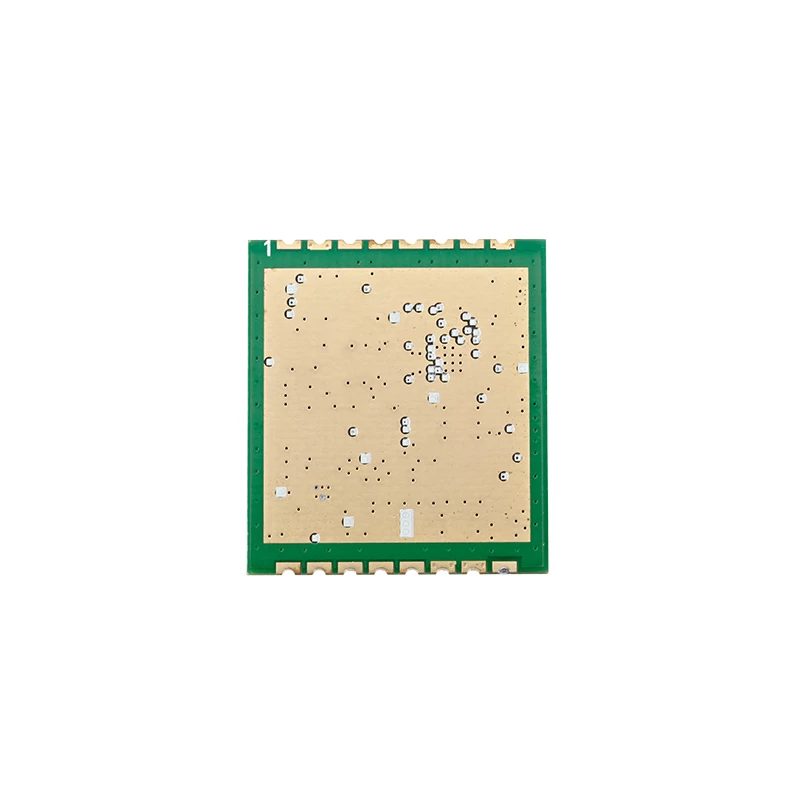

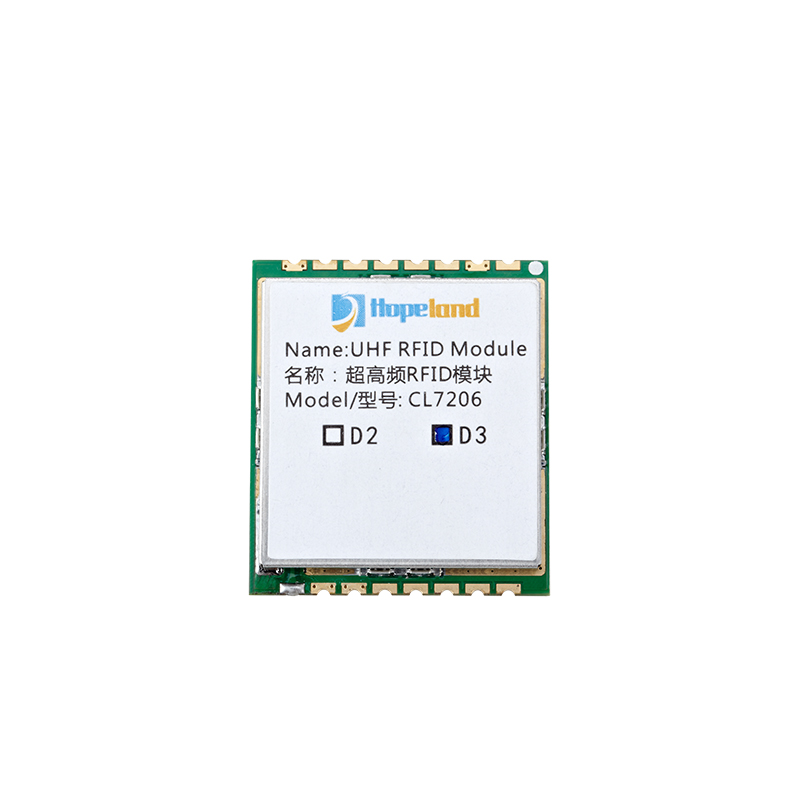

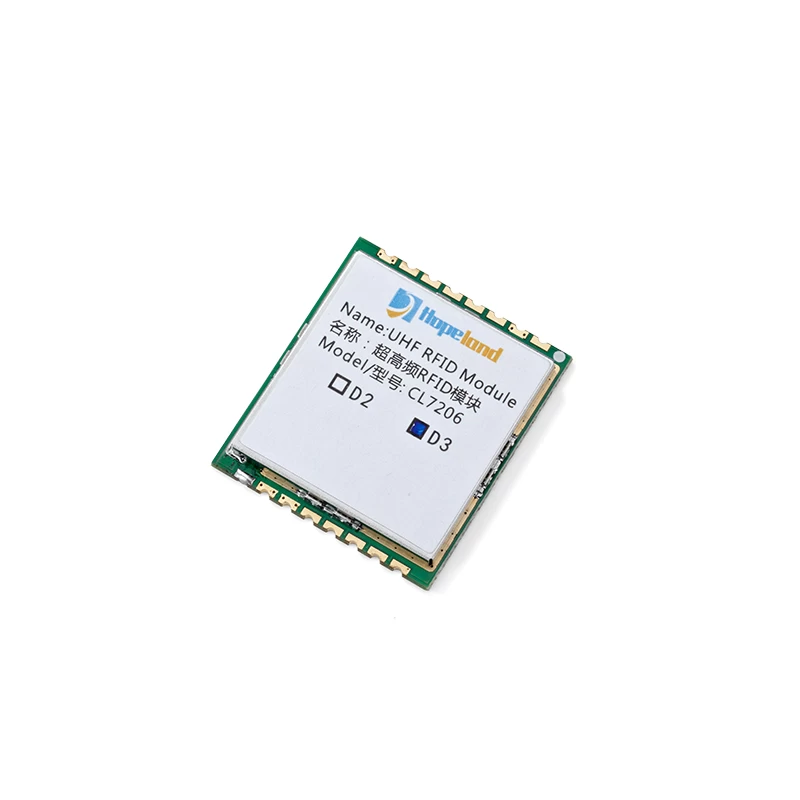

The CL7206D3 module is a miniaturized and cost-effective UHF RFID reader module. The single-chip RFID SOC scheme is specially designed for the size limited embedded RFID application environment. The user only needs power supply to work through the UART port control module, which is easy to be integrated into various electronic equipment.

Typical Applications

ü Handheld RFID Reader integration

ü Split-type Fixed RFID Reader integration

ü Integrated RFID Reader

ü RFID Tag Writer

ü RFID embedded equipment such as Tag Printer, ATM, anti-counterfeiting equipment, identification system equipment, WMS system channel equipment and so on, intelligent mobile phone, handheld terminal, desktop reader, industrial control device and so

Key Features

ü UHF RFID Transceiver

ü Frequency range: 840MHz - 960MHz

ü maximum power output : +28dBm@1200mA

ü low voltage operation: +3.3V

ü EPC global UHF Class 1 Gen 2 / ISO 18000-6C support

ü Module package size：28mm x 25mm x 3.15mm
