The cnc laser tube cutting machine applies for cutting square tube ,round pipe ,rectangle tube,oval tube ...and some U beam ,L beam ,profile. Baisheng's tube laser features high efficiency,high cutting accuracy,cost-effective.

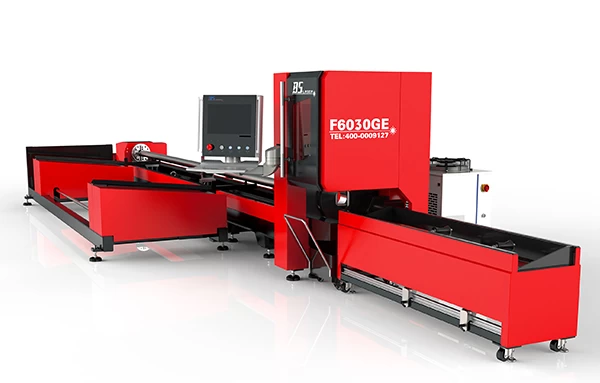

Tube laser cutting machine F6030GE  adopts  most sophisticated fiber laser source  IPG/ Raycus , combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and high speed, linear guide drive, high-speed servo motor.

Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. It is widely used in metal products, bicycle, metal furniture, fitness equipment, sports equipment, farm machinery, display shelf, fire control.




20-300mm Laser Tube Cutting Machine for Hollow-Section Profiles

Model

Laser

Tube length

Cutting range

Application

F6015GE

1KW-2KW

6 Meters

20-150mm

SS CS brass, aluminium pipe and tube

F6020GE

1KW-2KW

6 Meters

20-200mm

SS CS brass, aluminium pipe and tube ,U beam. L beam..

F6030GE

1KW-2KW

6 Meters

20-300mm

SS CS brass, aluminium pipe and tube ,U beam. L beam..

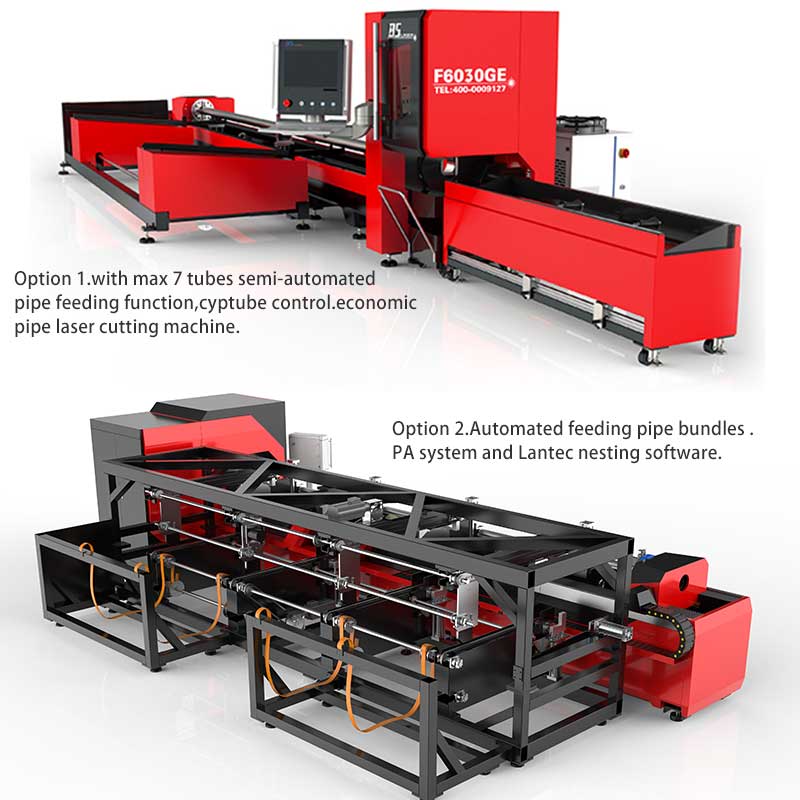

Cyptube/Protube control.WSX or Precitec cutting head.auto materials feeding and finished parts collection….



F6030GE has bigger chuck than the other two. It is more suitable for some big tube cutting application.

Baisheng is a professional Laser cut metal tube supplier in China.

Laser cutting tube is a highly productive and flexible method of tube processing which is now finding applications in all industries.

Laser tube cutting machines are designed both to cut hole profiles and end profiles (mitres or cod mouths) on round, square, oval, triangular and other special section tubes.

Accurate laser cutting of highly complex shapes within the tube is possible...





The F6030 Laser Tube offers the following:

· Max raw material length – 6m

· Max outside dia. – 300mm

· 5,00kg capacity automatic bundle loader

· 90/45 degree tilting laser head


Tube laser cutting eliminates all traditional marking out, sawing, drilling, deburring and shaping operations carried out with conventional tube processing.Traditional fixed costs of punches, clamps, tools and jigs are also eliminated.


The tube laser machines are CNC controlled and programmed offline by 3D CADCAM software.  With full automatic loading of tube raw material lengths up to 6 metres,automatic processing and automatic offload, the process offers very high productivity.China-made tube laser is more cost-effective .At present ,large amount such tube lasers are used in fabricators' job shops.


Economic professional China-made tube laser machine will use cyptube control software with its own nesting software,WSX cutting head....
