Fuel Tanker Truck Introduction:

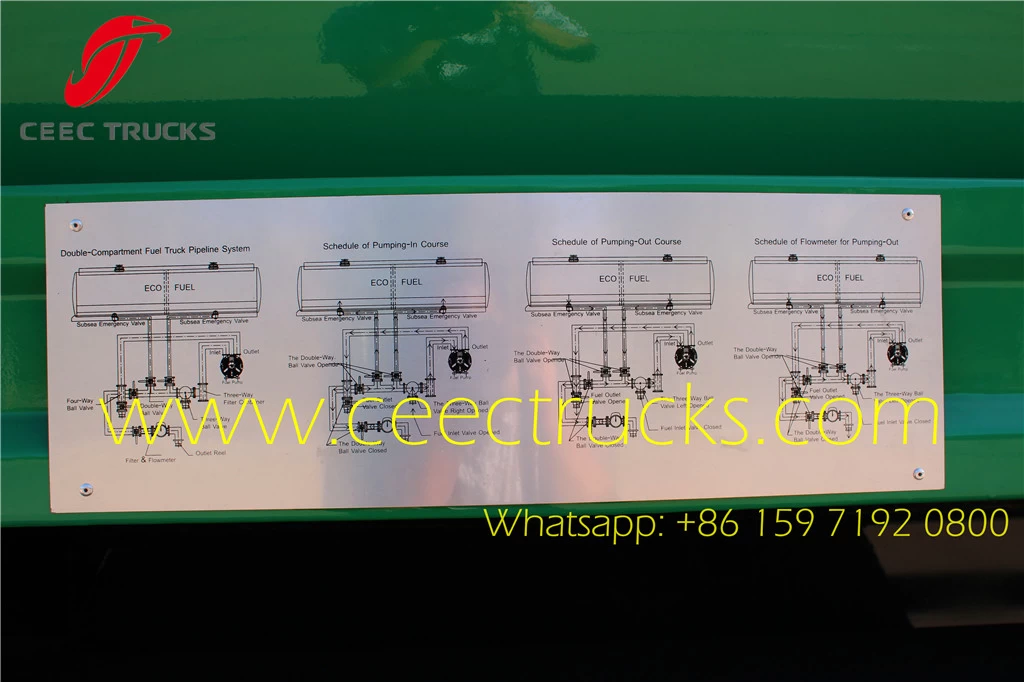

Fuel tanker truck consist of oil tank, PTO, drive shaft, gear pumps, pipe network system. It can be also called as oil tanker truck or oil trucks, mainly used to transport and store the oil derivatives such as petrol, diesel, crude oil, lubricating oil and coal tar, etc. It can be also used to transport edible oil. According to the different transporting products, customers can choose tank’s materials to meet their transportation demands.
Fuel Tanker Truck Application:
Transport diesel, oil and chemical liquid for petrochemical industry
Transport edible oil

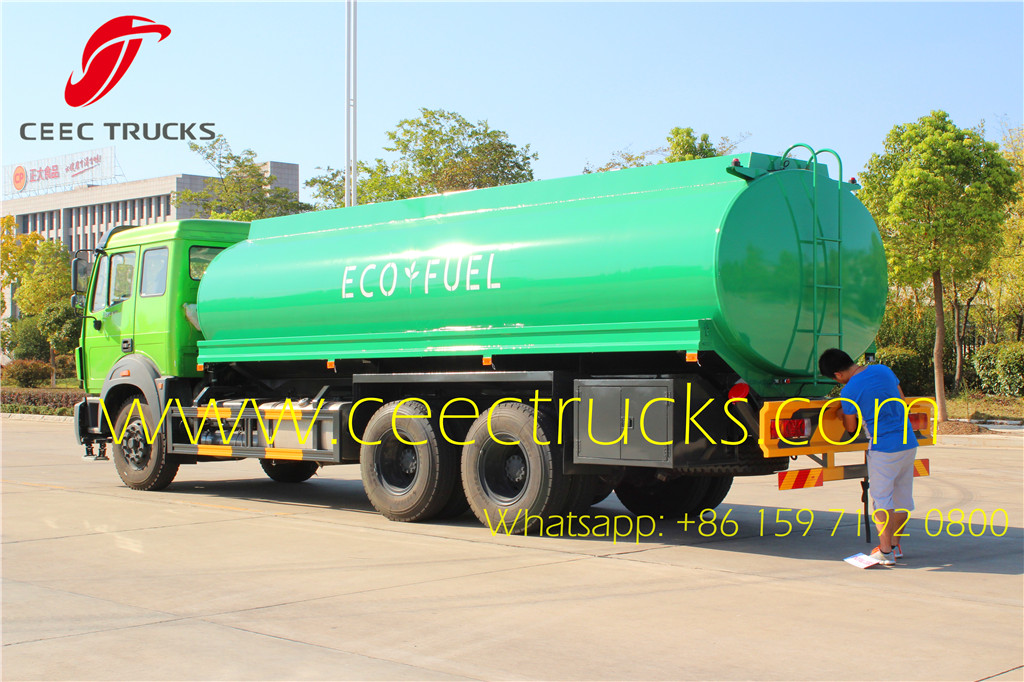

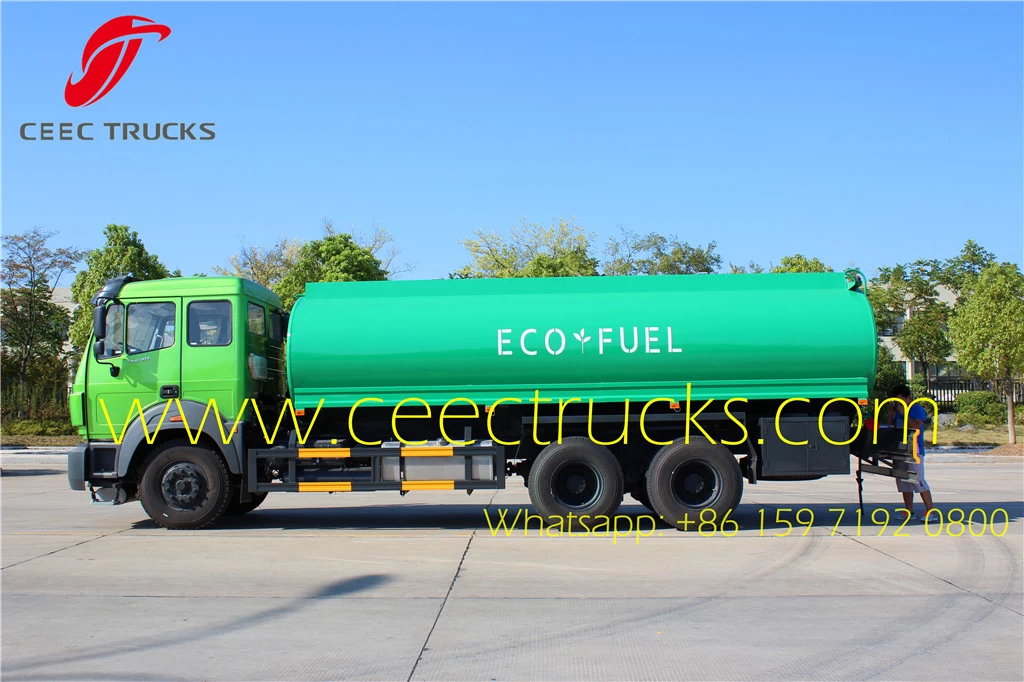

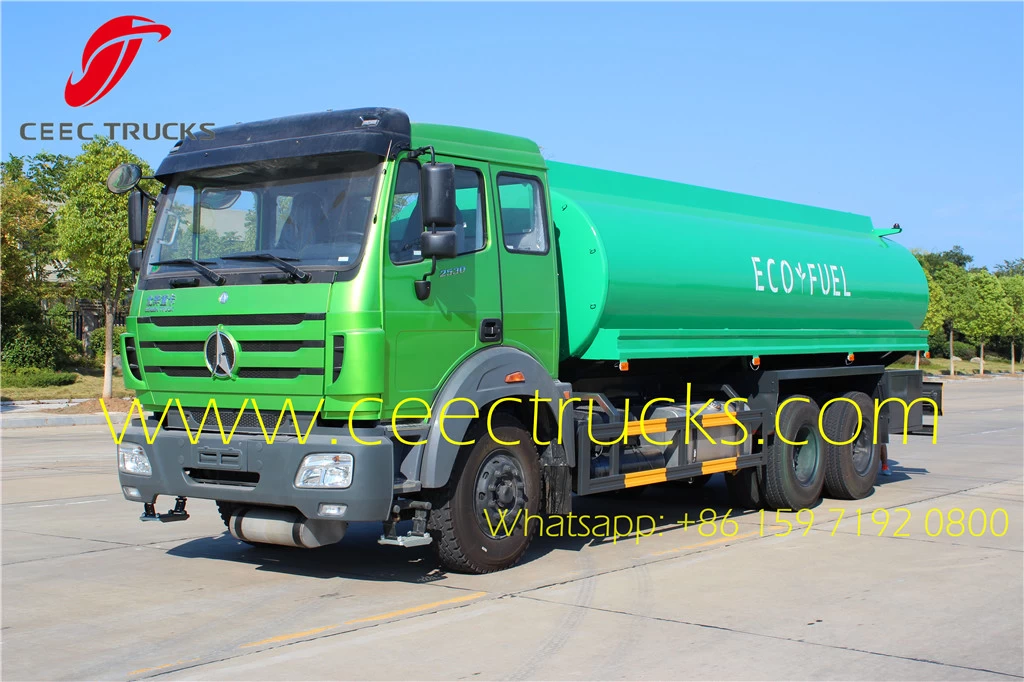

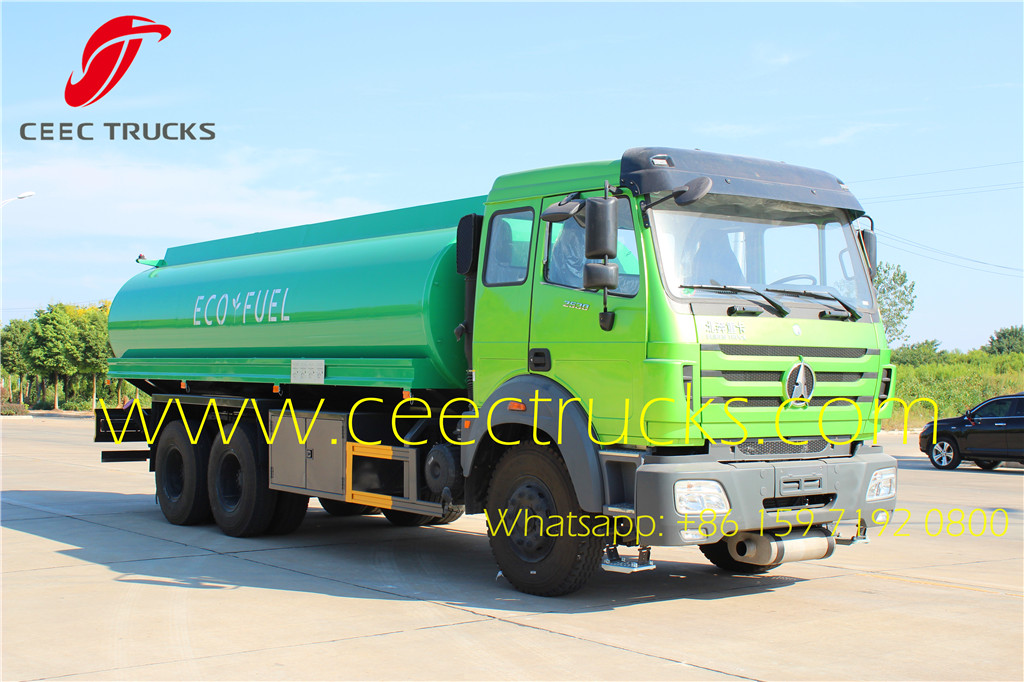

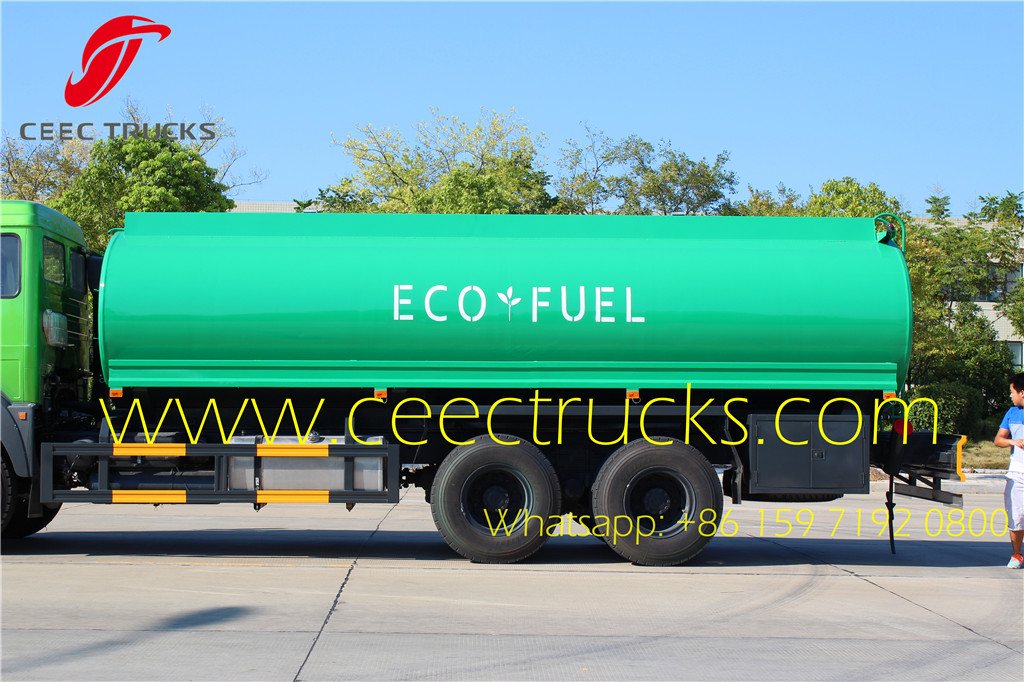

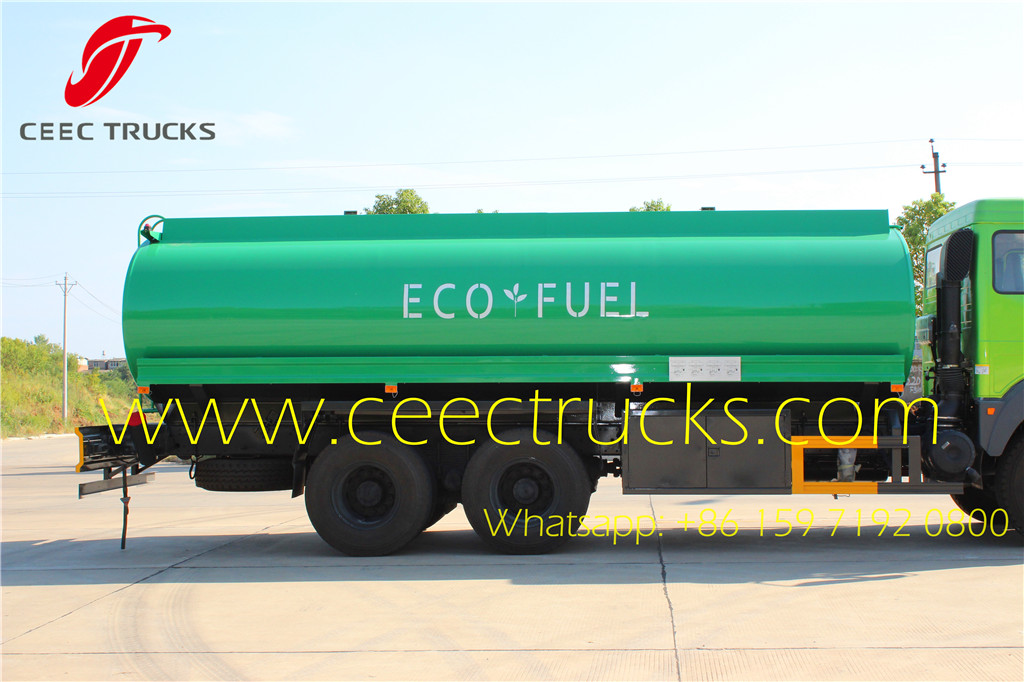

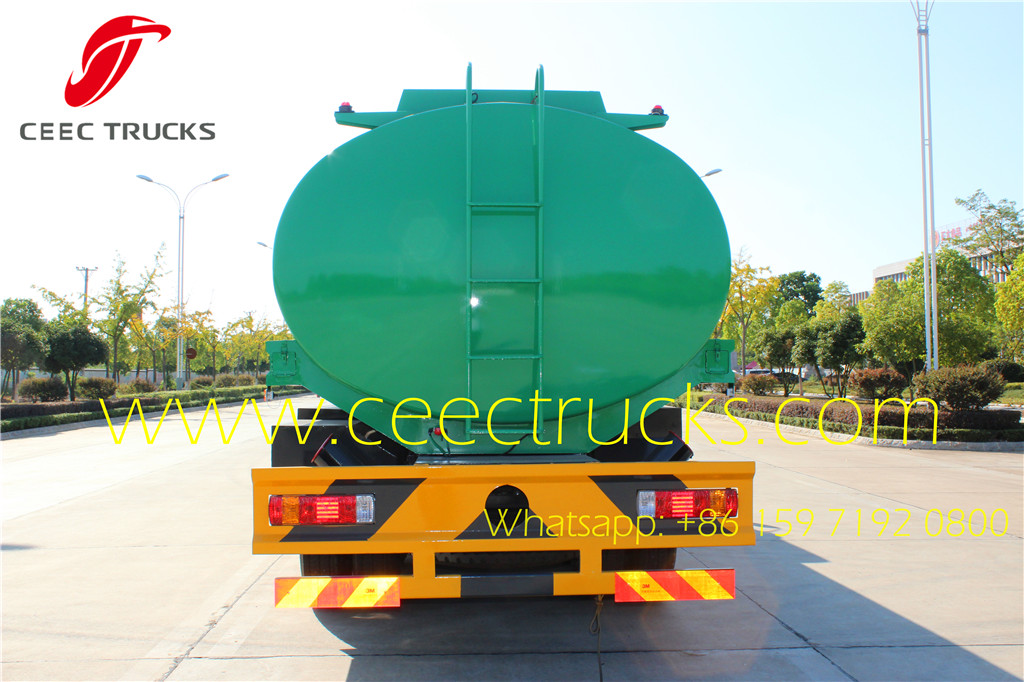

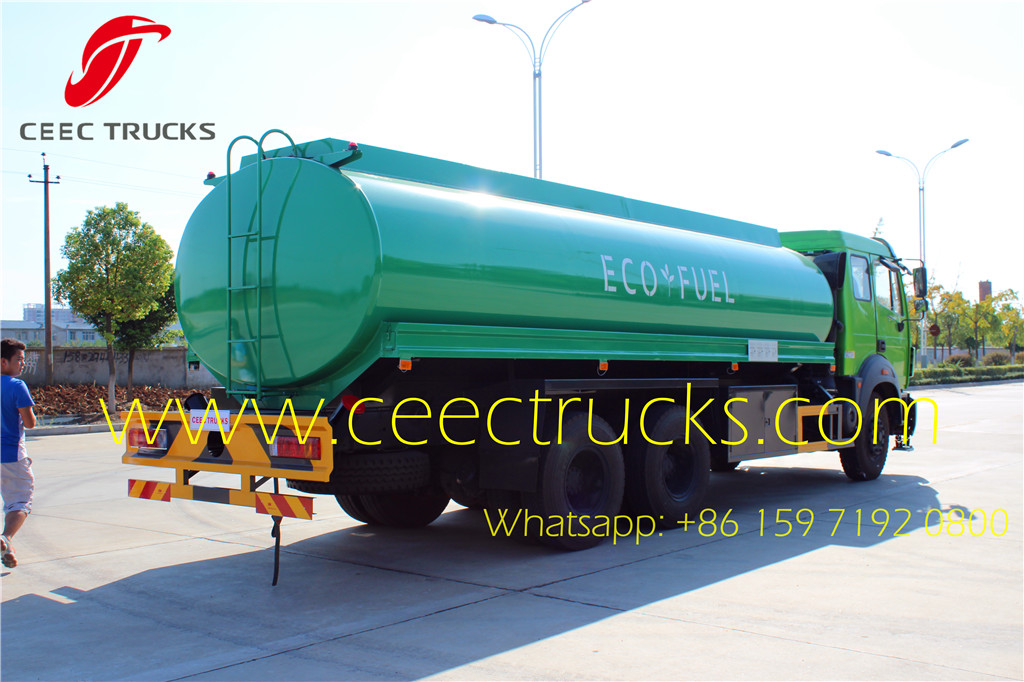

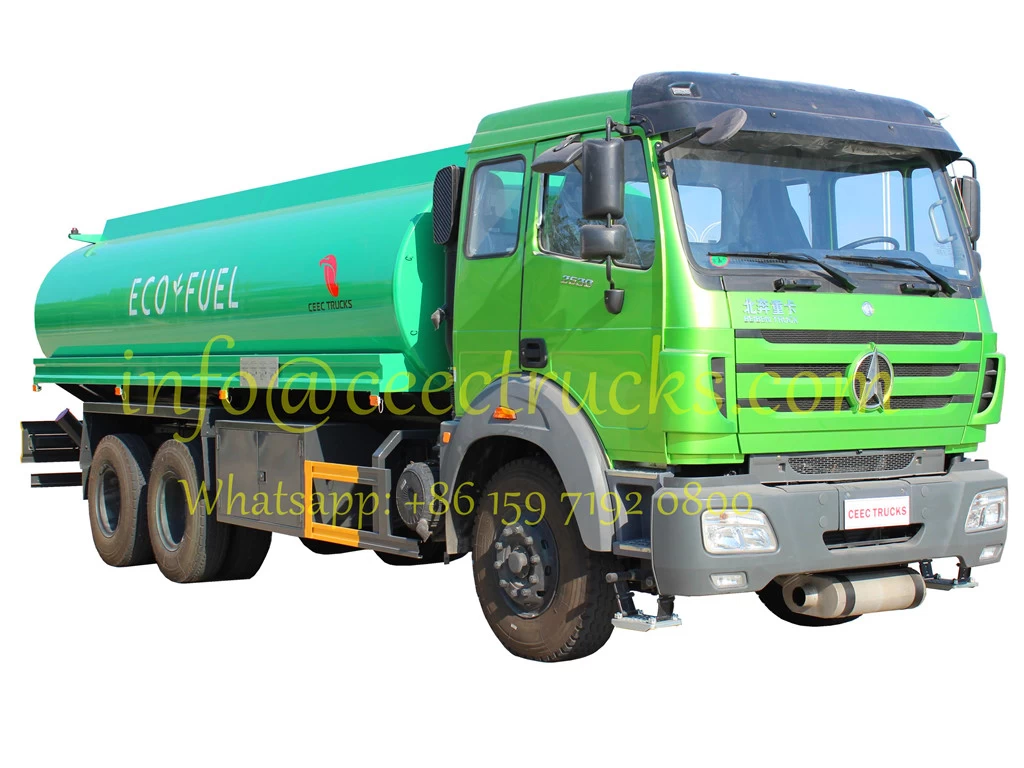

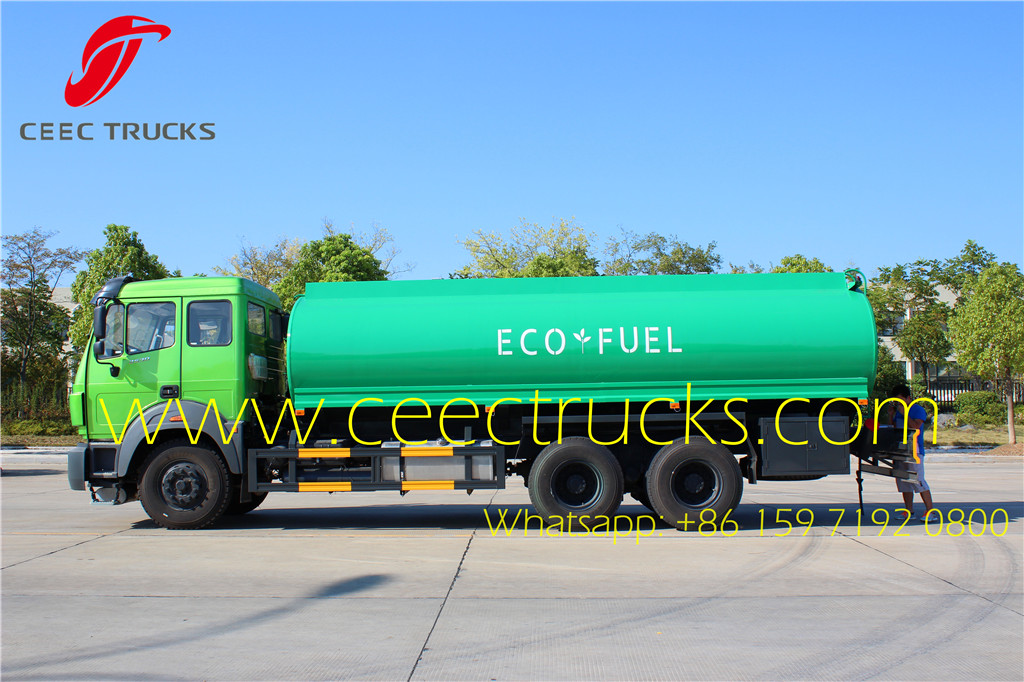

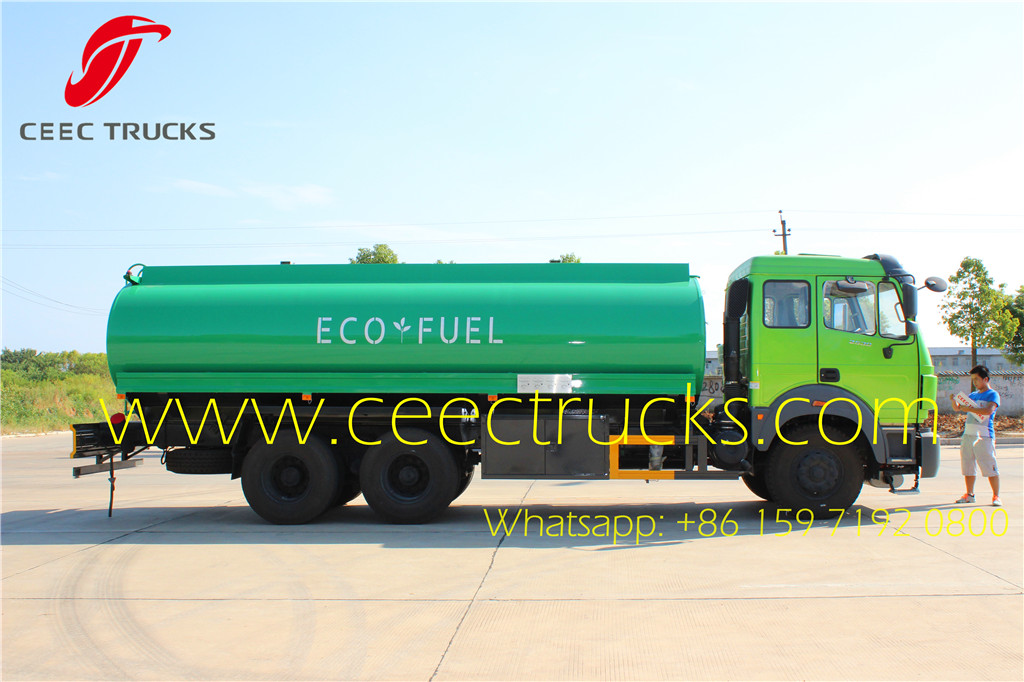

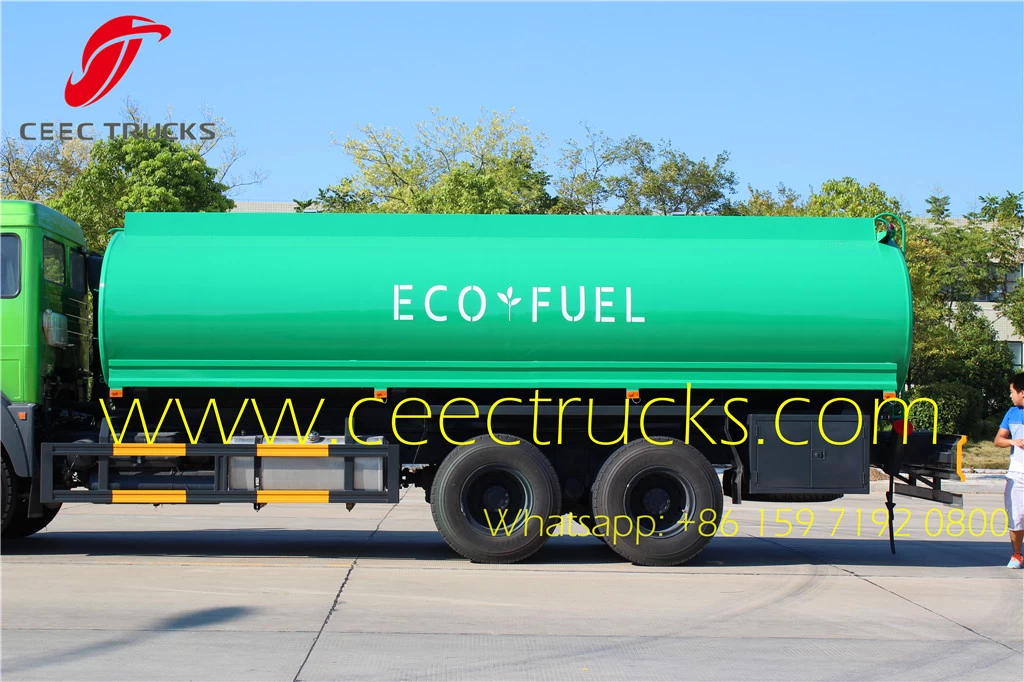

Beiben 20CBM fuel tanker export Caribbean Sea Countries
Caribbean sea customers choose CEEC TRUCKS supply Beiben 20,000 liters Diesel Refueling Truck advantages:
★ Amous truck chassis brand such as Beiben, ISUZU, Dongfeng, Howo, Foton, JAC and so on. Carbon steel, Stainless steel or aluminium alloy materials tanker materials for customers’ choices.
★ With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.

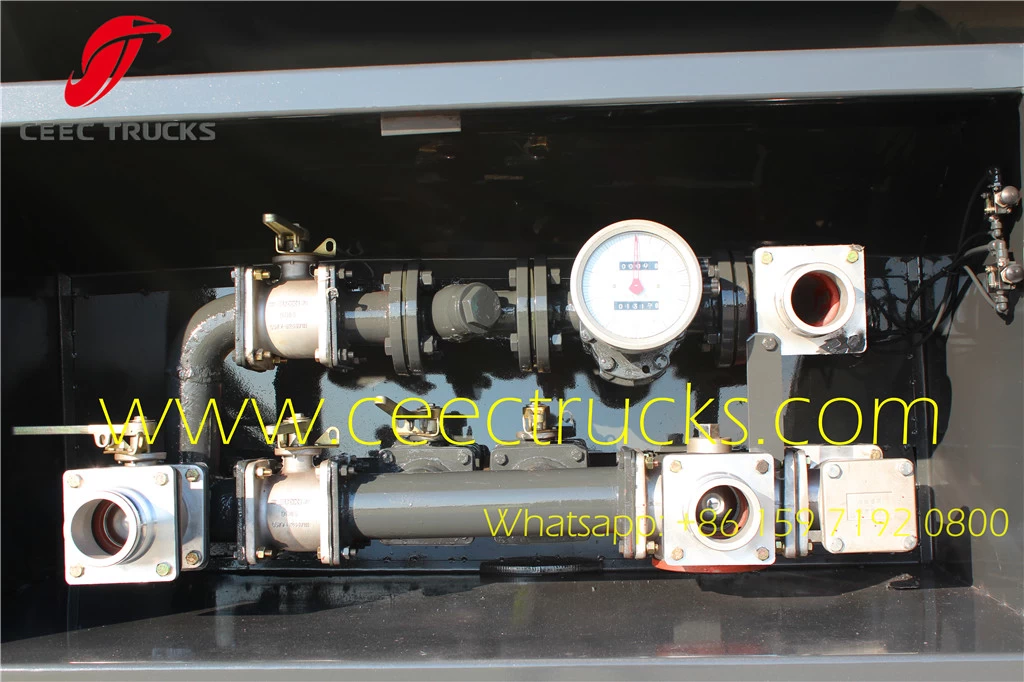

★ Jurpo or WEILONG brand oil pump is installed to suck or discharge oil, with high suction pressure and speed.
★ According to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils. The side or the rear of the tank can be installed 1 to 3 self-flowing valves.
★ You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate.
Caribbean sea customers purchase North Benz / Dongfeng Fuel Truck technical specifications:
|
10CBM
|
15CBM
|
20CBM
|
28CBM
|
| Drive Mode
|
4×2
|
4×2
|
6×4
|
8×4
|
| Chassis
|
DFL5140XXYB1
|
DFL1120B
|
DFL1250A9
|
DFL1311A3
|
| Engine
|
Model
|
Cummins ISDe 210 30
|
Cummins170 30
|
Cummins ISDe 245 30
|
Cummins ISLe290 30
|
| Max. power(Kw/rpm)
|
155/2500
|
136/2500
|
180/2500
|
213/2100
|
| Displacement(ml)
|
6700
|
4500
|
6700
|
8900
|
| Type of fuel
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
| Gearbox
|
Dongfeng DF6S900(1)
|
|
8JS118T-B
|
9JS119T-B
|
| Dimensions
|
Overall dimension (mm)
|
9090×2500×3760
|
8600×2500×2830
|
10960×2500×3200
|
11980×2500×3200
|
| Wheel base (mm)
|
5600
|
4700
|
5350+1300
|
1950+4250+1300
|
| Front/Rear tread(mm)
|
1880/1800
|
1880/1860
|
1986/1860
|
1940/1860
|
| App./Dep. Angle(°)
|
20/8
|
20/11
|
20/13
|
20/13
|
| Mass
|
Payload (Kg)
|
8745
|
5930
|
13725
|
17965
|
| Curb weight(kg)
|
5750
|
5880
|
11045
|
12505
|
| G.V.W (kg)
|
14495
|
12005
|
24900
|
12505
|
| Overall dimension of tank (Length*Macro axis*Minor axis) (mm)
|
7000×1900×970
|
7000×2250×1220
|
8500×2250×1420
|
9200×2250×1450
|
| Effective volume(m³)
|
10
|
15
|
20
|
28
|
| Tansport medium
|
all kinds of oils, chemical liquids
|
| Material of tank
|
carbon steel/stainless
|
