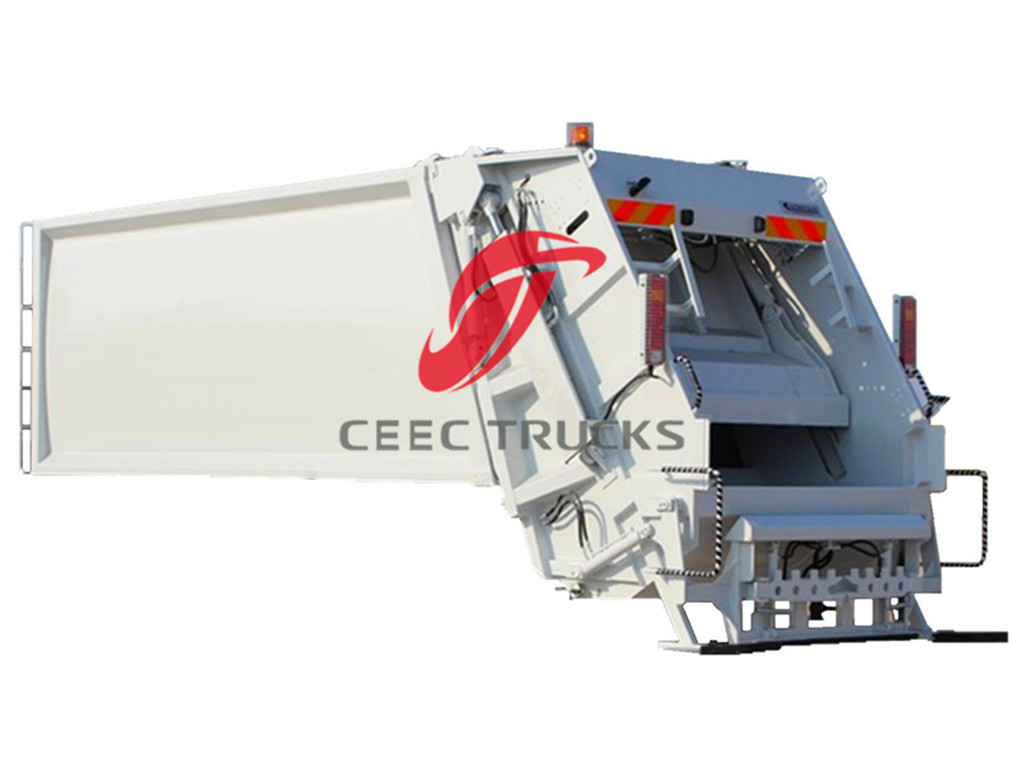

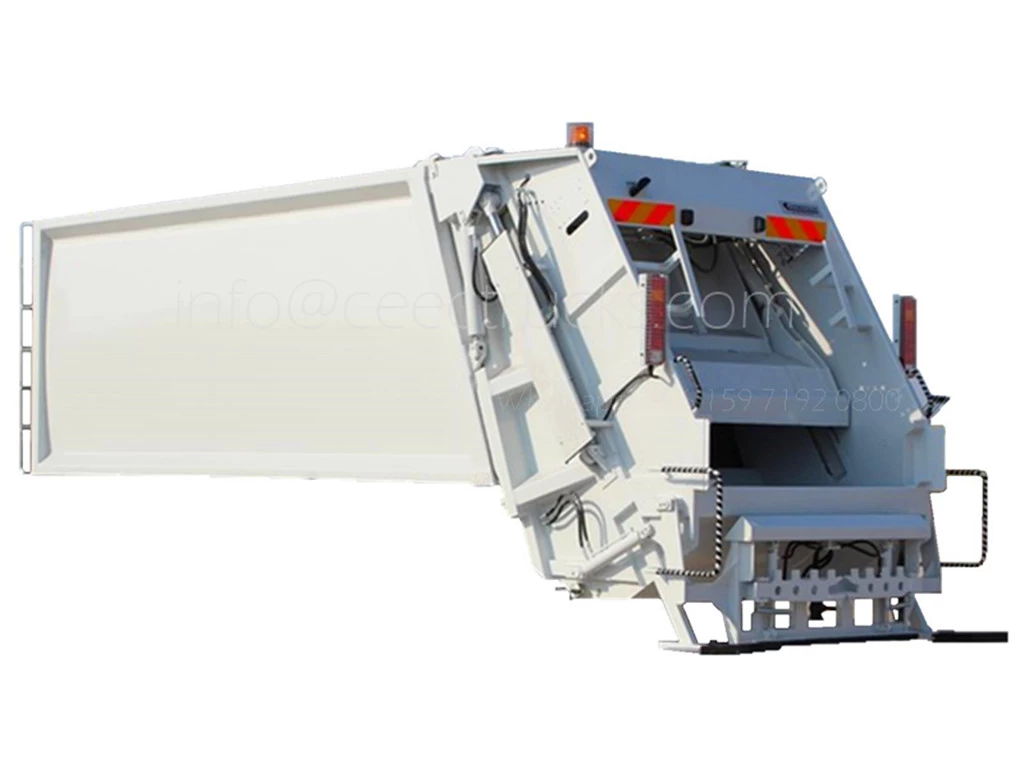

20 m³ garbage compactor truck body

European strong heavy 20000Liters garbage compactor truck kit, high strength steel material compactor body with thickness for side and floor 5mm, import Germany Siemens control PLC model, hydraulic cylinder control device, English version control box for easy operation



Recommend Chassis in China:

DongFeng brand: 4*2 & 4*4 model, with LHD and RHD optional

ISUZU brand: 4*2 & 4*4 model, only LHD

Beiben brand: 4*2 & 4*4 model, with LHD and RHD optional

Other brand: SHACMAN, FAW, SINOTRUK, etc


Recommend Chassis in customer country:

Can be refitted on any chassis based on Chassis CAD Drawing, such as ISUZU, HINO, Mitsubish, BENZ, MAN, etc chassis.



European heavy 20,000L Compactor Body Kit



 20CBM Compactor truck kit



Type

Hydraulic Pressing Garbage Trucks Kit

Body

20 m³
5280 Gallon

Gain volume

1,5
396 Gallon

Compression

1:3

Driven hydraulic system

PTO

Container removal mechanisms

120L / 240L / 660L / 1100L Bin Containers

Accesories

Container bin lifting system (with any option)
Safety bar for gailgate
Rear light for night works.
Two foldable operator steps at the rear with safety bars
Rotating yellow beacon
Mudguards and rubber flaps
Dirty water tank in front of the body
Automatic / manual control option
Emergency button
Rear vision camera (optional)
Sand blasting and oven painting



Euro Standard 10CBM garbage Compactor truck blue painting



What CEEC TRUCKS supply Garbage Compactor Truck kit Composition?



Euro Standard 12CBM garbage Compactor truck eco painting
