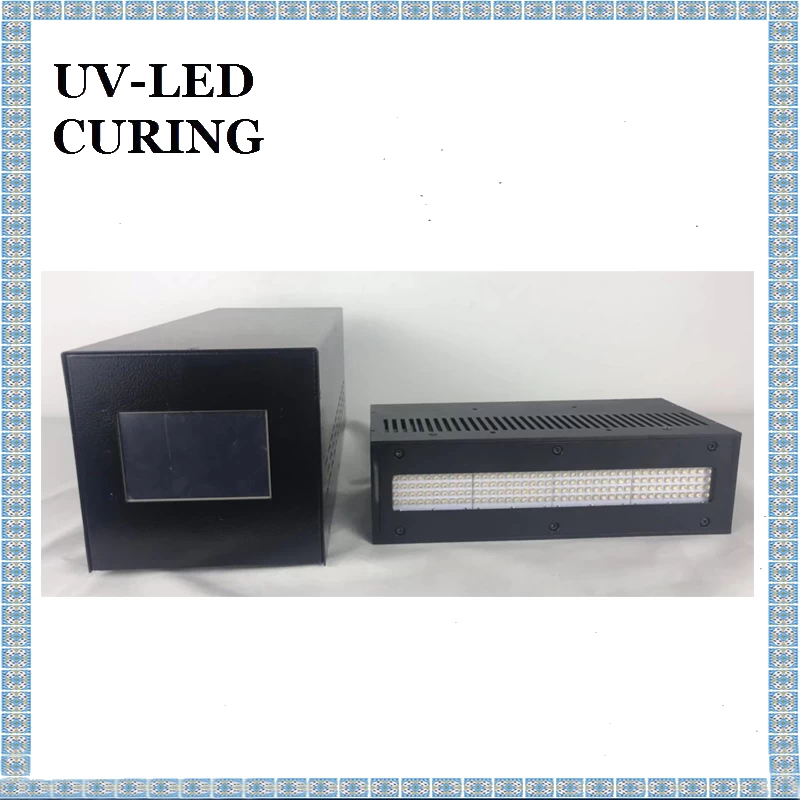

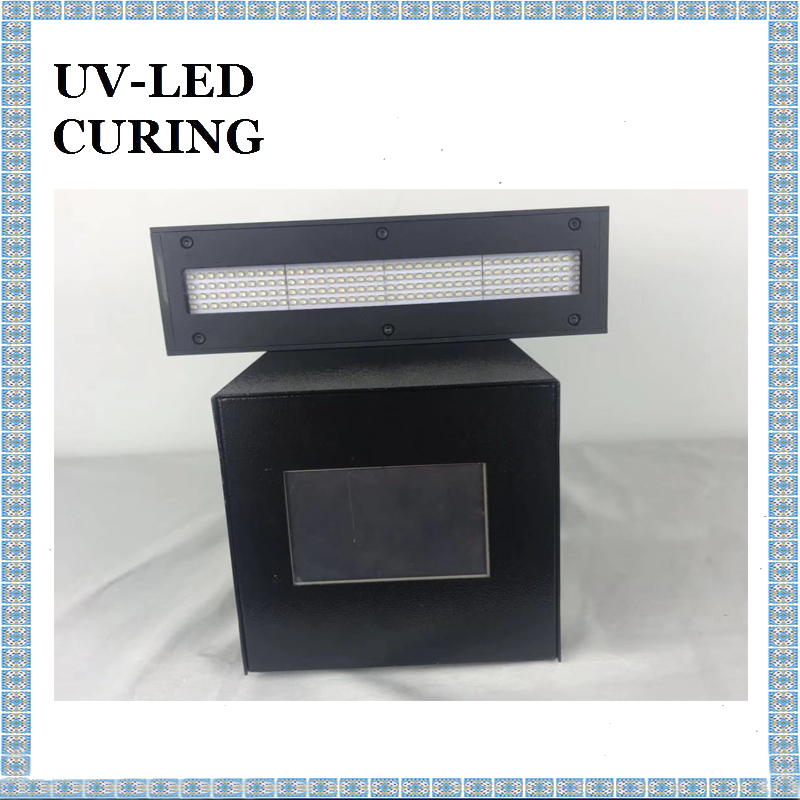

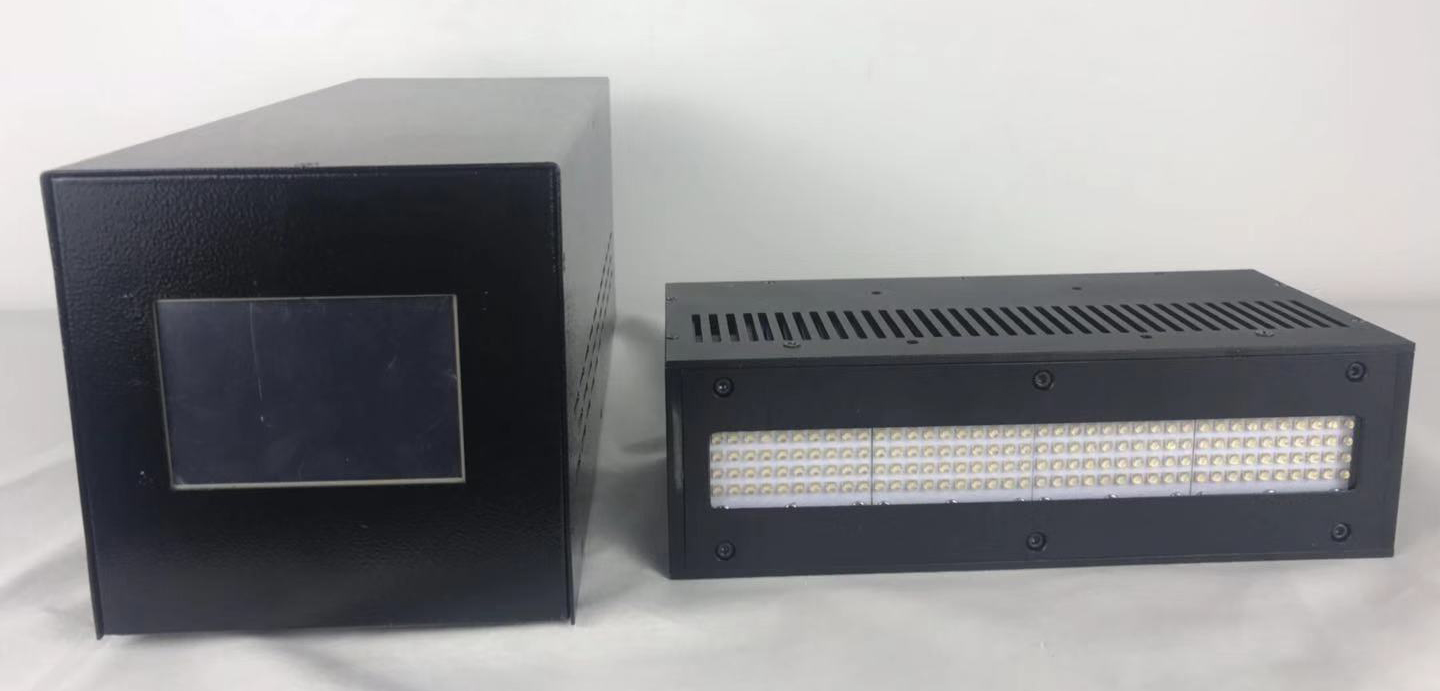

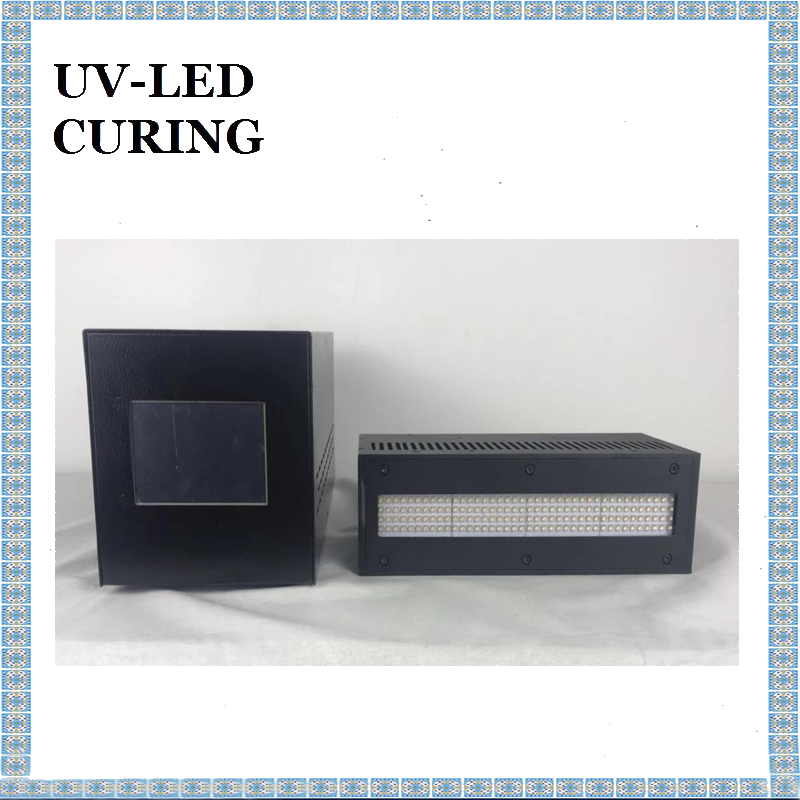

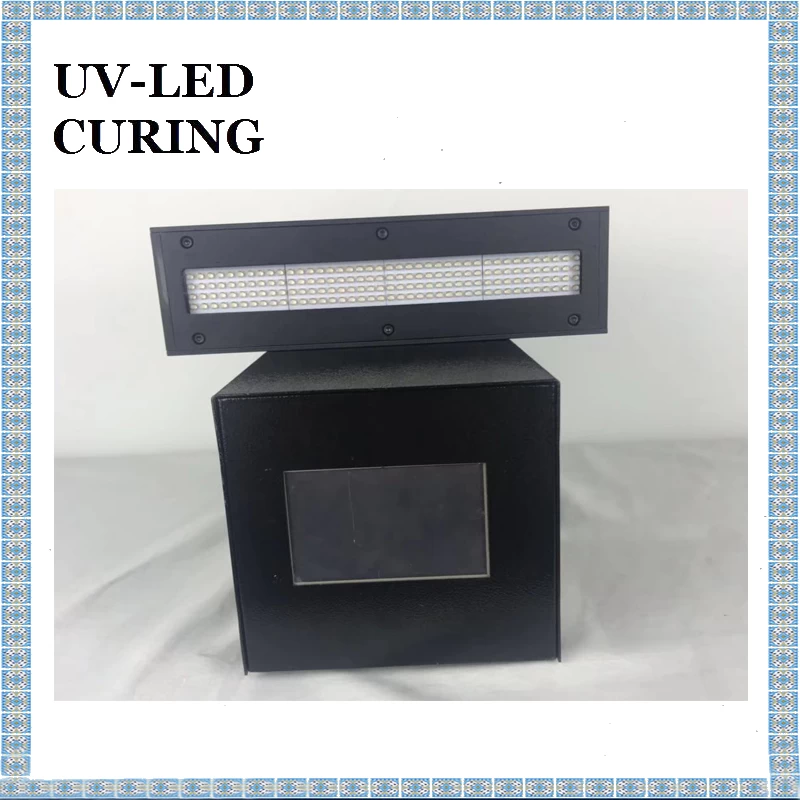

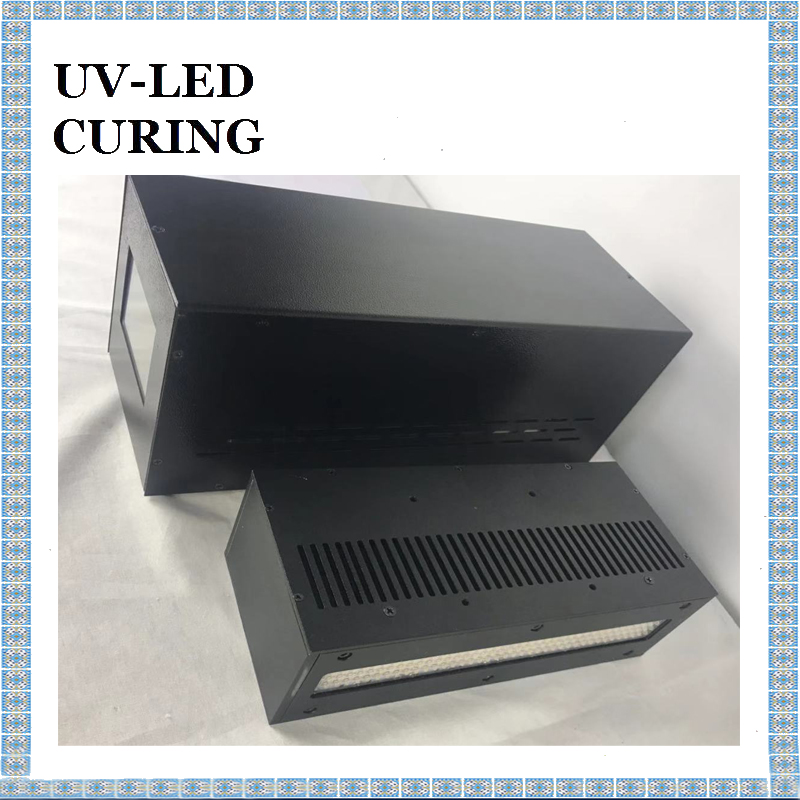

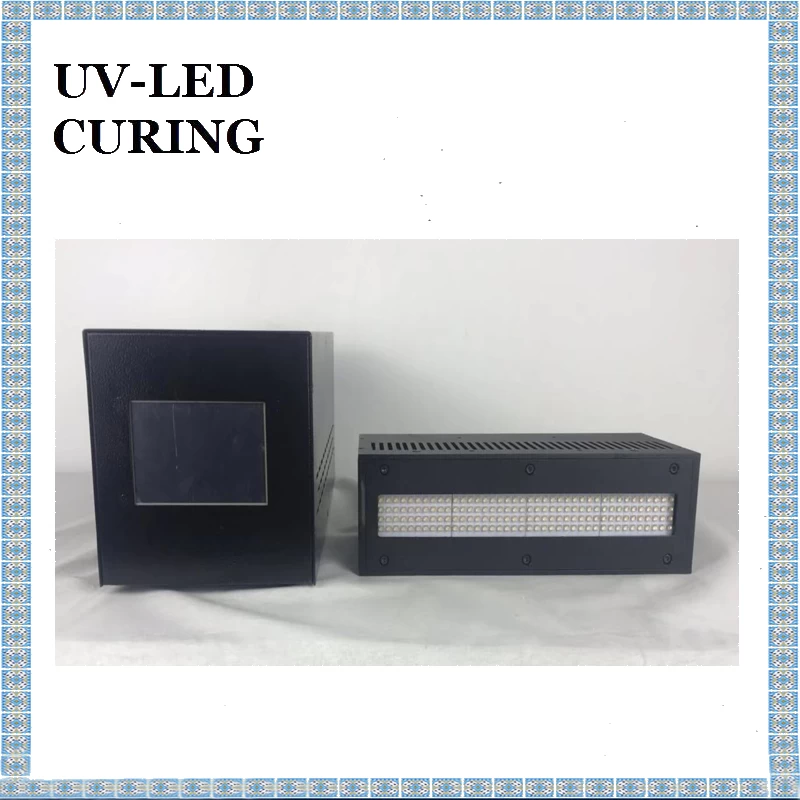

200*20mm Large Area LED UV Curing Machine for Coating Curing LED UV Ink UV Glue Curing

200*20mm Large Area LED UV Curing Machine is no infrared radiation, cold light source, suitable for all types of heat-sensitive material curing.



UV LED Light Curing System is radiation curing of the coating, because the coating ground has a photoinitiator, and the photoinitiator reacts under the action of uvled light to achieve curing.


Size of Large Area UV LED Ink Curing Light Source Controller :

Outside Dimensions

L330*W140*H130mm

Power

50W

Cooling Method

Fan Cooling

Power Input

100-240V AC 50-60HZ

Material / Weight

About 3.5Kg Black Sheet Metal

LED Head Number

One, Independently controlled

RS232

RS232 Serial Communication

Can query and adjust intensity, time and mode

Display and Operation

Touch screen, time, intensity, mode adjustable

LED Cumulative Time

Record accumulated using time

Control Method

Connected with MCU, PLC and other automatic equipment to control and feedback the work state

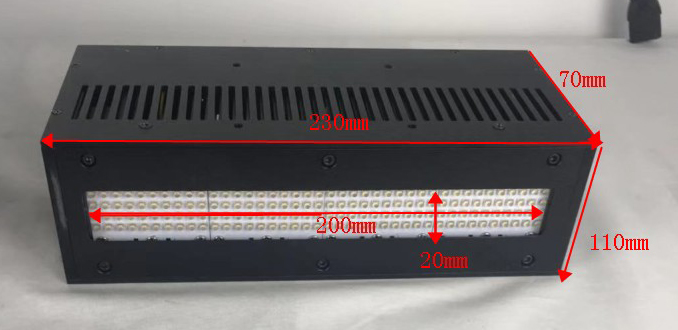

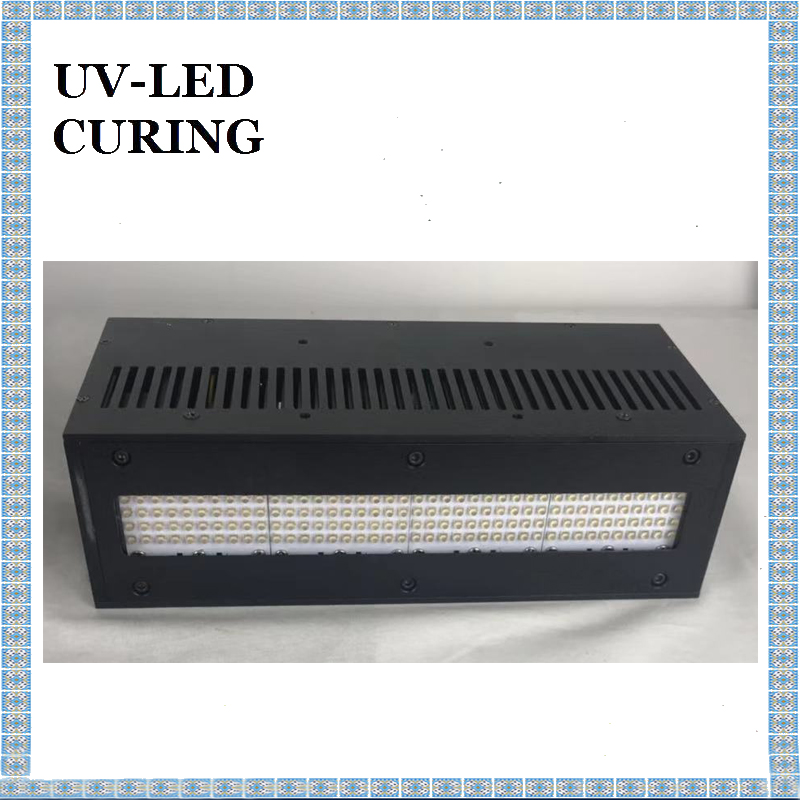

Size of High Power LED UV Curing Lamps Emitted Head :

Emitted Area

200*20mm

Power

<350W

Outside Dimension

L130*W130*H130mm

Recommended Height

5mm

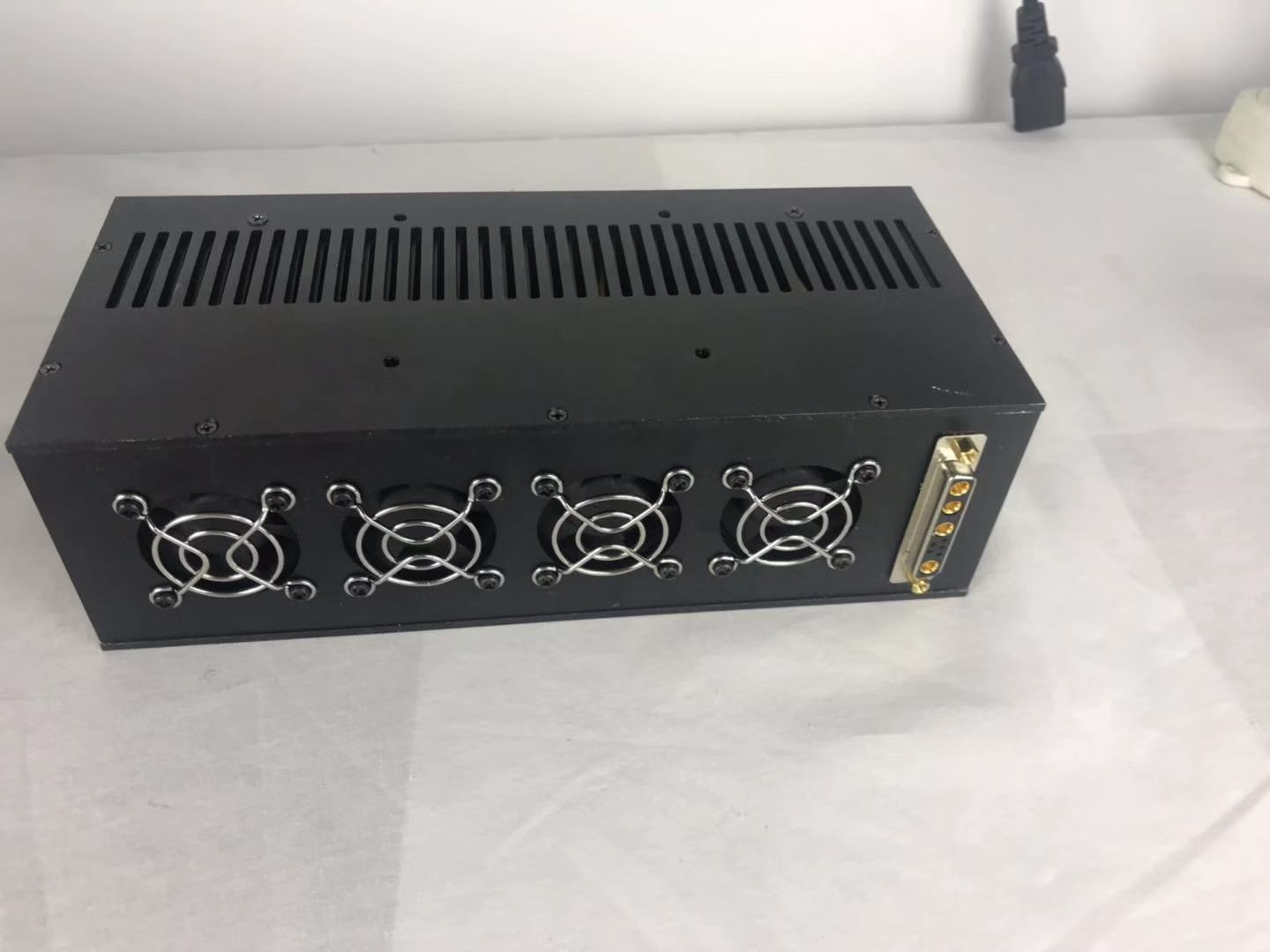

Cooling Method

an Cooling

Wavelength

365

385

395

405

Material / Weight

Sheet Metal / About 3.3Kg

Luminous Power (mW/cm2)

2200mW

2500mW by EIT

LED Life

20000 H

Monitoring Methods

 Temperature

Connection Cable

2/5m Customizable


Large Area UV LED Surface Light Source for UV ink Supplier


UV LED Linear Light Source UV LED Based Curing Equipment


UV LED surface light source curing products, if you need to cure the following products, it is recommended to use our Professional UV Varnish Curing Systems

At present, uvled radiation-cured products have penetrated into all aspects of industrial production and daily life, and are almost ubiquitous. Here are just a few typical examples.

(1) Coated discs, optical fibers, magnetic tapes, magnetic cards, high-end goods bags, photographic film, magazine covers, vacuum metal plastics, cans, furniture veneers, laminates, wall panels, vinyl tiles and tiles, galvanized metal pipes and Leather decoration, etc.

(2) uvled ink lithographic offset printing, letterpress printing, flexographic printing, gravure printing and screen printing;

(3) uvled adhesive automotive headlights, pressure sensitive labels and transfer printing, electronic device packaging and cladding, medical plastic parts assembly, etc.;

(4) Electronic device printed circuit board conformal coating, resist, solder resist, character ink, anti-dry film, protective coating, etc.;

(5) Other printing plates, medical devices, dental fillings, cosmetic boxes, ophthalmic lenses, golf balls, trophies, snowboards, snowmobiles, advertising signs and other coating curing or decoration, and three-dimensional optical casting processing.


The main application areas of Technical LED UV Glue Curing Solution and Proposal :

Wood coating - wood primer and surface varnish and paint: filler (filling the interior and surface voids of the board); water-based furniture coating.

Plastic coatings - thin film coatings and hard coatings: automotive parts, instruments, optical discs, credit cards, window films, and metallized plastic low-profile coatings for automotive headlights and lighting components.

Paper coating - surface glazing, metallized paper substrate coating for decorative paper, labels, cards and paper.

Floor coating - vinyl carpet, vinyl silicon, parquet flooring.

Metal coatings - food cans, automotive and instrument decoration, traffic tunnel wall panels.

Silicon germanium coating (paper/film) - release liner, label, casting.

Electronic coatings - conformal coatings, encapsulating compounds, photoresists, soft (hard) disks, optical disks, video tapes, magnetic tapes, optical fibers.

Inks - lithography (cardboard boxes, flexible packaging, magazines, publications), screen printing (plastic labels, plastic bottles, foils, paper and cardboard packaging) and printing.

Adhesives - laminates (paper or film / wood, film, paper, foil, etc.), general bonding (automotive parts, optics), and pressure sensitive adhesives (labels, contact papers/films, etc.).

Crosslinking - heat shrinkable film, electrical insulation material.
