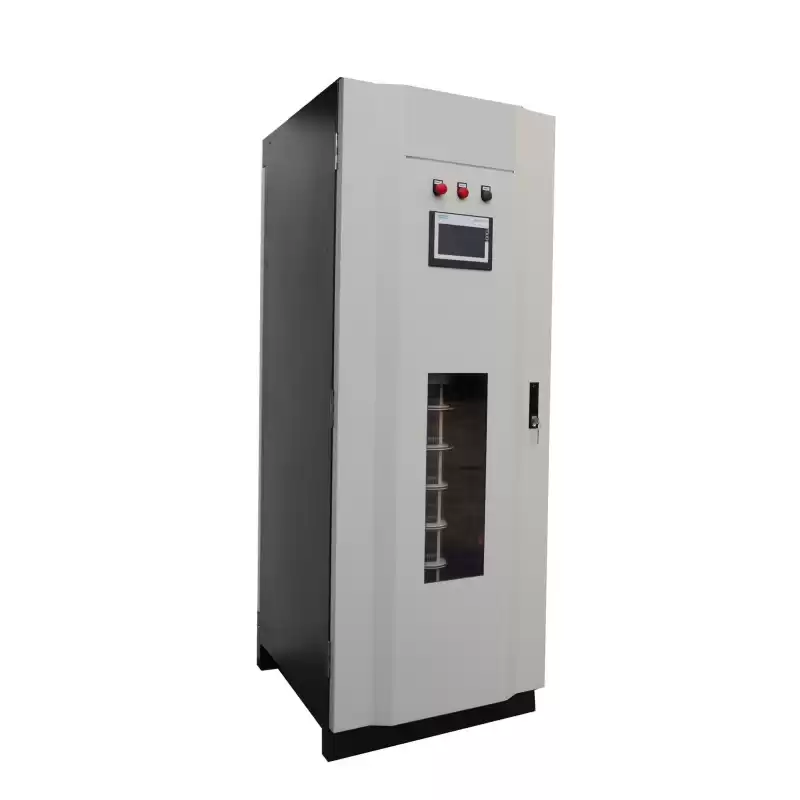

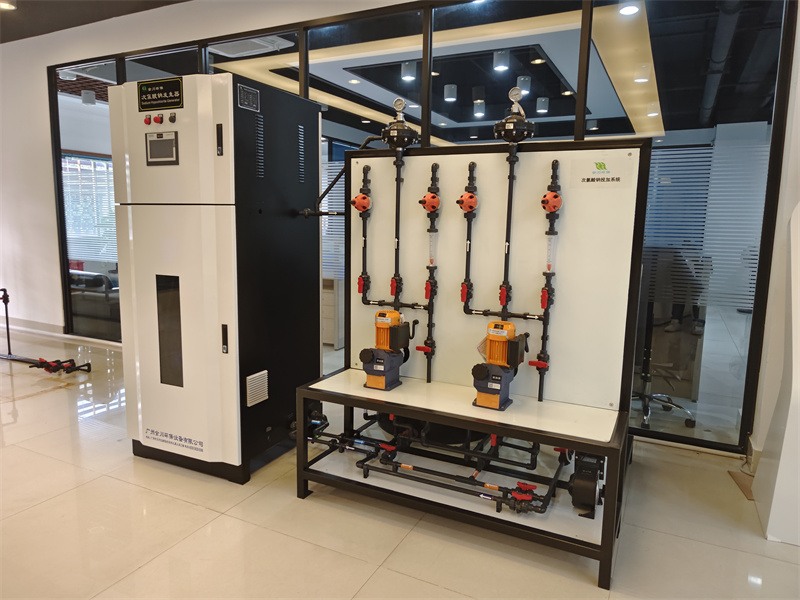

200g/h Split Type Salt Water Electrolysis Sodium Hypochlorite Generator for Small Drinking Water Plant

The Purevita sodium hypochlorite generator generates a 0.8 % sodium hypochlorite solution through the electrolysis of brine, consuming only water, salt and electricity. By producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of chlorine gas or commercial sodium hypochlorite solutions, making it ideal for any medium to large scale application requiring chlorination.


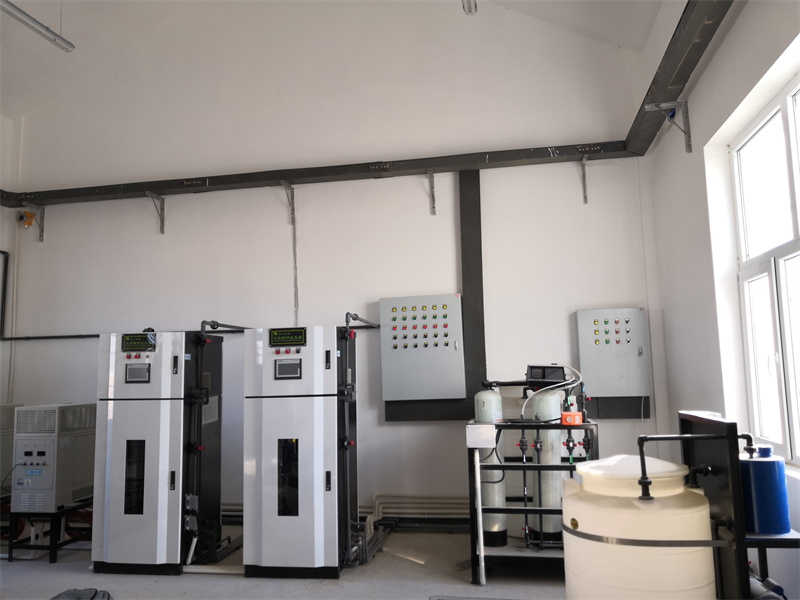

  • ApplicationDrinking water plant, waste water plant, swimming pool, etc
  • Power Consumption4.5kw/kw Cl2
  • Salt Consumption3.5kg/kg Cl2
  • AdditiveFood Grade Salt
  • Chlorine concentration5000~8000ppm
  • ControlPLC control
  • Capacity200g/h
  • Output Flow40L/h

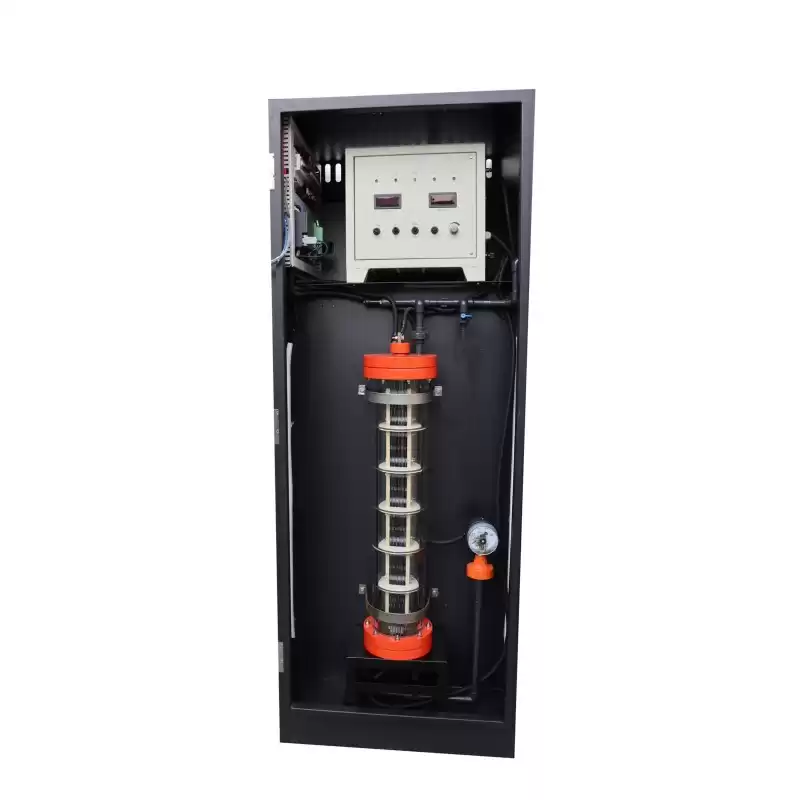

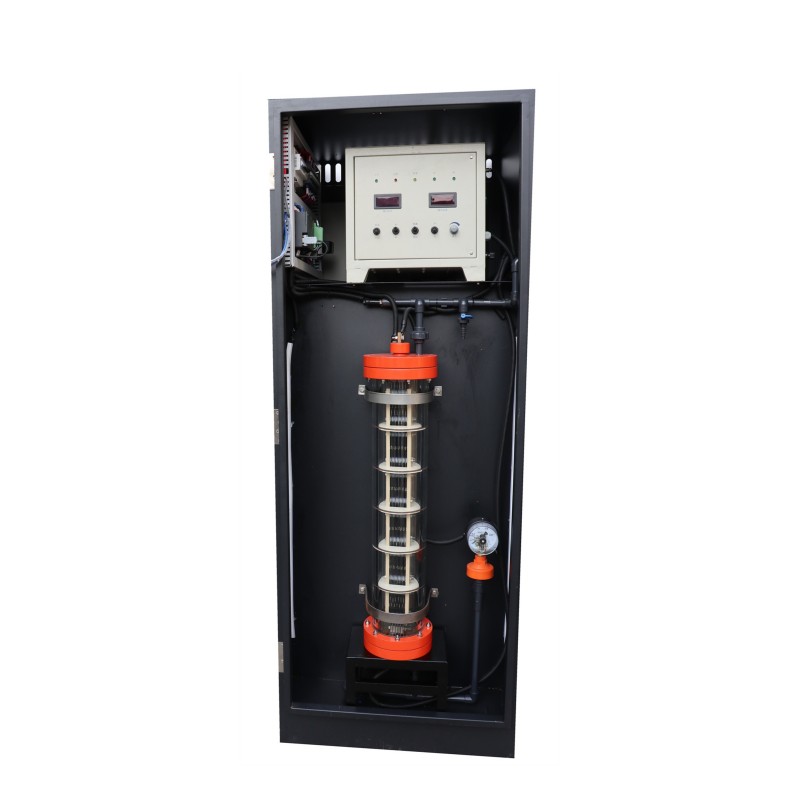

200g/h Split Type Salt Water Electrolysis Sodium Hypochlorite Generator for Small Drinking Water Plant







Brief Introduction

200g/h Split Type Salt Water Electrolysis Sodium Hypochlorite Generator for Small Drinking Water Plant is a proven, cost-effective, reliable and safe alternative disinfection treatment method. The use of on-site generated sodium hypochlorite reduces the formation of disinfection byproducts and improves water quality. The process offers other advantages:
– Reduced operational costs
– Consistent solution strength
– Production of required volumes as needed
– Non-hazardous chemical (feed or product)
– Eliminates the need for OSHA risk management planning requirements surrounding chlorine gas

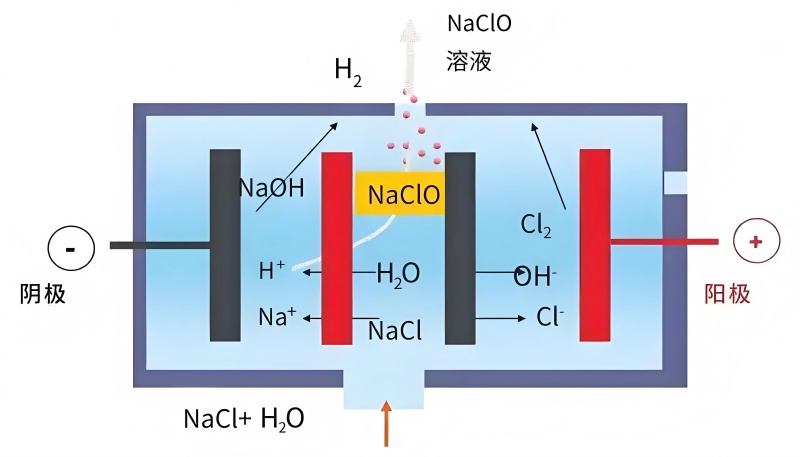

Saline solution contains the several kinds of ions such as Na +, H -, when electrolysis, under a certain voltage, as a result of the movement of ions in the electrolyte solution and electrode reaction, the conductive effect occurs, then CL -, OH - such as negative ion to the anode, and positive ions such as Na +, H + to the cathode, and the corresponding electrode discharge occurs, thus carries on the REDOX reaction, the corresponding material production.

Electrode reaction:

       anode: 2Cl- - 2e → Cl2;

       cathode: 2H+ + 2e → H2;

Solution reaction:

2NaOH + Cl2 → NaCl + NaClO + H2O

Overall reaction as follow:

Na Cl + H2O + DC →NaClO + H2↑




Advantage of Purevita Sodium Hypochlorite Generator


  • Fully Automated Operation
    A PLC-based control system provides fully automatic operation of the entire process and monitors key variables to ensure reliable operation of the system. Safety features such as run inhibit during a descaling process, and tank overfill protection are some of the many inherently safe interlocks built into the process controls. The control panel includes a touch-screen human-machine interface (HMI) to provide userfriendly access to operators.

  • Robust Single-Electrolyzer Design
    Our generator unique electrolyzer design optimizes salt and power consumption while providing easy access to the cell components for maintenance. A clear cast acrylic casing allows for visual inspection, and the improved end-connection cap design minimizes the potential for leaks. The electrolyzer is arranged horizontally for flow optimization; increasing residence time and heat transfer in each cell pass and minimizing hydrogen bubble size. The result is maximum process efficiency while yielding the highest quality hypochlorite solution.

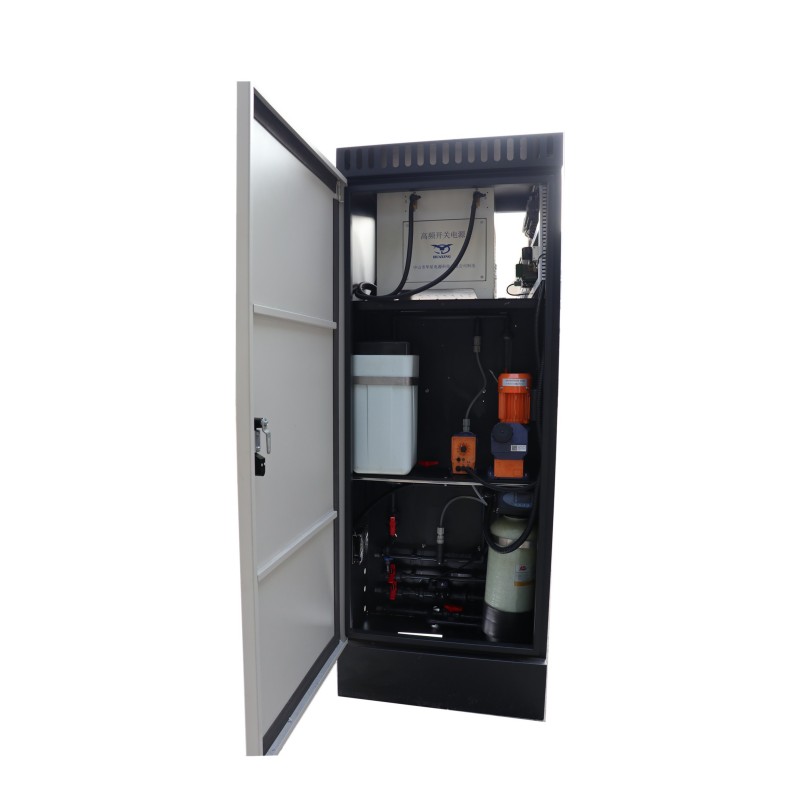

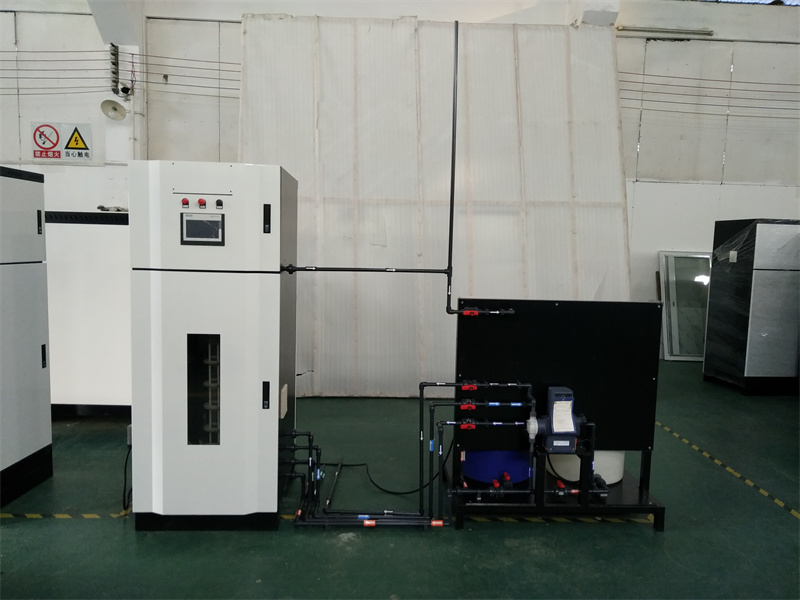

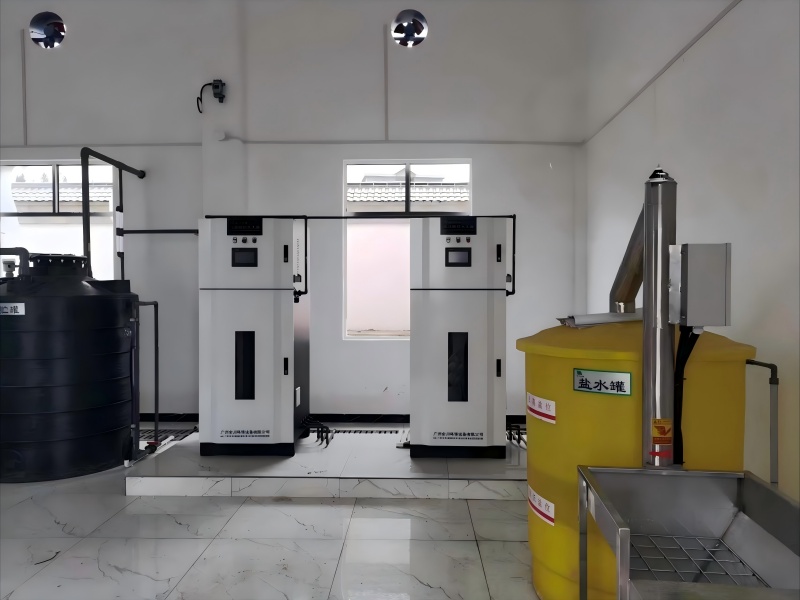

  • Plug-and-Play Convenience
    The electrolyzer system is shipped pre-assembled, pre-wired, and tested to verify hypochlorite production. Once the system is on site the electricity supply, brine solution and process water connections have to be connected to the skid. The common outlet pipe for hypochlorite and hydrogen solution is piped to the hypochlorite storage tank. For these works, the correct installation and regular maintenance, we recommend our specially trained technicians.



Specifications:



Model GTS-100 GTS-200 GTS-300 GTS-400 GTS--500
Dimension of Host Machine 720*750*1850mm 720*750*1850mm 720*750*1850mm 720*750*1850mm 720*750*1850mm
Available chlorine 100g/h 200g/h 300g/h 400g/h 500g/h
NaClO Output flow 20L/h 40L/h 60L/h 80L/h 100L/h
NaClO concentration 5000ppm 5000ppm 5000ppm 5000ppm 5000ppm
Power supply 1kw 2kw 2kw 3kw 3kw
Voltage 220V/50hz single phase 220V/50hz single phase 220V/50hz single phase 220V/50hz single phase 220V/50hz single phase
Feed brine concentration 2.5~3% 2.5~3% 2.5~3% 2.5~3% 2.5~3%
Feed Salt requirement Food grade salt Food grade salt Food grade salt Food grade saltF Food grade salt
Feed water flow 20L/h 40L/h 60L/h 80L/h 100L/h
Feed water requirement tap water tap water tap water tap water tap water
Salt Consumption 3.5kg/kg Cl2 3.5kg/kg Cl2 3.5kg/kg Cl2 3.5kg/kg Cl2 3.5kg/kg Cl2
Power consumption 4.5kw/kg Cl2 4.5kw/kg Cl2 4.5kw/kg Cl2 4.5kw/kg Cl2 4.5kw/kg Cl2
Cell arrangement Vertical Vertical Vertical Vertical Vertical
