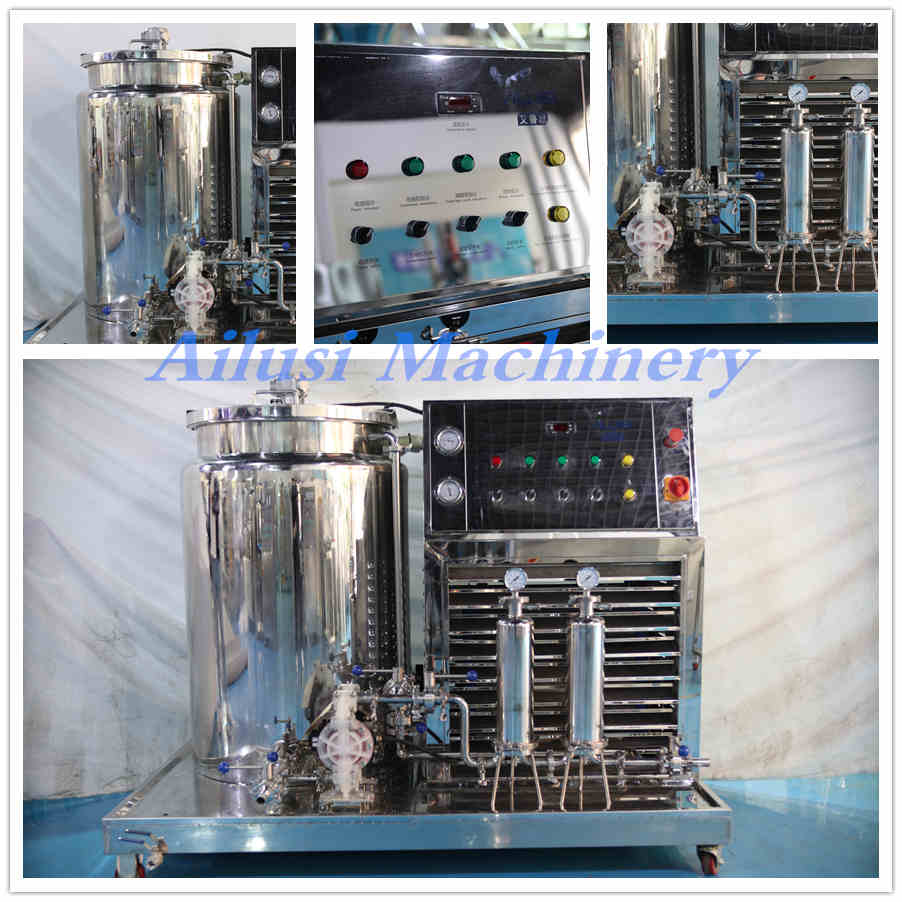

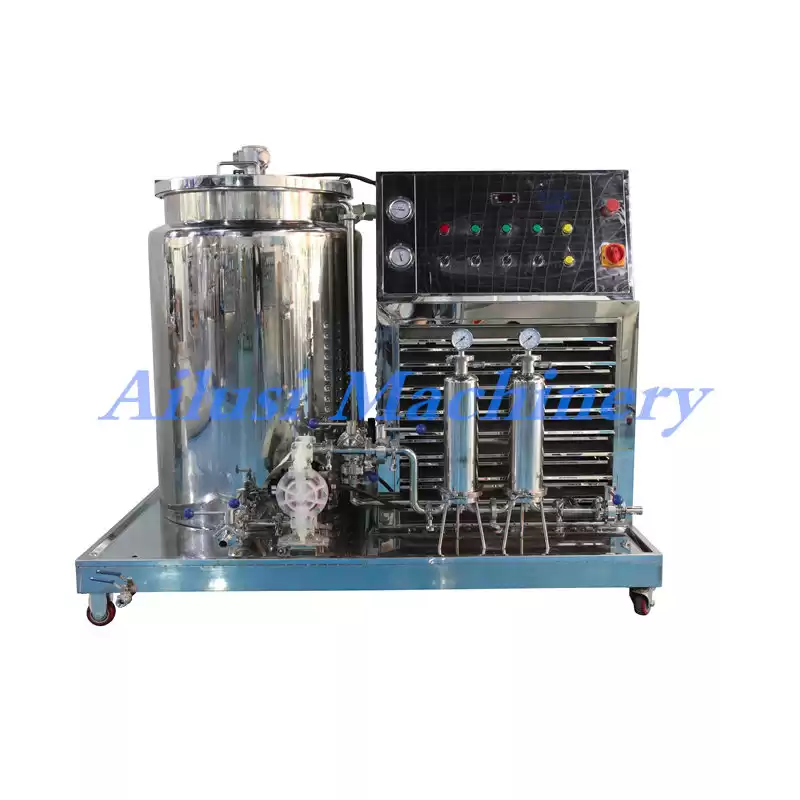

200L Perfume Mixing Freezing Filtering Making Machine

Perfume Making Machine, that pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.







Product Description:

Perfume Freezing Filter is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form , with convenient assembly, disassembly and cleaning. Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.

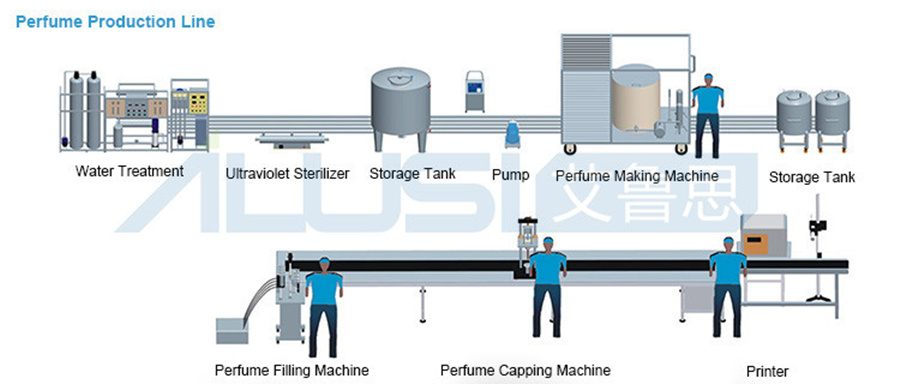

Process of Perfume Making Machine




Main Features:

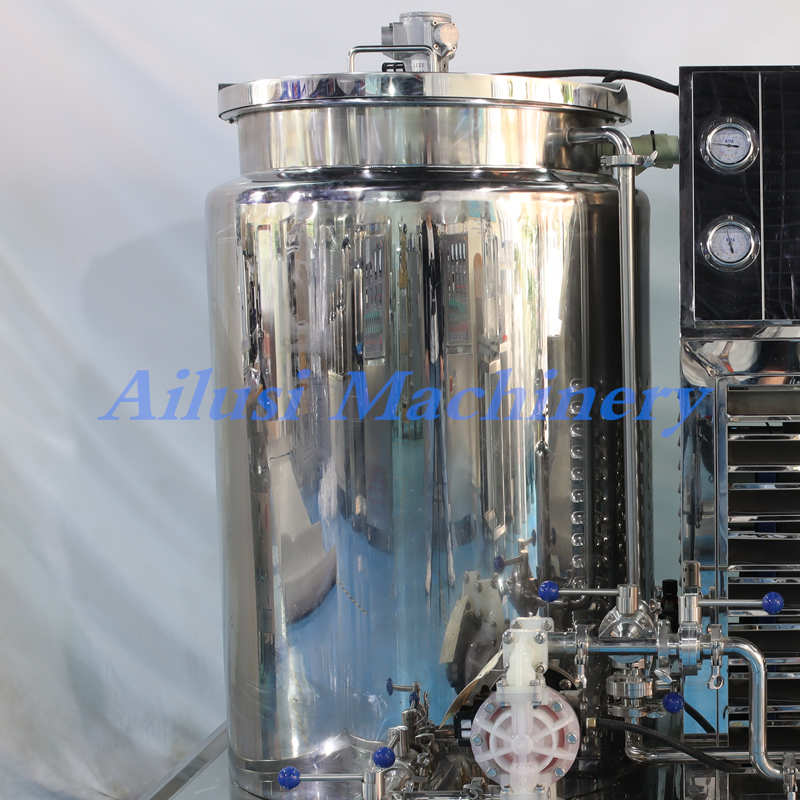

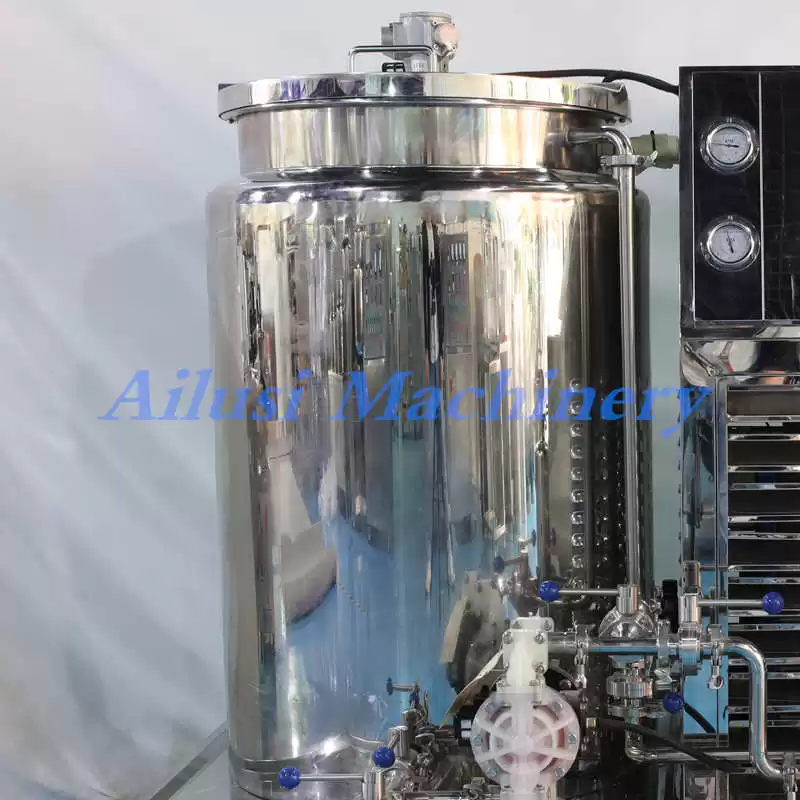

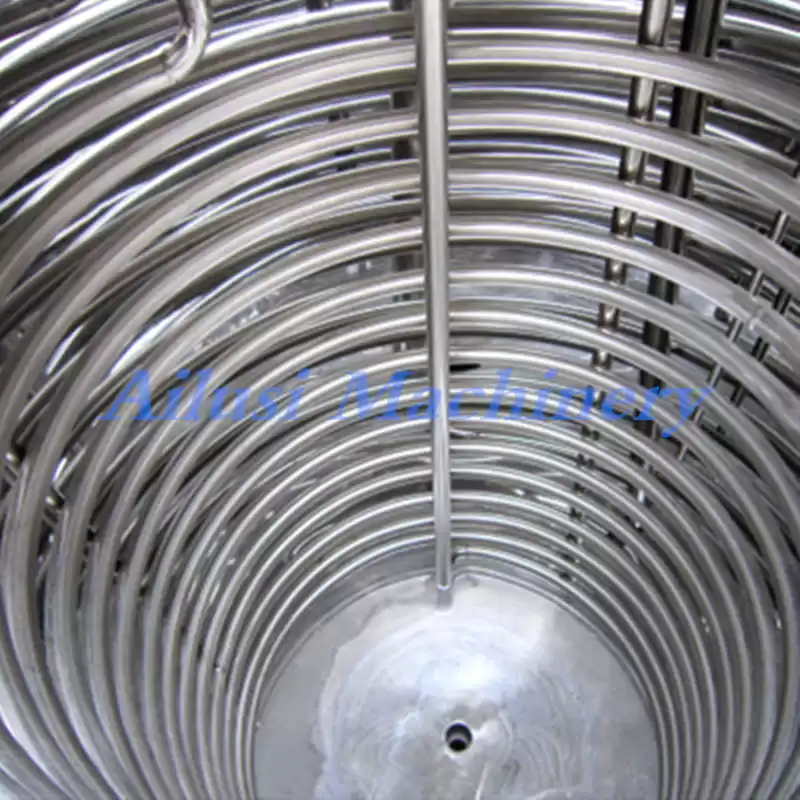

1) Stainless steel insulating frozen tank and Titanium metal pipe

2) Ultra-low temperature chiller (imported)

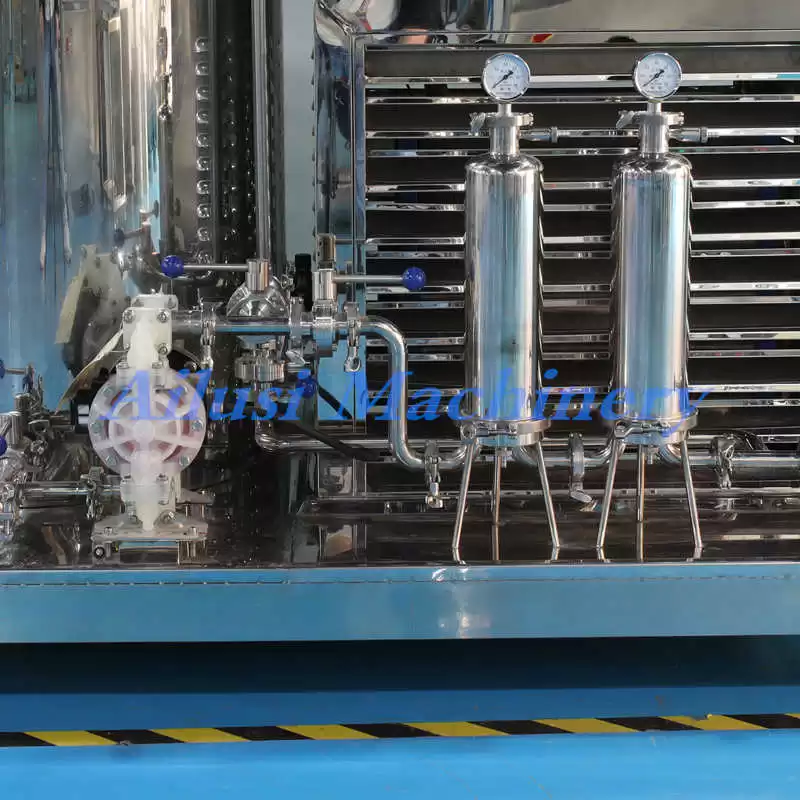

3) Antisepsis pneumatic diaphragm pump

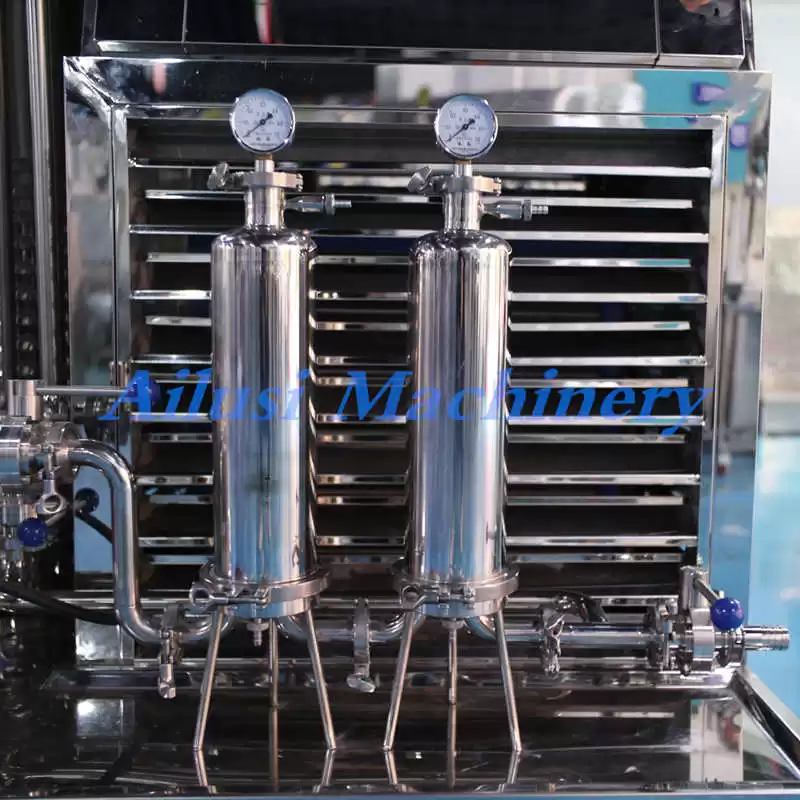

4) Polypropylene microporous filtrating membrane

5) Portable stainless steel bracket

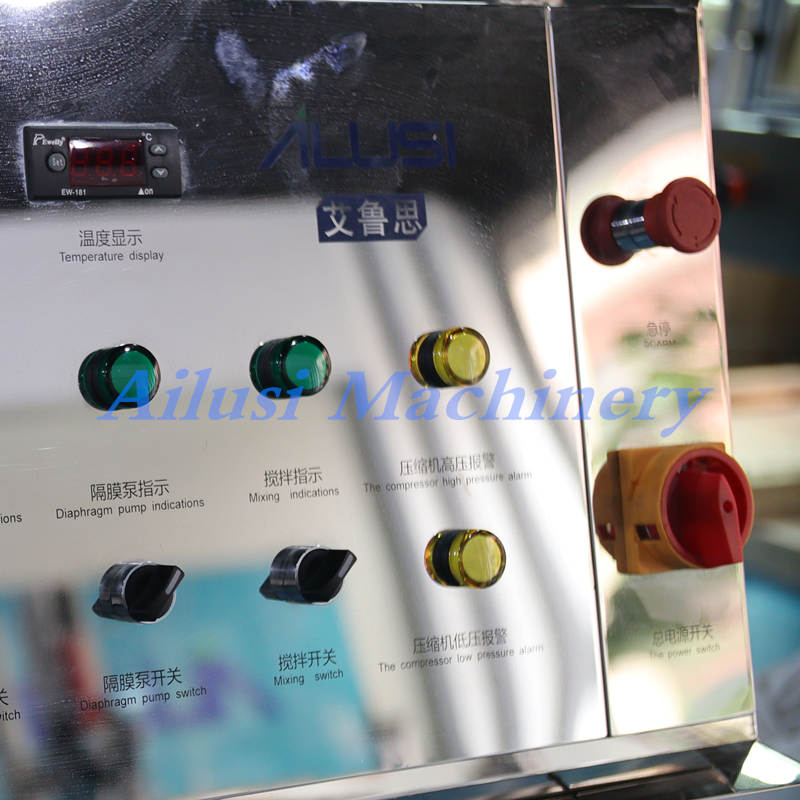

6) Sealed electronic control system & sanitation grade pipes and valves

Perfume Mixing Machine


Technical Parameter:

Model
100L (3P)
200L (3P)
300L (5P)
500L (5P)
Capacity
100L
200L
300L
500L
Freezing Medium
R22
R22
R22
R22
Filter pressure
0.2Mpa
0.2Mpa
0.2Mpa
0.2Mpa
Air source
0.5-0.6Mpa
0.5-0.6Mpa
0.5-0.6Mpa
0.5-0.6Mpa
Freezing Temperature
-15 Celsius degrees
-15 Celsius degrees
-15 Celsius degrees
-15 Celsius degrees
Level 1 filter
1.0um
1.0um
1.0um
1.0um
Level 2 filter
0.2um
0.2um
0.2um
0.2um
Power
2.2KW
2.2KW
3.75KW
7.5KW
Voltage
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz


Our service:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service
