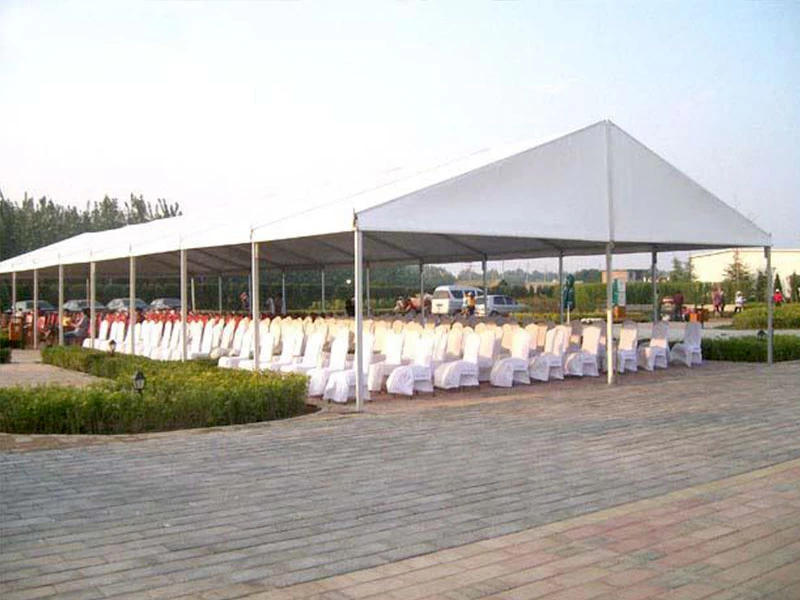

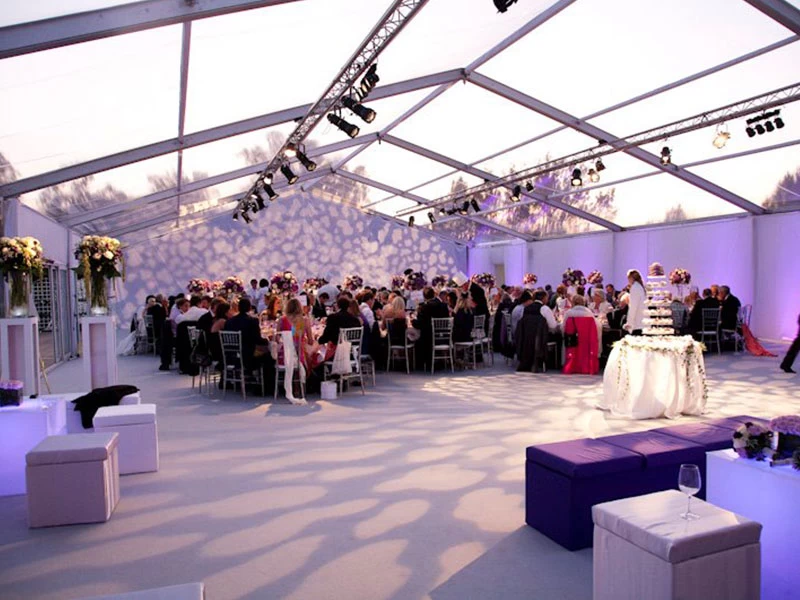

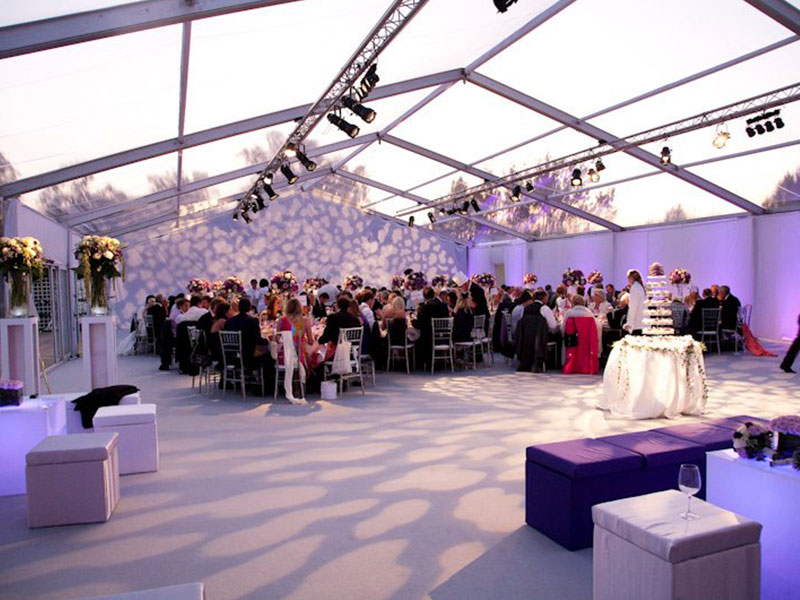

Product Name:20X20 Party Tent With Lining Decoration

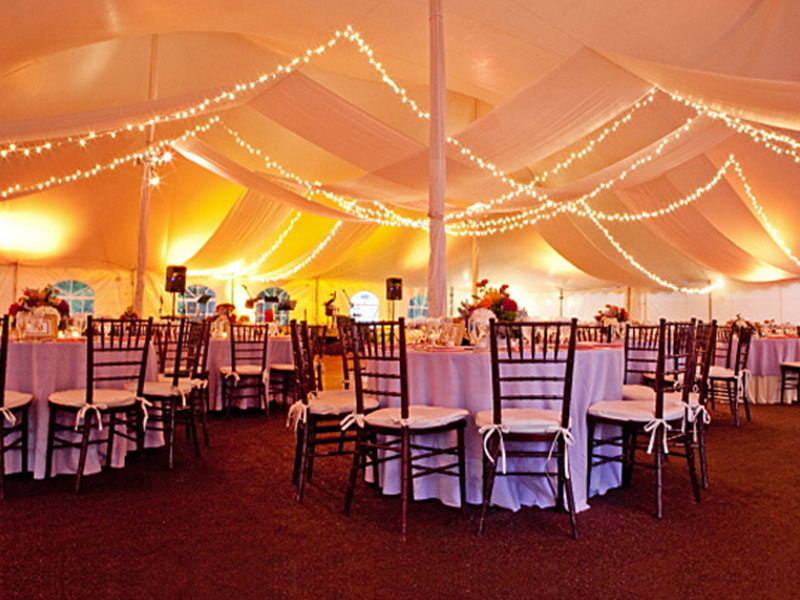

20X20 Party Tent With Lining Decoration like a construction which can be used for different functions, such as party function, in order to make it with party tent atmosphere, put up Lining decoration on the inside roof, guest inside just can see the wonderful lining system rather than the structure frame.

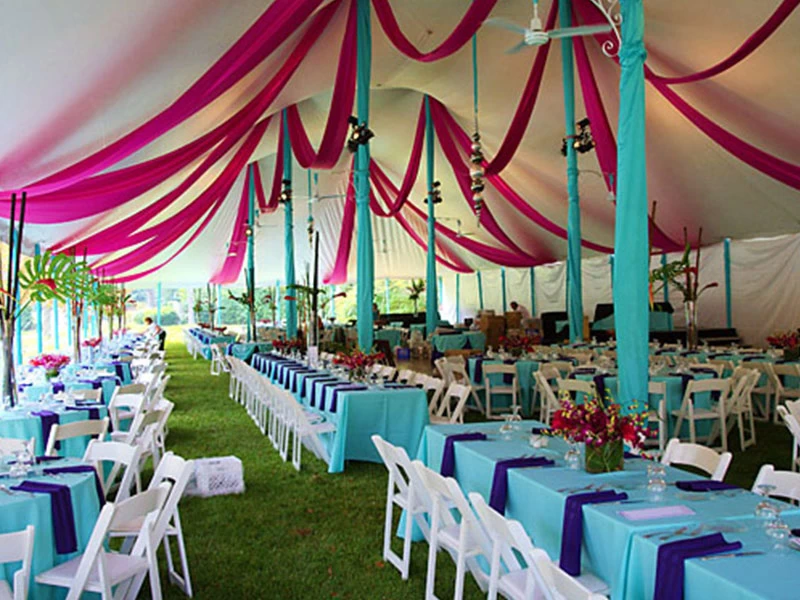

There are 3 different styles of ceiling system for reference: Wave style, Flat tension style and A-frame style.
For creating the unique & impressive party’s requirements, dozens of colours for roof optional, White, Blue, Red, Green, Yellow, Pink and so on. 20m x 20m tent with 400sqm inside space can support 350 people banquets & parties.
The customized design also will be welcomed any time. Taste comes from details.
20X20 Party Tent's Features:
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space be used.
● Roof and gable vent is available.
● Relocatable, easy to install, dismantle and transport.
● Full line accessories available.
20X20 Party Tent's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
● Modular character for diverse combination and expansion.
20X20 Party Tent's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
20X20 Party Tent's Available sizes:
● Clear span available from 3m to 60m.
● Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
The Specification of 20X20 Party Tent With Lining Decoration:
|
Type
|
Span
(m)
|
Side
height (m)
|
Ridge
height (m)
|
Bay
Distance (m)
|
Roof
Pitch
|
Longest
Component (m)
|
Wind
Load (km/h)
|
|
BS10/4-5
|
10
|
4
|
5.5
|
5
|
18°
|
6
|
100
|
|
BS15/4-5
|
15
|
4
|
6.4
|
5
|
18°
|
8.5
|
100
|
|
BS20/4-5
|
20
|
4
|
7.1
|
5
|
18°
|
10.7
|
100
|
|
BS25/4-5
|
25
|
4
|
7.9
|
5
|
18°
|
10.7
|
100
|
|
Main
frame Profile
|
204x120x4mm（4-channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof
Fixing
|
Bar
Tension
|
|
Frame
Material
|
Hard
Pressed Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double
PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
