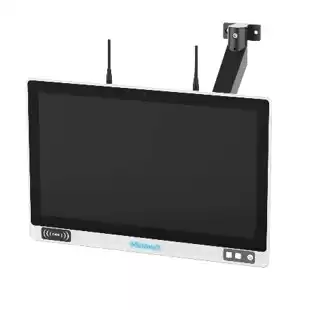

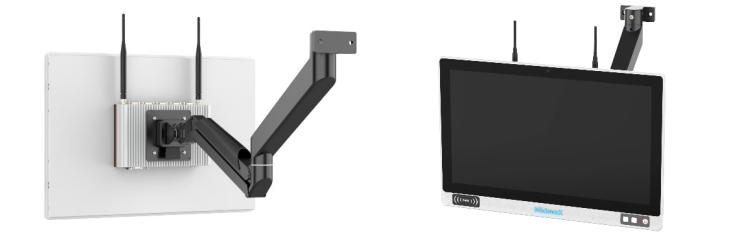

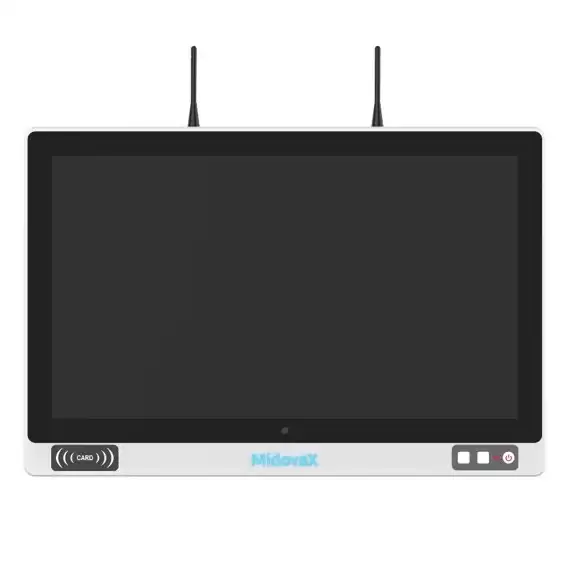

21.5-Inch Display&Computing All-In-One Industrial Panel PC

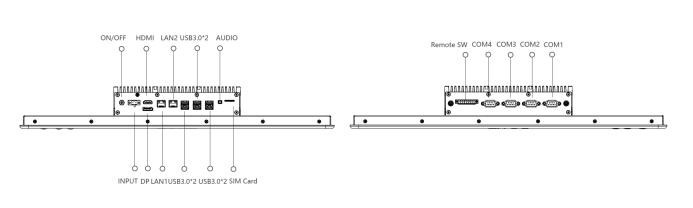

The MDX-P101 industrial panel PC is designed based on the Intel ultra-low power Elkhart Lake platform, supporting a quad-core, quad-thread 2.0GHz processor. It features a 21.5-inch large touch display with wide viewing angles, high brightness, and long-lasting backlight design. The projected capacitive touchscreen supports multi-touch, high response, and high-strength surface glass, and is operable with gloves. It supports common industrial peripheral interfaces such as HDMI/DP, RS232/422/485, USB2.0, USB3.0, and Gigabit Ethernet, with flexible configurations for wireless communication options like WiFi6, Bluetooth, 4G LTE, and 5G.

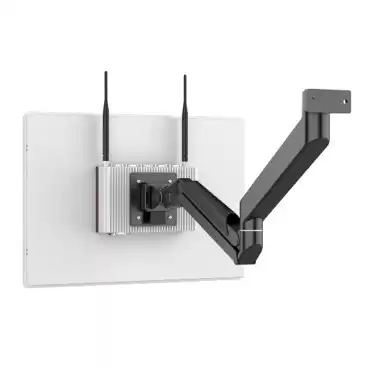

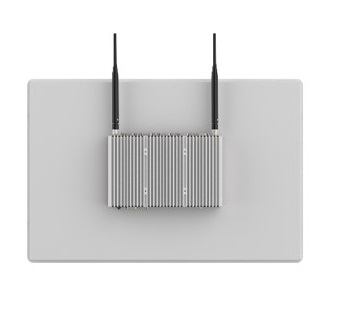

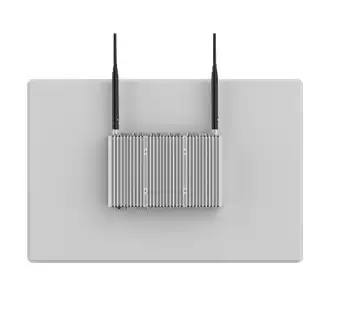

The entire unit is designed with a full aluminum body, providing a solid structure with excellent shock resistance and heat dissipation. The front panel achieves an IP65 protection rating and supports a wide temperature range of -20°C to 60°C, along with a 9-36VDC wide voltage input range, making it suitable for industrial manufacturing environments. It comes with an integrated speaker unit and optional accessories such as an NFC/RFID card reader, barcode scanner, and camera module. The front panel’s quick operation buttons can be customized for software-specific functions, allowing for one-click shortcuts.

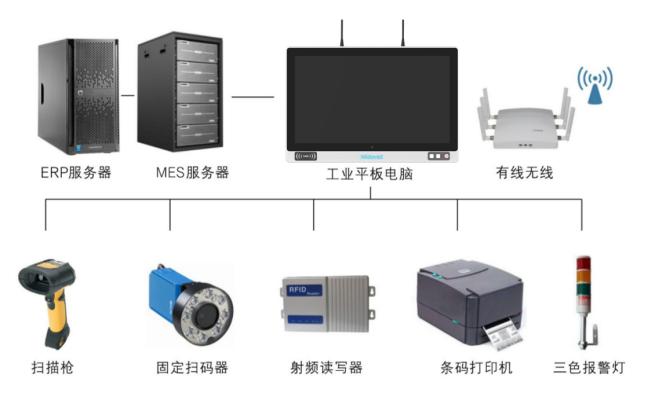

This model is ideal for various industrial applications, including Industrial visualization interface，MES operating station，E-SOP, Human-Mchine Interfaces, Integrated Display and Control System.
