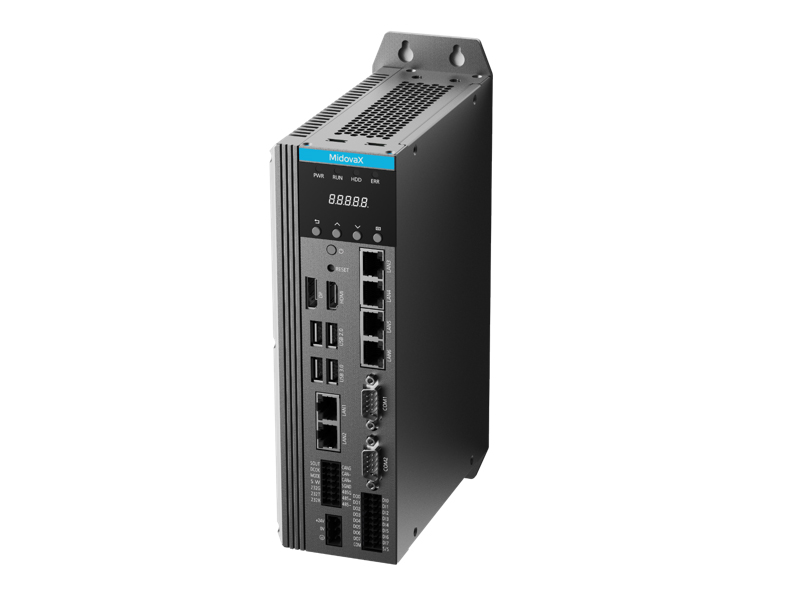

High Performance Compact Industrial Automation Controller

The MDX-C101 Industrial Automation Controller is designed based on the Intel 12th/13th Gen low-power Core processor platform, supporting i7/i5/Celeron series processors.



It adopts a modular design with a CPU board and expansion I/O board, supporting common industrial bus interfaces such as RS232/422/485, CAN2.0, USB2.0, USB3.0, high-speed DI/DO, PoE network ports, and more. It supports a wide DC voltage input range of 12~28V and operates in industrial environments with a temperature range of -20~60°C.



The controller also supports flexible expansion with wireless communication modules, including WiFi, Bluetooth, and 4G LTE. It is compatible with common operating systems like Windows & Linux, and features BIOS-level real-time performance tuning, making it suitable for industrial automation control and integrated visual motion control applications.

Facebook Twitter Pinterest LinkedIn 分享

Product Advantages



MDX-C101 Industrial Automation Controller

Strong Computing Power:

Powered by Intel 12th/13th Gen low-power processors, supporting i7/i5/Celeron CPUs with up to 10 cores, 12 threads, and 96 processing units. Equipped with Intel Xe graphics for superior performance.



Rich Industrial Interfaces:

Supports RS232/422/485, CAN2.0, USB2.0, USB3.0, high-speed industrial DI/DO, and PoE network ports. Includes a built-in 128x64 dot matrix display for controller status, making it easy for industrial field applications and debugging.



Industrial Environment Adaptability:

Supports a wide DC voltage input range of 12~28V and a wide operating temperature of -20~60°C. Includes an integrated intelligent cooling fan. External UPS support for power failure protection of critical data.



Flexible Wireless Communication:

Supports flexible expansion with wireless communication modules such as WiFi, Bluetooth, and 4GLTE.



Real-Time Performance Optimization:

Supports popular operating systems like Windows & Linux, with BIOS-level real-time performance tuning for enhanced efficiency.



Product Parameters

Hardware Configuration Processor Intel 12th/13th Gen i7/i5/i3 processor
Memory Dual-channel DDR4 43200MHz, up to 64GB RAM
Storage M.22280 SATA/PCIe SSD
Display Interface Internal flat-panel display, external DP/HDMI display interface
Network 6*Intel I210 network (4 ports with POE power supply)
USB 2USB3.0 + 2USB2.0 ports
CAN Supports CAN2.0A & 2.0B, max speed 1Mbps
  M.22230 Key E (supports WiFi/BT)
Wireless Communication M.22230 Key B (supports 4G LTE module)
Serial Ports 1*RS232 + 1RS485 Isolated Port (Terminal Block)
2*RS232/422/485 Isolated Ports (DB9 Connector)
Safety Internal USB type-A, safe operation of TPM 2.0, and power-on security
Digital I/O 8 high-speed digital I/O (200KHz, 2500Vrms isolation)
Operating System Windows Windows 10
Linux Ubuntu, Debian, CentOS
Structural Cooling Cooling Design Aluminum heat sink, internal smart cooling fan
Mounting Method Mounted with rear bracket for wall-mount installation
Power Requirements Machine size (L)227mm*(W)160mm*(H)70mm
Power Requirements 12-28VDC
Dimensions max 120W
Working Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
Environmental Parameters 5%-95% relative humidity
Environmental Parameters Vibration 5g 9-150Hz, 1grms acceleration
Shock 10G, 10ms, half-sine
EMC CE/FCC Class A

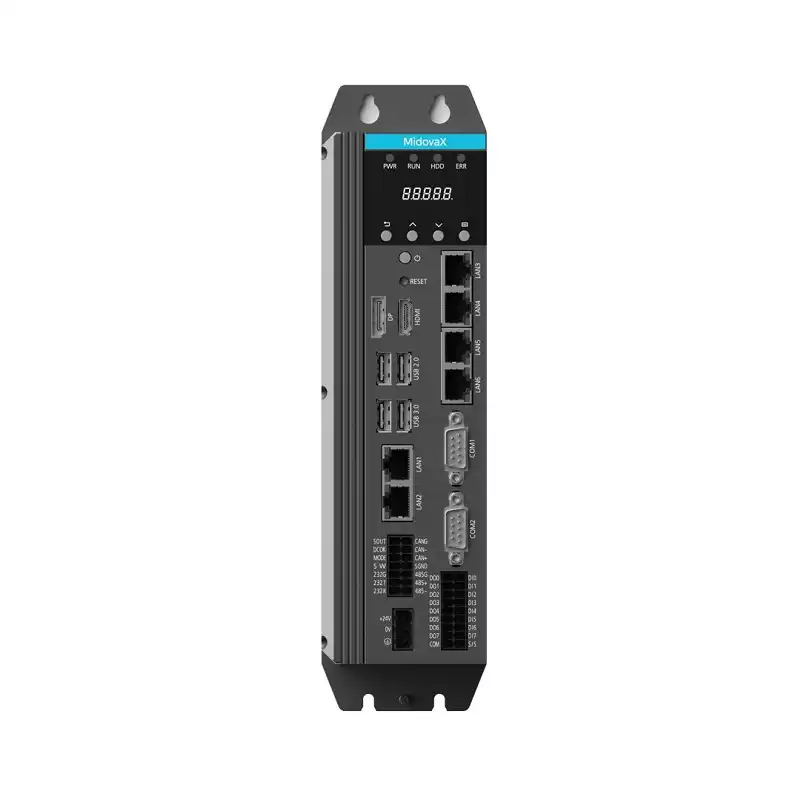

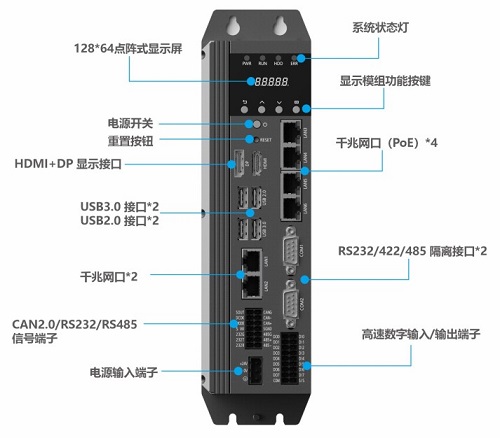

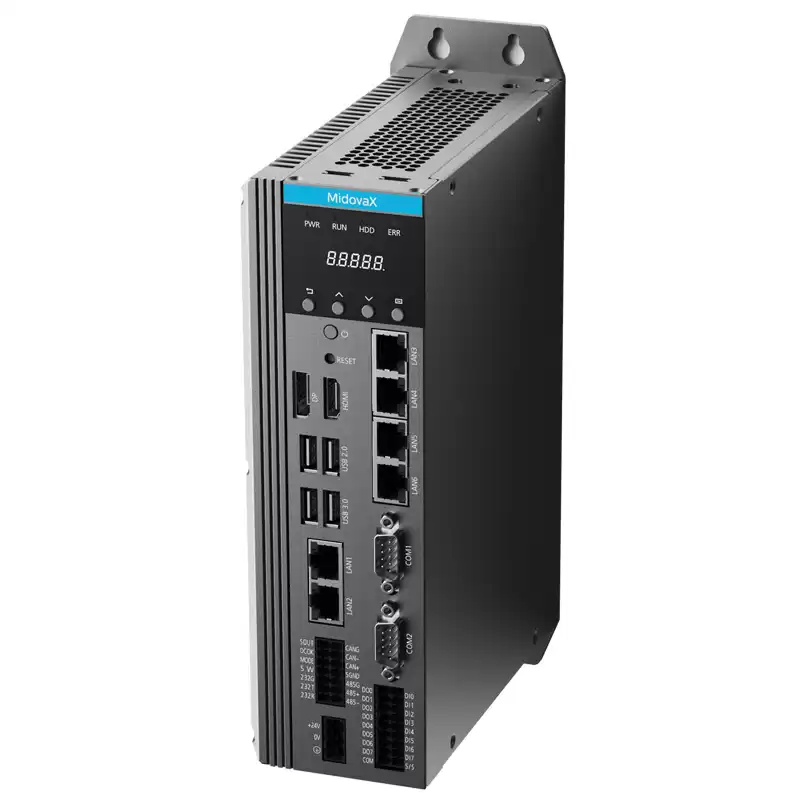

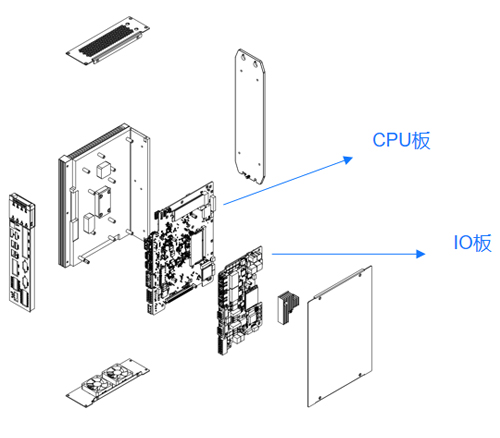

System structure and peripheral interfaces

  • Compact design
  • Easy to install
  • Excellent heat dissipation
  • Cable-free design
  • Flexible and customizable I/O expansion



Configuration List



Product Model Description
MDX-C101-CR-V10 Intel 12th/13th Gen low-power CPU, 2x DDR4 SO-DIMM slots supporting up to 64GB memory, supports M.2 SATA/PCIe SSD, 128GB storage, DP+HDMI display output, 2xUSB 2.0, 6x Intel i210 GB Ethernet ports, 2xRS232/422/485 serial ports, 1xRS485+1xRS232 isolated port, 1xCAN2.0, 16x high-speed DI/DO, 12~28V DC power input, operating temperature: -20~60°C.
MDX-C101-i5-V10 Intel 12th/13th Gen i5 CPU, 2x DDR4 SO-DIMM slots supporting up to 64GB memory, supports M.2 SATA/PCIe SSD, 128GB storage, DP+HDMI display output, 2xUSB 2.0, 6x Intel i210 GB Ethernet ports, 2xRS232/422/485 serial ports, 1xRS485+1xRS232 isolated port, 1xCAN2.0, 16x high-speed DI/DO, 12~28V DC power input, operating temperature: -20~60°C.
MDX-C101-i7-V10 Intel 12th/13th Gen i7 CPU, 2x DDR4 SO-DIMM slots supporting up to 64GB memory, supports M.2 SATA/PCIe SSD, 128GB storage, DP+HDMI display output, 2xUSB 2.0, 6x Intel i210 GB Ethernet ports, 4xPoE support, 2xRS232/422/485 serial ports, 1xRS485+1xRS232 isolated port, 1xCAN2.0, 16x high-speed DI/DO, 12~28V DC power input, operating temperature: -20~60°C.



Optional Accessories

Component Model Description
Memory 4GB, 8GB, 16GB DDR4 SO-DIMM, supports up to 2 memory modules
M.2 SATA SSD 256GB, 512GB, 1TB, 2TB Supports SATA3.0, M.2 KeyM 2280 SATA SSD
M.2 PCIe SSD 256GB, 512GB, 1TB, 2TB Supports PCIe3.0 x4, M.2 KeyM 2280 PCIe SSD
WiFi Module M.2 WiFi Module + External Antenna Supports PCIe3.0 x1 + USB2.0, M.2 KeyE 2230 WiFi module with external antenna
3G/4G Module M.2 3G/4G Card Module + External Antenna Supports PCIe3.0 x1 + USB2.0, M.2 KeyB 3050 3G/4G wireless module with external antenna



Product Application

Next Product
Prev Product
