About this item
The 21-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing
The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 1.2 gallons per minute
Built-in 35 PSI pressure switch for automatic stop/start
Self-priming allows it to be mounted above tank; able to run dry
1.2 gallons per minute (4.2 liters per minute) Built-in thermal protector; 3/8-inch hose barb ports
Specification
|
Type
|
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
|
|
Control Type
|
Pressure switch
|
|
Max Recommended Temperature
|
60° C (140° F)
|
|
Priming Capabilities
|
4 feet (1.2 m) suction lift
|
|
Re-start Pressure
|
Shut-off Pressure 35 PSI: 25 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 40 PSI: 30 PSI ±5 PSI (±0.3 bar)
Shut-offPressure 70 PSI: 56 PSI ±5 PSI (±0.3 bar)
|
|
Inlet/Outlet Ports
|
3/8" (10 mm) hose barb
|
|
Weight
|
1.3 lbs (0.6 kg)
|
|
Leads
|
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent
|
|
Model
|
Voltage
|
Open flow
(GPM/LPM)
|
Max draw
|
Shut-off pressure
(PSI / BAR)
|
Ports
|
Wire connections
|
|
NMDP21-G10-40-12
|
12V
|
1.0 / 3.8
|
4A
|
40 / 2.8
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP21-G10-40-24
|
24V
|
1.0 / 3.8
|
2A
|
40 / 2.8
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP21-G11-70-12
|
12V
|
1.1 / 4.0
|
4A
|
70 / 4.8
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP21-G11-70-24
|
24V
|
1.1 / 4.0
|
2A
|
70 / 4.8
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP21-G12-35-12
|
12V
|
1.2 / 4.3
|
4A
|
45 / 3.1
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP21-G12-35-24
|
24V
|
1.2 / 4.3
|
2A
|
45 / 3.1
|
3/8"Barb
|
2-pin / Lead
|

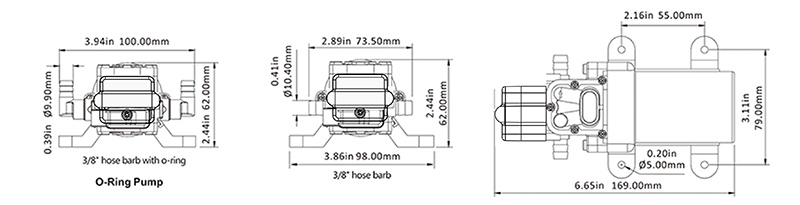

Dimensions
