About this item

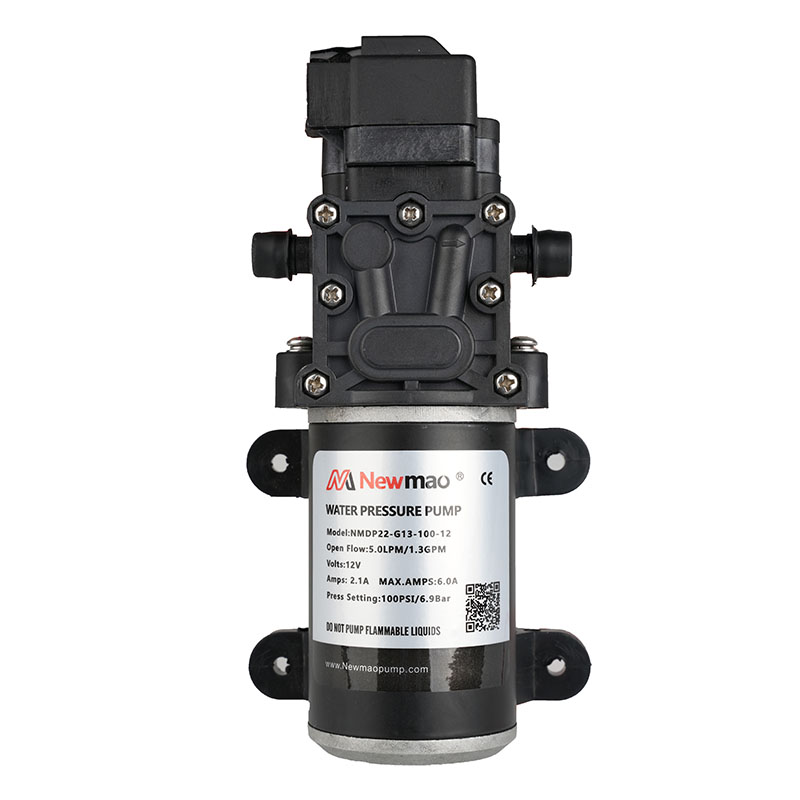

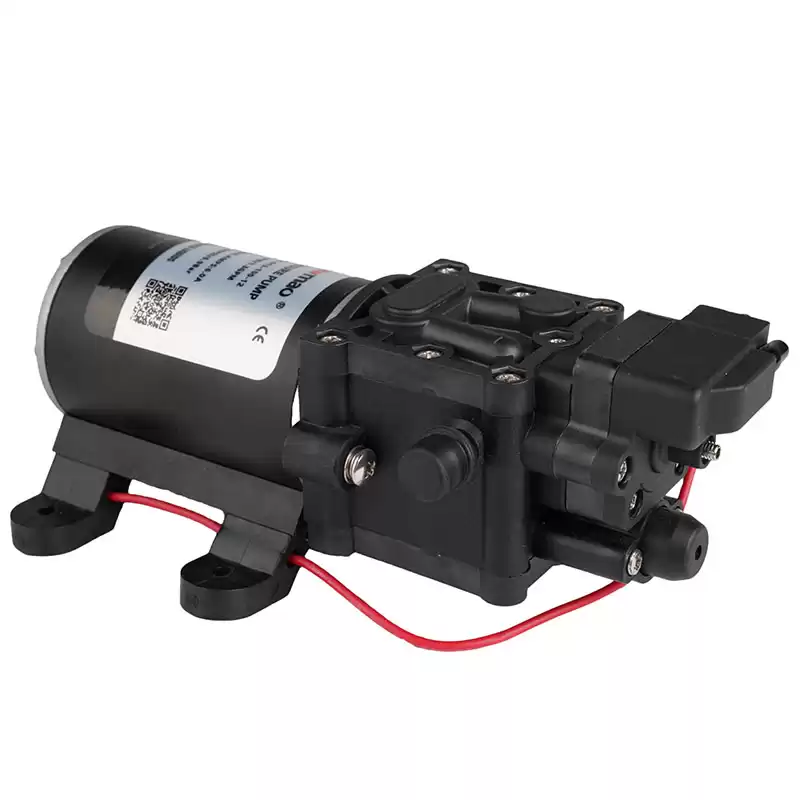

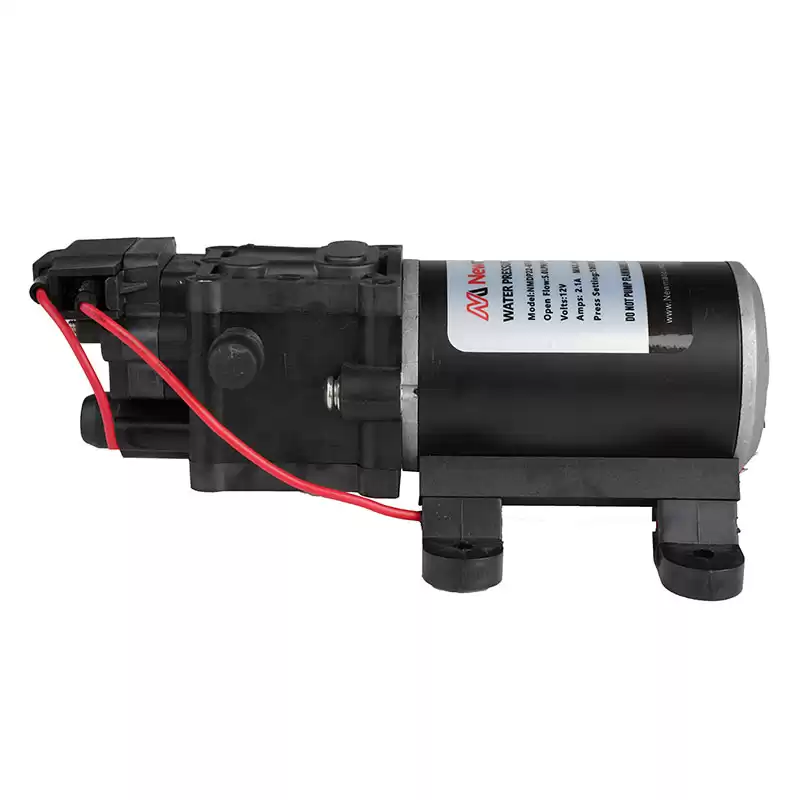

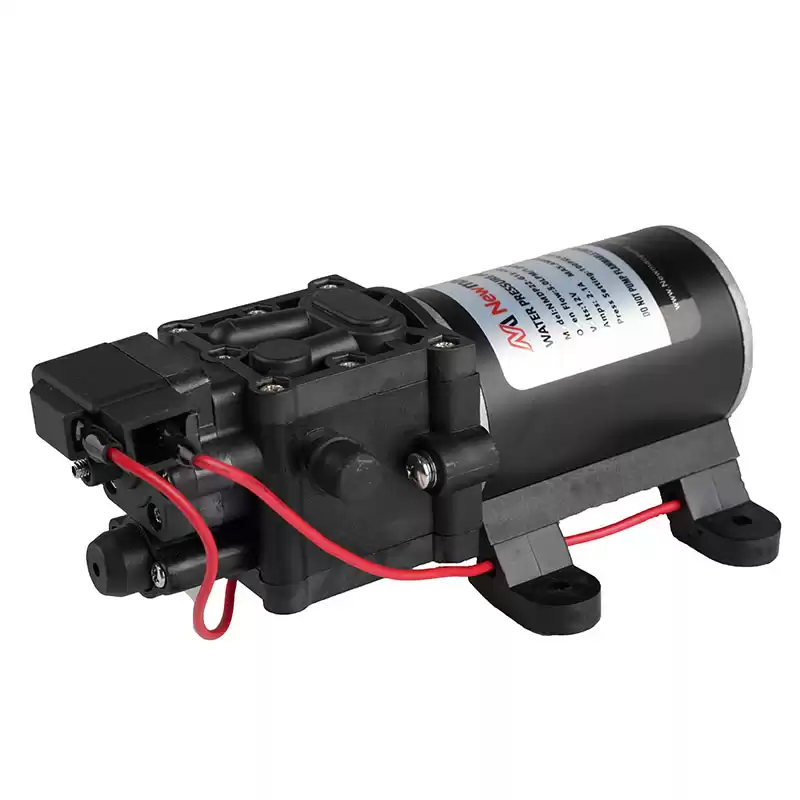

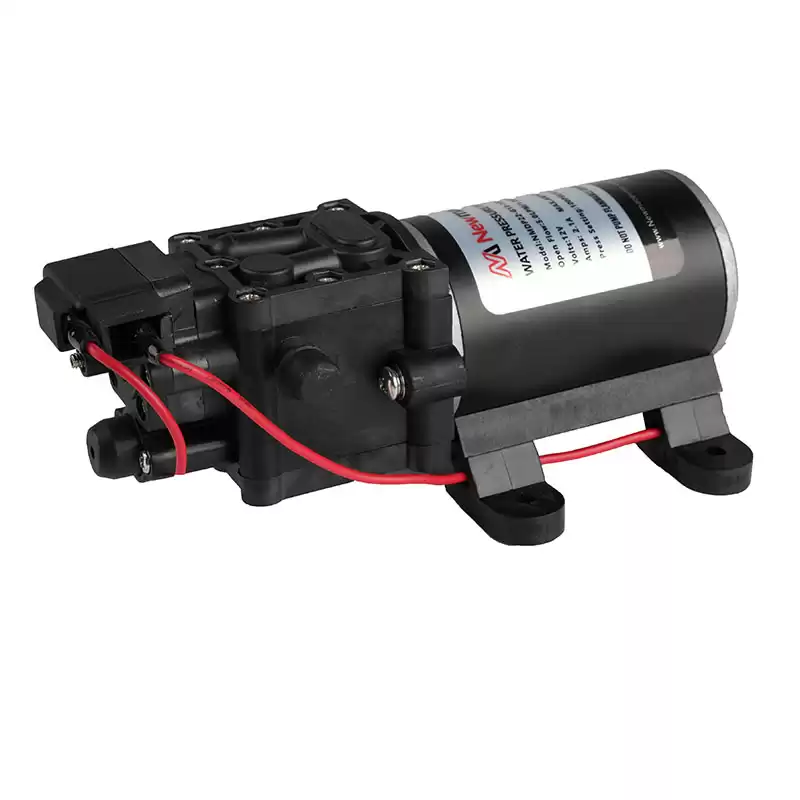

On-demand, automatic water pump for small boats, campers and vans
Built-in 100 PSI(6.9 BAR) pressure switch for automatic stop/start
Self-priming allows it to be mounted above tank; able to run dry
Built-in thermal protector; 3/8-inch hose barb ports
1.3 gallons per minute (5.0 liters per minute); 6.0 Max Amps
Specification
|
Type
|
2 Chamber positive displacement diaphragm
pump, self priming, capable of being run dry
|
|
Control Type
|
Pressure switch&bypass control
|
|
Max Recommended Temperature
|
60° C (140° F)
|
|
Priming Capabilities
|
6 feet (1.8 m) suction lift
|
|
Re-start Pressure
|
Shut-off Pressure 60 PSI : 48 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 100 PSI : 75 PSI ±5 PSI (±0.3 bar)
|
|
Inlet/Outlet Ports
|
3/8" (10 mm) hose barb
|
|
Weight
|
2.4 lbs (1.1 kg)
|
|
Leads
|
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent
|
|
Model
|
Voltage
|
Open flow
(GPM/LPM)
|
Max draw
|
Shut-off pressure
(PSI / BAR)
|
Ports
|
Wire connections
|
|
NMDP22-G12-80-12
|
12V
|
1.2 / 4.5
|
4.5 A
|
80/5.5
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP22-G12-80-24
|
24V
|
1.2 / 4.5
|
2.3 A
|
80/5.5
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP22-G13-100-12
|
12V
|
1.3/5.0
|
5.0 A
|
100/6.9
|
3/8"Barb
|
2-pin / Lead
|
|
NMDP22-G13-100-24
|
24V
|
1.3/5.0
|
2.6 A
|
100/6.9
|
3/8"Barb
|
2-pin / Lead
|

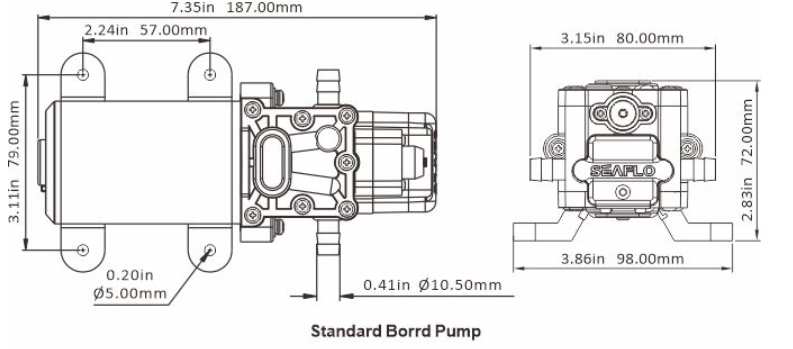

Dimensions
