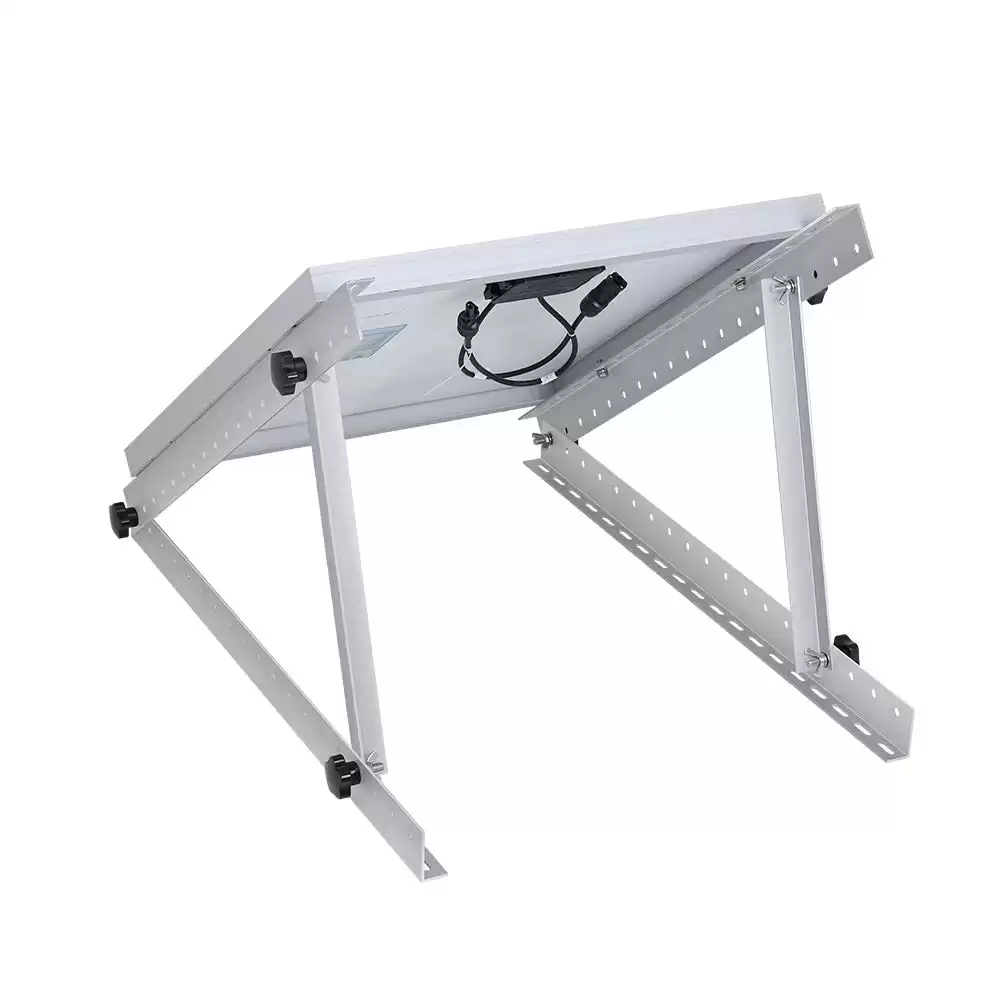

Folding tilt leg for solar panel
Adjustable and folding Triangle solar panel tilt mount are ideally designed for off-grid solar system, which have been widely used on Boat, RV, Marine, Motorhome, caravan, sheds, garages or other flat surface. It could be assembled quickly with stainless steel fasteners and pre-drilled holes, which tilt the solar panel from 0 to 90 degree and help win more solar energy. Heavy duty bracket could support solar panel up to 300W.
Category: Flat roof mounting
|
Item
|
Description
|
Spec. (mm)
|
Solar panel
|
|
SIC-PFT-22
|
22 inch portable and foldable triangle frame
|
Bottom & Top Beam 50x25x556
Support Beam 30x20x290
|
<100W
|
|
SIC-PFT-28
|
28 inch portable and foldable triangle frame
|
Bottom & Top Beam 50x25x712
Support Beam 30x20x375
|
<150W
|
|
SIC-PFT-41
|
41 inch portable and foldable triangle frame
|
Bottom & Top Beam 50x25x1040
Support Beam 30x20x545
|
200W-350W
|

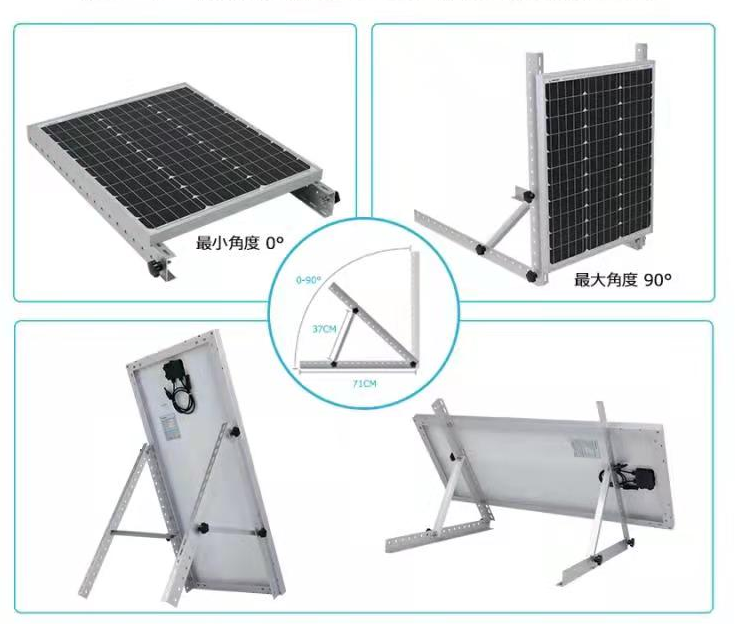

☆ 0 - 90 degree adjustable angle - ideally designed for off-grid solar system
☆ Max. Solar Power Efficiency - Adjustable angle achieve highest solar power.

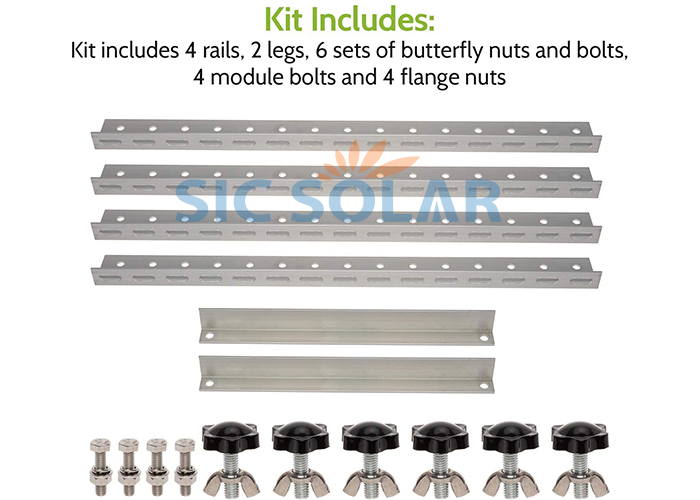

☆ Easy to use - Assembled quickly with stainless steel fasteners and pre-drilled holes

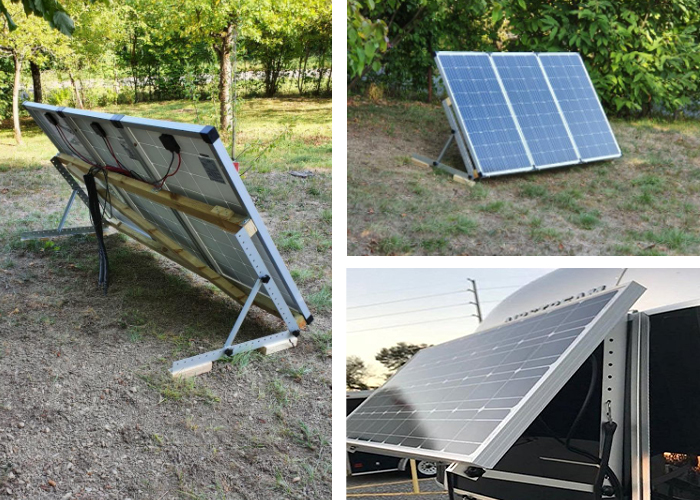

☆ Widely application - Boat, RV, Marine or other flat surface.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list

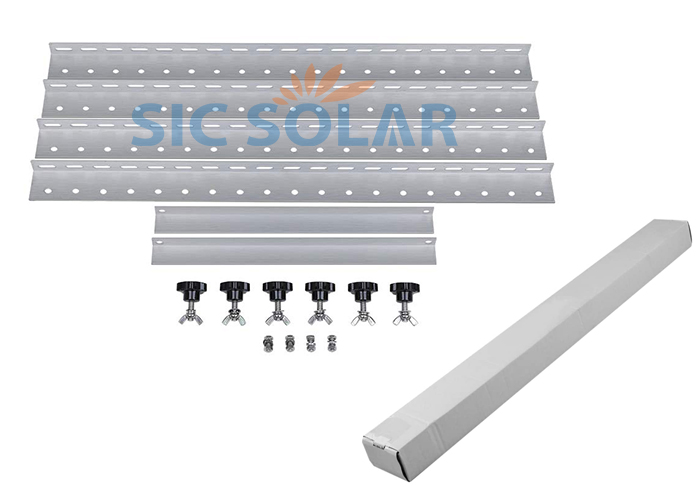

One set could be packed into cartons with plywood pallet.
