220VAC Input Single Output 12V 3A Switching Power Supply 36W
Description:
The KPSH30 series power supply is a 36W single output open frame power supply,this power supply is customized for the led lights,this power supply is small size SMPS,also it can be used to the medical equipments and so on.
Features:
1,12V switching power supply with High efficiency, low temperature rise;
2, 12V DC power supply with Built-in filters, low output noise;
3, 12V 3A power supply with Wide range of AC input voltage;
4, Short circuit, overload, overvoltage protection;
5,24W SMPS can be Used to LED light and other equipments etc.
Parameter
|
|
Item No.
|
KPSH30-5
|
KPSH30-12
|
KPSH30-24
|
|
Output
|
Output Voltage
|
+5V
|
+12V
|
+24V
|
|
Rated Current
|
5A
|
3A
|
1.5A
|
|
Current Range
|
0-5A
|
0-3A
|
0-1.5A
|
|
Rated Power
|
25W
|
36W
|
36W
|
|
Ripple
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
|
Adjustable Output Range
|
4.7~5.5V 10.8~13.2V 20.8~25.2V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
170~264V AC
|
|
Input Current
|
0.3A/220VAC,
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
84%@220VAC
|
|
Inrush Current
|
Cold start 15A@115V,30A@230V
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Over Load Protection
|
110~130%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943
|
|
Withstand Voltage
|
I/P-O/P:3KV,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS B
|
|
Others
|
Dimension
|
92*46*25mm(L*W*H)
|
|
Weight
|
0.1kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

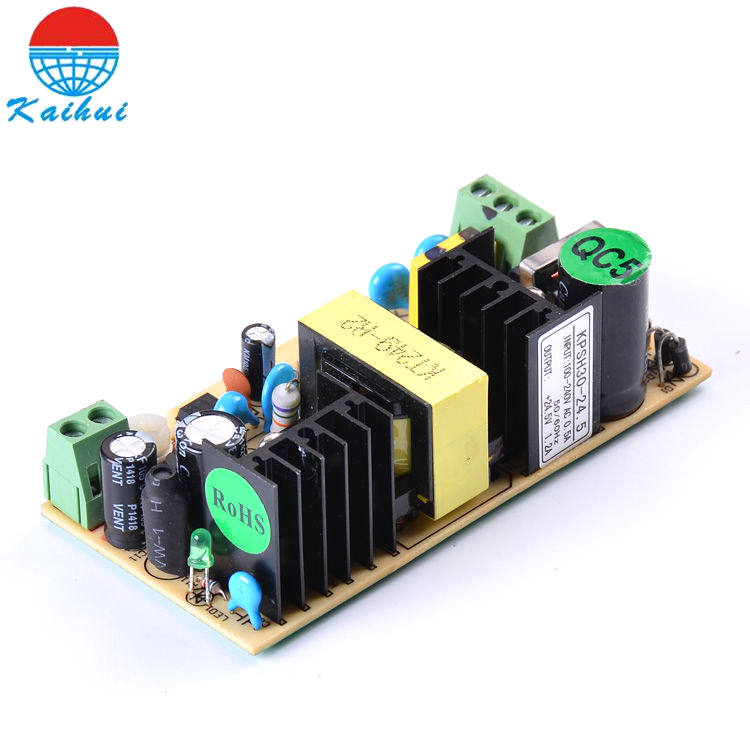

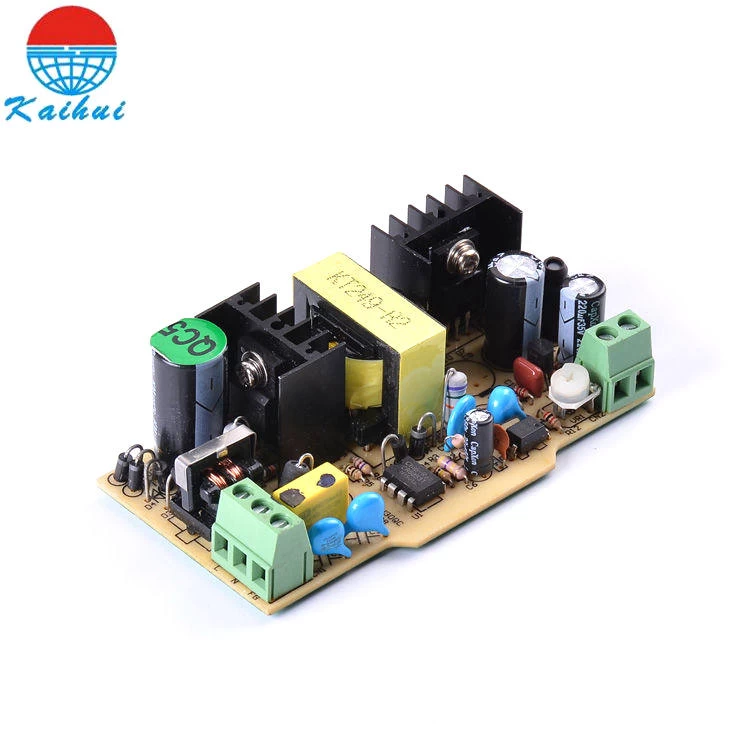

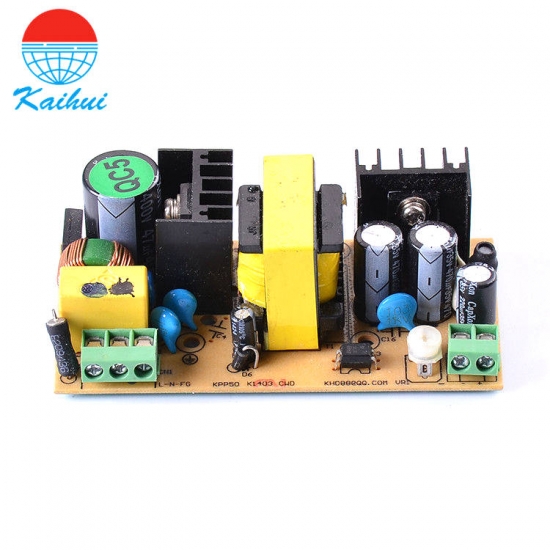

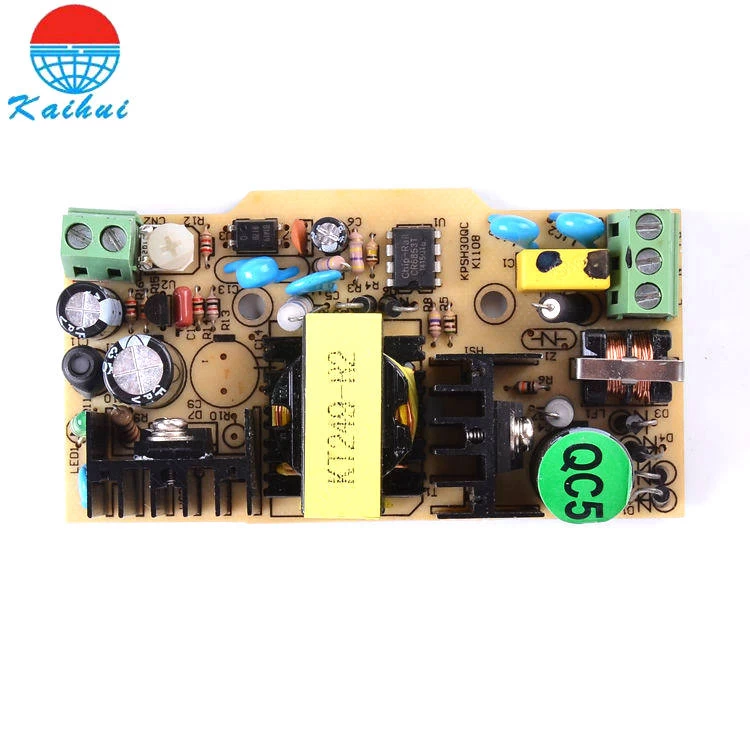

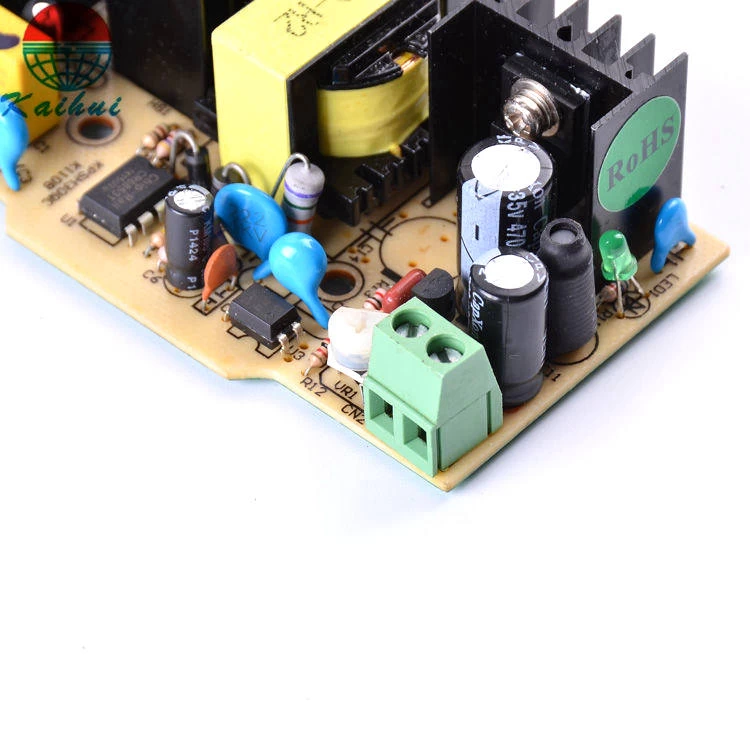

Product picture:
