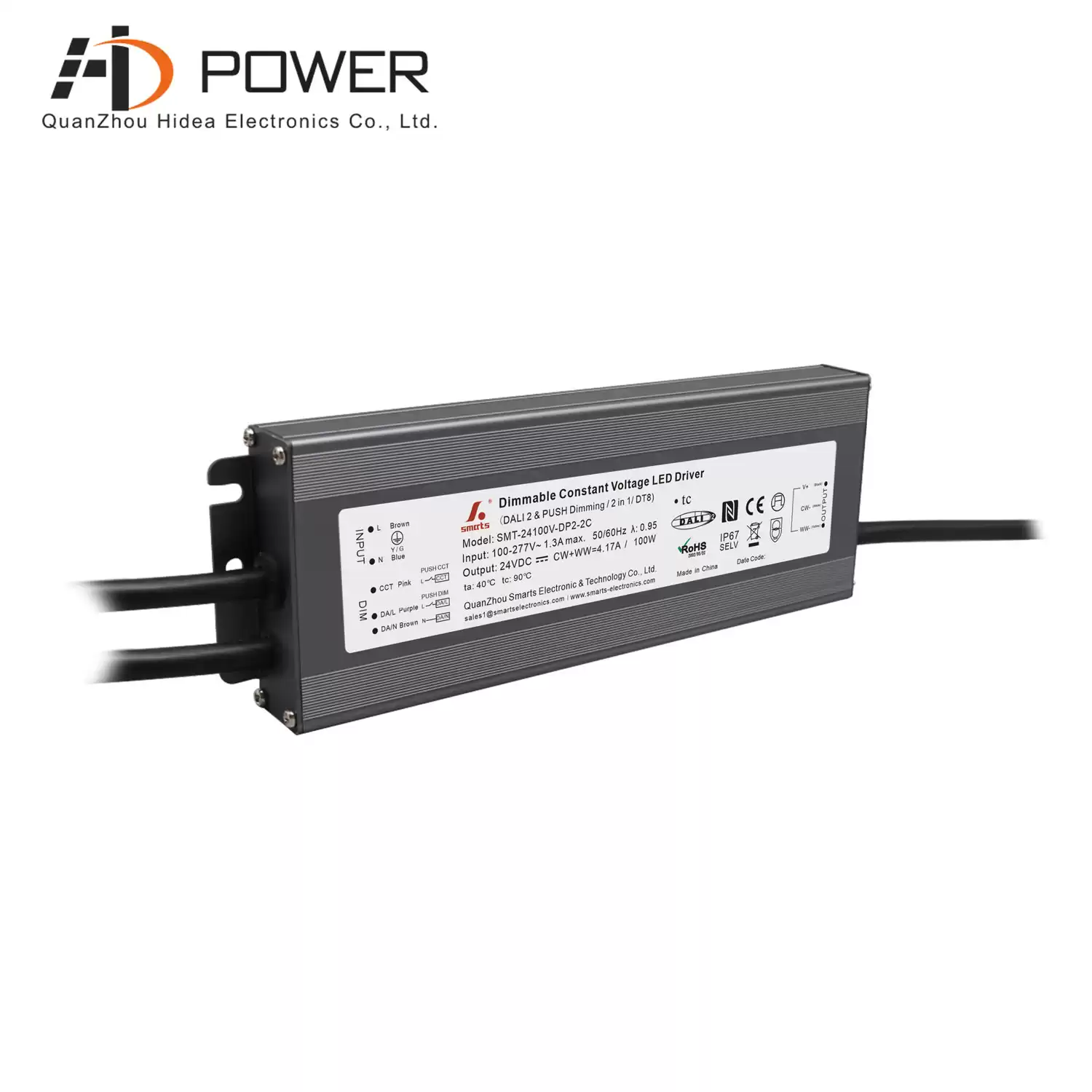

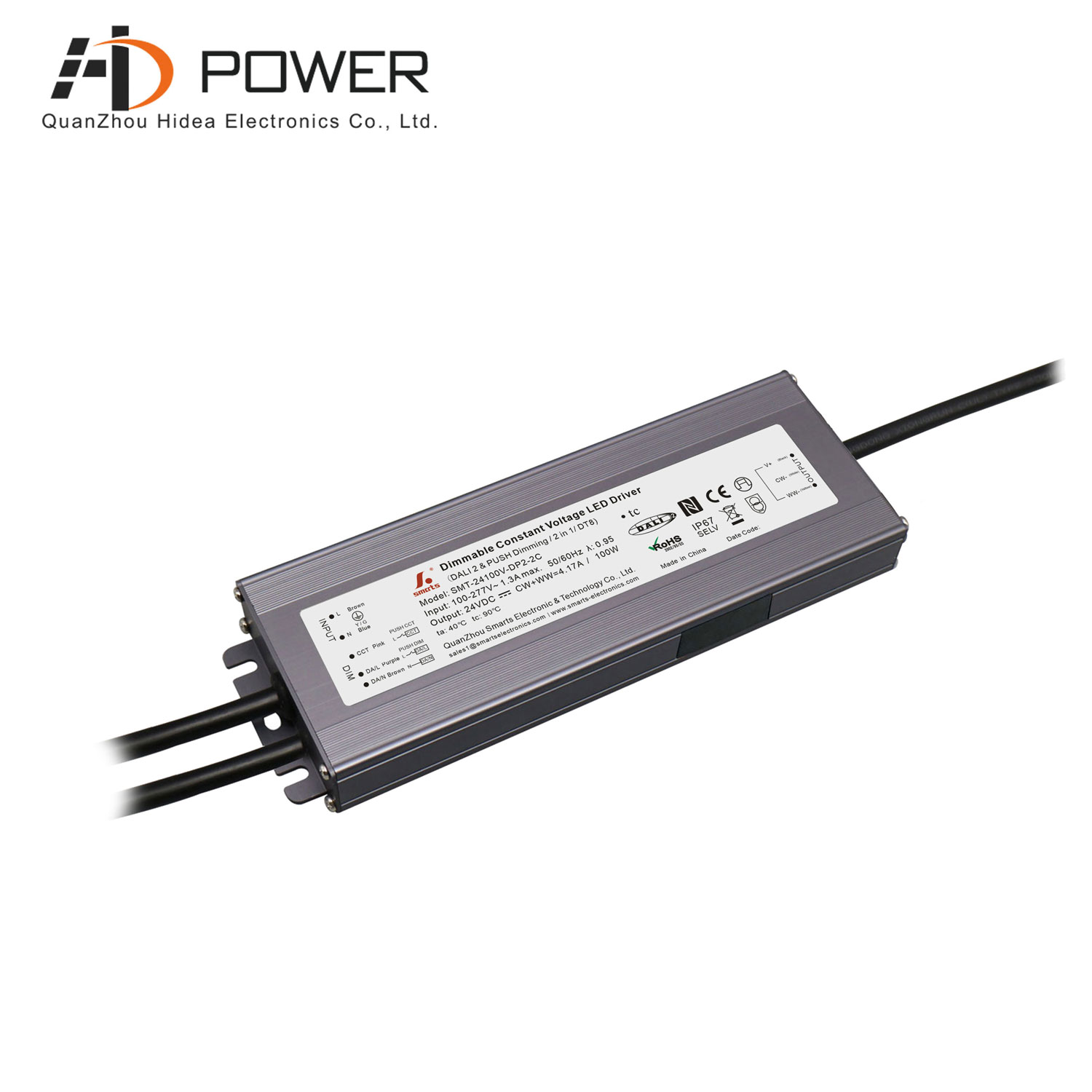

Model
|
SMT-24096V-DP2-2C
|
SMT-36096V-DP2-2C
|
SMT-48096-DP2-2C
|
|
Output
|
DC Voltage
|
24V(24-26V adjust by NFC)
|
36V(36-38V adjust by NFC)
|
48V(48-50V adjust by NFC)
|
|
Voltage Tolerance
|
±0.2V
|
|
Rated current
|
4A
|
2.67A
|
2.0A
|
|
Rated power
|
96W
|
|
Load Regulation
|
1%
|
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading)
|
|
THD(Typ.)@ full load
|
≤10%@120VAC ; ≤10%@230VAC; ≤15%@277VAC
|
|
Efficiency(Typ.)@ full load
|
86%@120VAC 89%@230VAC/277VAC
|
|
AC Current(Max.)
|
1.3A
|
|
Standby power consumption
|
0.25W(@120V)
|
0.20W(@120V)
|
0.20W(@120V)
|
|
0.42W(@230V)
|
0.43W(@230V)
|
0.43W(@230V)
|
|
0.47W(@277V)
|
0.48W(@277V)
|
0.48W(@277V)
|
|
Inrush Current (Typ.)
|
23.2A, 50%, 360us @120VAC; 80A, 50% , 104us @230VAC,54A, 50% , 280us @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Over temperature
|
Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
|
|
Environ-ment
|
Working TEMP.
|
-40 ~ +70℃ (see below derating curve)
|
|
Working Humidity
|
20 ~ 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 ~ +80℃,10 ~ 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 ~ 50℃)
|
|
Vibration
|
10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13(EU) & UL8750(US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
/
|
|
Dimension
|
232*78*25.1mm (L*W*H)
|
|
packing
|
/
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
