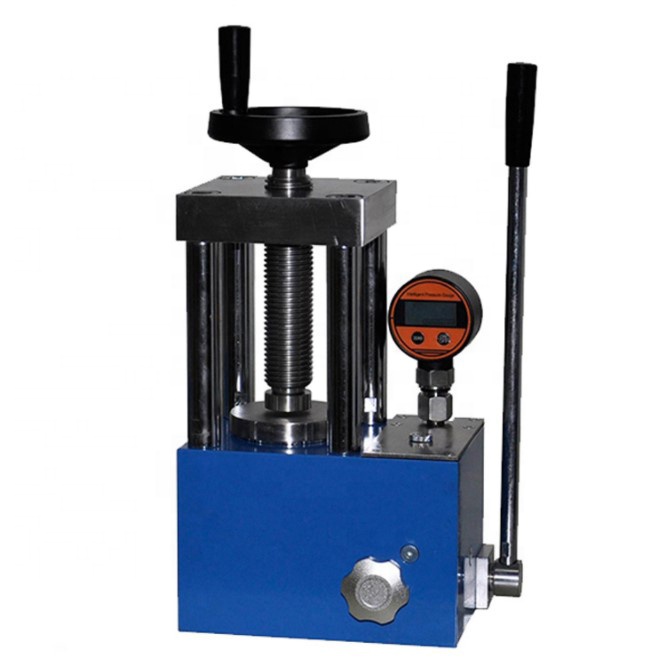

3T 5T 12T 15T Lab Small Manual Hydraulic Press


Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples.

1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.


Specification

Model

SYP-3T

SYP-5T

SYP-12T

SYP-15TB

SYP-15TA

Pressure range

0-3T

(0-28.8MPa)

0-5T

(0-31.4MPa)

0-12T(0-30MPa)

0-15T(0-30MPa)

Piston diameter

φ35mm

φ45mm

φ70mm

φ80mm

Analog pressure gauge

Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton

Digital pressure gauge

(optional)

Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with "s" type)

Maximum piston stroke

30mm

Pressurization mode

Manual pressurization / manual slow pressurization

Pressure stability

≤1MPa/10min

Overall structure

Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point

Diameter of worktable

φ80mm

φ90mm

Number of columns

2 columns

2columns

4 columns

Working space

(W×H)

96×130mm

96×130mm)

140×150mm

80×130mm

Machine dimensions

(L×W×H)

225×155×380mm

225×155×380mm

245×175×390mm

245×175×390mm

Machine weight

28kg

28kg

38kg

40kg

Model

SYP-24T

SYP-30T

SYP-40T

SYP-60T

Pressure range

0-24T(0-34MPa)

0-30T(0-31.5MPa)

0-40T(0-30MPa)

0-60T(0-34MPa)

Piston diameter

φ95mm

φ110mm

φ130mm

φ150mm

Analog pressure gauge

Analog pressure gauge is included in the standard package, dual scale display: Mpa and Ton

Digital pressure gauge

(optional)

Digital display 0.00-40.00mpa, accuracy 0.01Mpa (only with "s" type)

Maximum piston stroke

30mm

40mm

50mm

50mm

Pressurization mode

Manual pressurization / manual slow pressurization

Pressure stability

≤1MPa/10min

Overall structure

Patented technology of integrated structure, no sealing connection of equipment, reducing oil leakage point

Diameter of worktable

φ105mm

φ120mm

φ140

φ160mm

Number of columns

4 columns

Working space

(W×H)

80×150mm

92×160mm

115×185mm

185×250mm

Machine dimensions

(L×W×H)

245×175×415mm

275×195×420mm

295×215×500mm

405×240×565mm

Machine weight

42kg

56kg

75kg

120kg

Product Images

hydraulic press

hydraulic press

Hydraulic press mold

hydraulic press mold

Other related hydraulic press


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
