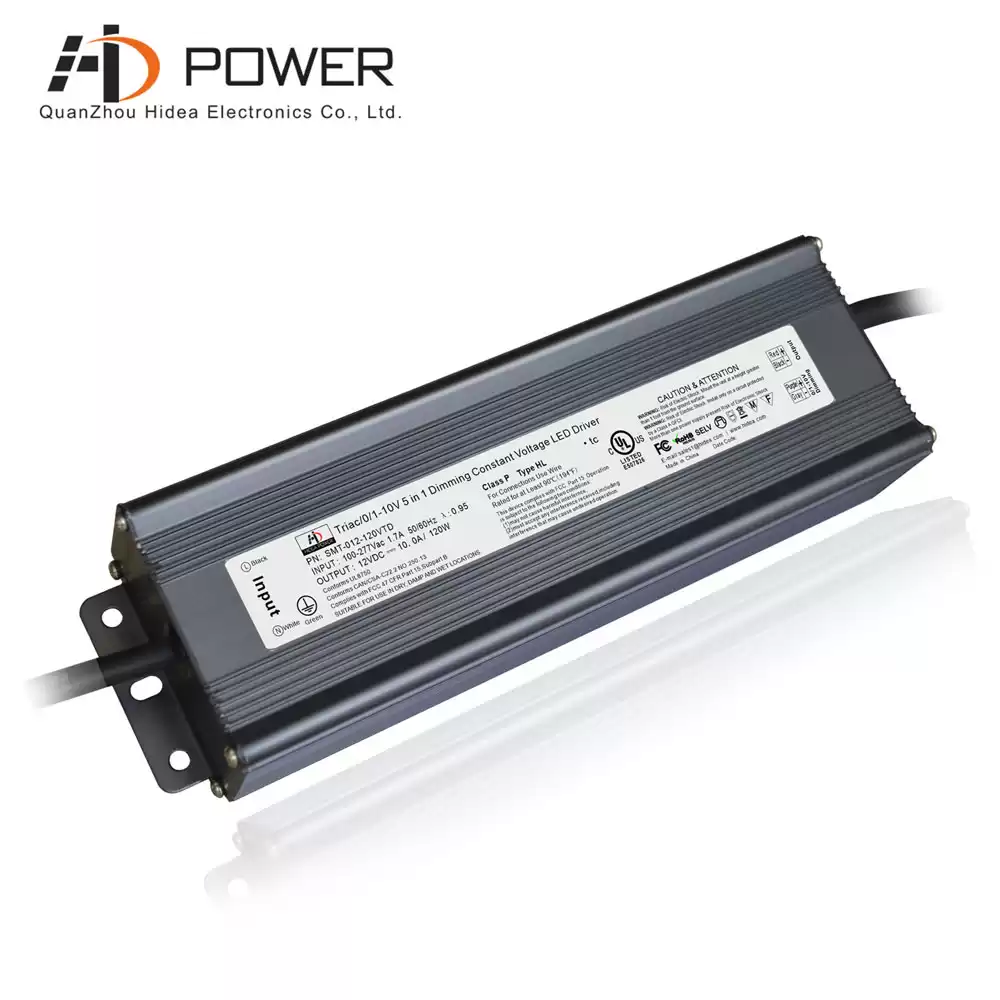

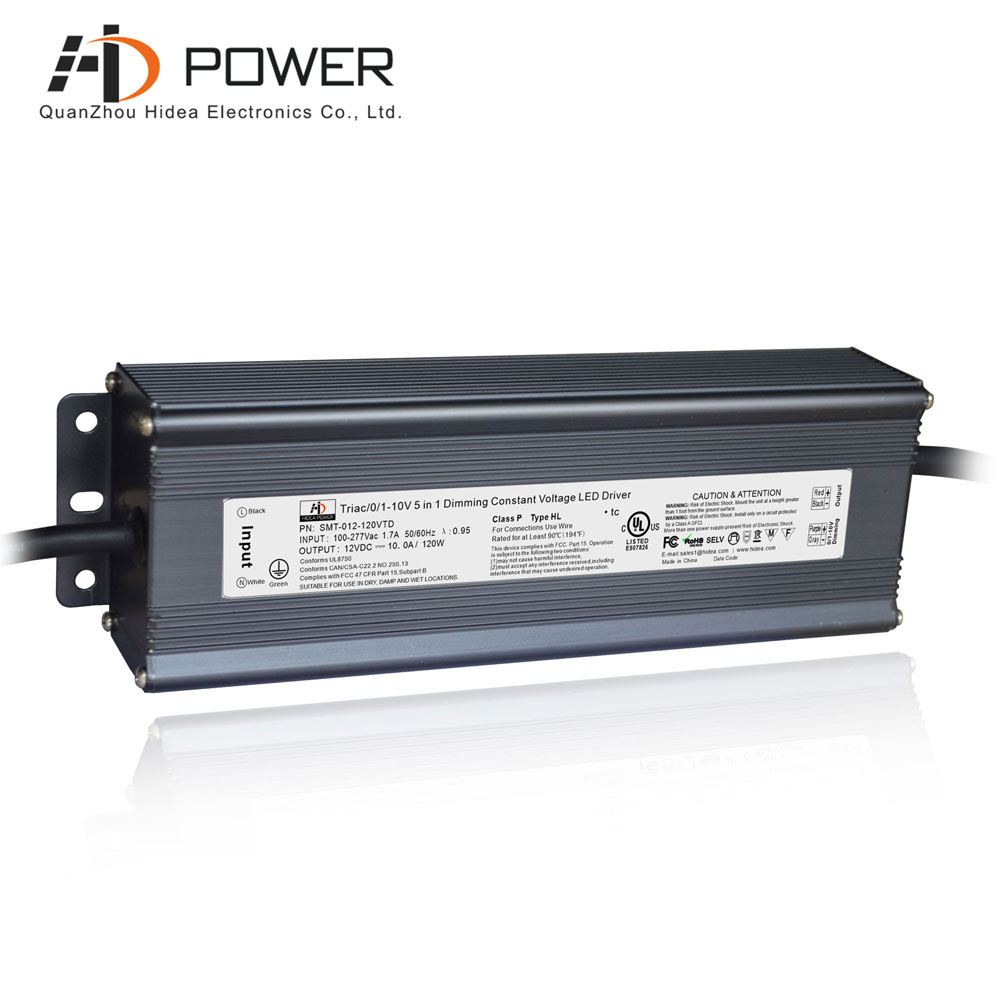

24v 120w triac & 0 10v dimmable led strip light driver power supply for indoor
This 120W triac & 0 10v constant voltage led power supply has an aluminum shell design and a waterproof rating of IP67. It is effectively waterproof and dustproof, complies with global safety lighting regulations, and is suitable for outdoor LED lighting projects.
Specification
|
model
|
SMT-012-120VTD
|
SMT-024-120VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
10.00A
|
5.0A
|
|
Rated power
|
120W
|
120W
|
|
Load Regulation
|
±2 %
|
±1 %
|
|
Input
|
Voltage Range
|
100~277VAC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%@120VAC &277VAC
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
82%@120VAC 83%@277VAC
|
82%@120VAC 84%@277VAC
|
|
AC Current(Typ.)
|
1.7A
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Net Weight
|
1.1Kg
|
|
Size
|
230*70*43mm(L*W*H)
|
|
packing
|
Carton size: 340*275*170mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the finalequipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The dimmable 120w led driver combines two types of dimming mode： phase dimming and 0 -10V PWM dimming. A good solution for reduce the inventory problem. We suggest coxotech led strips for perfect dimming effect.
Related Products
|

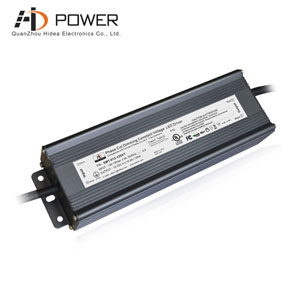

 120W triac dimmable led driver constant voltage working mode, aluminum shell design, waterproof grade ip67, suitable for outdoor LED lighting project installation and use, with 5-year warranty
