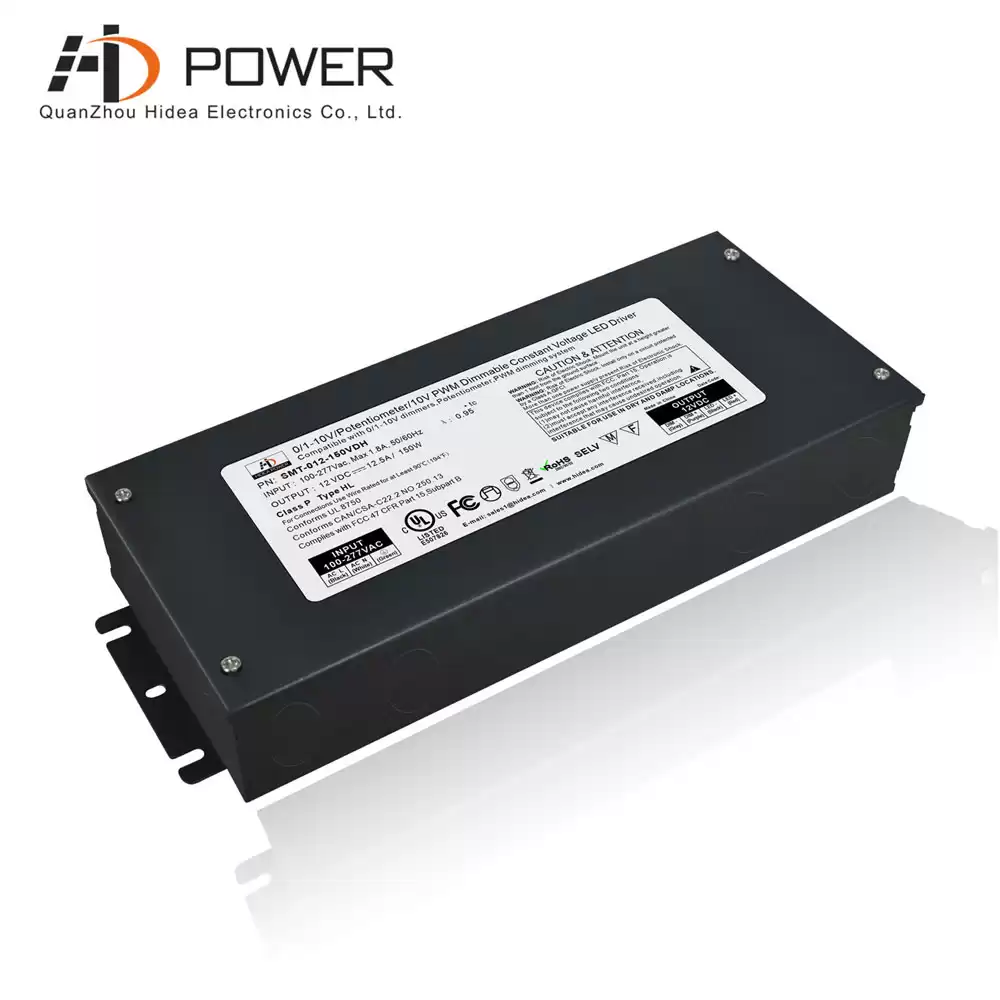

24v 150W 0 10v dimming constant voltage led driver outdoor lighting power supply junction box

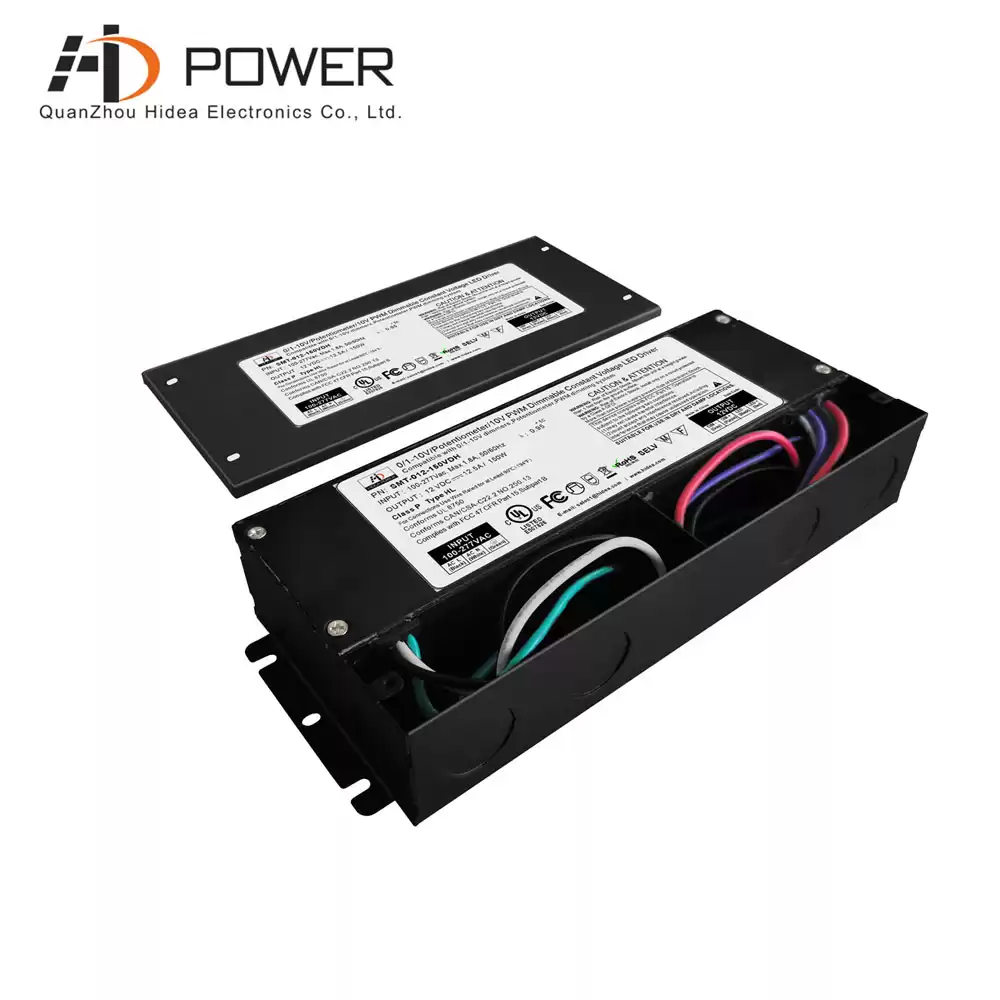

277vac 0 10v dimmable led driver 150W has built-in PFC function PF>0.9, integrated with the junction box design, easy and fast installation, good heat dissipation, suitable for use in dry/humid lighting environments, 7-year warranty
Specification
|
Model
|
SMT-012-150VDH (1.0 version)
SMT-012-150VDHV2 (2.0 version)
SMT-012-150VDHWV2 (3.0 version)
|
SMT-024-150VDH (1.0 version)
SMT-024-150VDHV2 (2.0 version)
SMT-024-150VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
12.5A
|
6.25A
|
|
Rated Power
|
150W
|
150W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
85% @120Vac 86%@277Vac
|
85% @120Vac 87%@277Vac
|
|
AC Current(Max.)
|
1.8A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg (1.0 version)
|
|
Size
|
1.0 version: 260*103*46mm (L*W*H) /2.0 version: 260*105*45mm (L*W*H)/3.0 version: 260*125*45mm (L*W*H)
|
|
packing
|
Packaging: 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
The Luxury Wall Sconce Glossy Chrome Vanity Light with Glass Lampshade always need high quality and longer warranty led driver for the lighting project.
Related Products
|

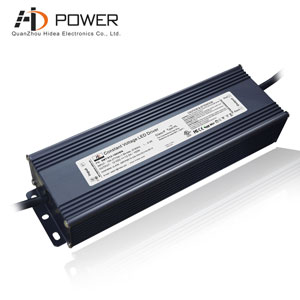

 150W Non dimmable constant voltage led driver. Waterproof grade IP67. Aluminum housing design, effectively waterproof and dustproof. It complies with global safety lighting regulations. UL certified. Mainly sold to North America.
