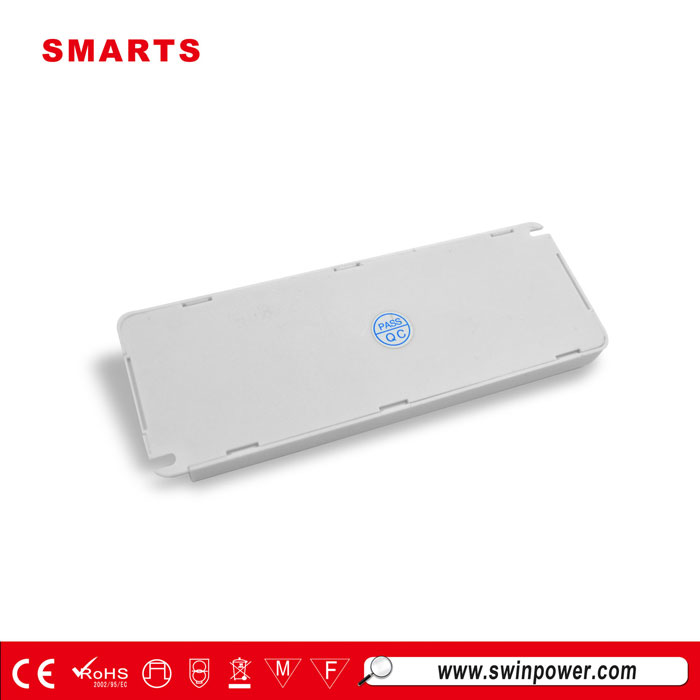

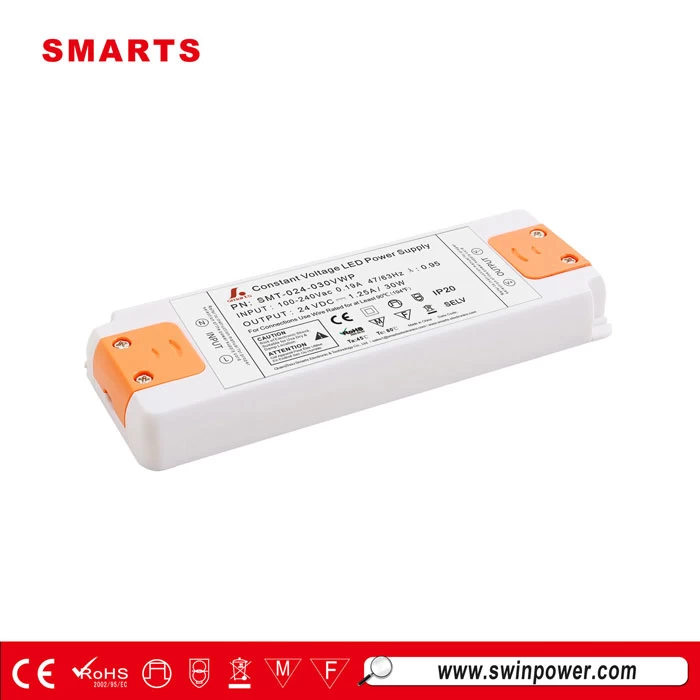

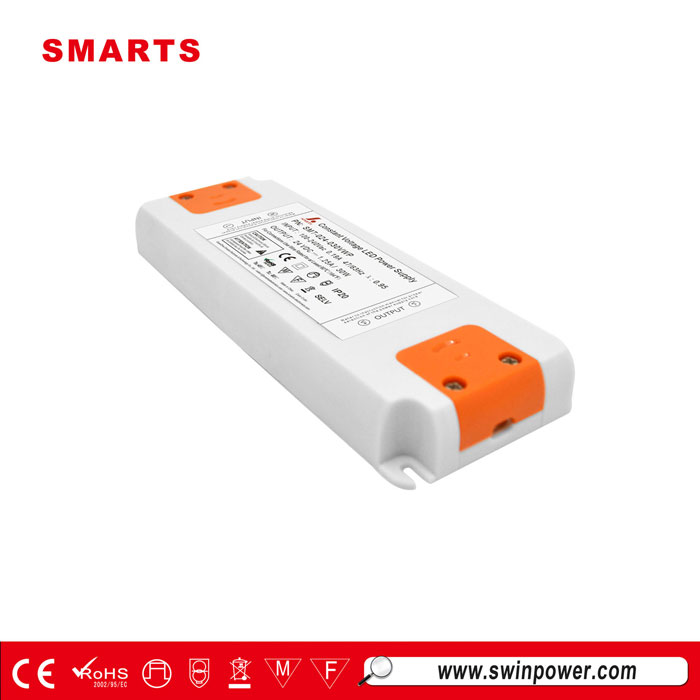

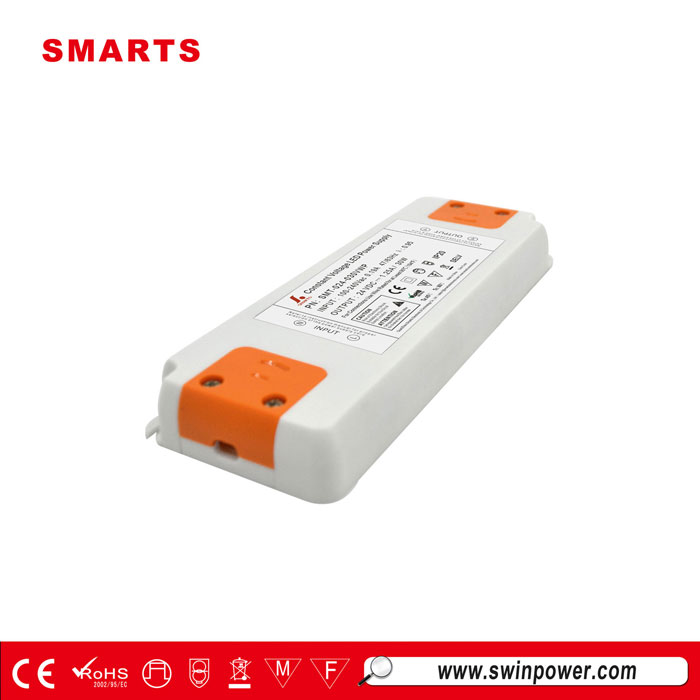

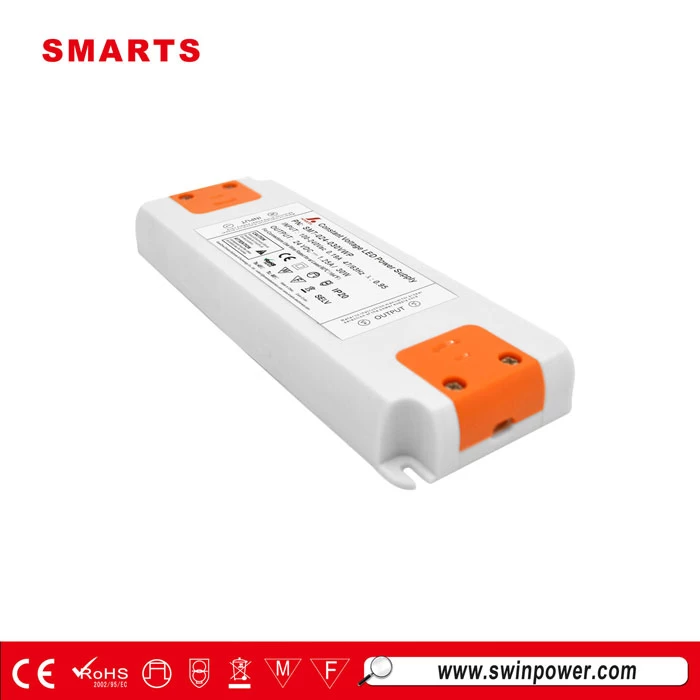

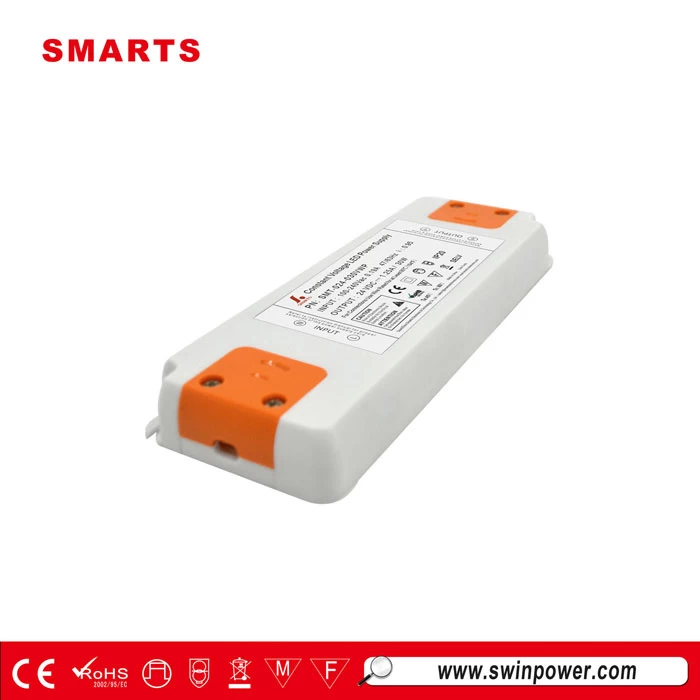

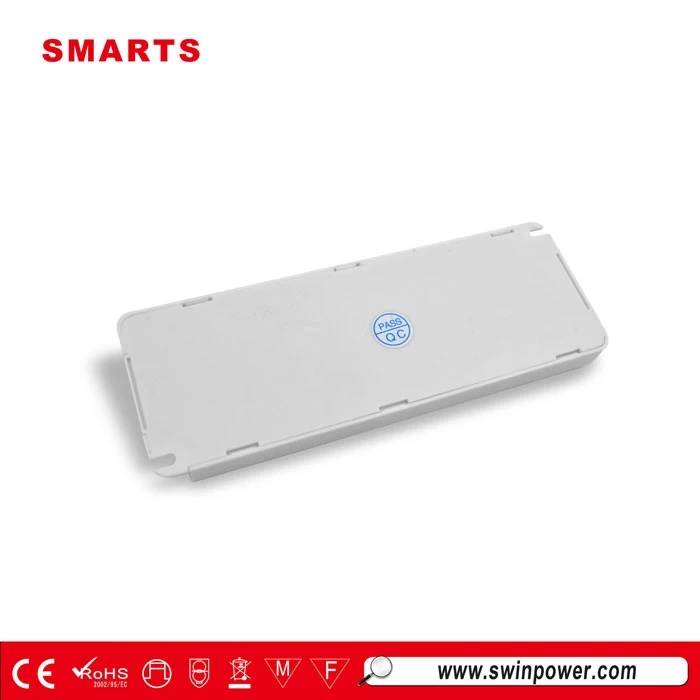

24v 30w high power led voltage driver
This SMT-024-030VWP high power led voltage is a CE (LVD + EMC) listed suitable for dry locations.It features overload and over heat protection, as well as short circuit protection with auto-restart.

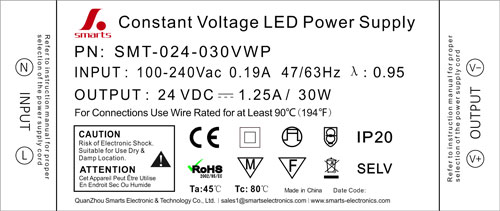

Label for 30w led driver:
Specification:
|
MODEL
|
SMT-012-030VWP
|
SMT-024-030VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1.5Amp
|
1.25Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
30Watt
|
30Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>84%
|
|
AC CURRENT(Typ.)
|
0.31A/110VAC, 0.17A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; UL /CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
Question:
1. Does the 12v 96 watt sample we received have a limited powersource(LPS) pass? If so can the LPS be printed on the power supply label?
Answer:
Really sorry that 12v 96w models you received do not have LPS.. But after viewing the rules of LPS test, I found that LPS test is mainly for communication product.. most of the material of communication product is plastic,
and the power supply we provide is Aluminum case, hence I think it is not so important to consider the led power supply has LPS or not..
Our service & FAQ:
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 5-7 working days for samples, 10-15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
what is the packing situation ??
MOQ: 1 PCS
Payment : T/T Western union Paypal Credit Card
Delivery : within 7 working days for sample order , 13 working days for 500pcs
Shipping term : FedEx DHL UPS TNT Air /Sea Transportation
