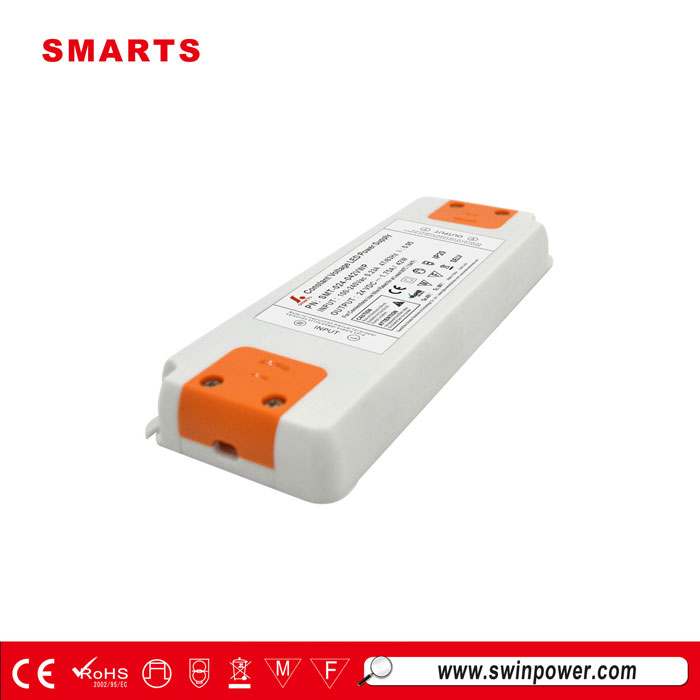

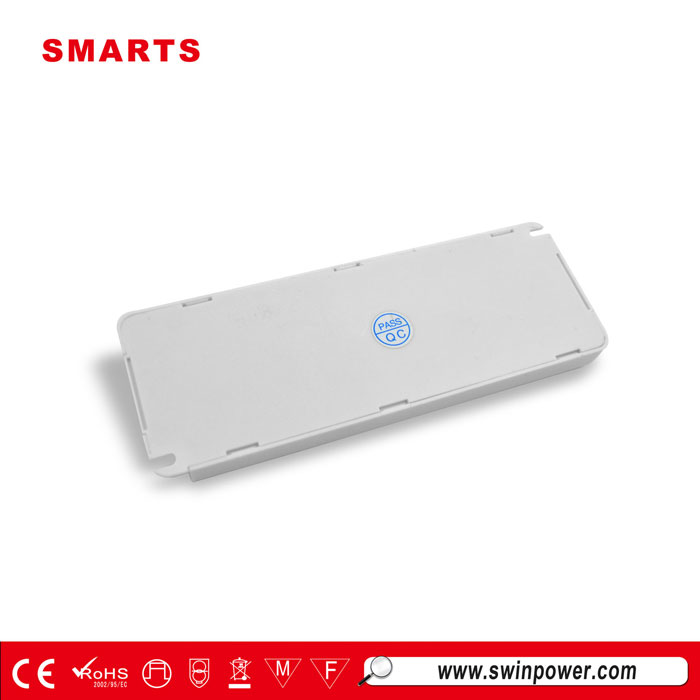

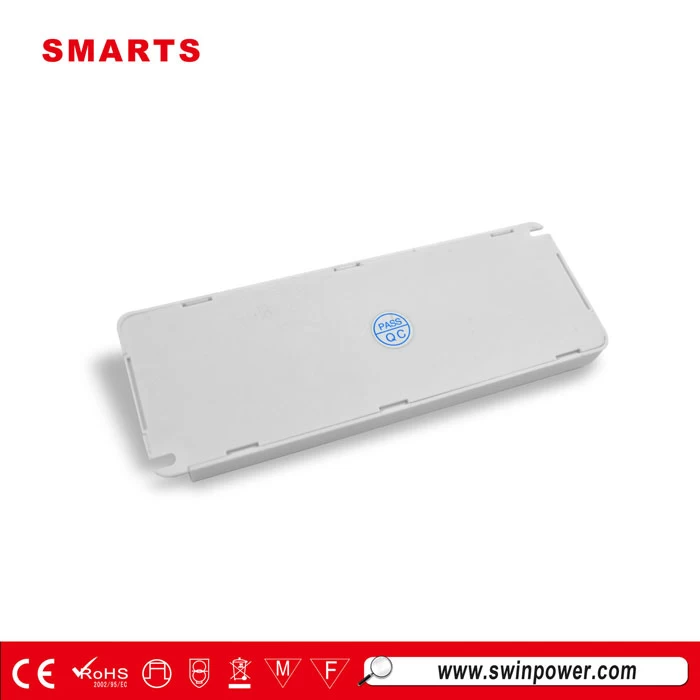

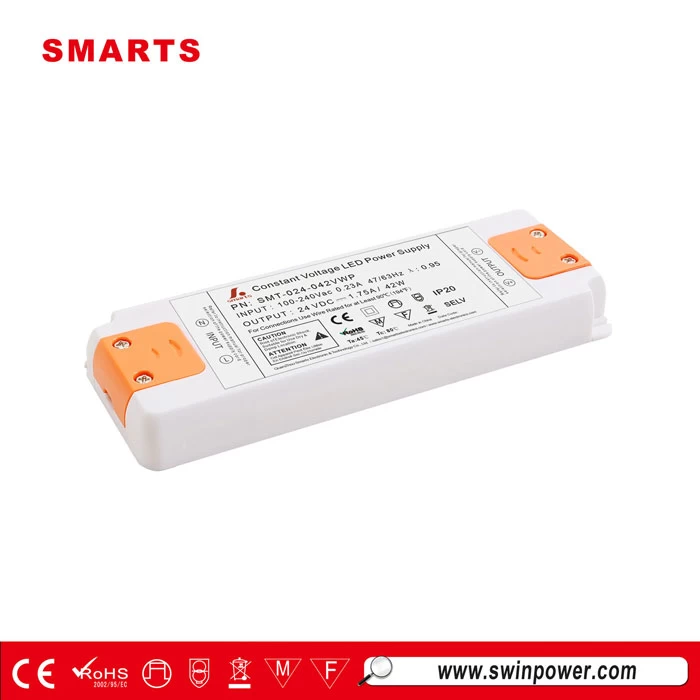

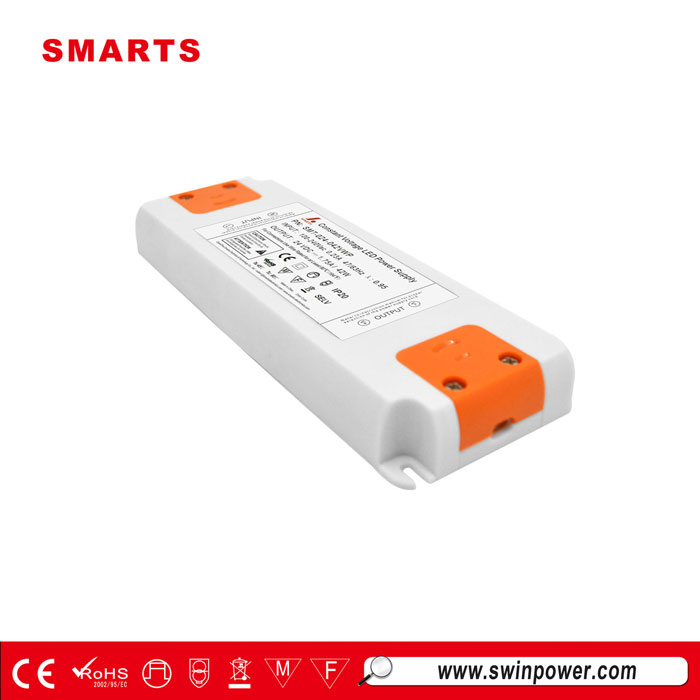

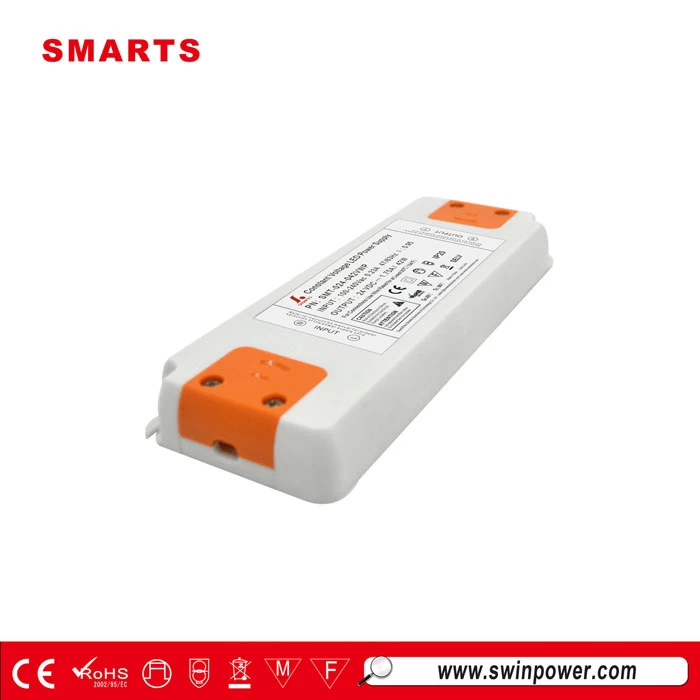

24v 42w led driver 220v with CE listed
led driver 24v with High reliability and save energy,protected environment. High stability and low ripple, increase light efficiency and decrease light attenuation

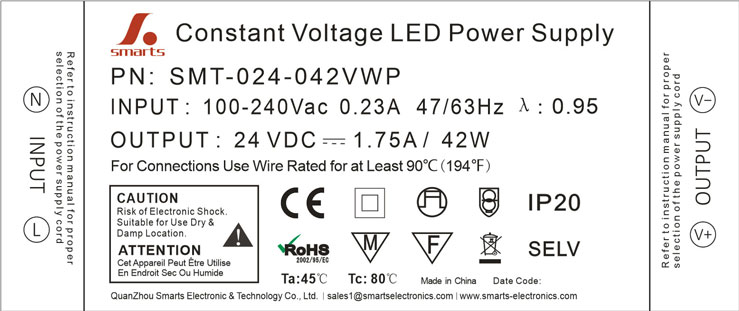

Label for 42w led driver:
Specification:
|
MODEL
|
SMT-012-042VWP
|
SMT-024-042VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
3.5Amp
|
1.75Amp
|
|
VOLTAGE RANGE
|
|
|
|
RATED POWER
|
42Watt
|
42Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥84%
|
|
AC CURRENT(Typ.)
|
0.48A/110VAC, 0.25A/220VAC
|
0.48A/110VAC, 0.25A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10～+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20～99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40～+80℃,10～99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Question:
1. Do you have mounting packs(screws/washers) for the junction boxes?
Answer:
Each two sides of our junction box have mounting packs for the junction box.
Enclosed kindly please check the picture of the mounting packs for the junction box.
what is the packing situation ??
MOQ: 1 PCS
Payment : T/T Western union Paypal Credit Card
Delivery : within 7 working days for sample order , 13 working days for 500pcs
Shipping term : FedEx DHL UPS TNT Air /Sea Transportation
