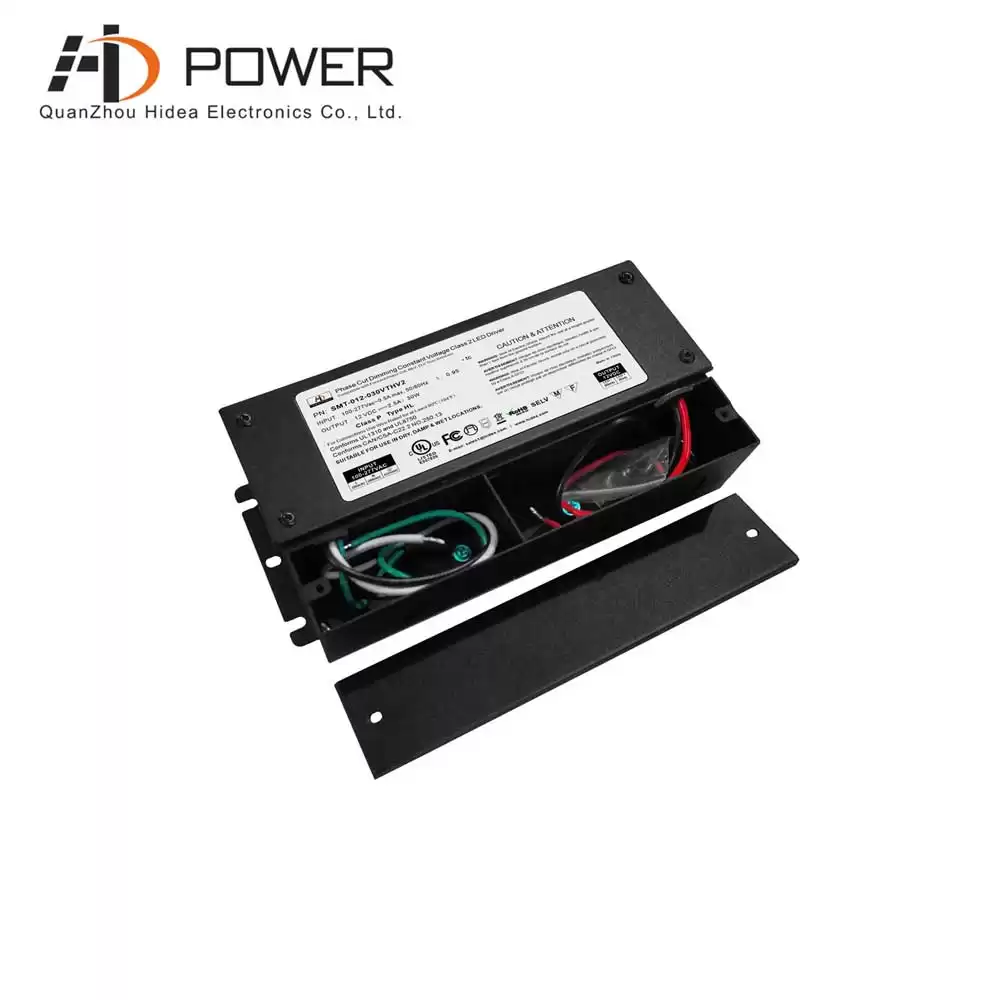

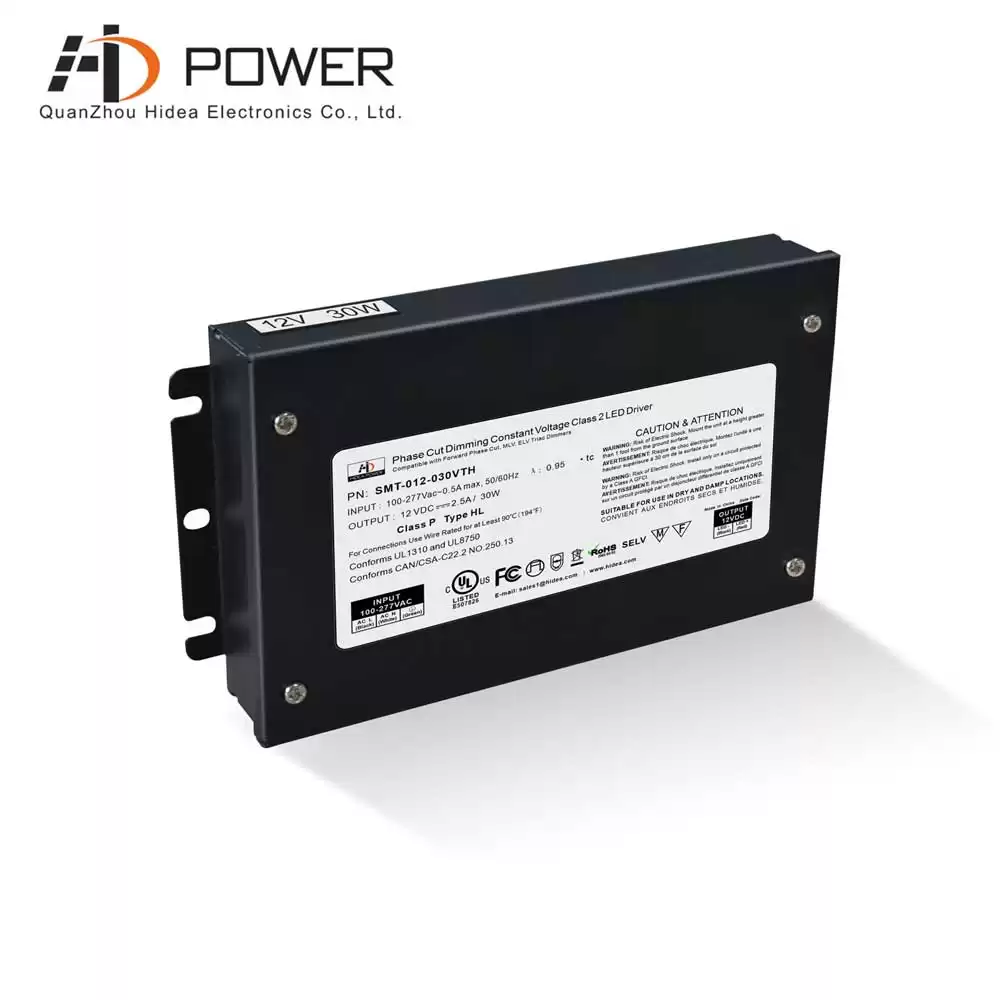

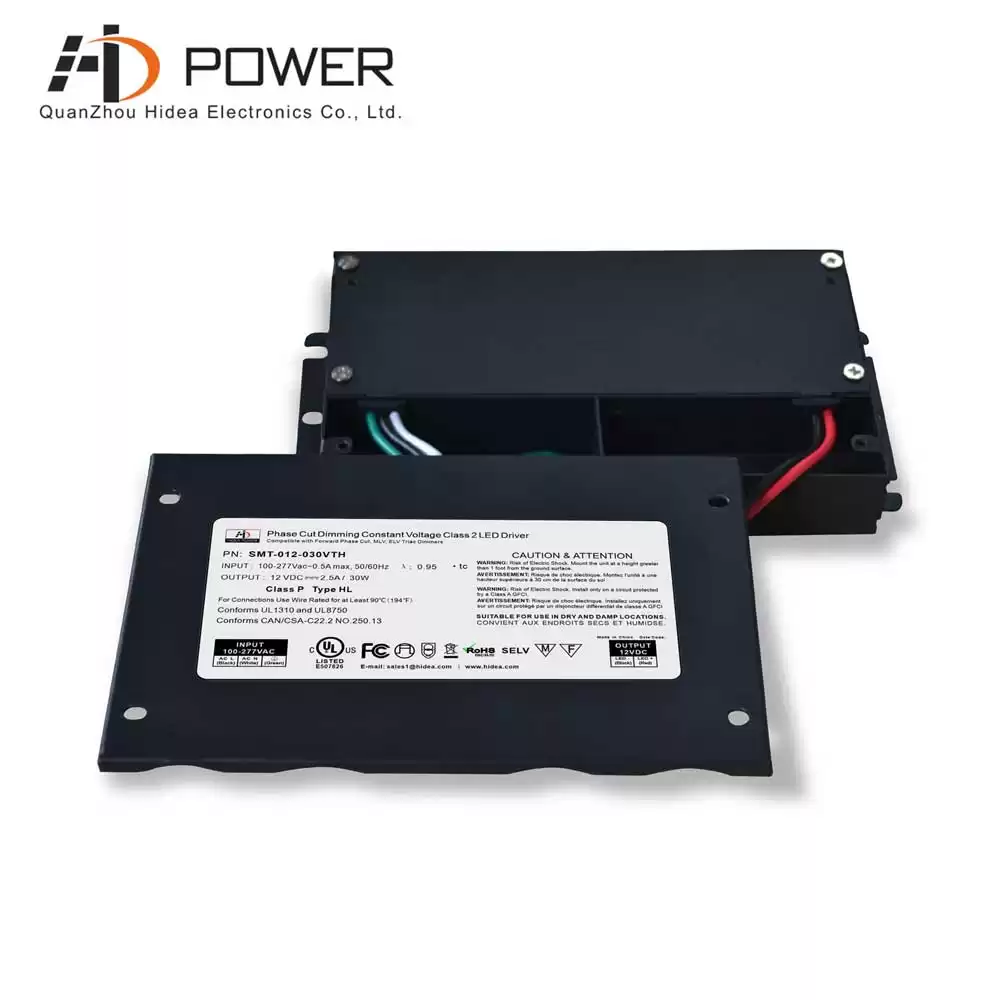

24v 30w triac constant voltage dimming led driver power supply for led lights
100-277VAC constant voltage 30W 24V Triac dimmable LED driver PWM signal output design, the dimming range is 0-100%, strong compatibility, can achieve smooth and flicker-free dimming
Specification
|
model
|
SMT-012-030VTH (1.0 version)
|
SMT-024-030VTH (1.0 version)
|
|
SMT-012-030VTHV2 (2.0 version)
|
SMT-024-030VTHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
2.5A
|
1.25A
|
|
Rated Power
|
30W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.97@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
79%
|
79%
|
|
AC Current(Max.)
|
0.5A@100VAC
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.95Kg
|
|
Size
|
1.0 version:165*92*26mm (L*W*H); 2.0 version:165*94.5*40mm (L*W*H)
|
|
packing
|
355*215*215mm / 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
The drivers for led lights are so many in the market. It is very important for us to choose a right led light with a led driver.
Related Products
|

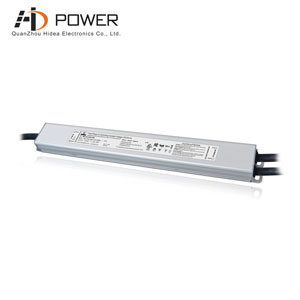

30w ultra-thin size triac dimmable led driver input voltage 100-277vac, constant voltage working mode, suitable for outdoor lighting projects, with 7-year warranty
Mode：SMT-012-030VTSW
Dimming Mode : Triac Dimming
Output Power : 30W
intput voltage：100~277V AC
Efficiency > 79%
Size：260*32*20mm （L*W*H）
|
