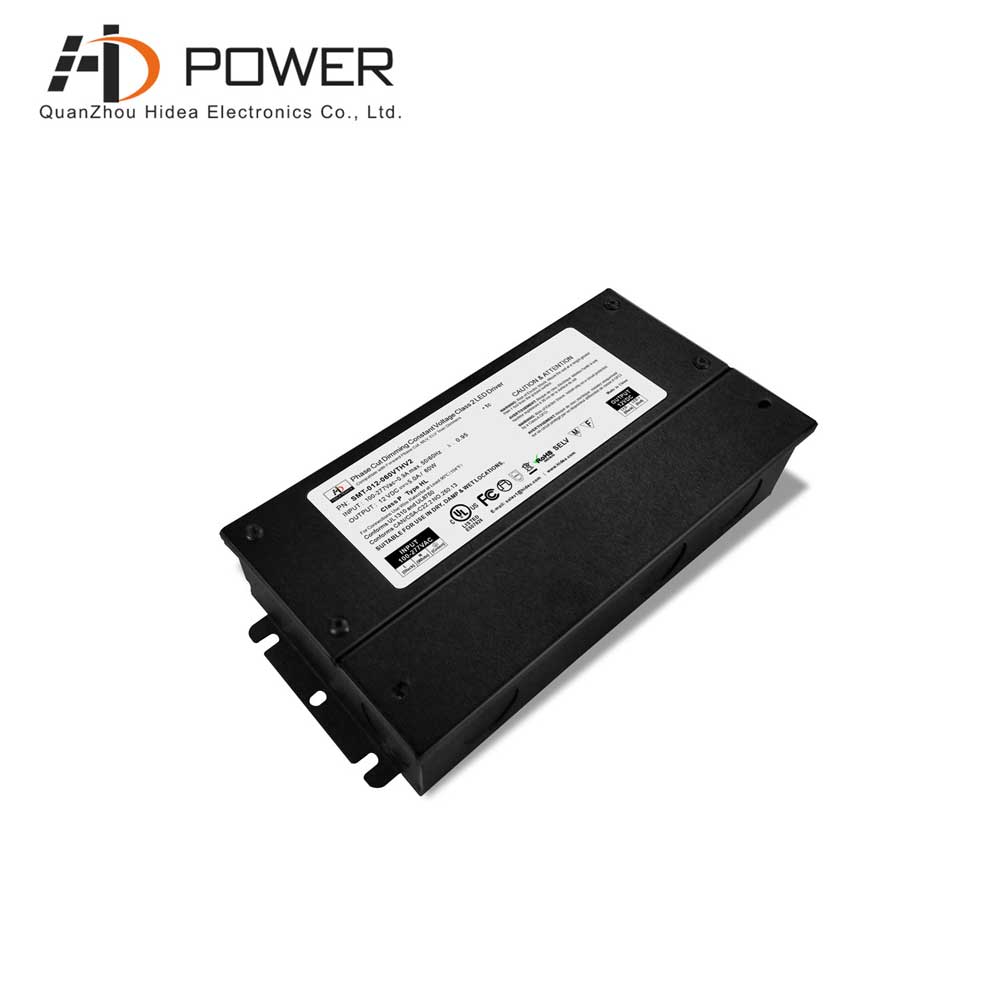

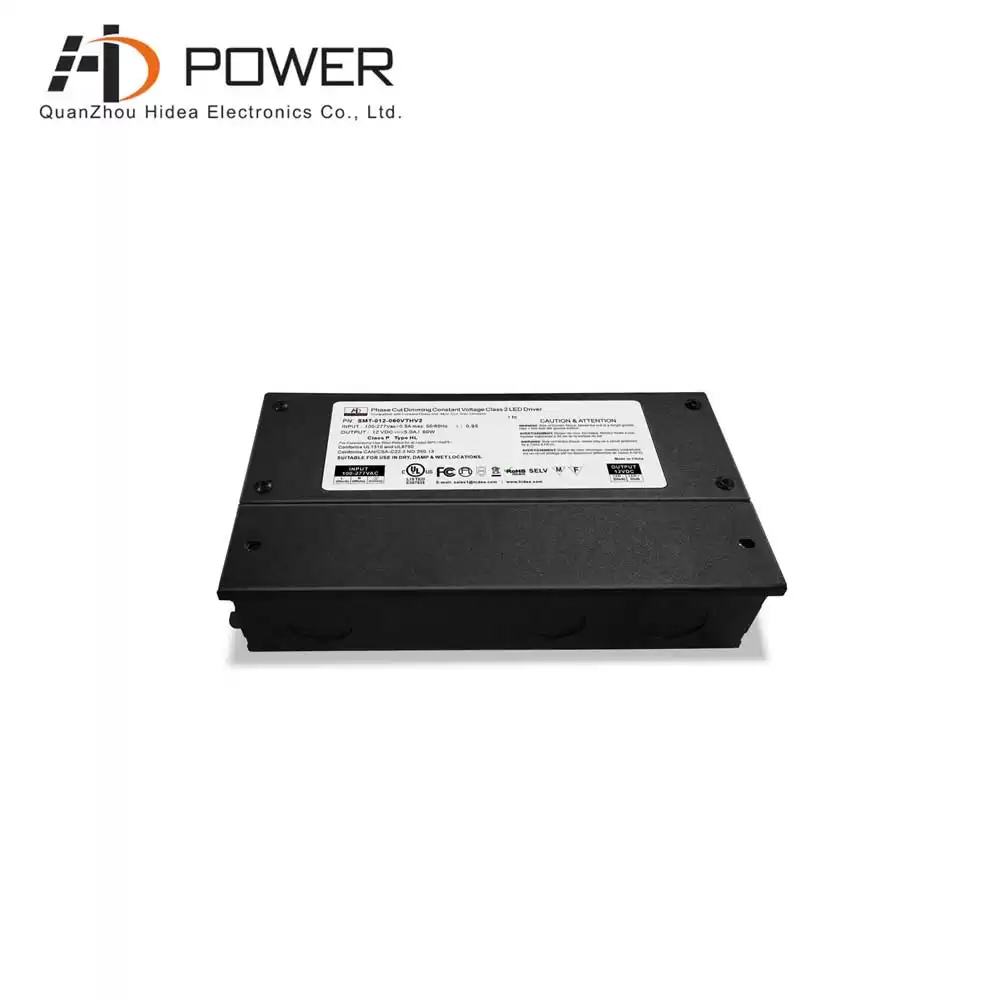

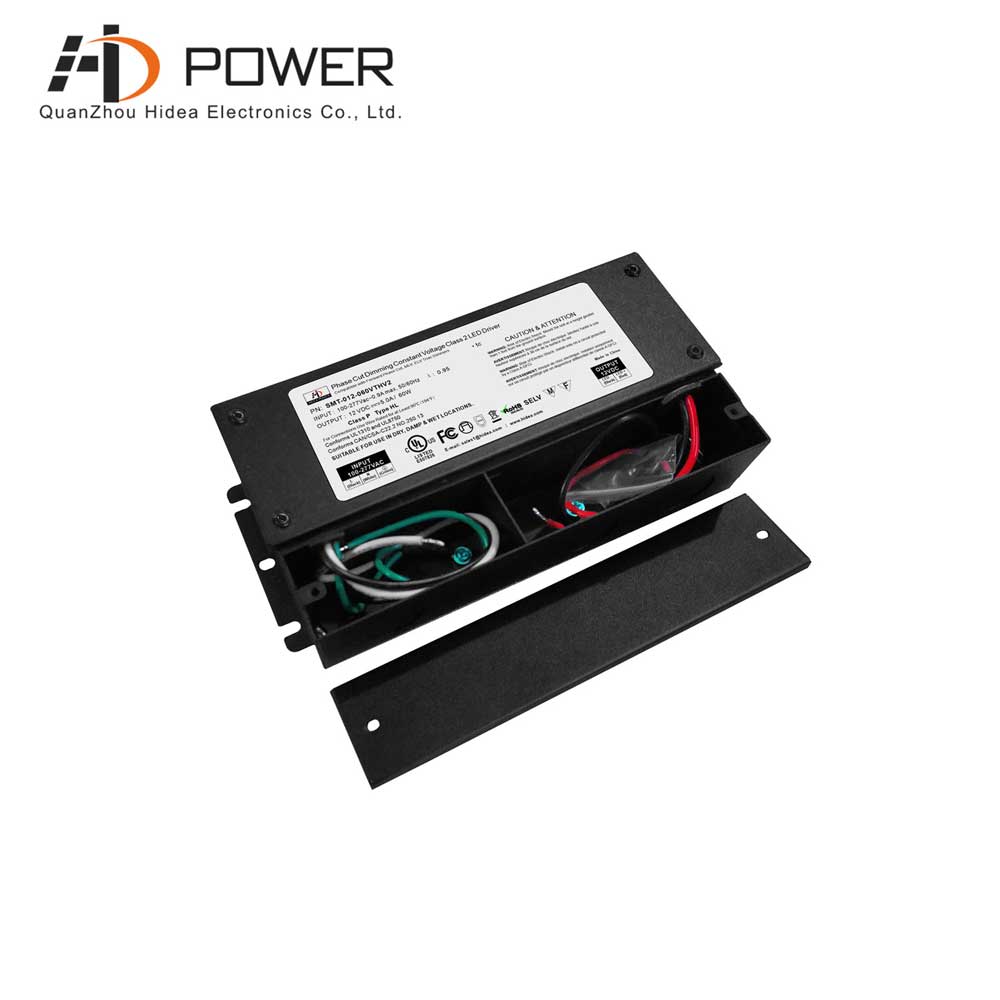

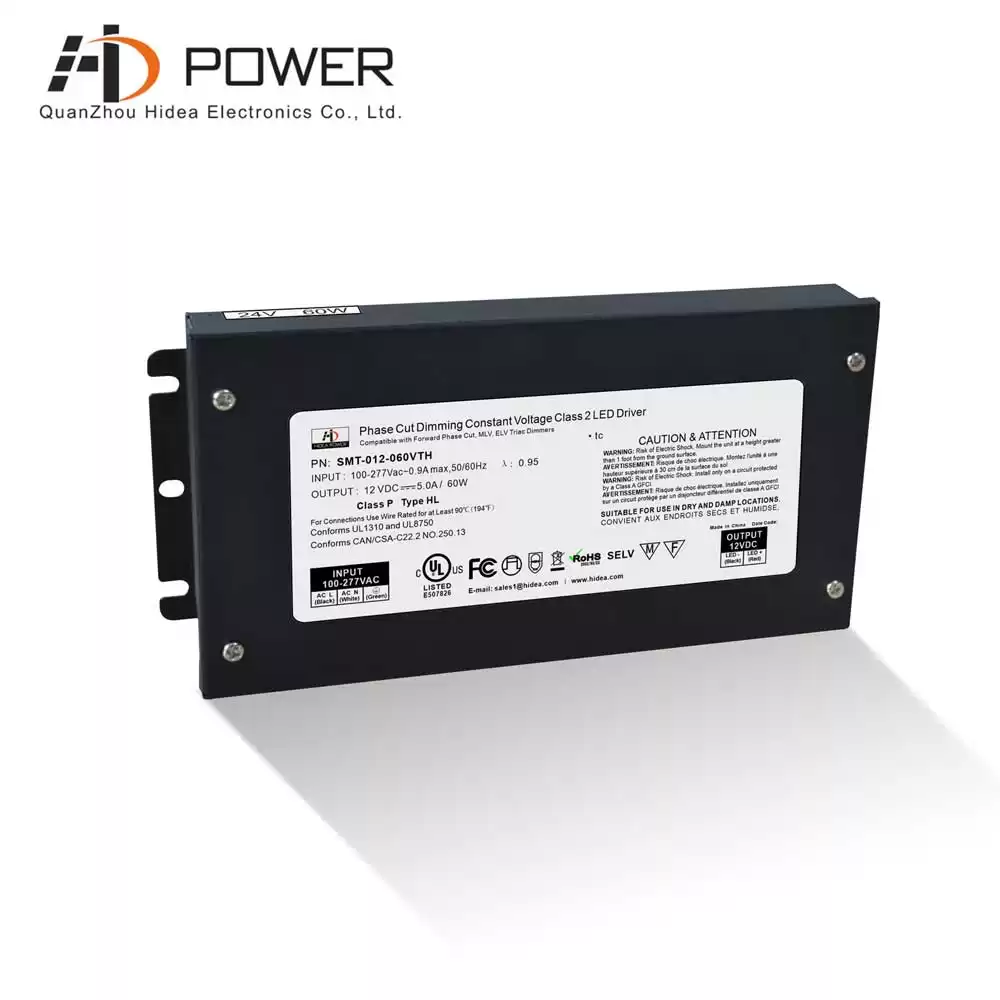

24v 60W triac dimmable constant voltage led driver electronic transformer for led lights
This ultra-thin 60W triac dimmable led driver Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers, complies with global safety lighting laws, with 7 years warranty
Specification
|
Model
|
SMT-012-060VTH (1.0 ver.)
|
SMT-024-060VTH (1.0 ver.)
|
|
SMT-012-060VTHV2 (2.0 ver.)
|
SMT-024-060VTHV2 (2.0 ver.)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
5A
|
2.5A
|
|
Rated Power
|
60W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83%
|
83%
|
|
AC Current(Max.)
|
0.9A@100VAC
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.1Kg
|
|
Size
|
1.0 version: 188*92*26mm(L*W*H); 2.0 version: 188*94.5*40mm(L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

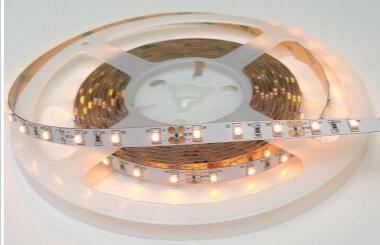

It is compatible well with 3528 LED tape on a reel when you using our led tape driver, you will find your project more bright and colorful.
Related Products
|

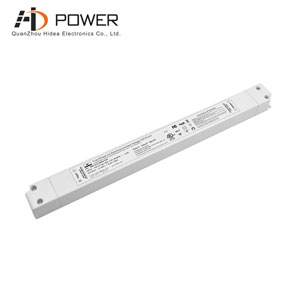

 Plastic shell design 60w 12v triac dimmable led driver waterproof grade ip20, suitable for indoor lighting projects in small spaces, with a 7-year warranty
