24v 60w 0 10V dimmable constant voltage led power supply light strip driver

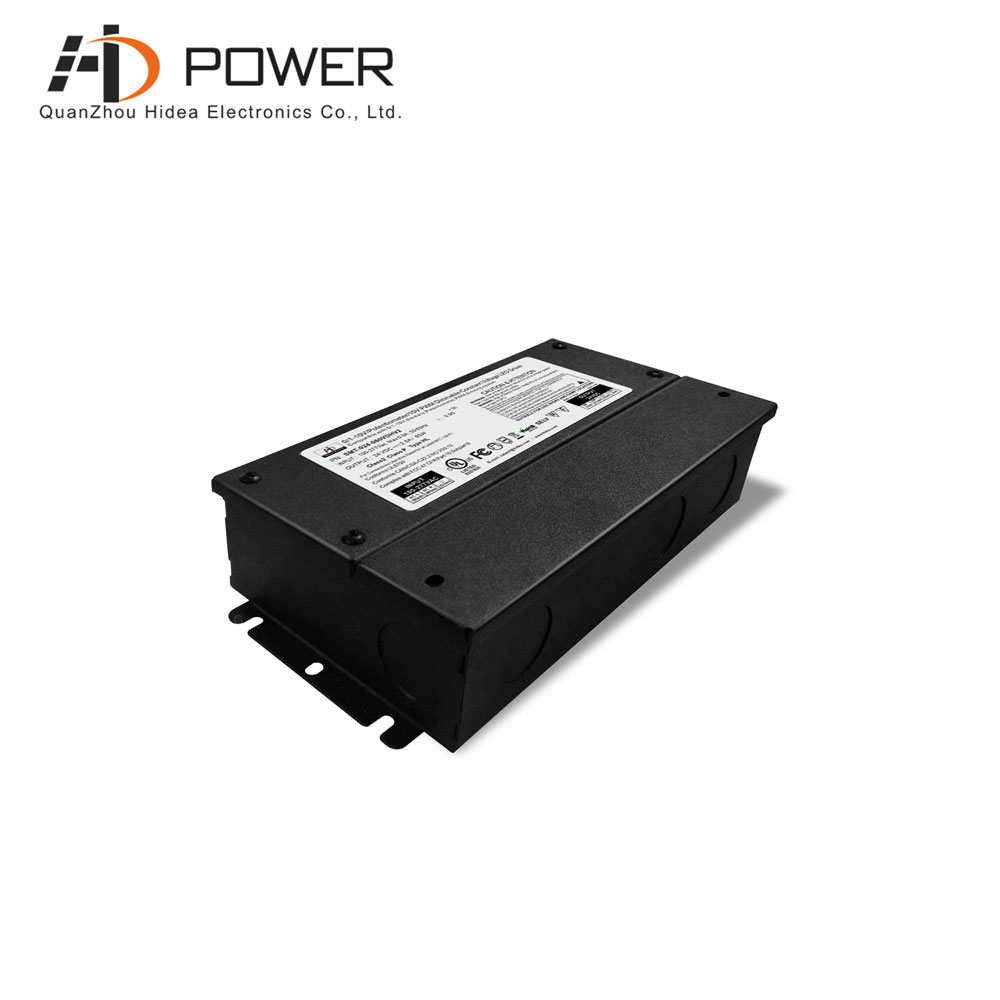

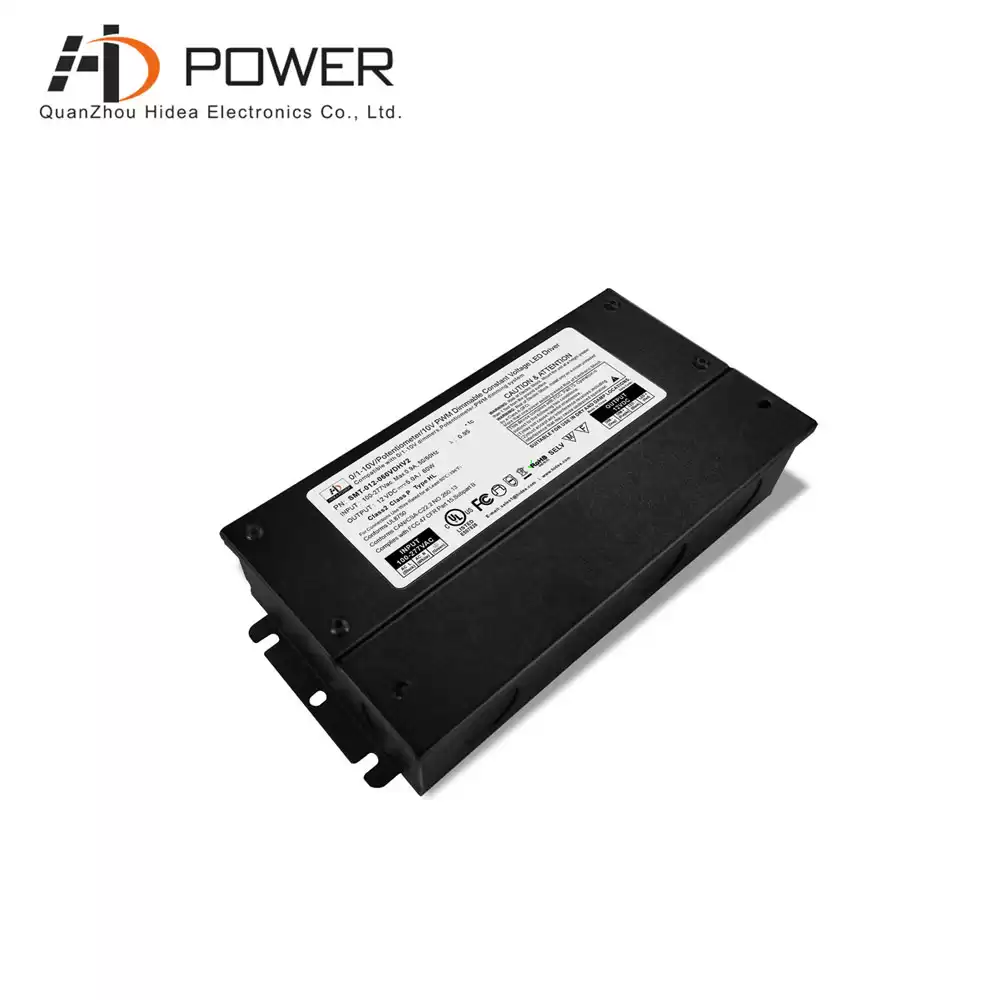

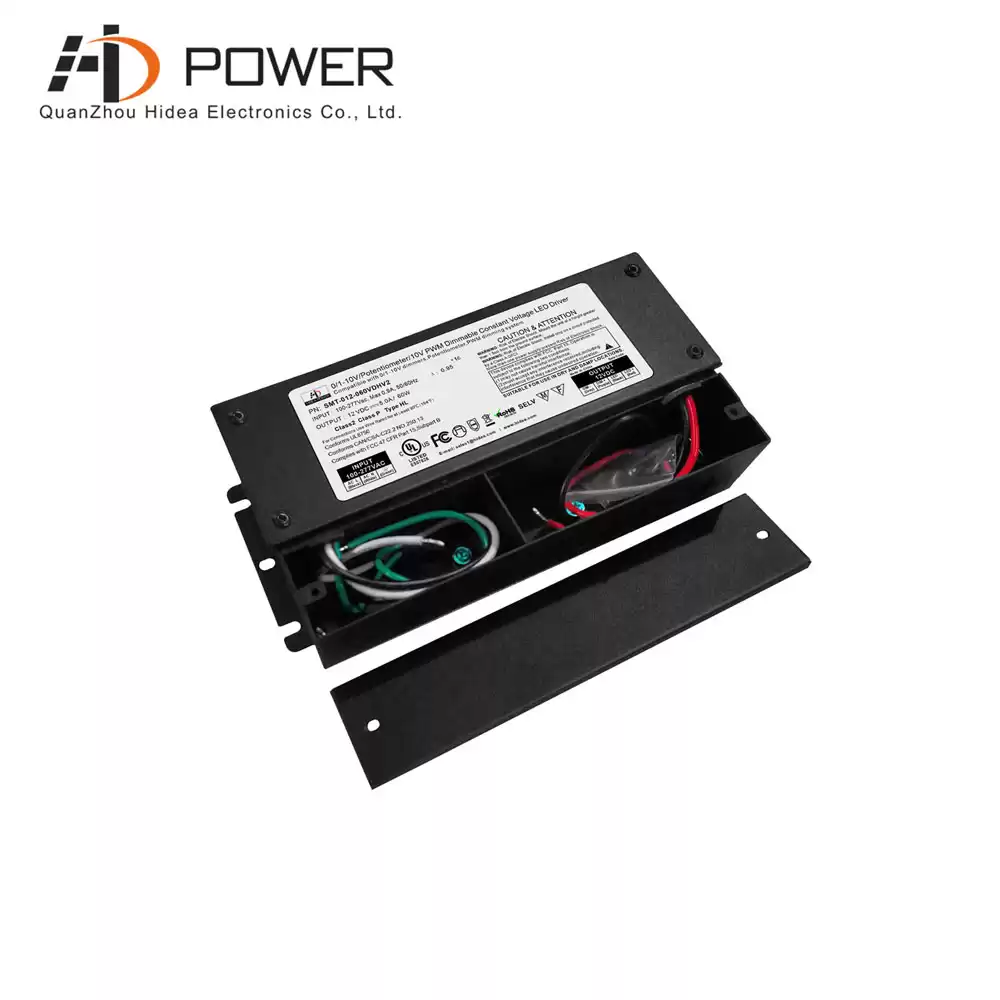

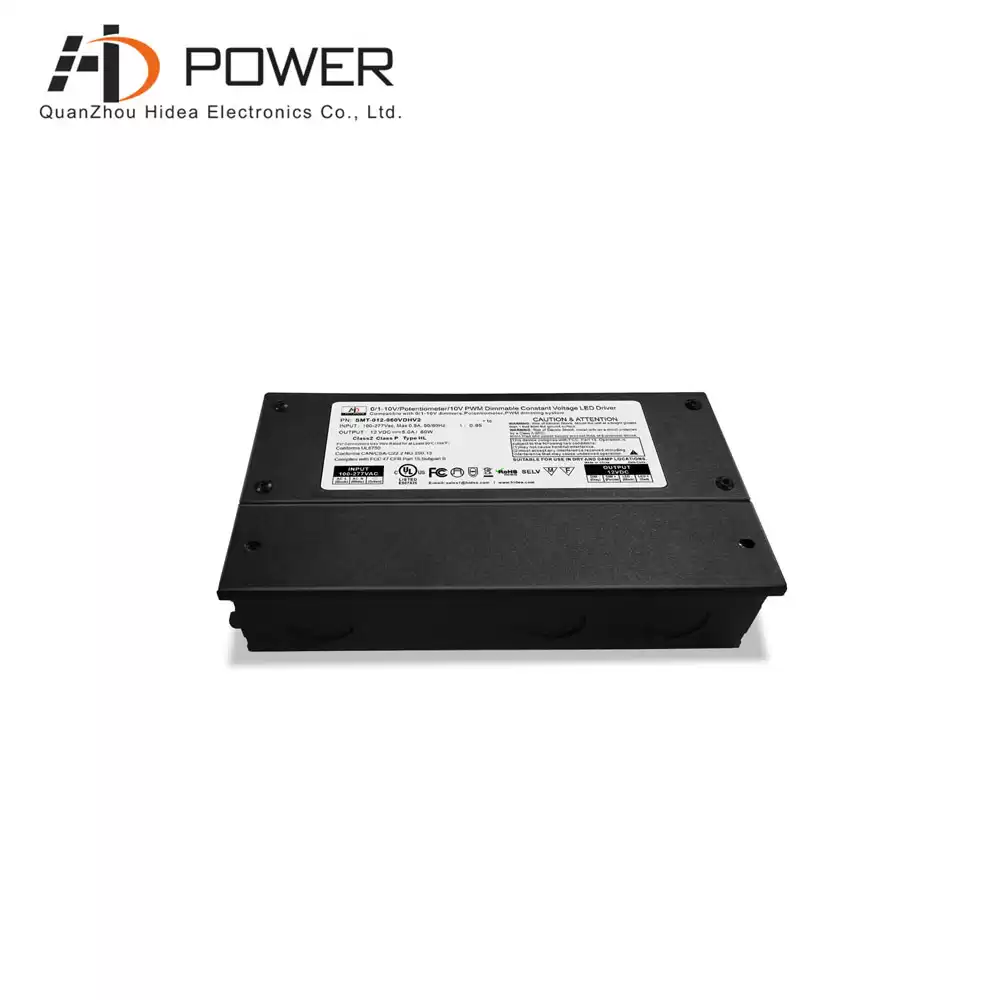

hideapowertech 24v 60w 0 10v dimmable led driver Metal shell design, using free air convection cooling, easy and quick installation, LED power supply and junction box integrated design, can provide stable protection for lamps, 7-year warranty
Specification
|
model
|
SMT-012-060VDH (1.0 version)
SMT-012-060VDHV2 (2.0 version)
|
SMT-024-060VDH (1.0 version)
SMT-024-060VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.)@ full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>86%
|
|
AC Current(Typ.)
|
0.9A/110VAC
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety& EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.1Kg
|
|
Size
|
1.0 version: 188*92*26mm(L*W*H) / 2.0 version: 188*94.5*40mm(L*W*H)
|
|
packing
|
305*200*180mm / 10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

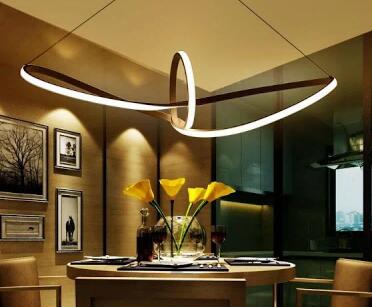

Our 12vdc dimmable led driver could be ok with the remote Dimming Modern Led Pendant Light Led Lamp for Dinning Room.
Related Products
|

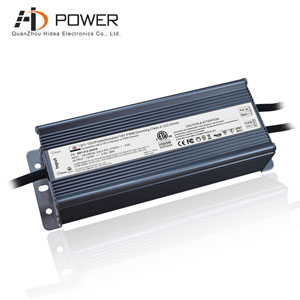

Constant voltage 60W dimmable led driver, waterproof grade ip67, aluminum shell, good heat dissipation, easy and fast installation, ETL certification, input voltage 100-265vac, in line with global safety lighting regulations
