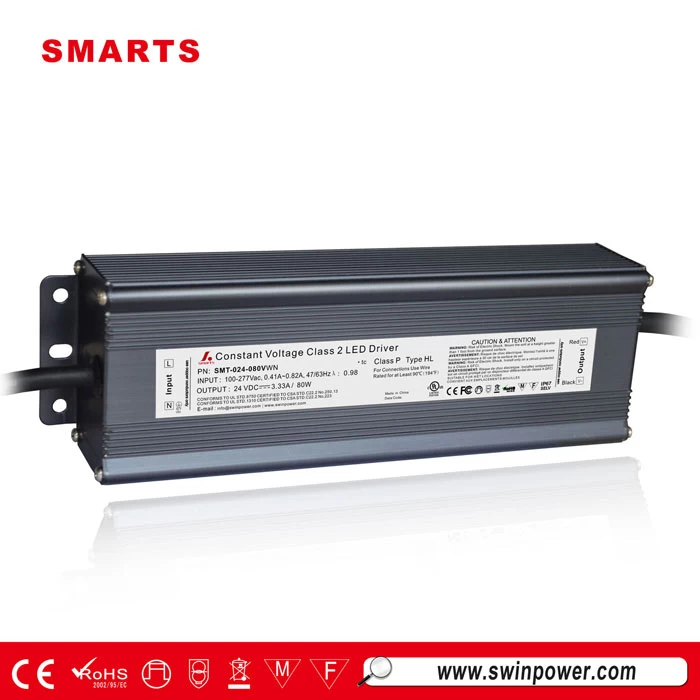

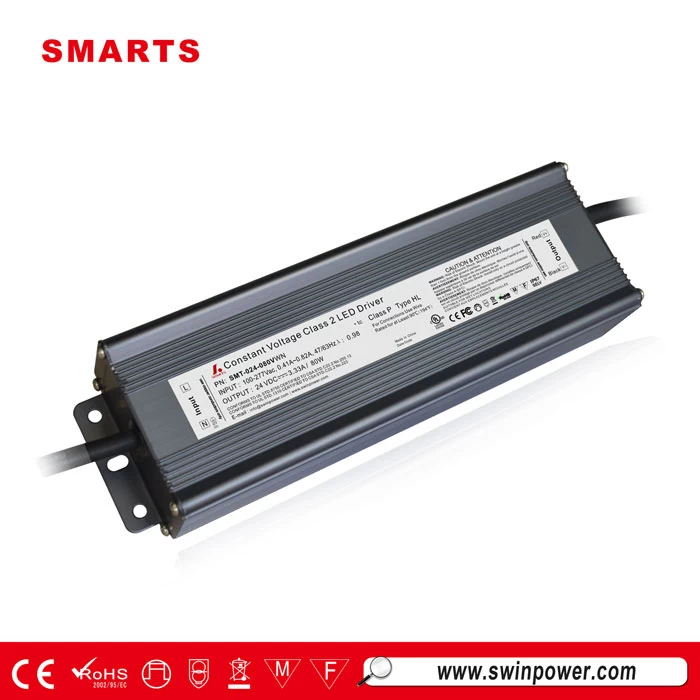

24v 80w waterproof led driver transformer for downlight
Smarts waterproof led driver transformer SMT-024-080VWM is 24v 80w non-dimmable with IP67 P20 design for outdoor and indoor installations.
Feture
|
|
|
· constant voltage type LED driver
·Input voltage range 100-277VAC
·Built-in PFC function, PF> 0.98
·Efficiency > 88%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor or outdoor installations
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·7 years warranty
·UL/cUL listed, Class P, Type HL approval
|
|
Specification
|
model
|
SMT-012-080VWN
|
SMT-024-080VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
|
3.33A
|
|
Rated power
|
80W
|
80W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC,0.97@230VAC 0.95@277VAC
|
0.99@120VAC,0.96@230VAC 0.97@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC,<20%@230VAC <20%@277VAC
|
<15%@120VAC,<20%@230VAC <20%@277VAC
|
|
Efficiency(Typ.)@ full load
|
80% @120VAC 85%@230VAC 84%@277VAC
79%
|
83% @120VAC 87%@230VAC 86%@277VAC
79%
|
|
AC Current(Typ.)
|
1.2A/110VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms@120VAC; 30A,50%,200us@230VAC; 25A,50%,1.2ms@277VAC
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P: 1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level (surge4KV)
|
|
Others
|
Net Weight
|
1.05Kg
|
|
Size
|
230*70*46mm(L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Our led drivers are widely used for:
1.Indoor LED illuminating lights
2.LED Neon, LED urban Decoration
3.LED Lighting Advertising,LED Display
4.Safety Protection Apparatus
5.Telecommunications, Networks
6.Vehicle Lights, Controller Panels
