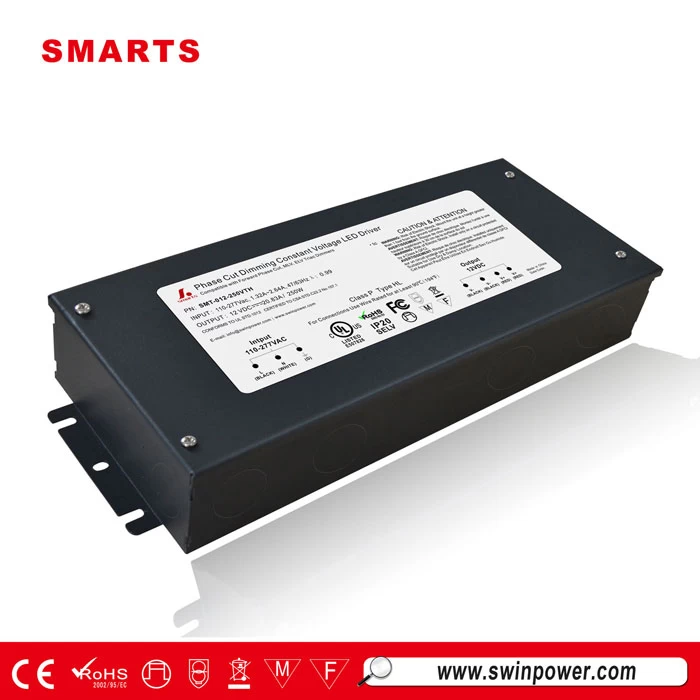

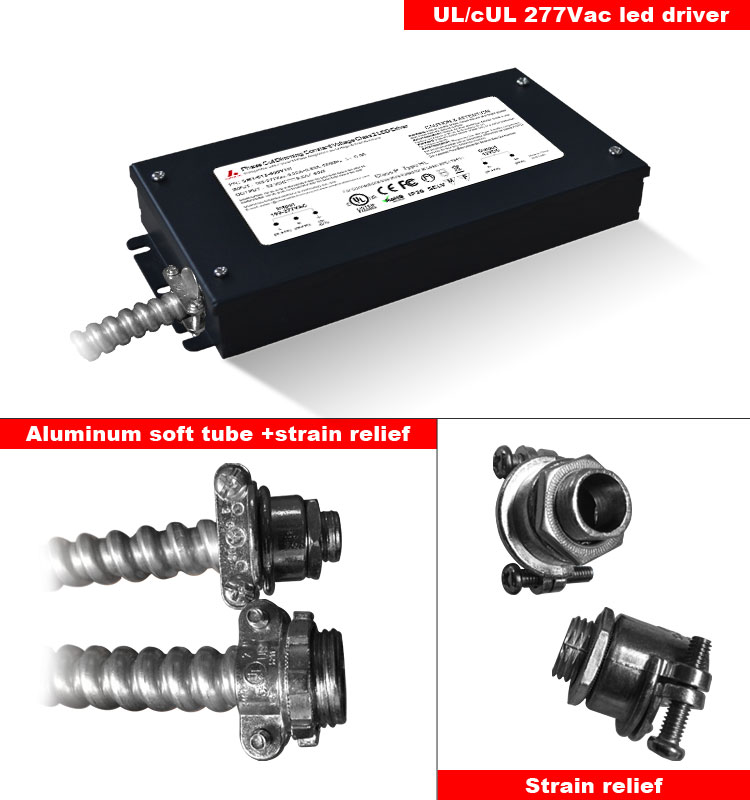

250w Dimmable Led Driver 12v Led Driver Box High Power Led Driver
SMT-012-250VTH is triac dimmable led driver with 277v input voltage for led lighting. It is 12Vdc 250W led driver with UL listed 7 years warranty. Its power factor is over than 98% and efficiency is higher than 87%.
|
Model
|
SMT-012-250VTH
|
SMT-024-250VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
±1%
|
±1%
|
|
Rated current
|
20.83A
|
10.41A
|
|
Rated power
|
250W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor（Typ.）@ full load
|
0.96@120VAC 0.97@277VAC
|
0.97@120VAC 0.95@277VAC
|
|
THD（Typ.）@ full load
|
<20%
|
|
Inrush Current （Typ.）
|
15A, 50%, 1.4ms
|
|
Full Load
Efficiency（Typ.）
|
>86%
|
>87%
|
|
AC Current（Typ.）
|
2.8A@110VAC / 1.13A@110VAC
1.76A
1.76A
.A
1.74A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition
is removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,
Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥50%load)
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge 4KV）
|
|
Others
|
Weight
|
1.9Kg
|
|
Size
|
278*108*46mm (L*W*H)
|
|
packaging
|
10PCS/CTN
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated
load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation.
|
Label
|
|

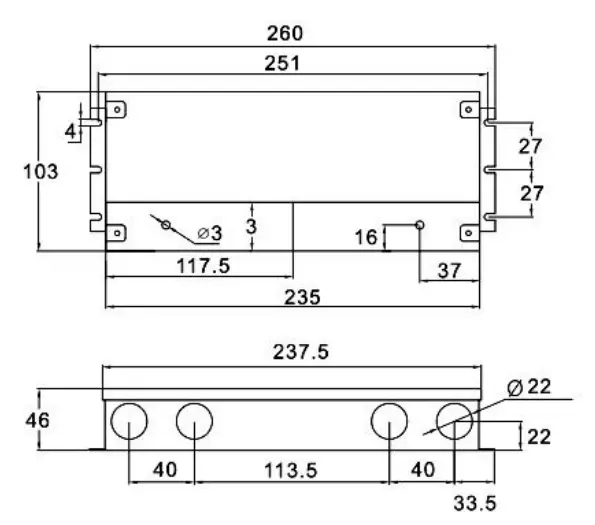

Mechanical Specification

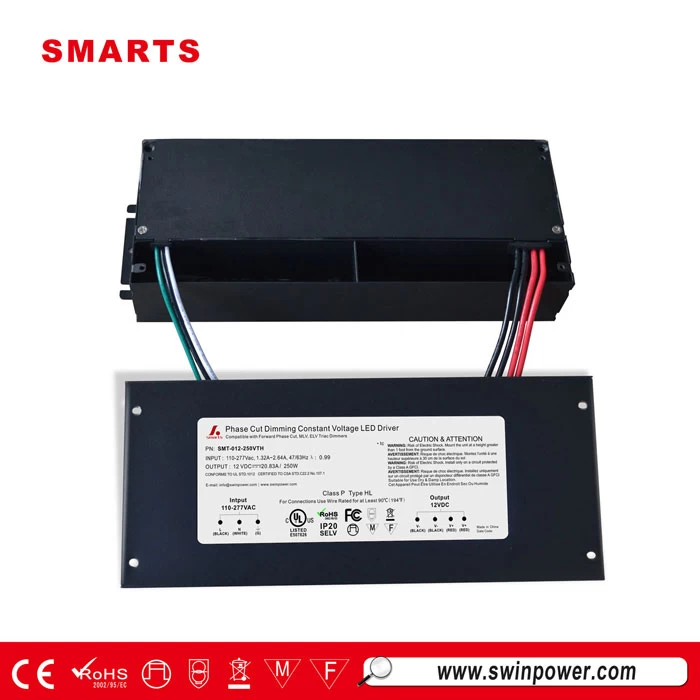

Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is(DIM+),Black is(DIM-)
