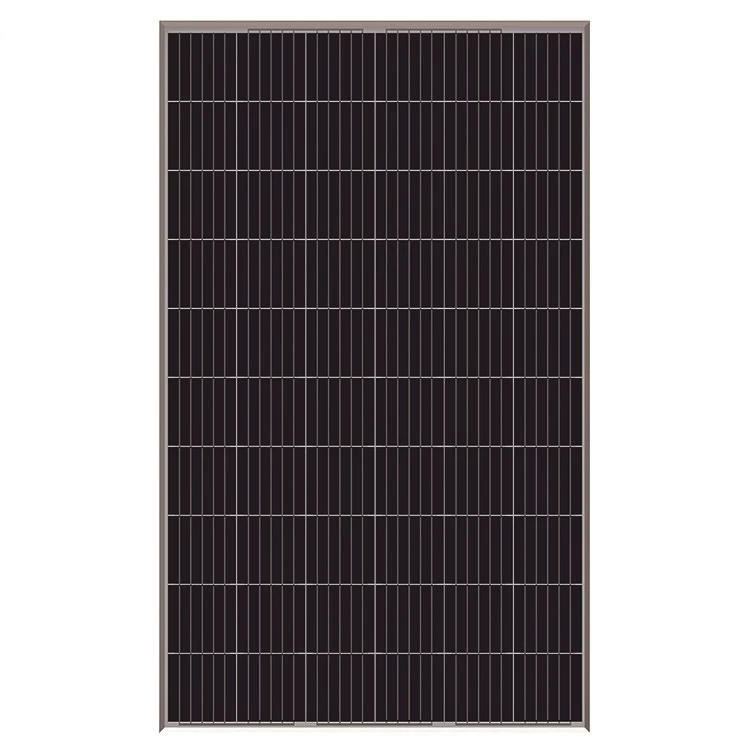

260W Poly solar panels with A grade level

*System voltage Max 1000VDC

*High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability

* Unique frame design with high mechanical strength for easy Installation



260W Poly solar panels with A grade level

2_01


Spcifications of Poly solar panel from 260W-285W

Electrical Characteristics
Module No. UOM SWP60-260 SWP60-270 SWP60-275 SWP60-280 SWP60-285
Rated Maxmum Power-Pmax WP 260W 270W 275W 280W 285W
Maxmum Power Voltage-Vmp V 30.51 30.88 31.02 31.05 31.08
Maxmum Power Current -Imp A 8.52 8.74 8.86 9.02 9.17
Open Circuit Voltage-Voc V 37.65 37.96 37.98 38.03 38.06
Short Circuit Current-lsc A 9.09 9.4 9.53 9.69 9.85
Power Tolerance %  +/-3
Module Efficiency % 15.98 16.6 16.9 17.2 17.5
Current Temperature coefficient  %/k 0.06±0.01
Voltage Temperature Coefficient  mv/k  -(155±10)
Power Temperature Coefficient  %/k  -(0.5±0.05)
Nominal Operating Cell Temperature(NOCT) 45±2
Standard Test Conditions STC:1000W/Wm2, spectrum AM1.5 and cell temperature 25ºC.
Mechanical & Packaging Characteristics
Type of Solar Cell Poly Crystalline 156*156mm
Solar cell and Configuration 60cells(6*10)
Dimension of Module mm 1640*992*35
Weight kg 17.5
Junction Box IP67 Rated
Type of Glass and Thickness Low-ron Tempered Glass
Frame Clear anodized aluminium alloy, color: silver
packing Configuration and Quantity per Pallet 30 pcs per carton and one carton per pallet
Container Loading Capacity for 20GP 364
Container Loading Capacity for 40GP 840
Container Loading Capacity for 40HQ 910
Warranty: 15 years product warranty and 25 years performance warranty ensure reliability of modules.
Note: All specifications & characteristics we can provide depend the customer's requirement.

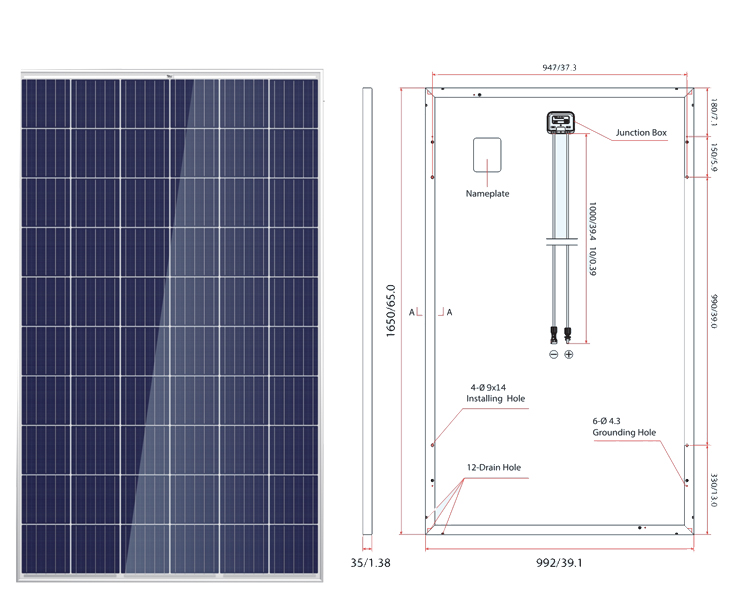

Dimensions of 60Cells Poly solar panels

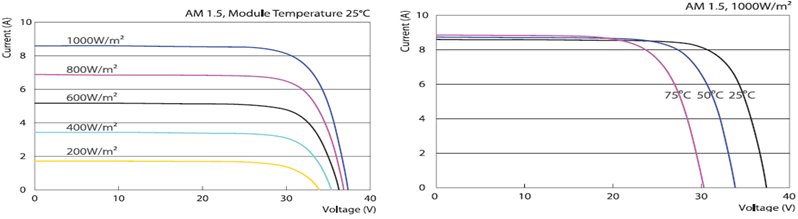

 Curve of 60Cells poly solar panels

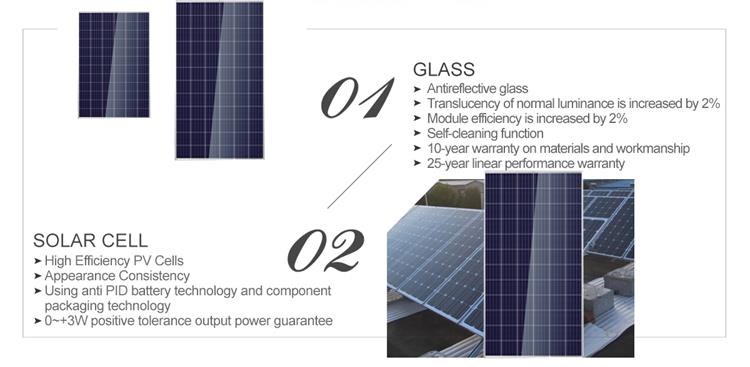

Details of Poly solar panels

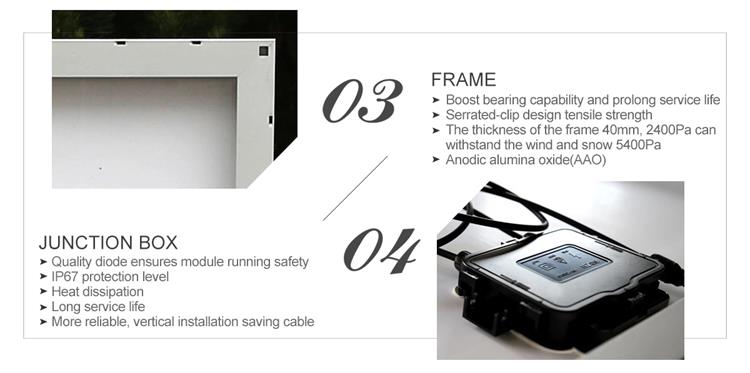

Solar panel details

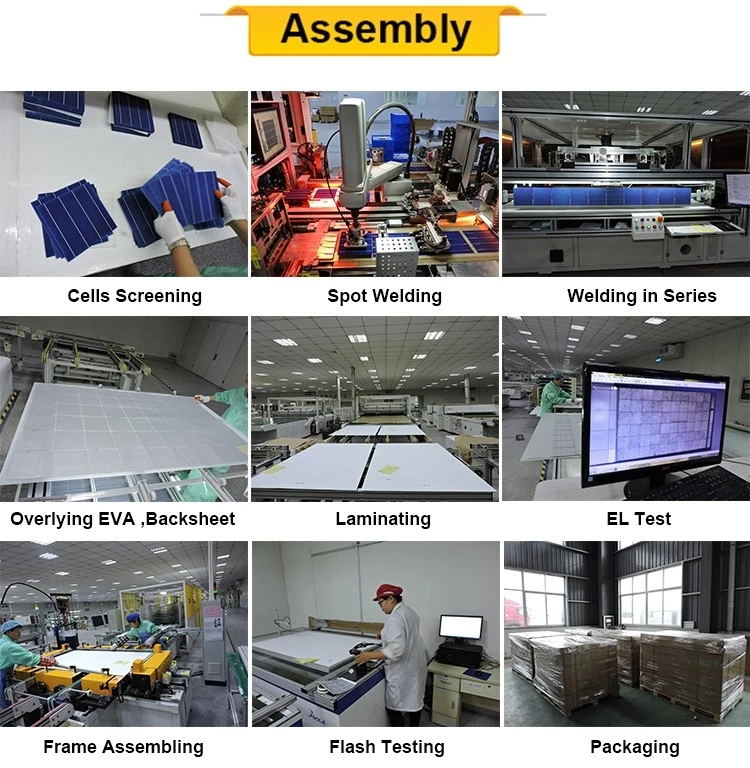

Assemly of 60Cells Poly solar panels

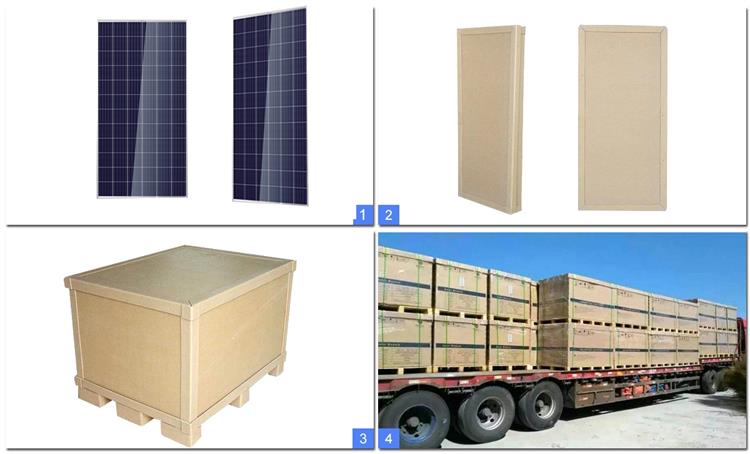

Package of Poly solar panels




Payment of Poly solar panels
Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
