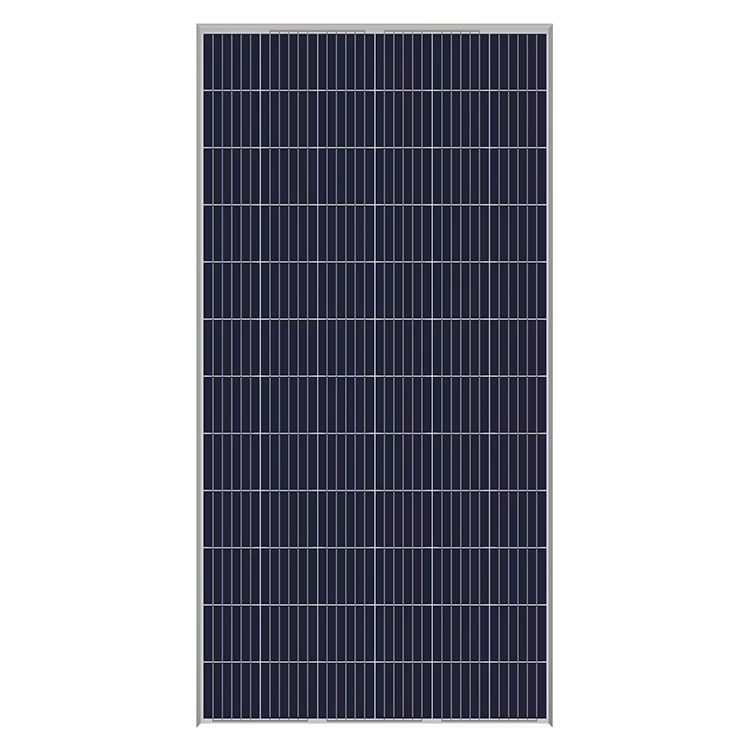

310W Poly solar panels for solar power system

*System voltage Max 1000VDC

*High cell efficiency PV solar panel with quality silicon material for long term output stability and reliability

* Unique frame design with high mechanical strength for easy Installation



310W Poly solar panels for solar power system

2_01

Spcifications of Poly solar panel from 310W-335W



Electrical Characteristics of Poly panels
Module No. UOM SWP72-310 SWP72-320 SWP72-325 SWP72-330 SWP72-335
Rated Maxmum Power-Pmax WP 310 320 325 330 335
Maxmum Power Voltage-Vmp V 36.82 37.3 37.55 37.85 38.05
Maxmum Power Current -Imp A 8.42 8.58 8.66 8.72 8.8
Open Circuit Voltage-Voc V 45.05 45.43 45.55 45.85 46.03
Short Circuit Current-lsc A 9.1 9.12 9.39 9.47 9.58
Power Tolerance %  +/-3
Module Efficiency % 16.16 16.68 17.06 17.3 17.53
Current Temperature coefficient  %/k 0.06±0.01
Voltage Temperature Coefficient  mv/k  -(155±10)
Power Temperature Coefficient  %/k  -(0.5±0.05)
Nominal Operating Cell Temperature(NOCT) 45±2
Standard Test Conditions STC:1000W/Wm2, spectrum AM1.5 and cell temperature 25ºC.
Mechanical & Packaging Characteristics
Type of Solar Cell Poly Crystalline 156*156mm
Solar cell and Configuration  728X9
Dimension of Module mm 1950X984X40
Weight kg 22.5
Junction Box IP67 Rated
Type of Glass and Thickness Low-ron Tempered Glass
Frame Clear anodized aluminium alloy, color: silver
packing Configuration and Quantity per Pallet 30 pcs per carton and one carton per pallet
Container Loading Capacity for 20GP 288
Container Loading Capacity for 40GP 576
Container Loading Capacity for 40HQ 648
Warranty: 5 years product warranty and 25 years performance warranty ensure reliability of modules.
Note: All specifications & characteristics we can provide depend the customer's requirement.

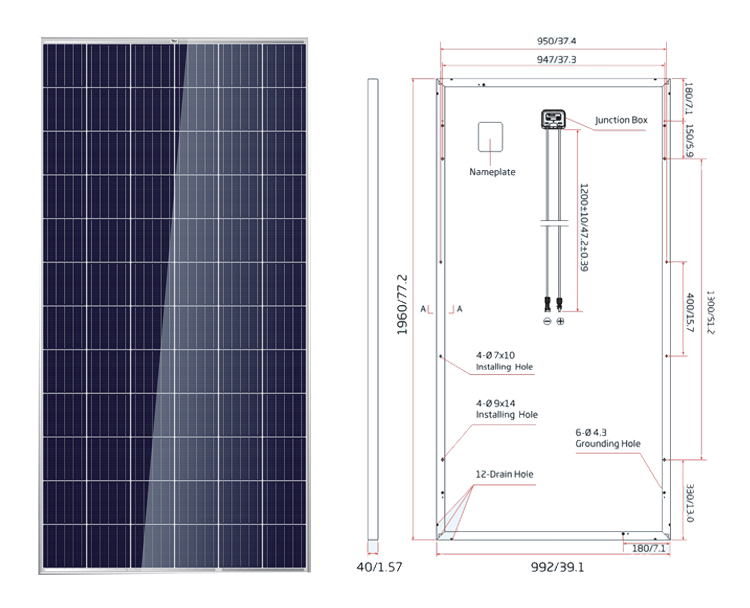

Dimensions of 72Cells Poly solar panels

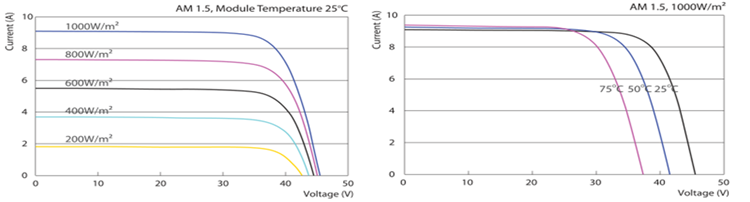

 Curve of 72Cells solar panels

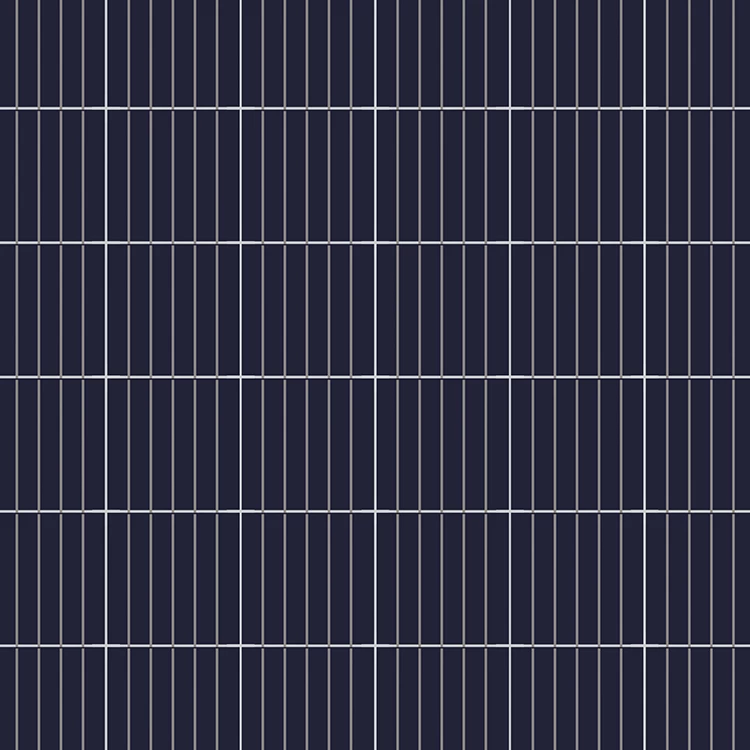

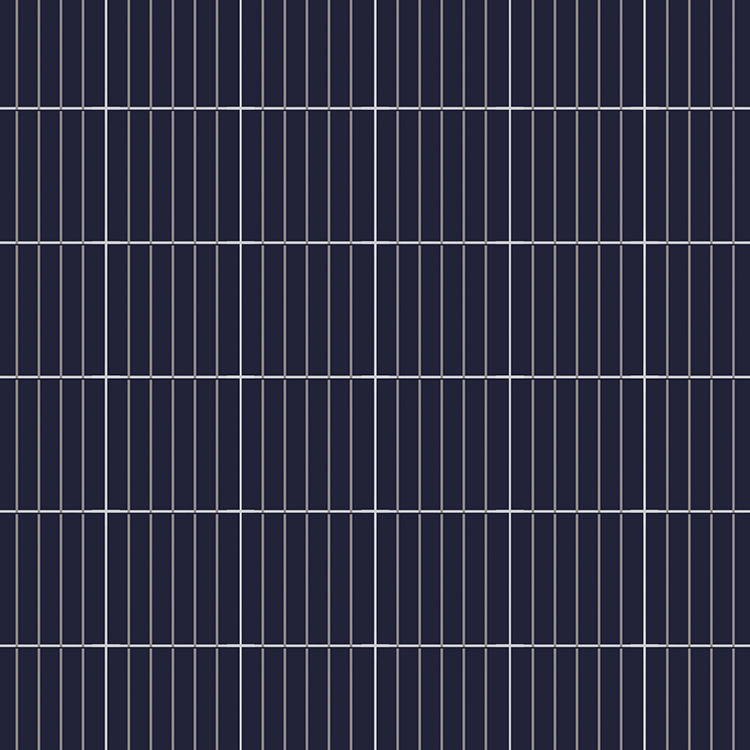

Details of Poly solar panels

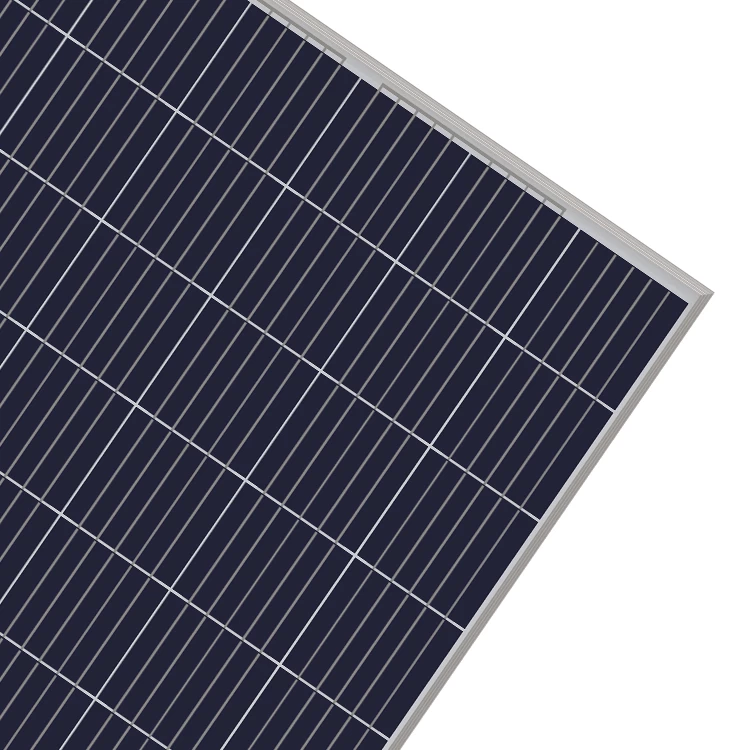

Solar panel details



Assemly of 72Cells Poly solar panels


Package of Poly solar panels




Payment of Poly solar panels
Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
