PRODUCT DESCRIPTION:

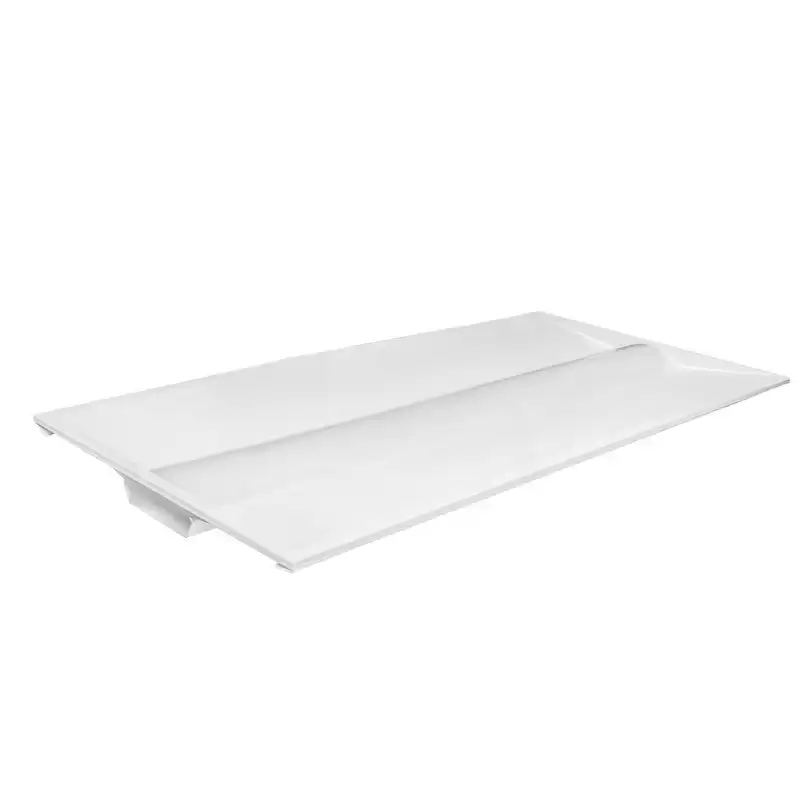

Compared with traditional light sources, the CCT adjustable LED troffer light greatly reduces energy consumption and saves maintenance costs. It is an ideal choice for new light sources. Wireless intelligent controlled troffer light that can simulate changes in daylight color temperature and brightness at programmed time through devices have built-in Bluetooth daylight and human infrared sensors, combined with the MORLINK intelligent control system . They are also equipped with automatic light sensor switches. Those lights are connected with the gateway, which can be remotely controlled in real time as customers need.
FEATURES:
• Long-life LEDs, coupled with high-efficiency drivers, provide superior quality of illumination for extended service life
• Excellent luminaire efficacy provides significant energy savings power efficiency up tp 88%
• To ensure trouble-free operation, protection is provided against output over-current, output over-voltage
• Short circuit. LED boards are easily accessible from below
• Options: CCT+Power Adjustable; APP Smart control :Bluetooth；daylight+PIR sensor
CONSTRUCTION:
• Cold-rolled steel light body increases durability. Only 2.60'' thickness
• Diffuser are extruded from impact modified polycar-bonate, easy maintenance.
RECOMMENDED USE:
• The modern architectural style compliments any space, such as shool,
office, hospitality, education, bank, healthcare and more.
• Working temp:-20~40ºC(-4~104ºF). Storage temp.:-30~60ºC
WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -4°F to 104°F.
|
FAMILY
|
SERIES CODE
|
SIZE CODE
|
WATTAGE
|
CCT
|
OPTIONS1
|
OPTIONS2
|
|
MA-HTF= LED Troffer
Light
|
301B
|
22=2X2FT
24=2X4FT
|
26W
|
30K=3000K
40K=4000K
50K=5000K
57K=5700K
|
Blank
CP=CCT+Power
Adjustable
|
Blank
AP=Bluetooth+
Daylight Sensor+
PIR Sensor
|

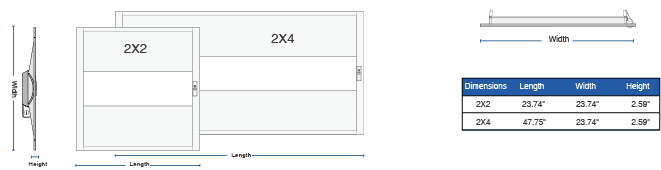

DIMENSION:
SPECIFICATION:
|
ITEM
|
SPECIFICATION
|
Normal Type
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
26W 2X2ft
|
|
Equivalent Wattage
|
60W CFL
|
|
Lumens Delivered
|
3,250 lm
|
|
Efficacy
|
125 lm/W
|
|
CRI
|
>80
|
|
Color Temperature
|
WW:3465±245K; NW:3985±175K; DW:5028±285K
|
|
L70 Lumen maintenance
|
100,000 hours
|
|
ELECTRICAL
|
Power Factor
|
>0.9
|
|
Input Voltage
|
100-277V
|
|
Dimming
|
1-10v Dimming Range:10%-100%
|
|
PHYSICAL
|
Mounting
|
Suspending,Hanging, Surface mounted
|
|
Operating Temperature
|
-4°F to 104°F
|
|
Humidity
|
20% to 80% RH non-condensing
|
|
QUALIFICATION
|
Qualifications
|
ETL Listed, DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Indoor IP20
|
|
Warranty
|
7 Years warranty
|

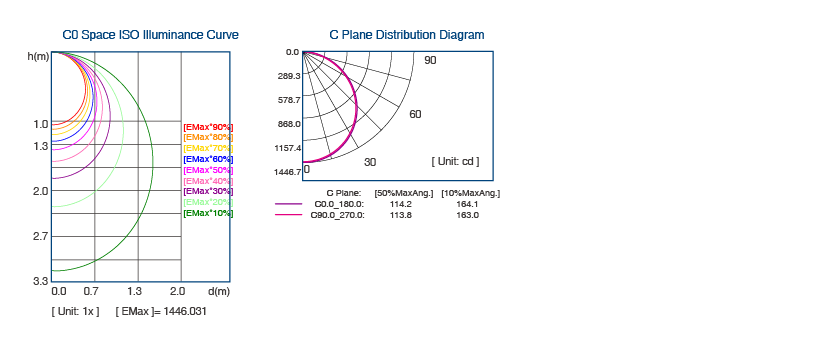

LUMINOUS INTENSITY DISTRIBUTION CURVE:
|
ITEM
|
SPECIFICATION
|
CCT+Power Adjustable
|
APP Smart Fixture :
Bluetooth; daylight+PIR sensor
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
26W
2X2ft
|
|
Equivalent Wattage
|
100W CFL
|
|
Lumens Delivered
|
3,770 lm
|
|
Efficacy
|
125 lm/W
|
|
CRI
|
>80
|
|
Color Temperature
|
WW:3465±245K;
NW:3985±175K;
DW:5028±285K
|
|
L70 Lumen maintenance
|
100,000 hours
|
|
ELECTRICAL
|
Power Factor
|
>0.9
|
|
Input Voltage
|
100-277V
|
|
Dimming
|
1-10v Dimming Range:10%-100%
|
|
PHYSICAL
|
Mounting
|
Suspending,Hanging, Surface mounted
|
|
Operating Temperature
|
-4°F to 104°F
|
|
Humidity
|
20% to 80% RH non-condensing
|
|
QUALIFICATION
|
Qualifications
|
ETL Listed, DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Indoor IP20
|
|
Warranty
|
7 Years warranty
|
ACCESSORIES (For APP Smart Fixture):
|
MODEL NUMBER
|
DESCRIPTION
|
|
|
MA-SW101S
|
Surface-mounted Bluetooth Wall-Switch(US)
With Bottom Cap
|
|
|
MA-SW101R
|
Recessed Bluetooth Wall-Switch(US)
W/out Bottom Cap
|
FAQ：
1. How can smart lamps save money?
A:*. Smart bulbs are usually LED lamps, which are approximately 75% more efficient than incandescent lamps. If you haven’t upgraded to LED lights, just screw in the new bulb and you will see the savings.
*. When there is no one in the room, use the motion sensor to turn off the smart light switch and bulb.
*. When people are away or not, you can use the geolocation on the phone to turn off the lights. The lights are turned on and off according to the schedule.
2.Can smart lamps provide security in usage scenarios?
A: The answer is no doubt. Use motion sensors and contraction sensors to automate your lights, so you don’t need to look around for switches in the dark.
3.What are the options for smart bulbs?
A: Smart bulbs are available in a variety of sizes and colors. Whether it is your home or other commercial places, almost all types of light bulbs can be replaced with smart light bulbs.
4.Can smart lamps be dimmed?
A: You can set different lighting scenes according to your different usage needs. For example, you can adjust the color of the light according to the morning and evening of the time or the change of the season.
