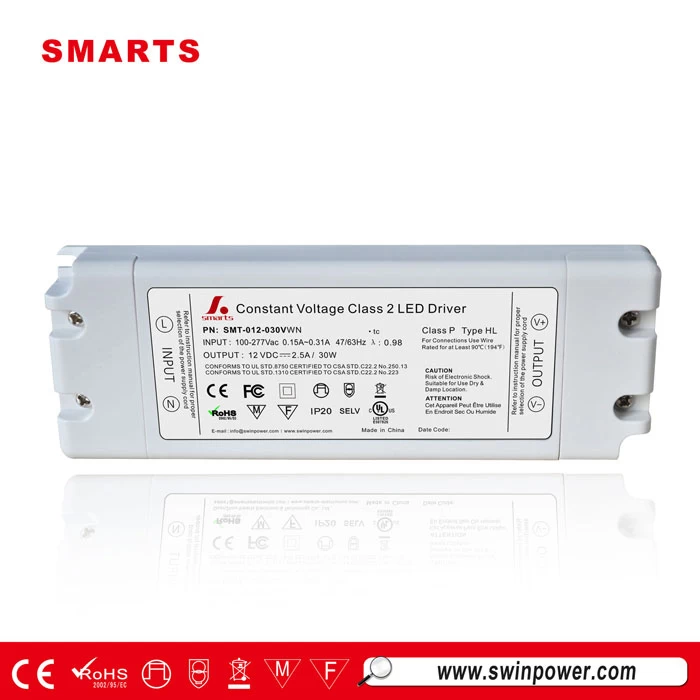

UL listed 12V 30W Home Lighting LED Drivers for sale

Typically, 12vdc 30w LED drivers are developed to provide to LED light engines for applications like commercial indoor lighting, street lighting and high bay lighting. For Smarts high quality 30w led power supply, we are delicating to upgrade it.


  • CertificationCE UL ROHS
  • Size155*54*20mm
  • Dimming modeNon dimming
  • Working ModeConstnat voltage
  • Output Current2.5A
  • Output Voltage12vdc
  • Input Voltage100-277vac

UL listed 12V 30W Home Lighting LED Drivers for sale


LED driver power is an essential part of our lives, but to most people choosing, designing, and installing quality lighting is a complicated and frustrating endeavor. We have lots of options, including different lighting technologies, product features, and companies with whom to work. Our mission at Smarts is to change the way people think about lighting. We believe that lighting should be simple, hassle-free, and enjoyable.


  Features

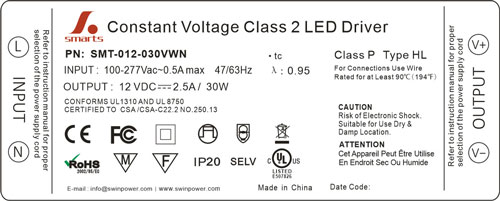

  Label
·Output constant voltage
·Input voltage range 100-277VAC
·Built-in PFC function / PF>0.97 / Efficiency >83%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·7 years warranty

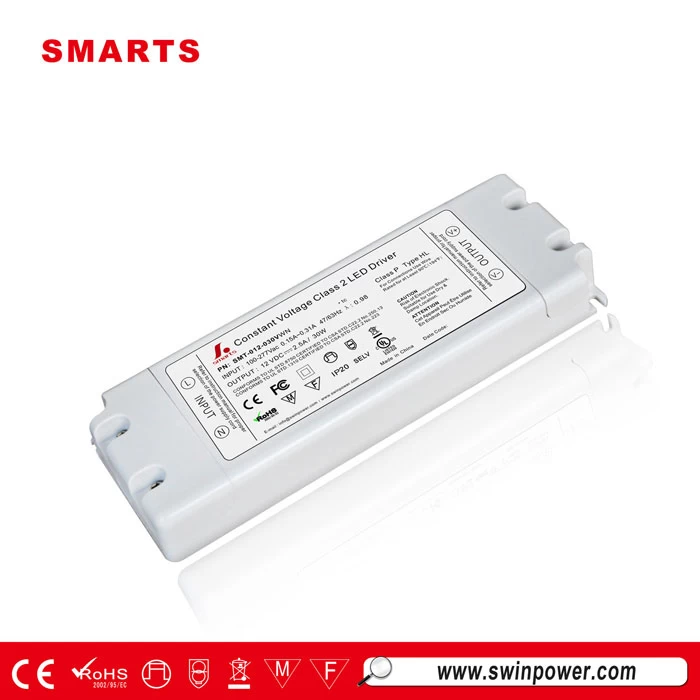

30w led power supply

  Specification sheet


model

SMT-012-030VWN

SMT-024-030VWN

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

2.50A

1.250A

Load Regulation

±1%

Rated power

30W

30W

Input

Voltage Range

100-277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC  0.98@277VAC

0.98@120VAC  0.98@277VAC



Full Load Efficiency(Typ.)

>83%

>82%

AC Current(Typ.)

0.51A/110VAC

Inrush Current (Typ.)

7.0A, 50%, 425us

Leakage current

<0.50mA

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.95KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 0.23Kg

Size

155*54*20mm (L*W*H)

packing

40PCS/CTN

 (L*W*H)

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
dali led power supply
0-10v led driver
waterproof led driver



  FAQ


1. Can we make our company information on the label?

Answer:

--As per the policy of ETL/UL,  we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..

--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?



2. Could you let me know more about ETL Multiple Listee?

Answer:

-- According to the design solution, our triac/ dali/ 0-10v dimmable led drivers are divided into 4 parts. That is to say, there will have 4 reports for our whole dimmable led driver series.

Enclosed pls. kindly check PDF file for part number of our whole series of our ETL listed dimmable led driver in each report.

-- Price for ETL Multiple listee divided into two part.  ETL multiple list fee and annual fee.

ETL multiple list fee is about US$321/ per reports. Paid this fee once for multiple listee.

ETL annual fee is US$615 / per reports. And it should be paid each year.



ETL department will issue formal quotation file and charge all payment from you directly. Actual charge is subject to the quotation files ETL department issued.


3.  What is the HS code for this Power supply?

Answer:  HS code is 8504401400.
