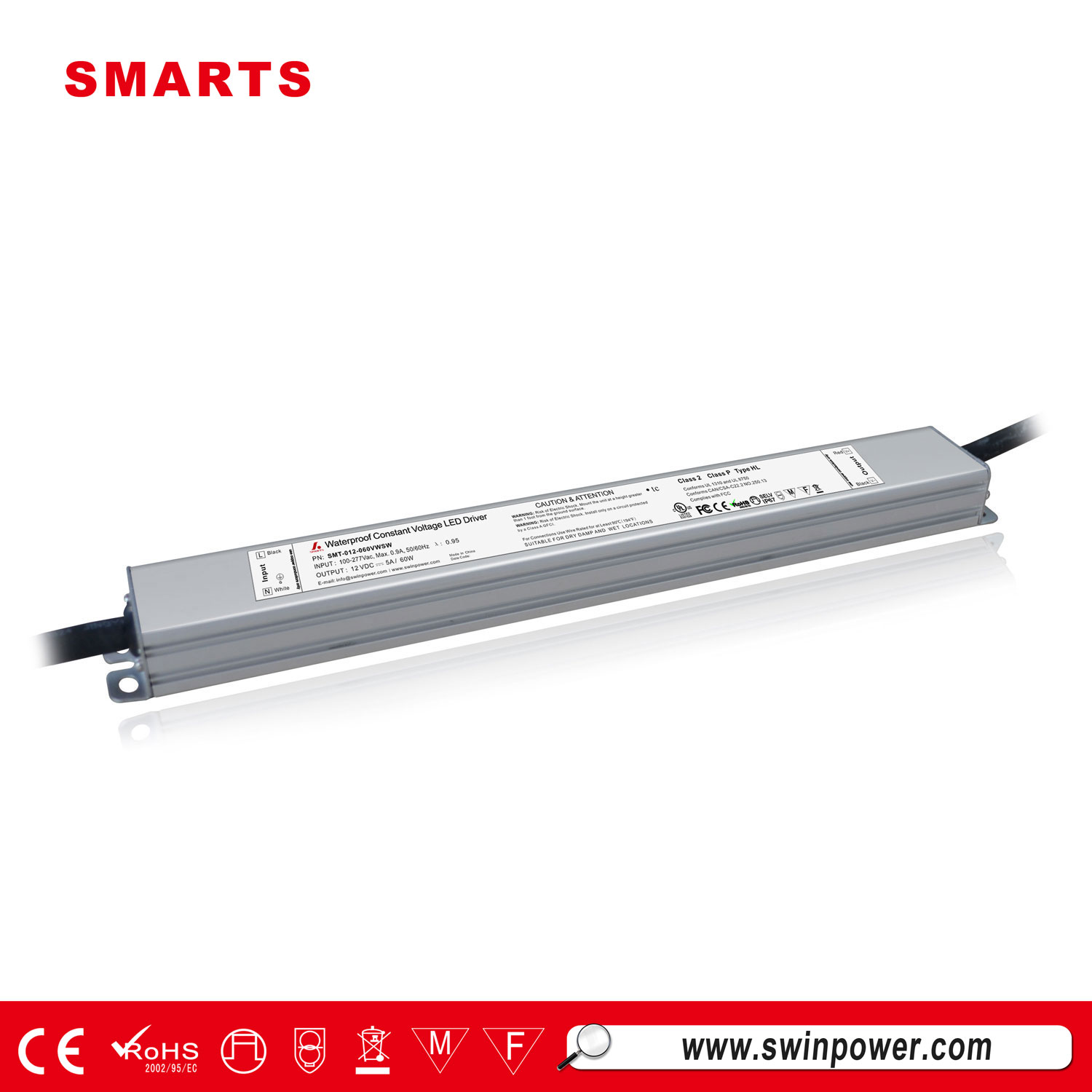

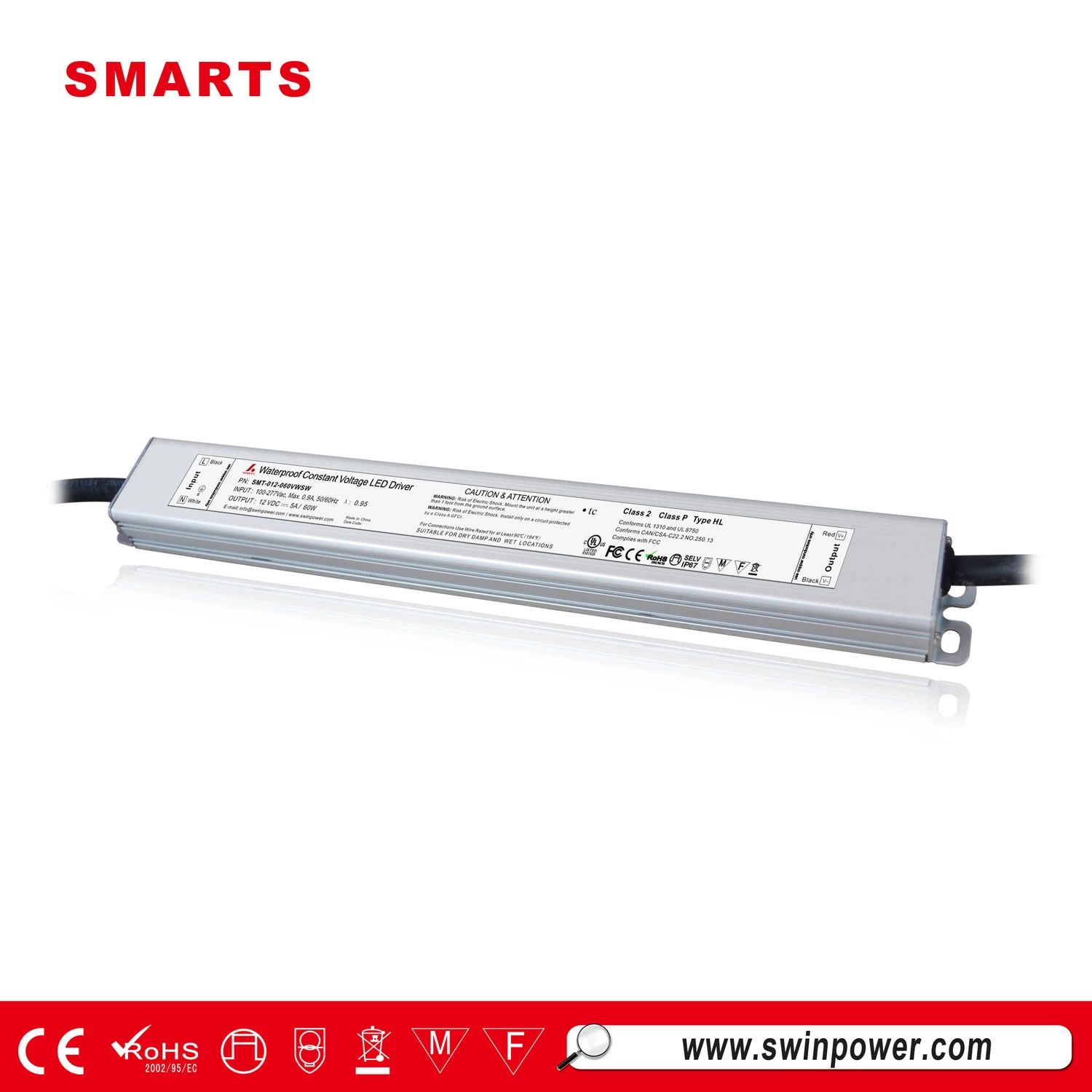

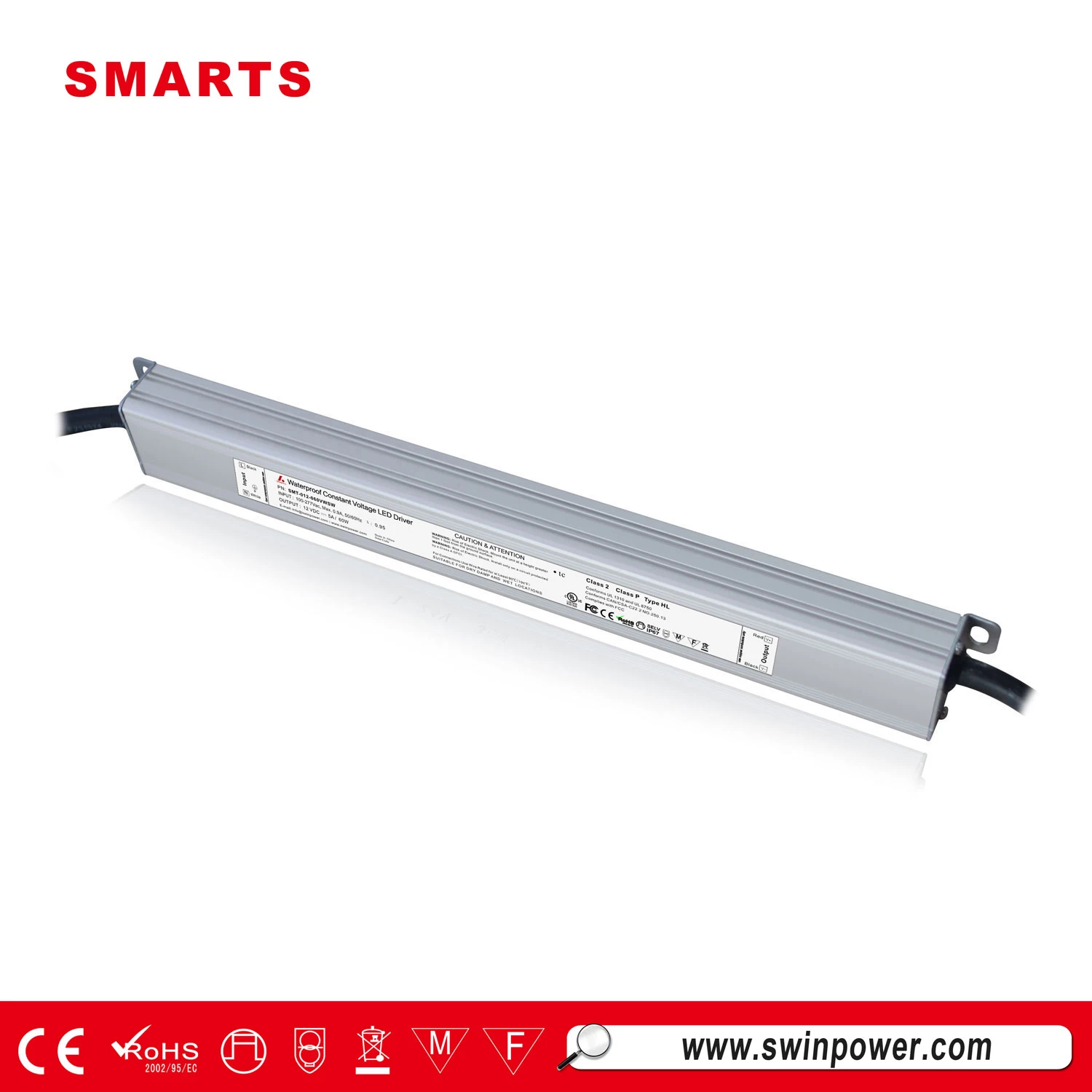

277v input UL cUL 12 v 60w led strip lighting led display power supply waterproof
Typically smaller, lighter and less expensive than magnetic drivers. and avaliable to be used in both outdoor and indoor applications. Strong compatibility, led driver and junction box intergrated 12v 24v 60w power supply, its pass UL standard 8750, class p and type HL standard, FCC approved as well, suitable for both damp & wet location.
What is the definition of Type HL ?
LED drive power for hazardous (grading) locations (must be fully gummed)
LED drivers with "Type HL" markings can be used directly for installation of l terminal lamps in hazardous (graded)
locations without further evaluation
The Type HL of the actuator is defined in the UL8750, which, in a nutshell, can be installed in a Class I Division 2
Class of Hazardous Location lamps
Specification
|
model
|
SMT-012-060VWSW
|
SMT-024-060VWSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
|
Rated power
|
60W
|
60W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/230V ; PF≧0.97/277V
|
|
|
Full Load Efficiency（Typ.）
|
82%@120VAC ;84%@230VA ; 84%@ 277VAC
|
84%@120VAC;86%@230VAC; 86%@ 277VAC
|
|
|
AC Current（Typ.）
|
0.75A/100VAC / 0.2A/277VAC
|
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
|
Leakage current
|
<0.5mA/110VAC; ﹤0.2mA/277VAC
|
Features:
·Output constant voltage
·Input voltage range 100-277VAC
·Built-in PFC function / E fficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load:10~100%
·Protections:short circuit/over voltage/over heat
·Cooling by free air convection
·Full protection aluminum housing, for dry, damp, wet location
·flicker-free dimming
·Compliance to worldwide safety regulations for lighting
Others:
|
Weight
|
0.45Kg
|
|
Size
|
300*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN
|

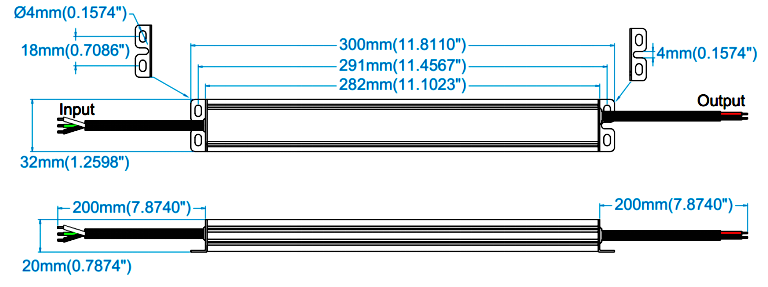

Mechanical Specification
