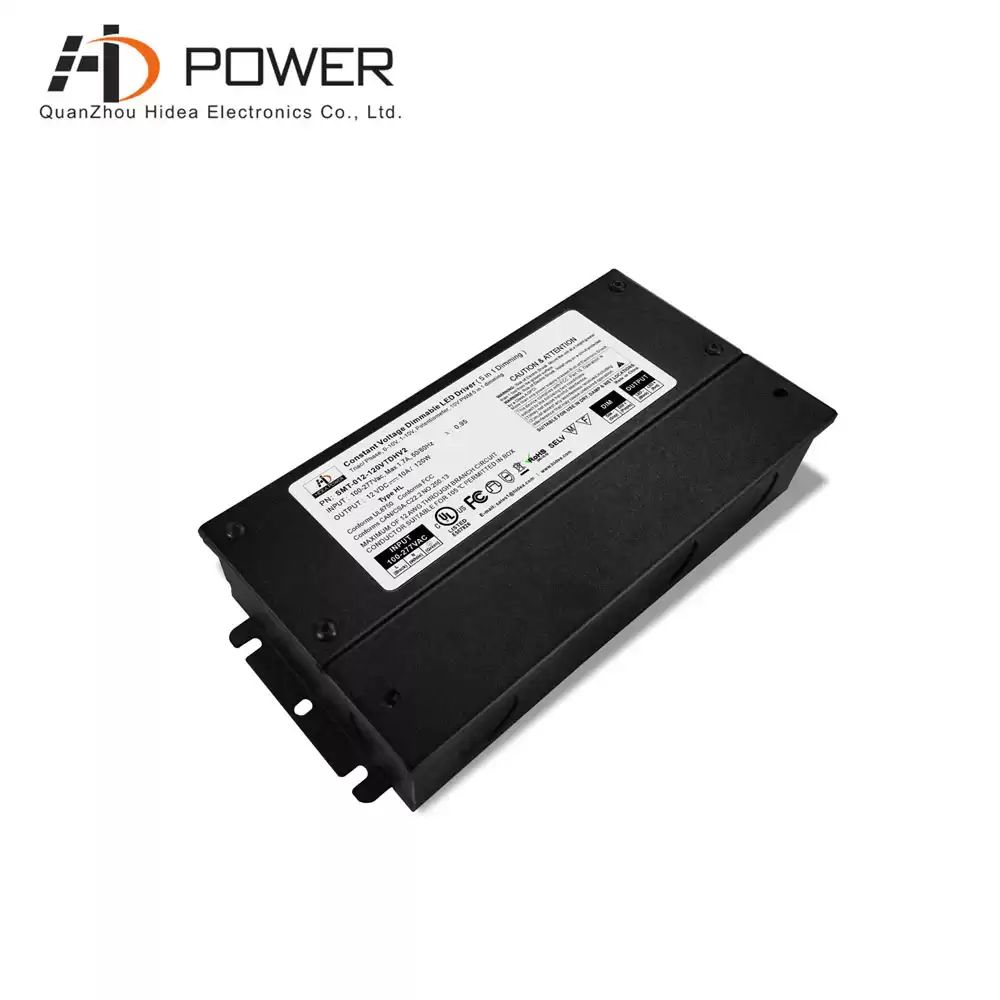

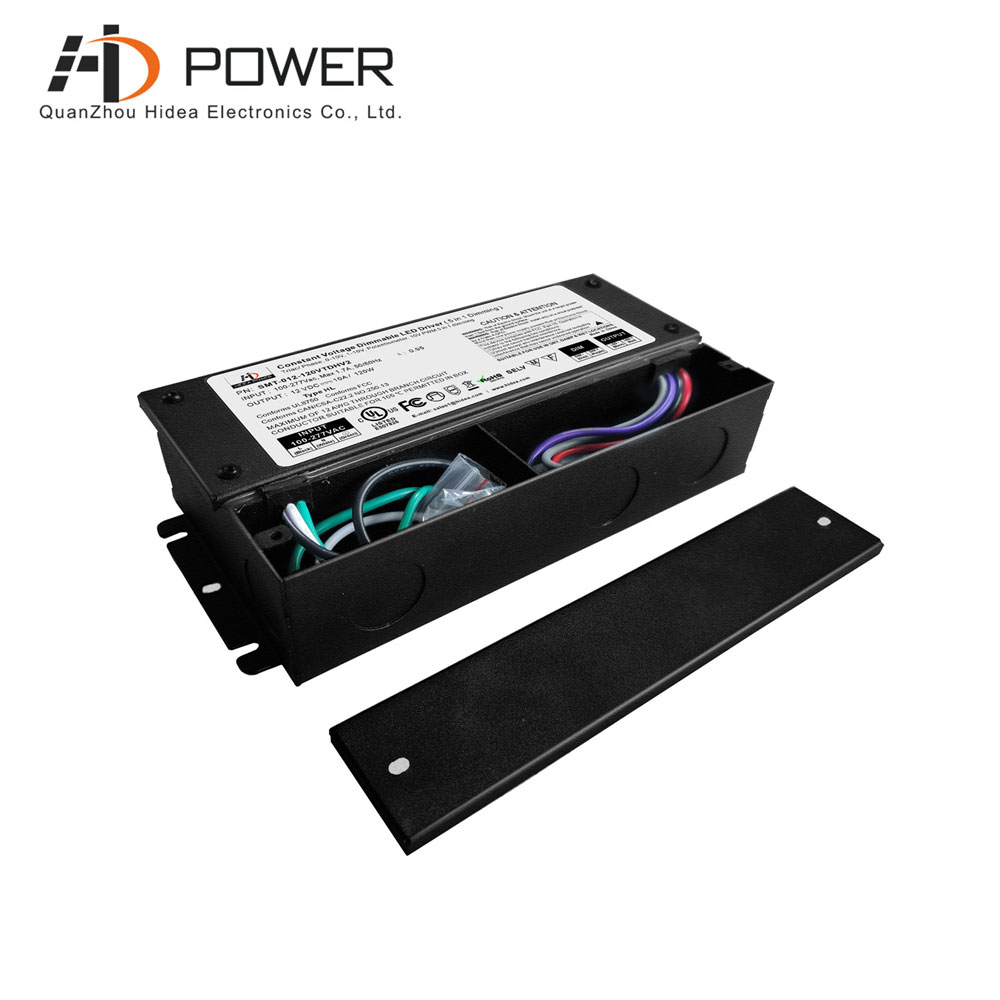

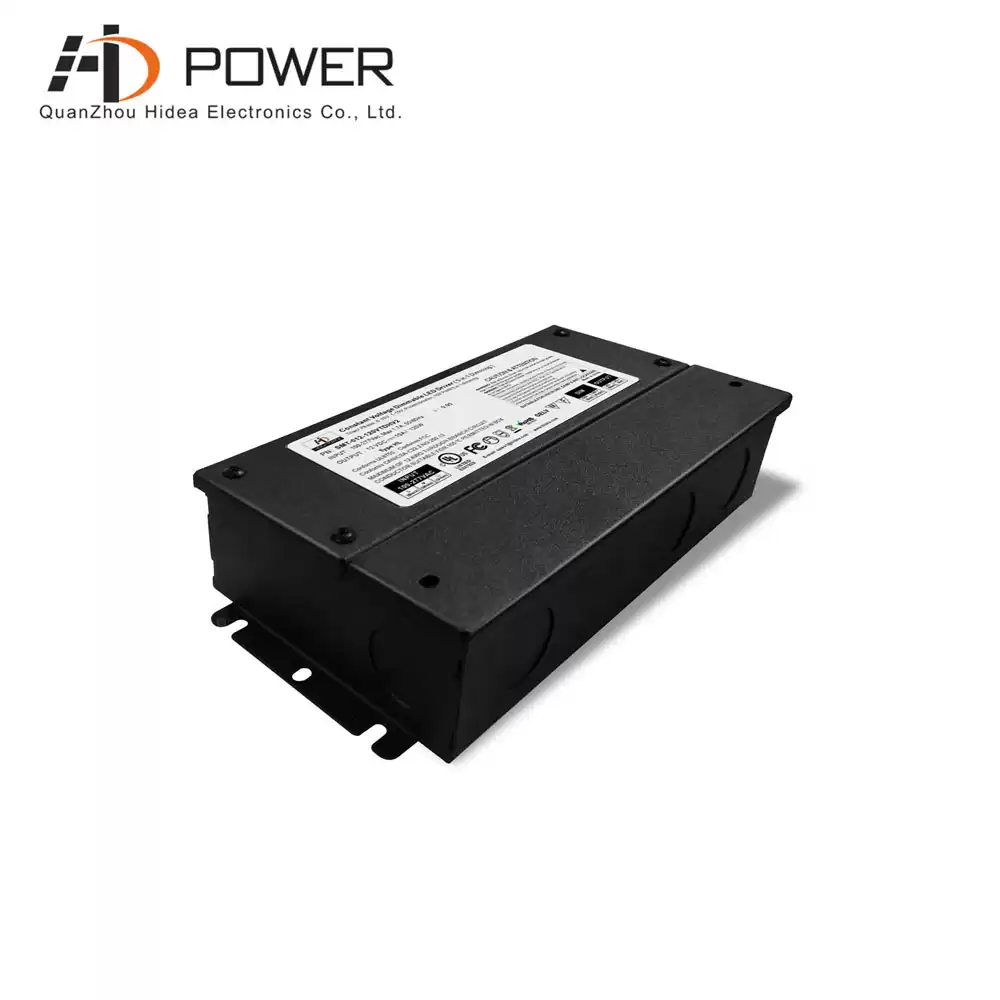

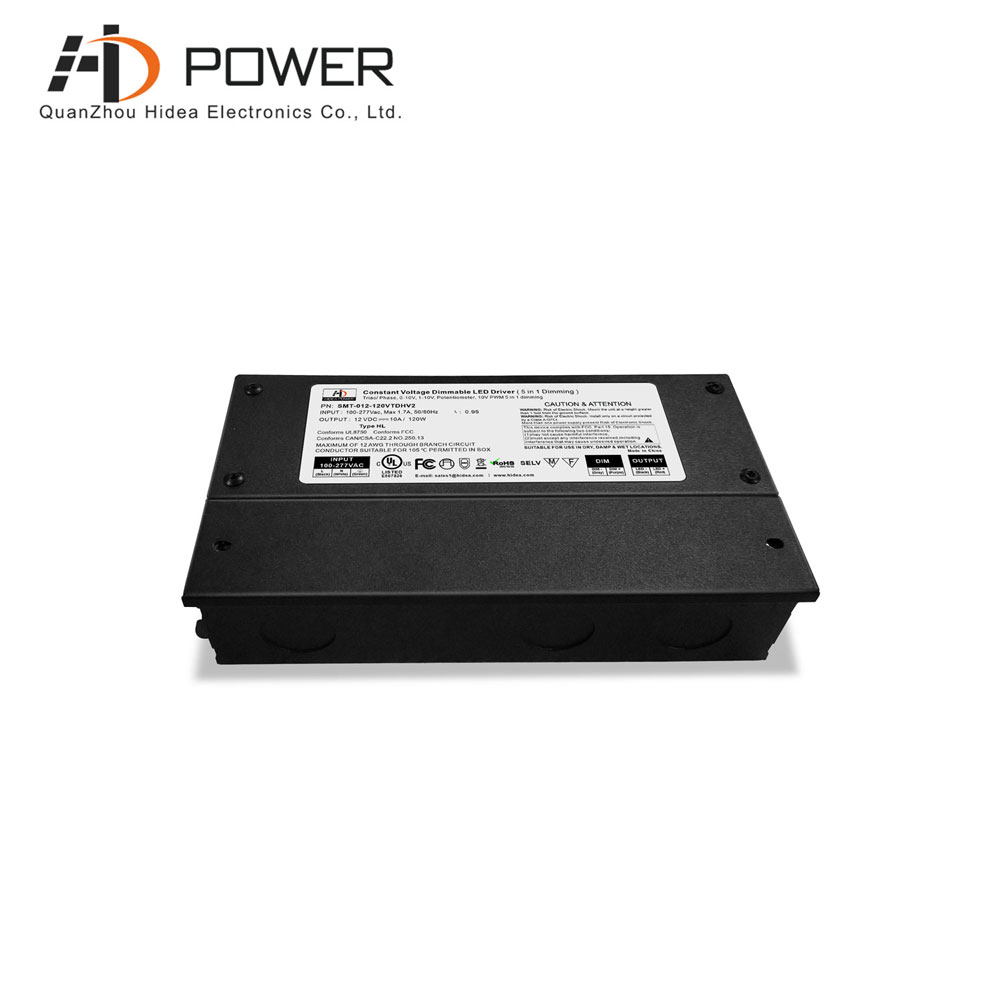

120w led driver 12v/24vdc, triac/0-10v dimming available, UL,FCC, CLASS P, TYPE HL approval, it can connect with Factor Led led stip lights aluminium profile in a good condition. and could achieve 0-100% dimming effect.
Specification
|
model
|
SMT-012-120VTDHV2
|
SMT-024-120VTDHV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
10.0A
|
5.0A
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
|
±2%
|
|
Rated power
|
120W
|
120W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor@ full load
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
82% @120Vac 83%@277Vac
|
82% @120Vac 84%@277Vac
|
|
AC Current(Max.)
|
1.7A@100Vac
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms @120Vac 25A, 50%, 1.2m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.3Kg
|
|
Size
|
220*94.5*40mm (L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
The triac+0-10v 5 in 1 dimmable 120w led driver can achieve triac dimming or 0-10v dimming by connect with Factor Led led stip lights 5m, it can help customers reduce the inventory problems.
Related Products

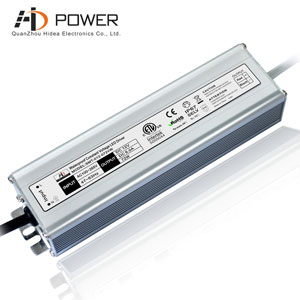

Non-dimmable 12v 60w waterproof led driver, ETL,ROHS, CE certificated, 3 years warranty with favorable price, it's hot products for North America and Canada...
