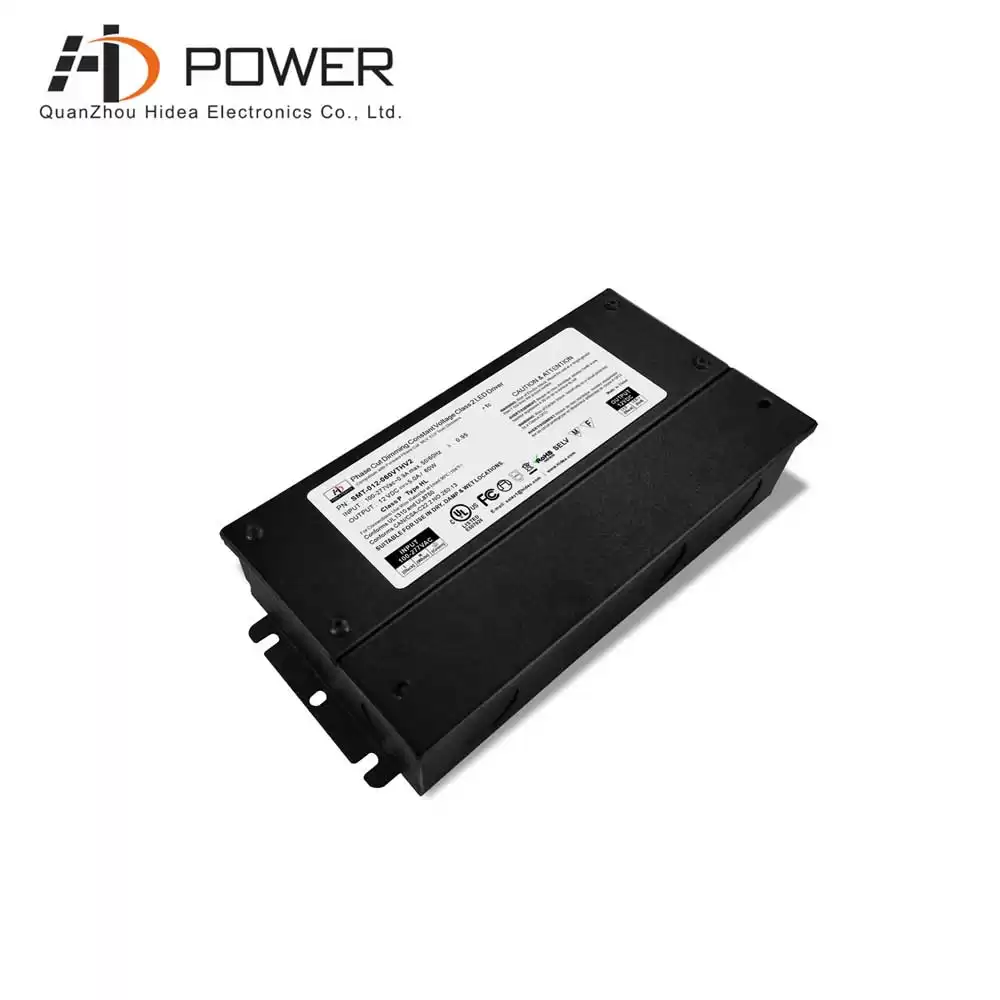

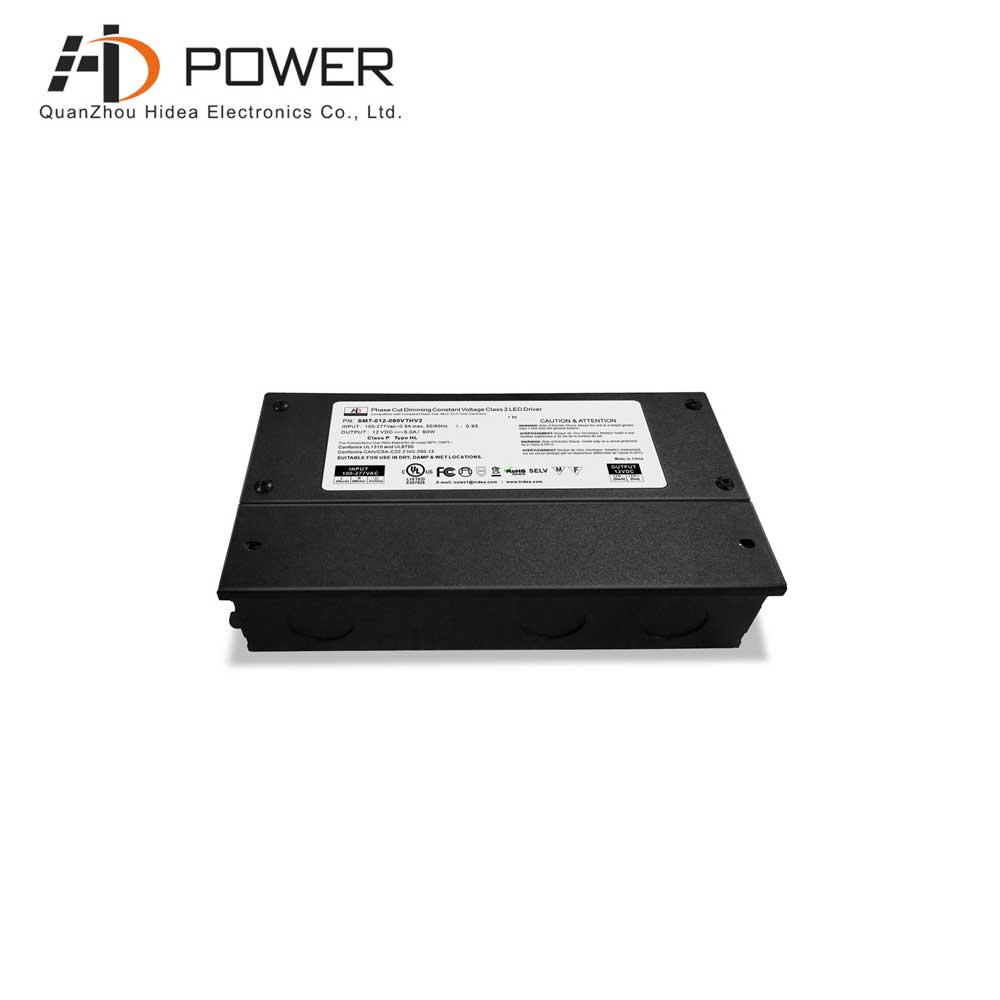

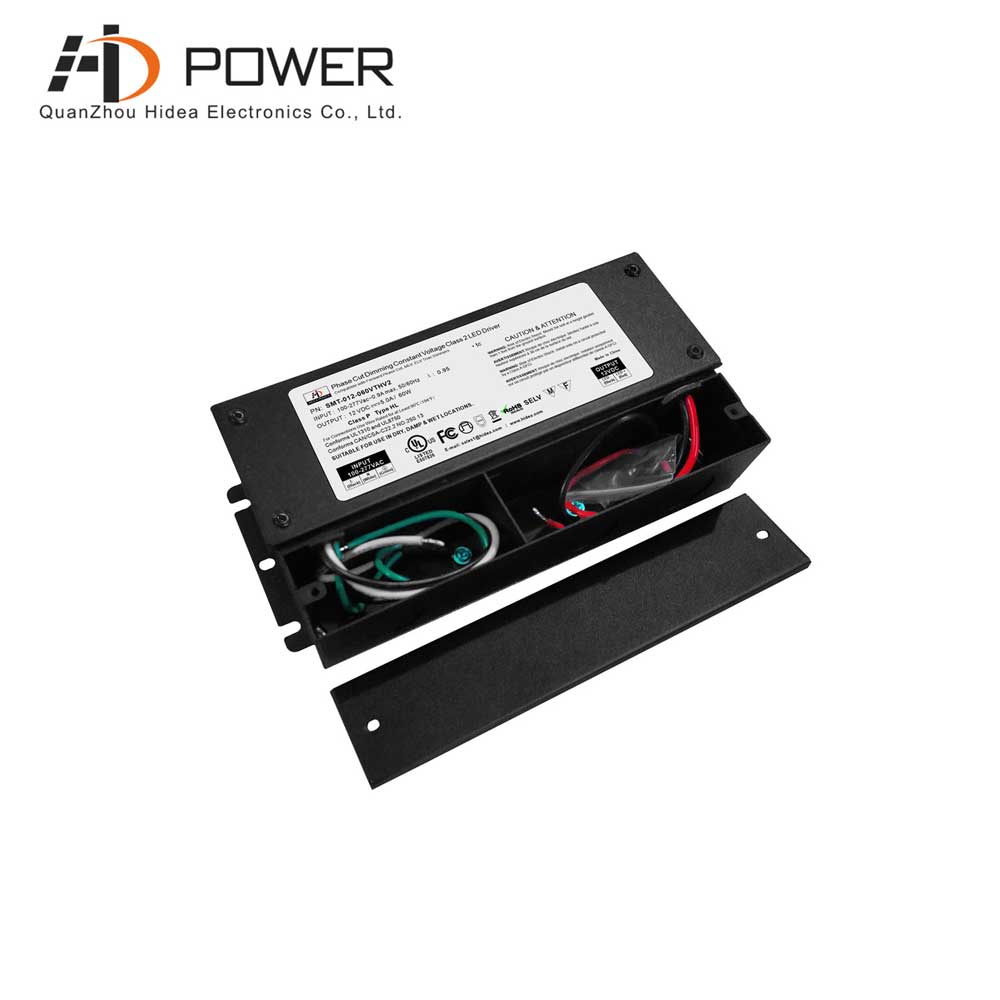

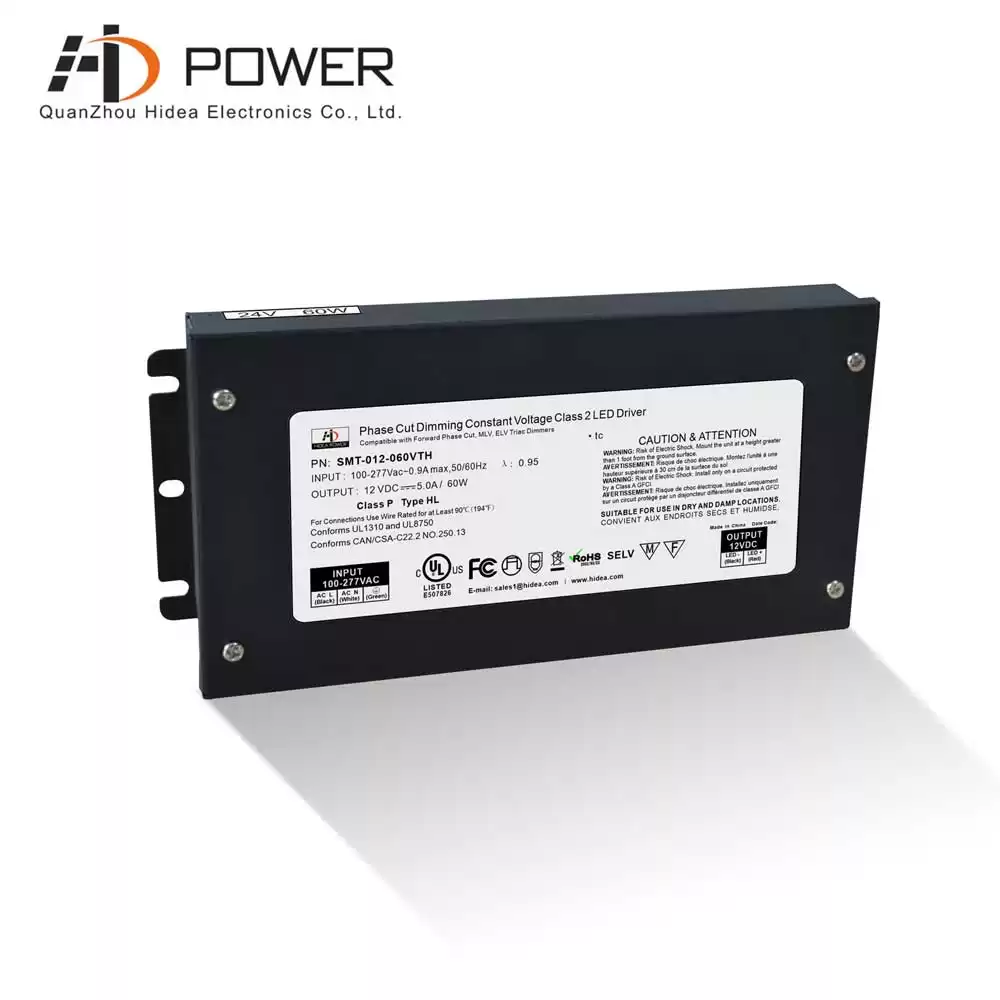

277vac 12VDC 60W triac dimmable Junction box led strip lights driver for LED lamp
Our 60w dimmable led driver are intended for projects where resistance to water is required, such as kitchens, bathrooms etc. They can also be fitted externally, making them ideal for signage.
Specification
|
Model
|
SMT-012-060VTH (1.0 ver.)
|
SMT-024-060VTH (1.0 ver.)
|
|
SMT-012-060VTHV2 (2.0 ver.)
|
SMT-024-060VTHV2 (2.0 ver.)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
5A
|
2.5A
|
|
Rated Power
|
60W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83%
|
83%
|
|
AC Current(Max.)
|
0.9A@100VAC
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.1Kg
|
|
Size
|
1.0 version: 188*92*26mm(L*W*H); 2.0 version: 188*94.5*40mm(L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

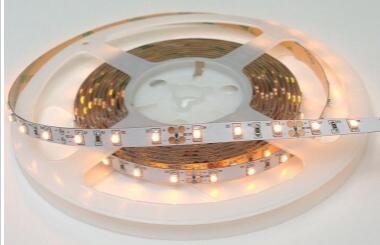

It is compatible well with 3528 LED tape on a reel when you using our led tape driver, you will find your project more bright and colorful.
Related Products
|

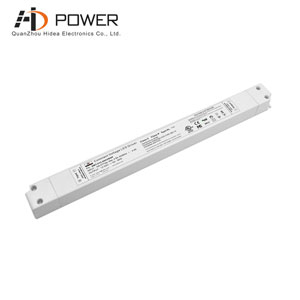

 The slim type 12vdc 60w 0-10v dimmable led driver is widely used in LED mirror, LED bathroom and LED cabinet lighting. To some people who is requesting the height for the led driver, it would be your best solution.
Mode：SMT-012-060VDSP
Dimming Mode : 0-10V Dimming
Output Power : 60W
intput voltage：100~277V AC
Size：300*30*18.5MM （L*W*H）
|
