277vac 24v 30w non-dimmable with 7 years warranty

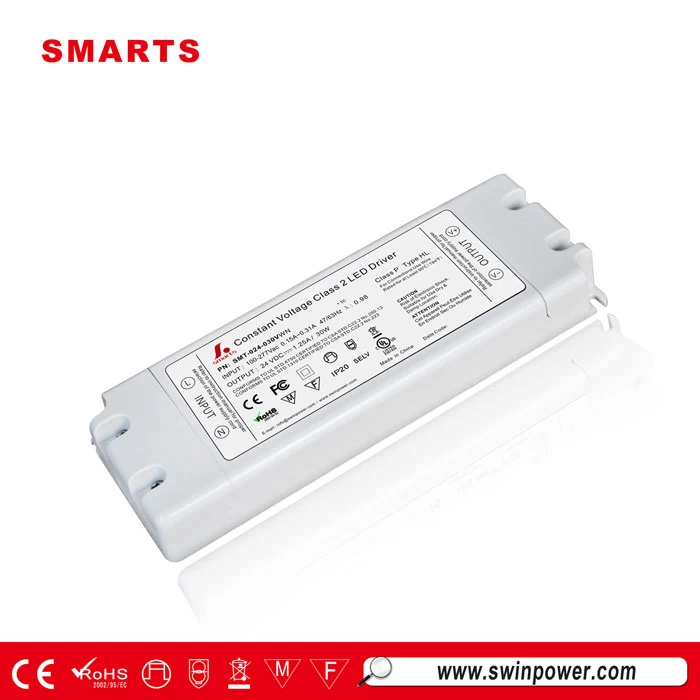

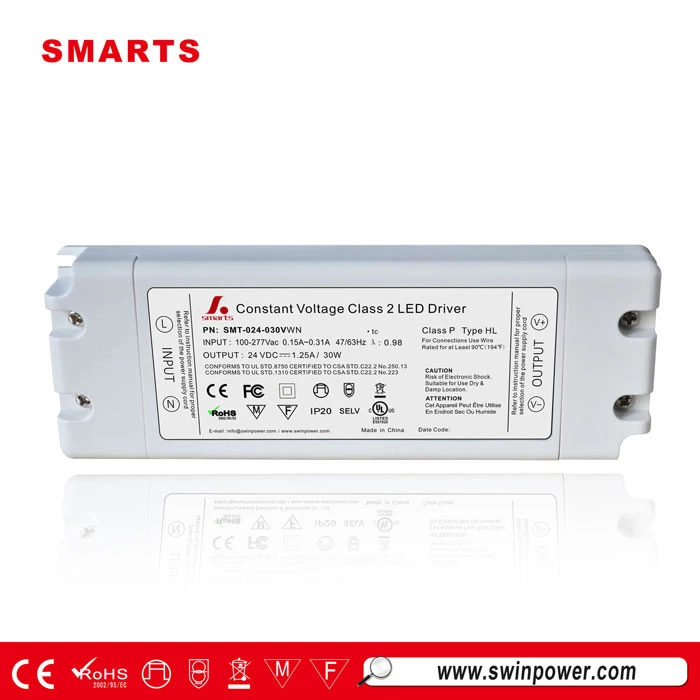

Smarts SMT-024-030VWN is 100-277vac 30w 24v led strip power supply which could meet CE,cUL/UL, FCC,RoHS/ Class 2,class P, type HL approval with 7 years warranty.
Feture
|
|
·Output constant voltage type
·Input voltage range 100-277VAC
·Built-in PFC function / PF>0.98 / E fficiency > 86%
·Protections"short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection, Full protection plastic case , for dry, damp location.
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·7 years warranty
|
|
Specification
|
model
|
SMT-012-030VWN
|
SMT-024-030VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2.50A
|
1.250A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
30W
|
30W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.98@277VAC
|
0.98@120VAC 0.98@277VAC
|
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>82%
|
|
AC Current(Typ.)
|
0.51A/110VAC
|
|
Inrush Current (Typ.)
|
7.0A, 50%, 425us
|
|
Leakage current
|
<0.50mA
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.95KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level (surge4KV)
|
|
Others
|
Weight
|
About 0.23Kg
|
|
Size
|
155*54*20mm (L*W*H)
|
|
packing
|
40PCS/CTN
(L*W*H)
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
