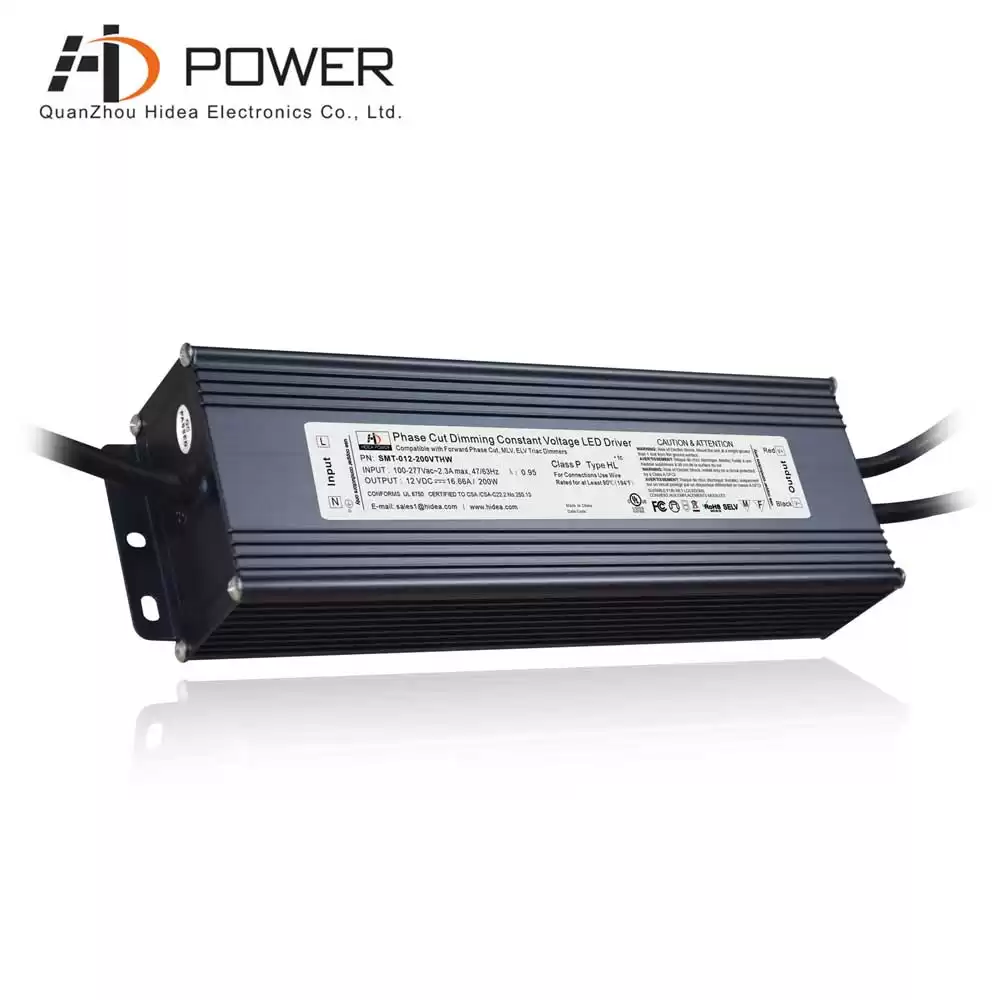

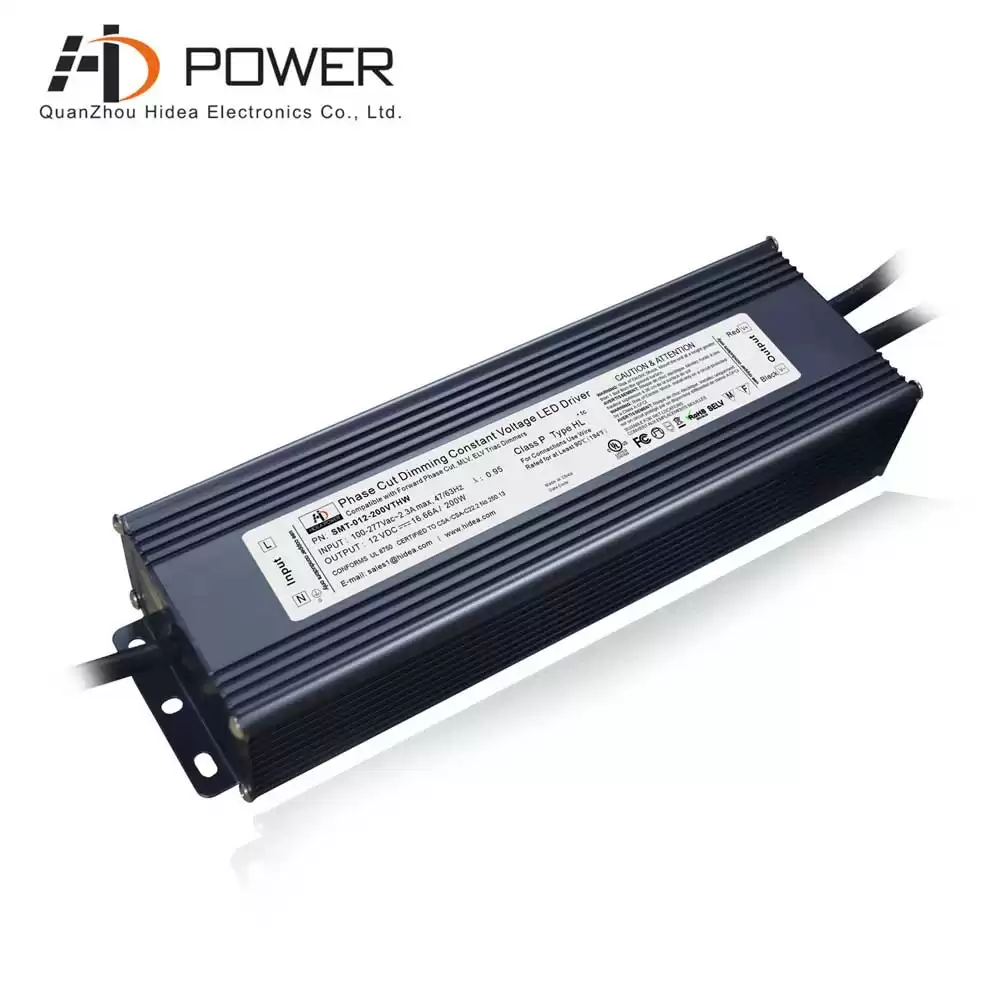

277vac triac dimming outdoor waterproof ip67 led 24v 200w driver lighting transformer
UL certified triac dimmable 200W led power supply PWM output, 100-277vac input voltage, with short circuit/over voltage/over heat protection design, complies with global safety lighting regulations, 7-year warranty
Specification
|
Model
|
SMT-012-200VTHW
|
SMT-024-200VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated current
|
16.66A
|
8.33A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated power
|
200W
|
200W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.97@277VAC
|
0.97@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>86%
|
|
AC Current(Typ.)
|
2.3A/110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.6ms
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type

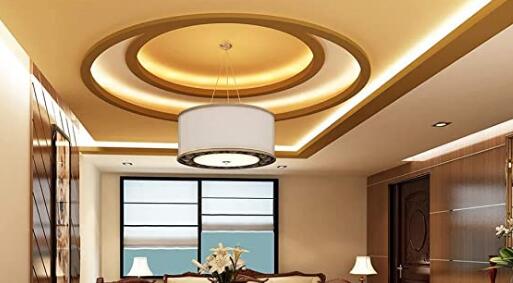

Heralighting high-intensity LED flexible strip lights can produce a brightness for subtle accent light up to an incredibly bright output.They can be used to dim task lighting, backlighting, accent lighting, cove lighting, under cabinet lighting, bar lighting and more while working with pwm dimmable led driver.
Related Products
|

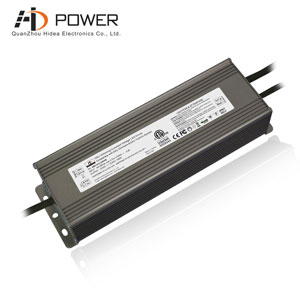

 200W DALI dimmable led driver working mode is constant voltage, input voltage is 100-265vac, aluminum casing, good waterproof performance, easy and fast installation, with 5 years warranty
