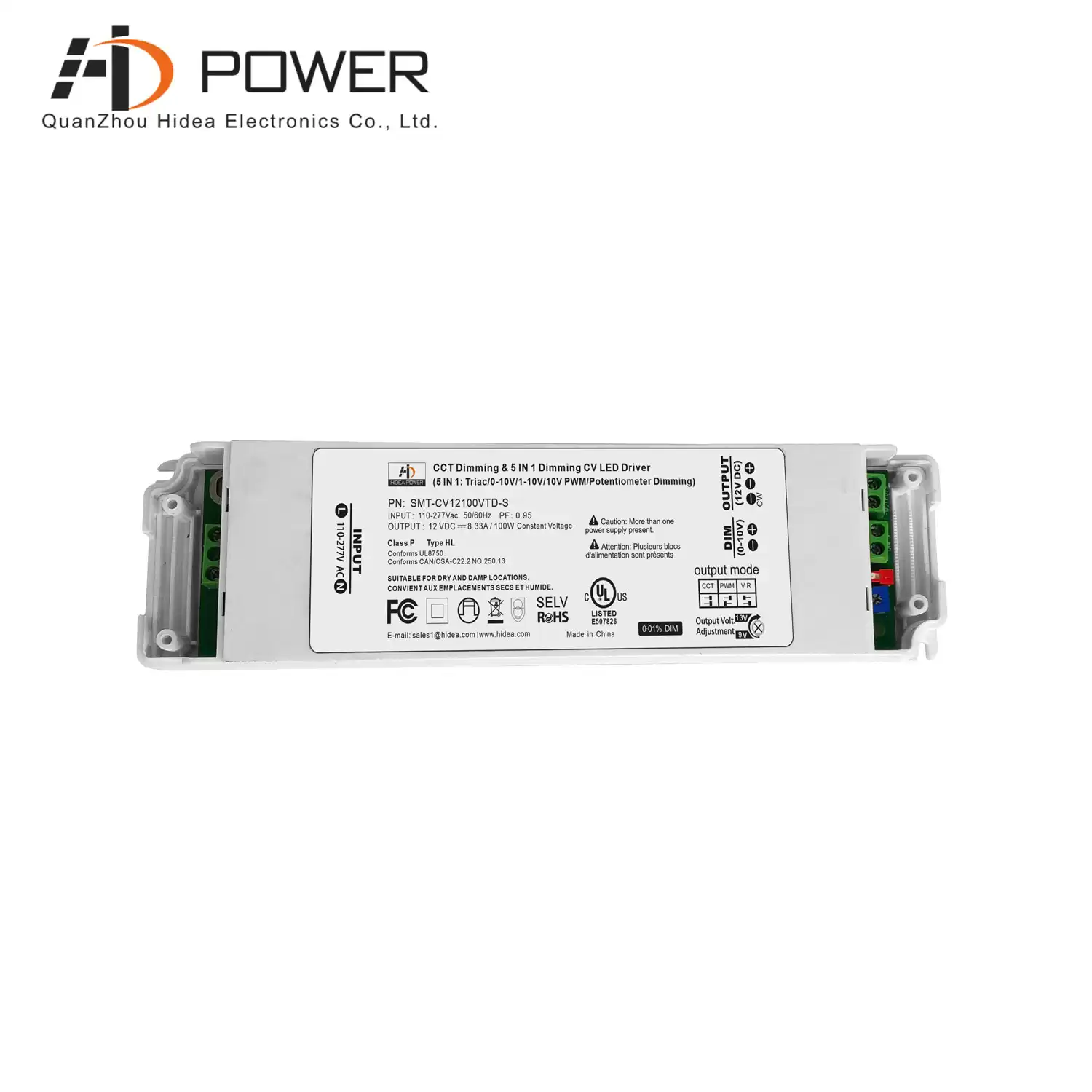

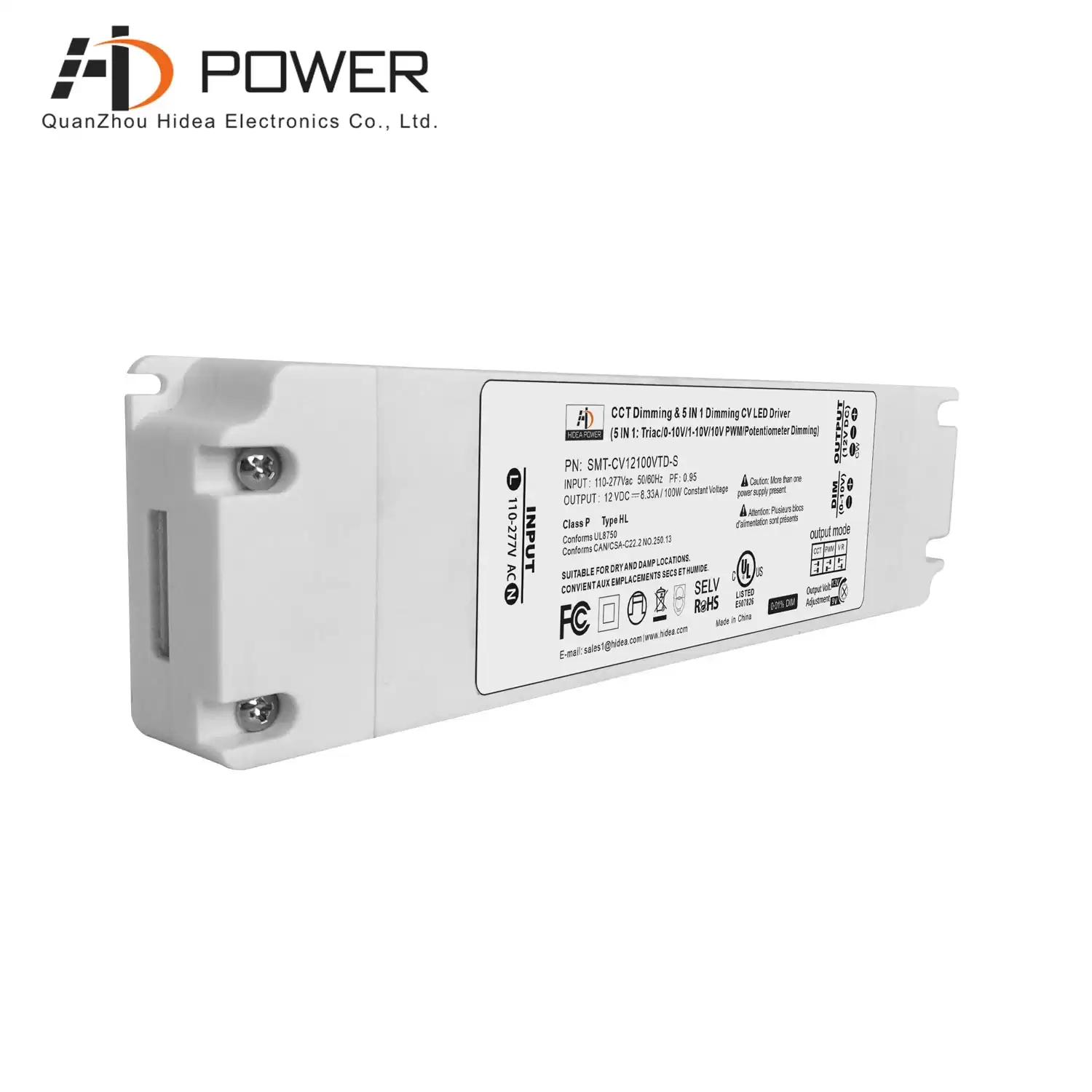

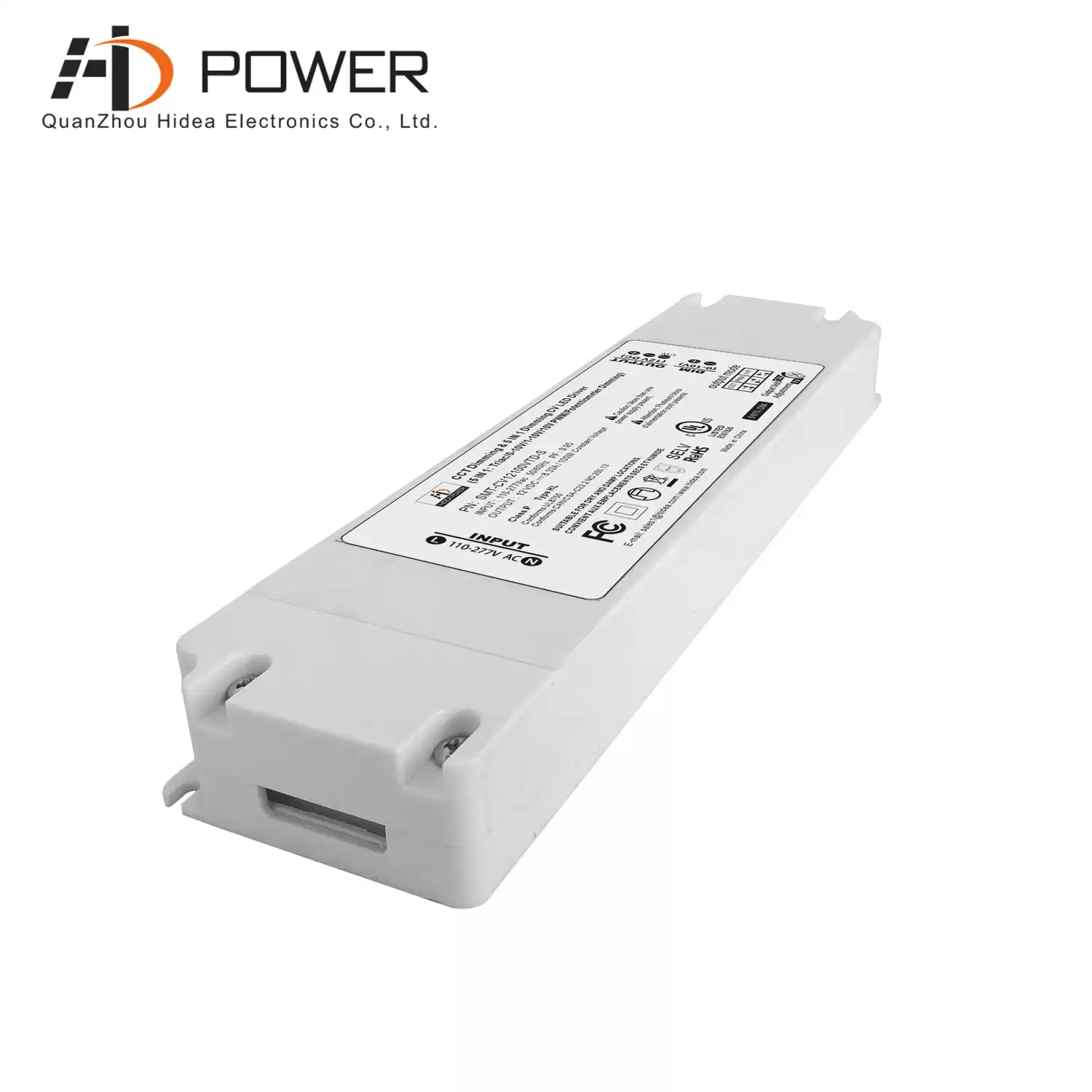

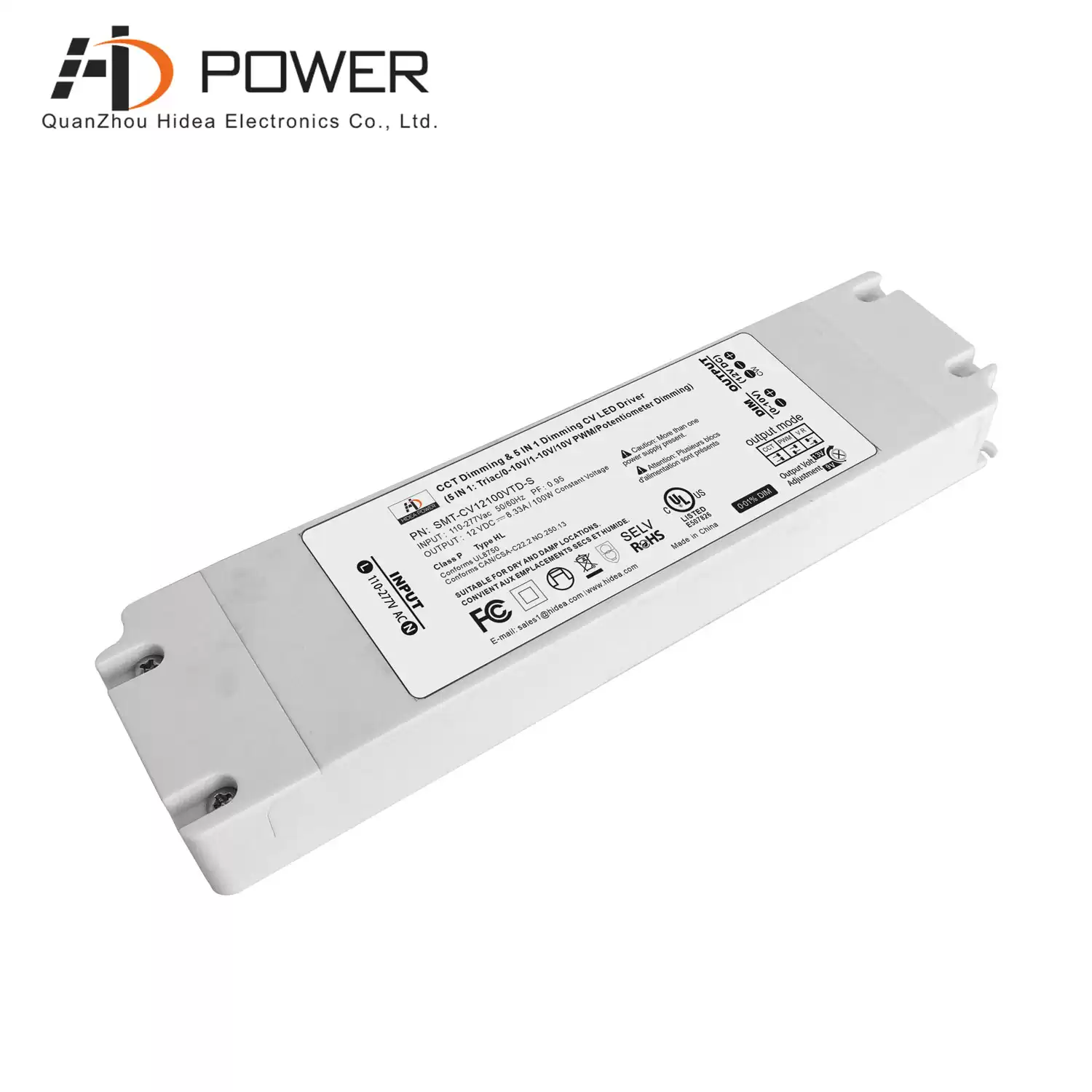

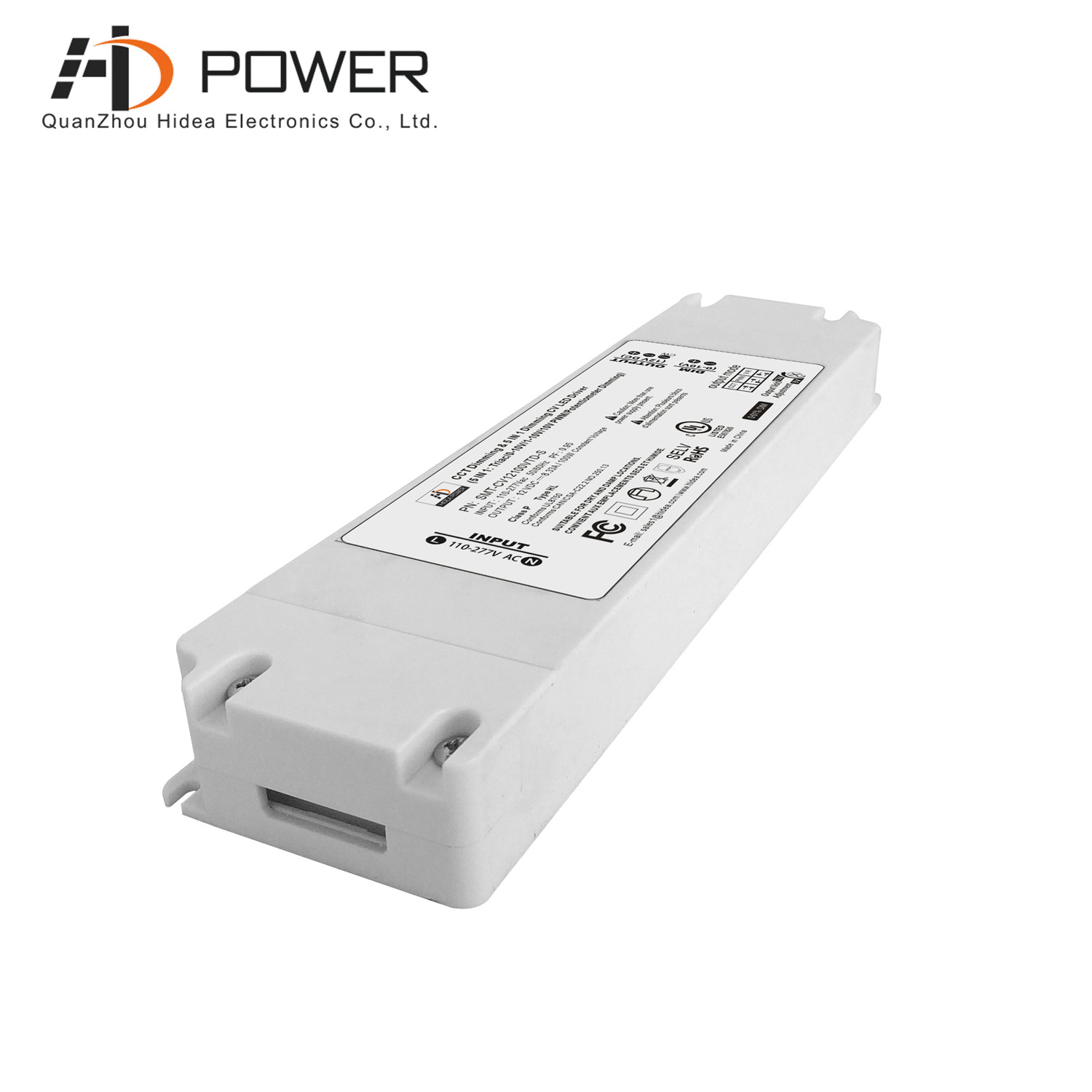

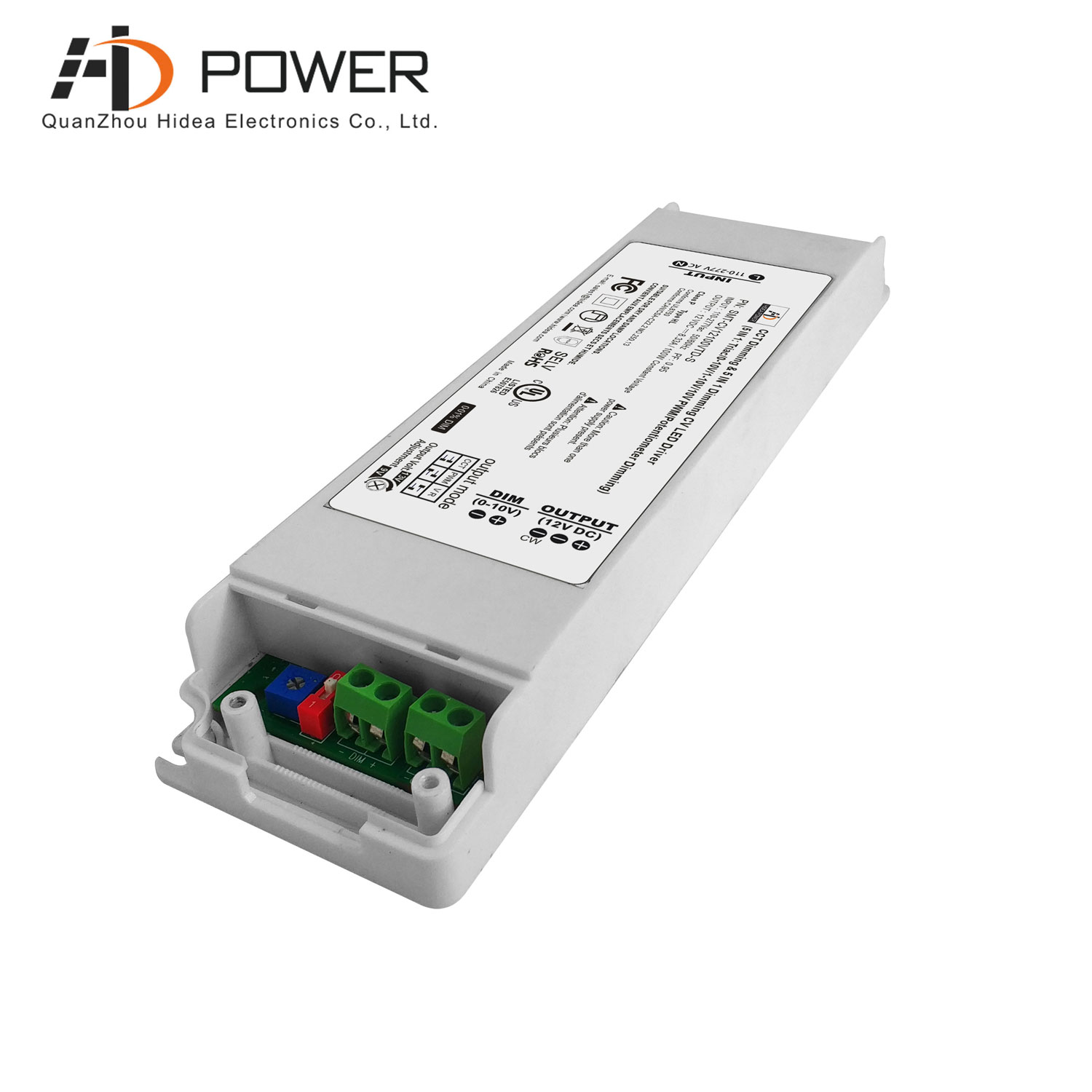

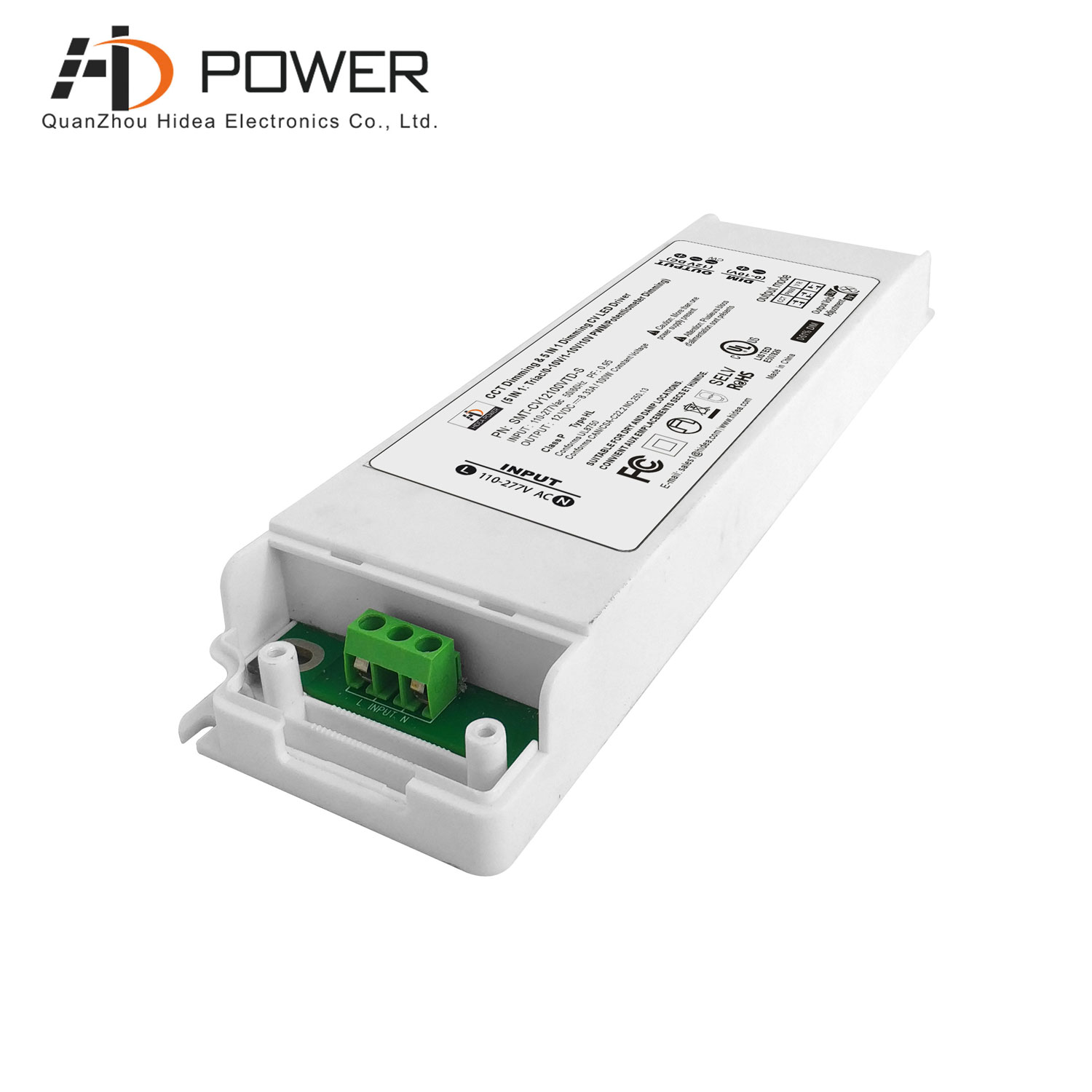

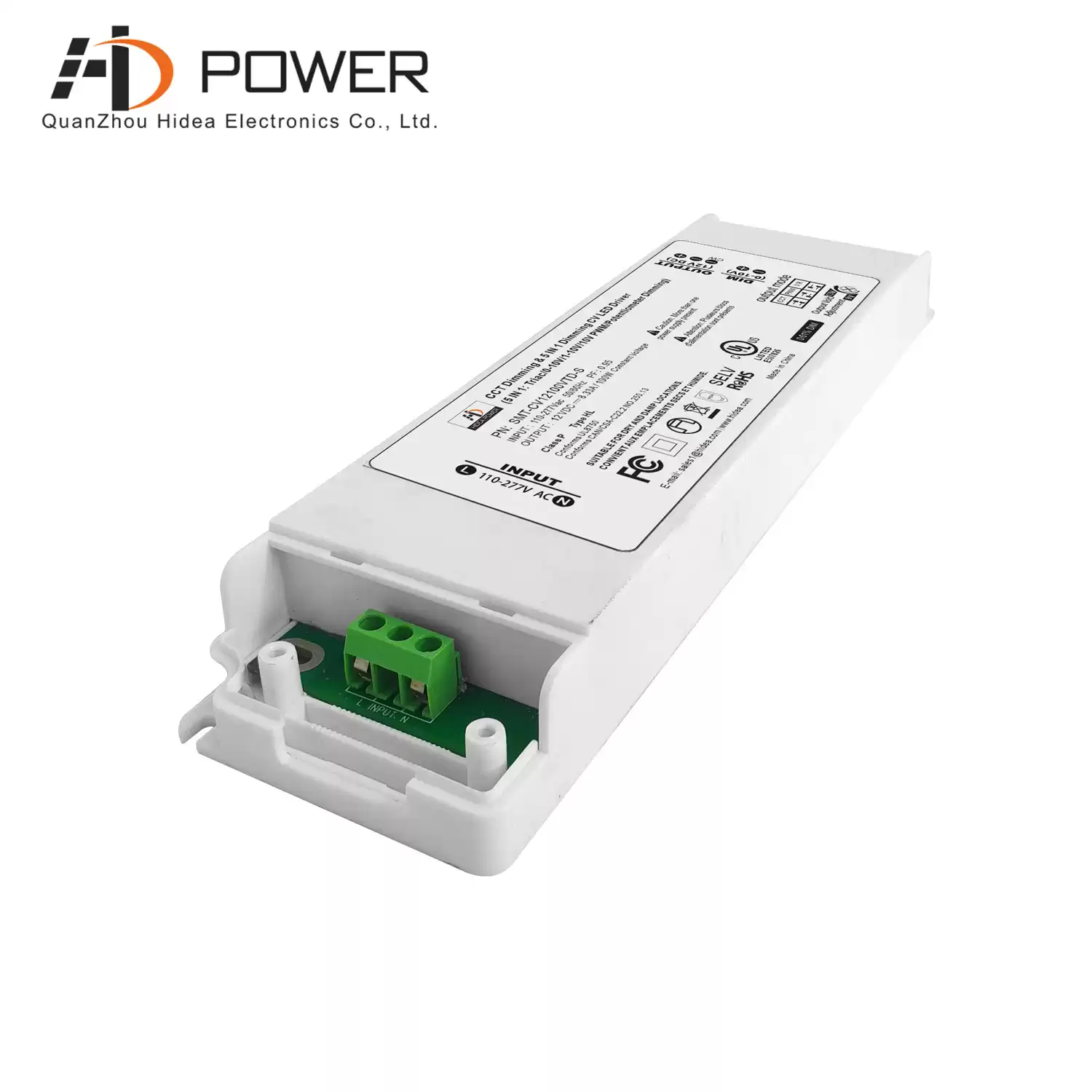

The size of this 12v 100W dimmable led driver
is 212*56*24mm, with a plastic case, easy and fast
installation, and weighs only 390g. Hidea power
provides it with a 7-year warranty
|
|
Specification
|
Model Number
|
SMT-CV12100-VTD-S
|
SMT-CV24100-VTD-S
|
SMT-CV36100-VTD-S
|
SMT-CV48100-VTD-S
|
|
OUTPUT
|
|
Rated Power
|
100W
|
|
Rated Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Rated Current
|
8.33A
|
4.16A
|
2.77A
|
2.08A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98 @120VAC 0.9 5@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
83%@120VAC 84%@277VAC
|
84% @ 120VAC 85% @277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
Inrush Current(Typ.)
|
27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
212x56x24mm (L*W*H) N.W:0.38kg
|
|
Packing
|
20pcs/CTN G.W:8.2KG SIZE: 270*220*140mm
|
Compatible Light Type
Hidea power This new product dimmable led driver 12v 100w Output voltage adjustable, solve the voltage drop issue, UL certification, complete certificates, passed the North American lighting safety certification, the quality is guaranteed
