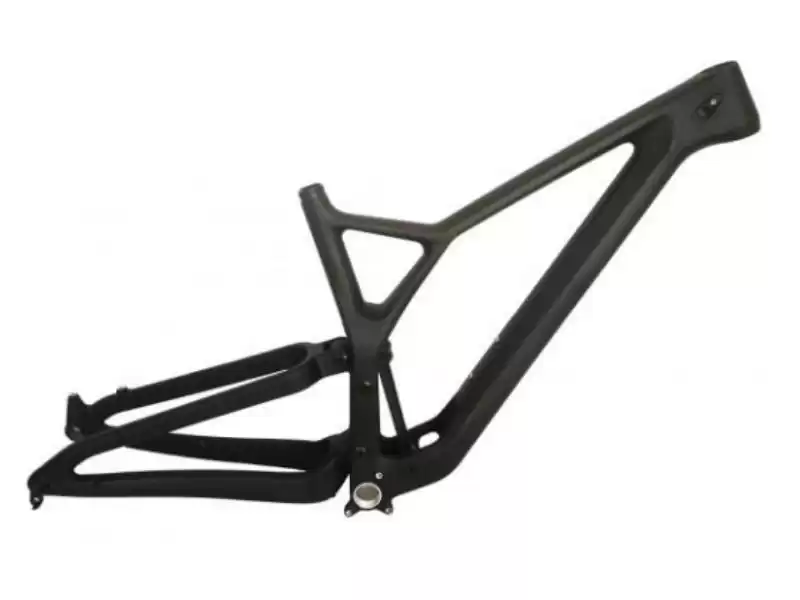

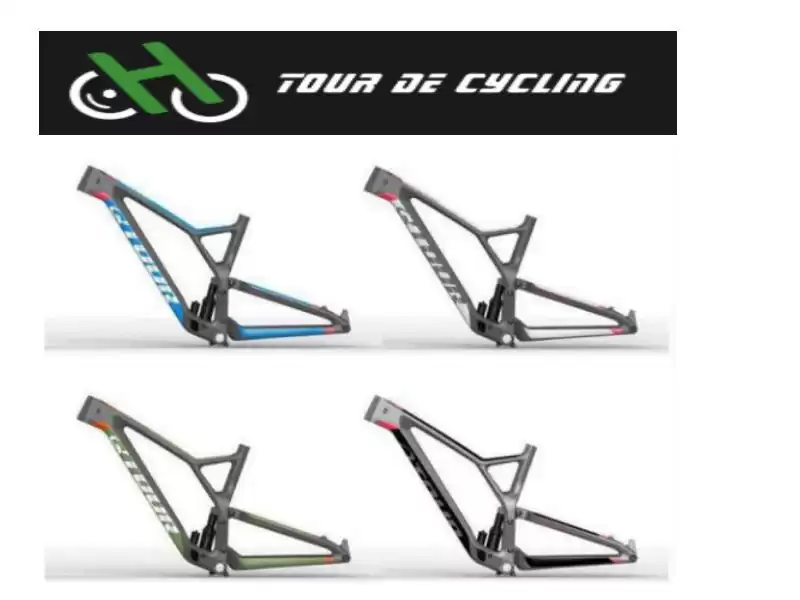

29er Carbon Full Suspension XC Trail / Enduro MTB Frameset

- Carbon 29er full suspension trial frame
- 165*45mm trunnion mount rear shock
- Travel Front 130-150mm, rear 130mm
- 12*148mm Boost thru axle

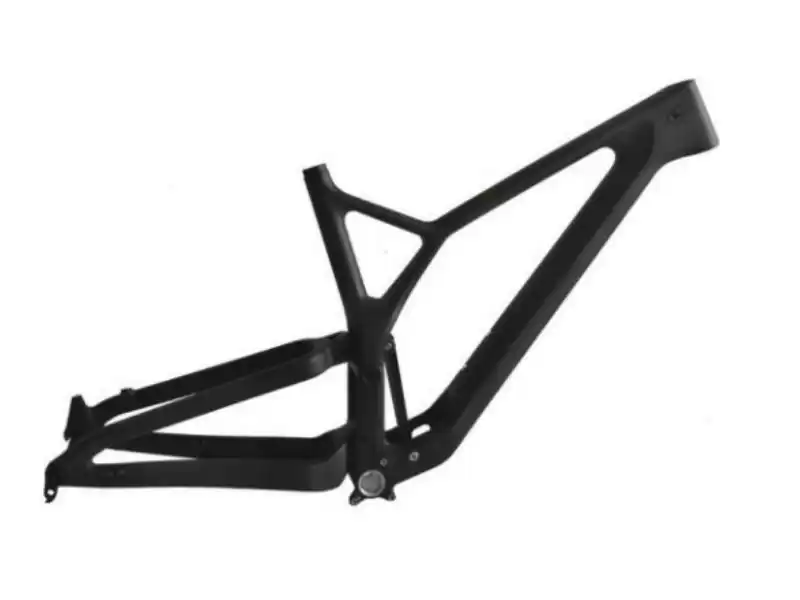

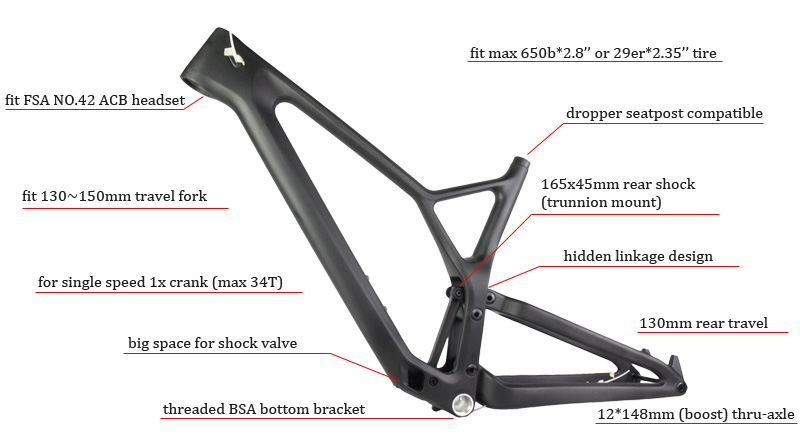

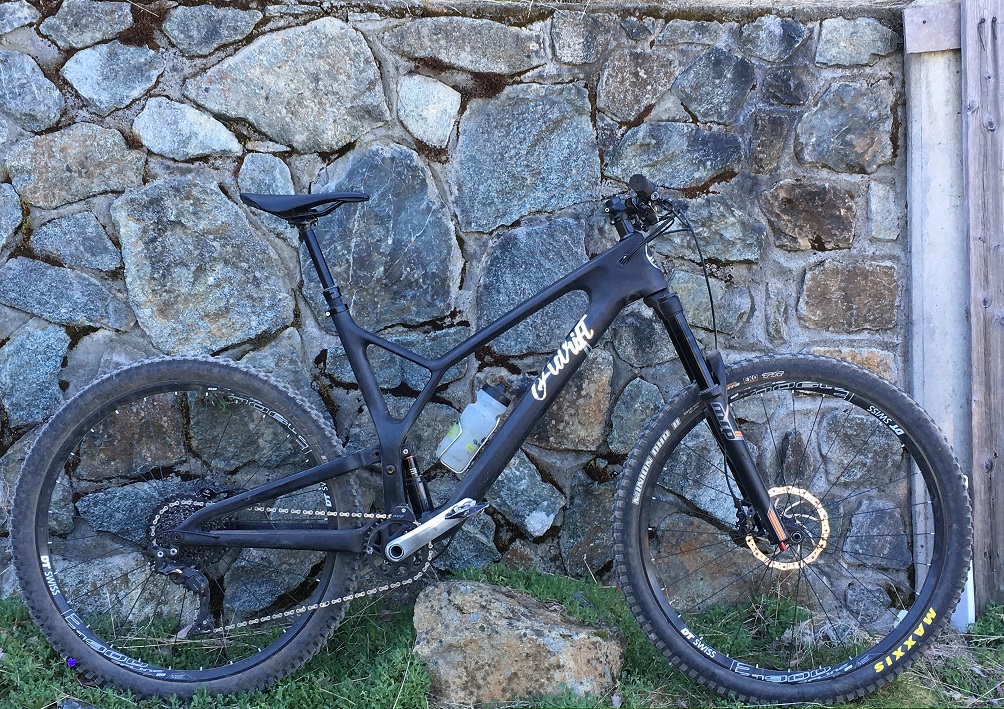

29er Carbon Full Suspension XC Trail / Enduro MTB Frameset

Frame
New full suspension trail mountain bike frameset
Material
High modulus Toray T700  carbon fiber
Size
17.5'', 19'',20.5'' (Medium, Large, Xlarge)
Front Travel
130-150mm
Rear Travel
130mm
Headtube
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
Weight
2400g/17.5''
Seatpost Diameter
31.6mm(37mm clamp)-Dropper seatpost insert length 17.5''=170mm 19''=200mm
Bottom Bracket
BSA -73mm (Compatible with ISCG-05 chain guide)
Max Tire Clearance
 29er*2.4'' and 27.5*2.8''
Max Compatible Chainring
34T
Chainline
52mm
Rotor
180mm
Front Derailleur
Single chainring 1x drivetrain system
Rear Shock
165*45mm trunnion mount rear shocks(54*φ10mm - 30*φ8mm)
Dropout
12*148mm boost thru axle
Test Standard
ISO4210
Warranty
2 years

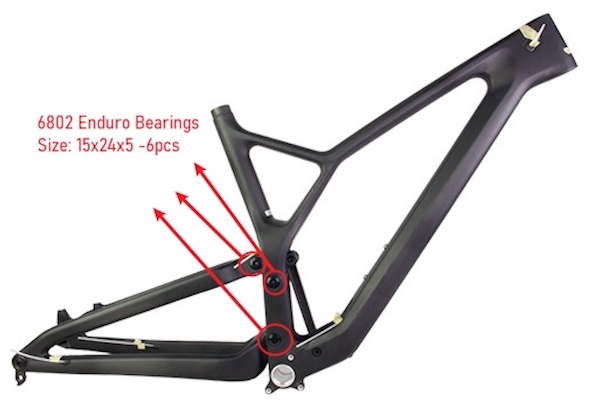

Bearing Size

Bearing Size Full suspension bike frame

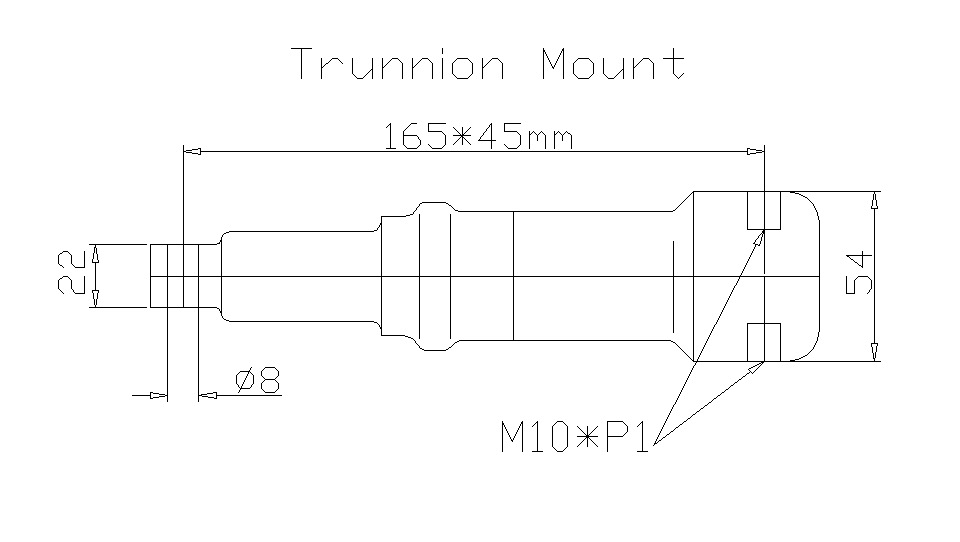

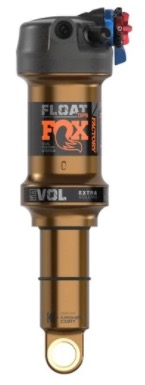

Compatible Rear Shocks (165*45mm trunnion mount) and Bushing Kits(30*8mm)

Compatible Rear Shocks Mountain Bike frames


Compatible Rear Shocks Mountain Bike frames

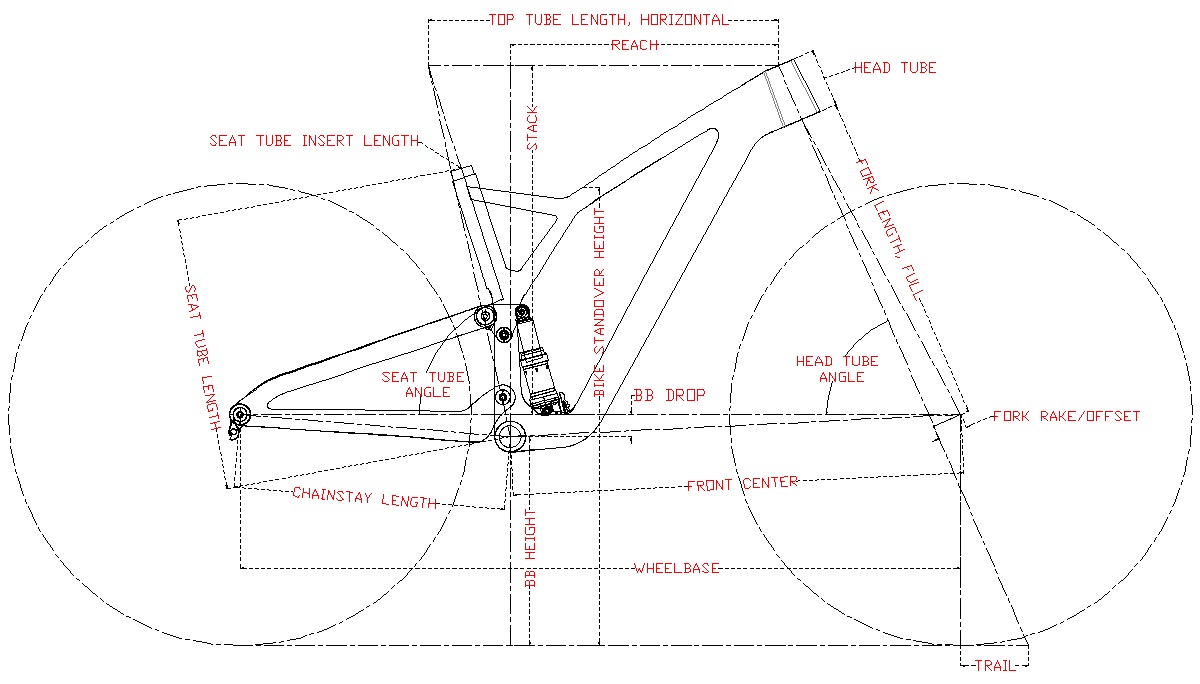

TDC-FS906 Carbon Bike Frame Geometry

29ER TDC-FS906 Carbon Bike Frame Geometry



17.5"
19"
20"

Seatpost Insert Length

170mm 200mm 230mm

Reach

440mm 470mm 500mm

Top Tube Length, Horizontal

590mm
623mm
658mm

Stack

602mm
620mm
629mm

Wheelbase

1178mm
1214mm
1250mm

Chainstay Length

444.5mm
444.5mm
444.5mm

Front Center

736mm
772mm
807mm

BB Drop

36mm
36mm
36mm
BB Height 339mm
339mm
339mm

Seat Tube Angle

76° 76°
76°

Head Tube Angle

67° 67°
67°

Seat Tube Length

440mm
480mm
520mm

Head Tube Length

95mm
110mm
125mm

Bike Standover Heigh(29“*2.35”)

731.4mm
732.8mm
735.9mm

Fork Rake/Offset

51mm
51mm
51mm

Fork Length, Full

541mm
541mm
541mm

Trail

104mm
104mm
104mm

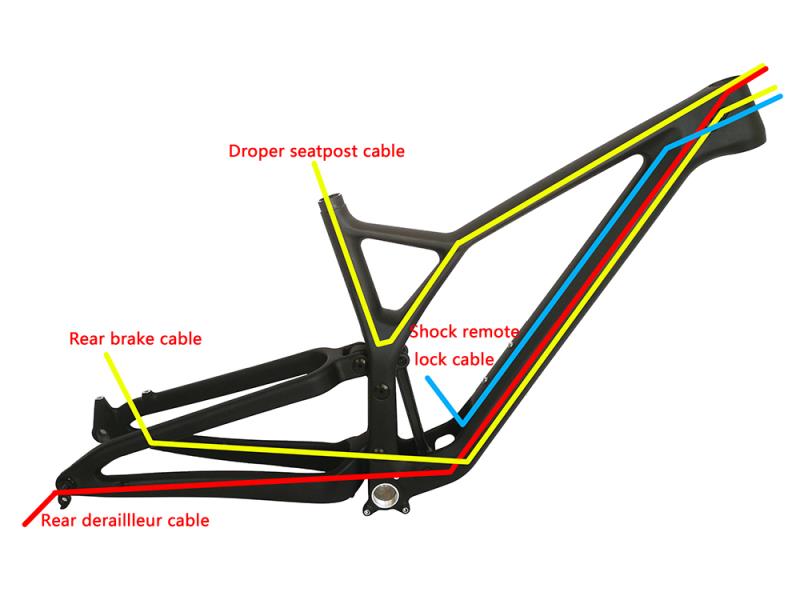

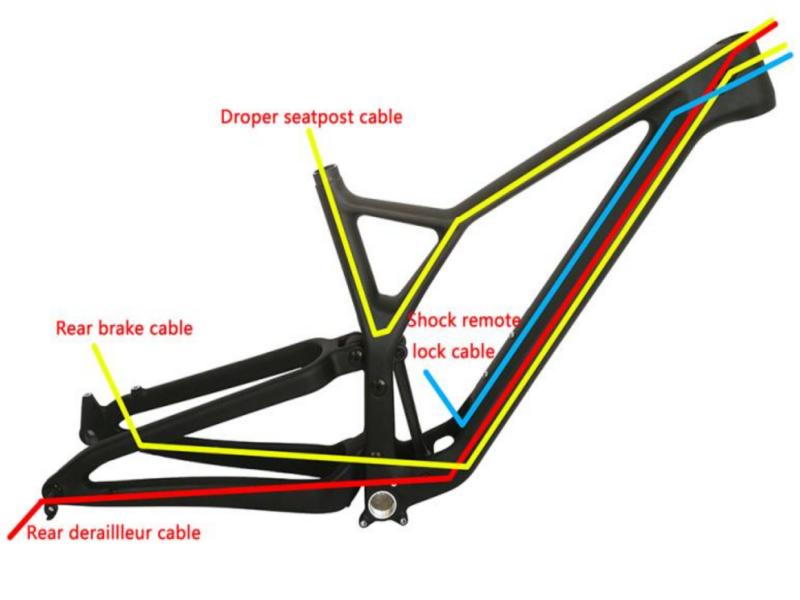

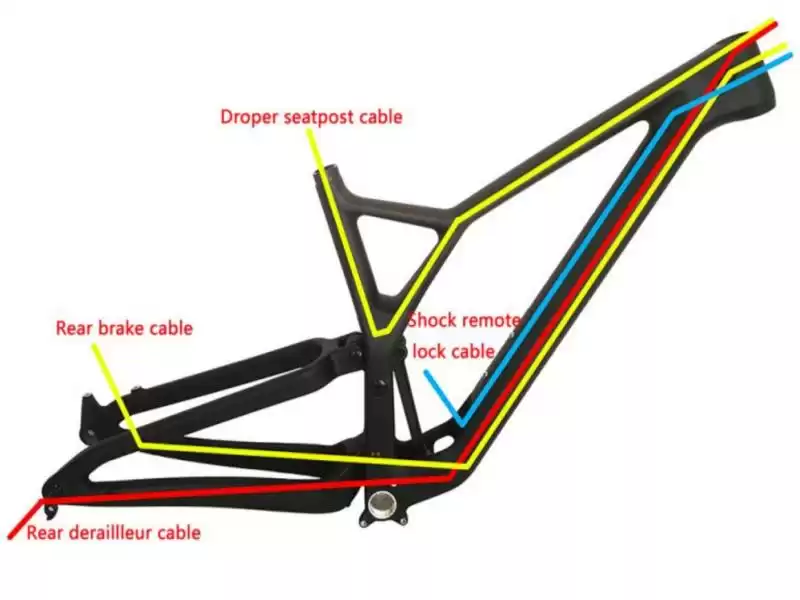

TDC-FS906 Trail mountain bike frame cable routing instruction


TDC-FS906 Trail mountain bike frame cable routing instruction

Features of the All new trail frame TDC-FS906

1Long reach for medium size
2, Chain stays are 444.5mm for perfect balance between traction and stability
3, Optimized wheel size for 29er
4, Simple manufacturing, swing arm pivotless
5, Metric shock(trunnion mount)165*45mm, get more compact
6, Pivotless system on the back that is stiff and simple
7, Active and sensitive suspension ratio gradient, works very well with air shock

8, Headset with 67 degree slack angle

fittings placement Trail mountain bike frame

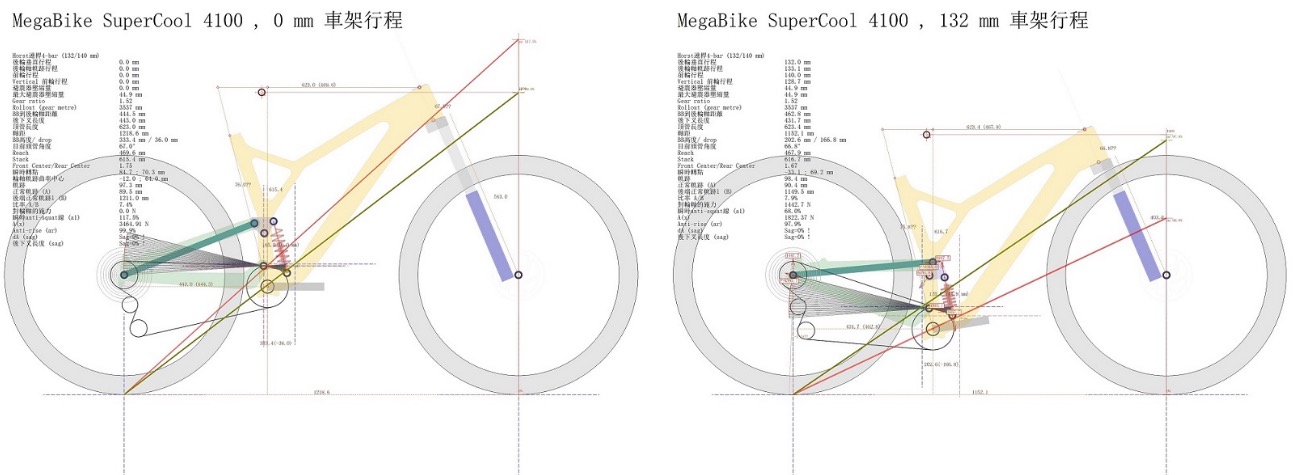

Curve Data was simulated for TDC-FS906 Trail frame

Notes:

1. The rear derailleur cable routing and brake cable routing have molded guide tube into the frame

2. Before releasing the frame the white guide tube will be routed in the frame for help customer routing the cables.

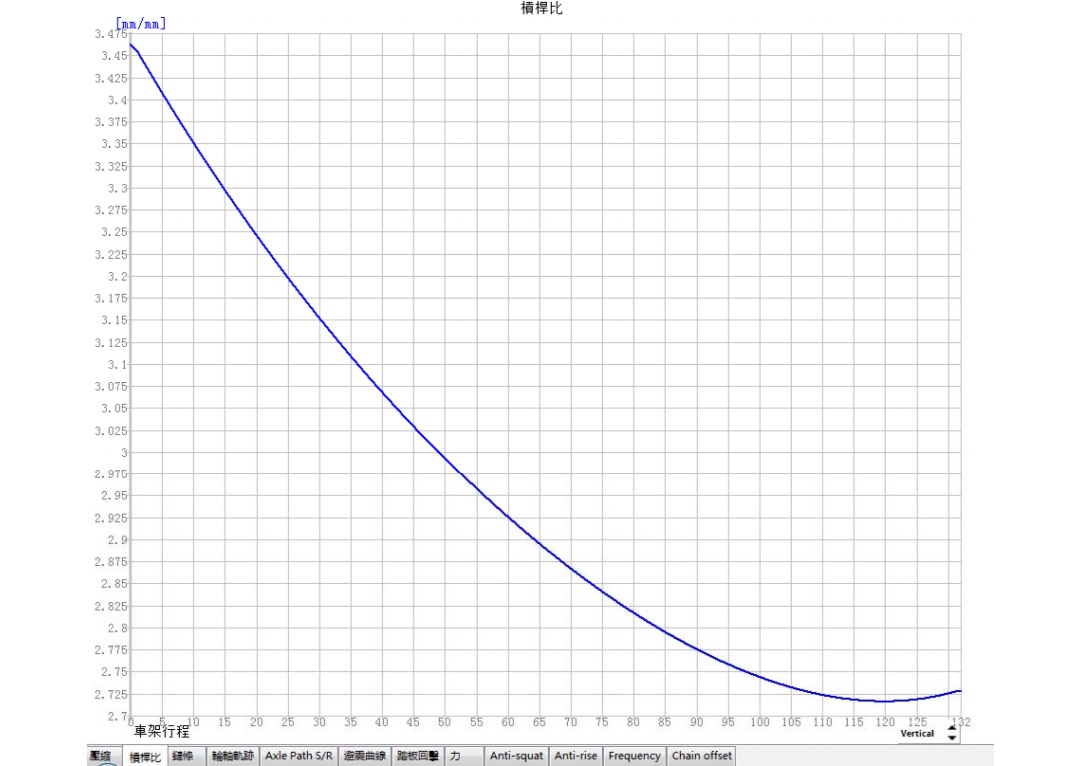

Frame travel leverage ratio

Mountain Bike Frame travel leverage ratio



Simulate data details from 0~132mm travel


Simulate 0~132mm travel enduro bike frameset

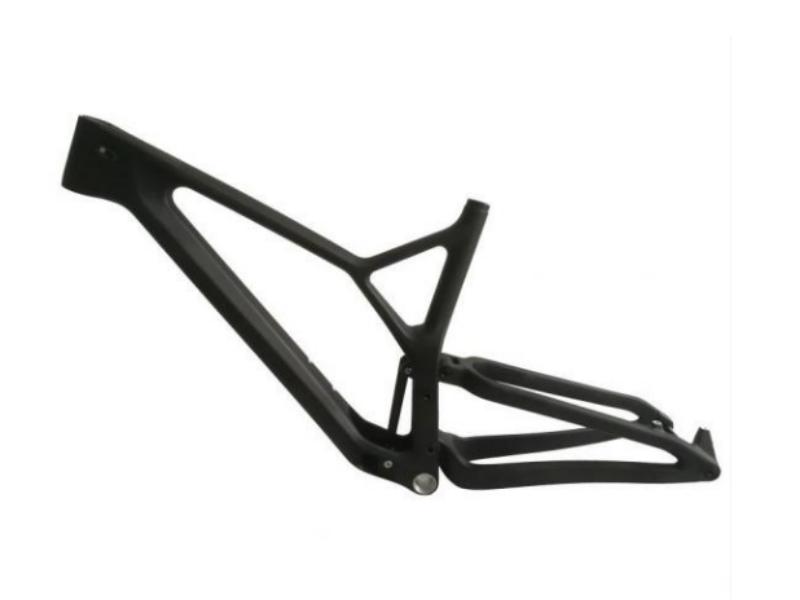

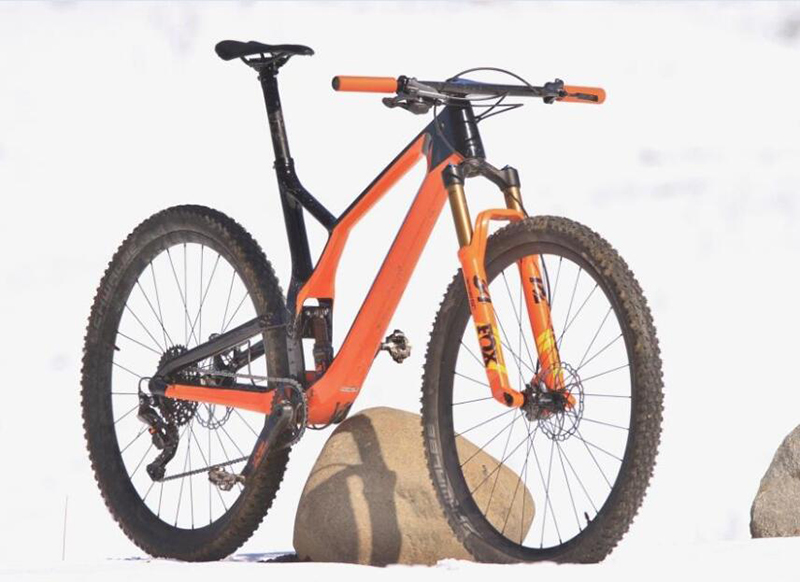

29er Carbon Full Suspension XC Frames

Enduro MTB Frameset


TECHNOLOGY


carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.

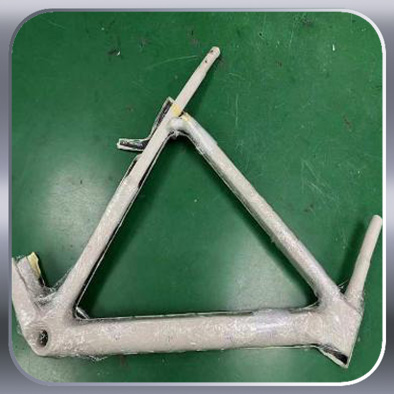

bicycle frame 3D print

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.

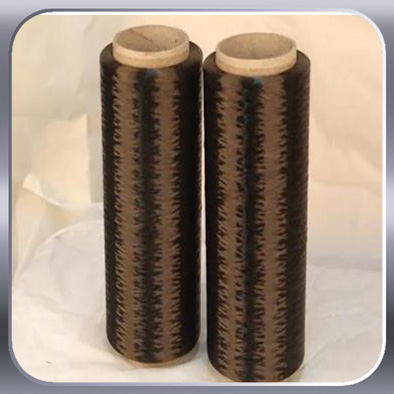

carbon fiber Tory for bicycle frameset

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

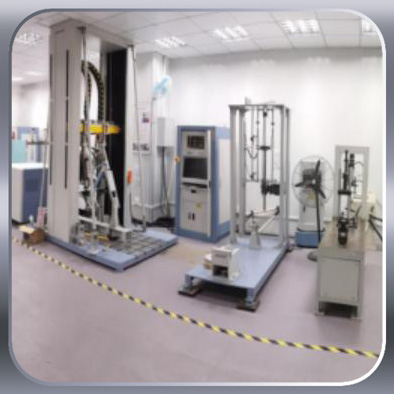

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:


Q1: What is your MOQ ?

A1:Minimum order quantity of different non-products is different. For specific products, please consult with inquiry.We can supply samples at a cost of twice the selling price. If you place an order, the sample fee will be refunded.


Q2: How long is the sample lead time?

A2: For existing samples, it takes 20 days.


Q3: How long is the production lead time?

A3: Decide the delivery date of the product according to the quantity ordered,About 45-55 days.


Q4: What format of the file do you need if I want my own design?

A4: We have our own designer in house . So you can provide JPG or PDF,etc.We will make 3D drawing for mold or printing screen for your final confirmation based on technique.


Q5: How many colors are available?

A5: Any color can be provided as long as the color palette you need is provided to us.


Q6: Which kinds of certificate would you have?

A6: Product Patent Certificate. Local certificate of safety standards.


Q7: What is your payment term?

A7: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, pls. pay the balance before shipment. Then delivery the goods.


Q8: What is a 29er bike frame

A8: 29ers or two-niners are mountain bikes and hybrid bikes that are built to use 700c or 622 mm ISO (inside rim diameter) wheels, commonly called 29" wheels. Most mountain bikes once used ISO 559 mm wheels, commonly called 26" wheels.


Q9: How tall should you be for a 29 inch bike?

A9: If you're 5'6' or taller, you should be able to find a 29er model to fit you. Riders more than 6' tall can rejoice: You'll definitely enjoy a more natural riding position with the size and frame geometry of a 29er.
