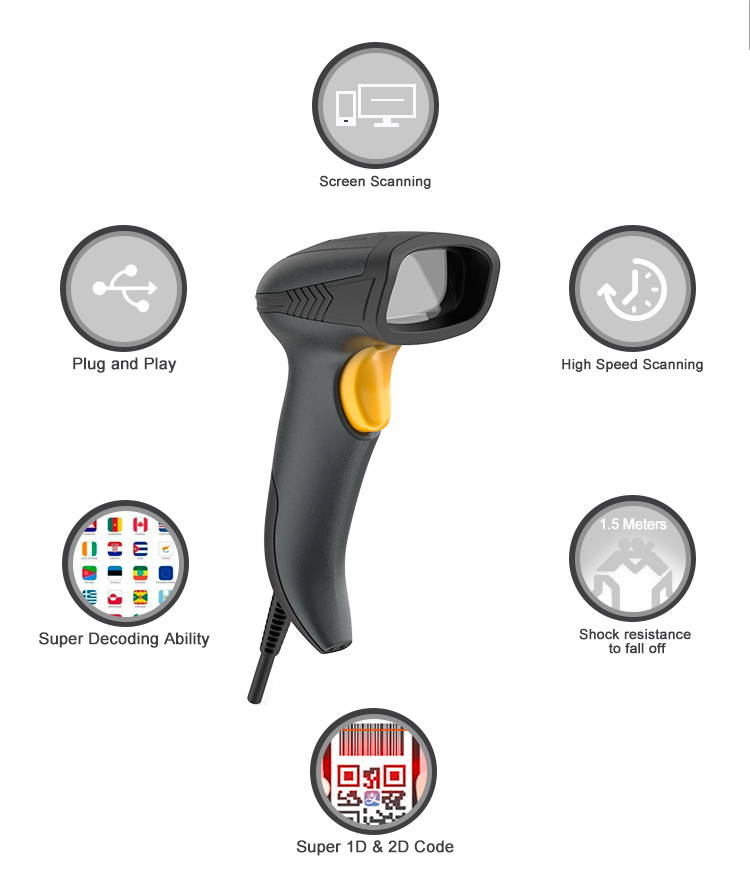

Product Feature:
1. Support 2D/1D barcode,Support many barcode types, support screen barcode
2. Powerful decoding capability, many types of barcodes can be identified
3. Scan width is large, easy to align, fast decoding

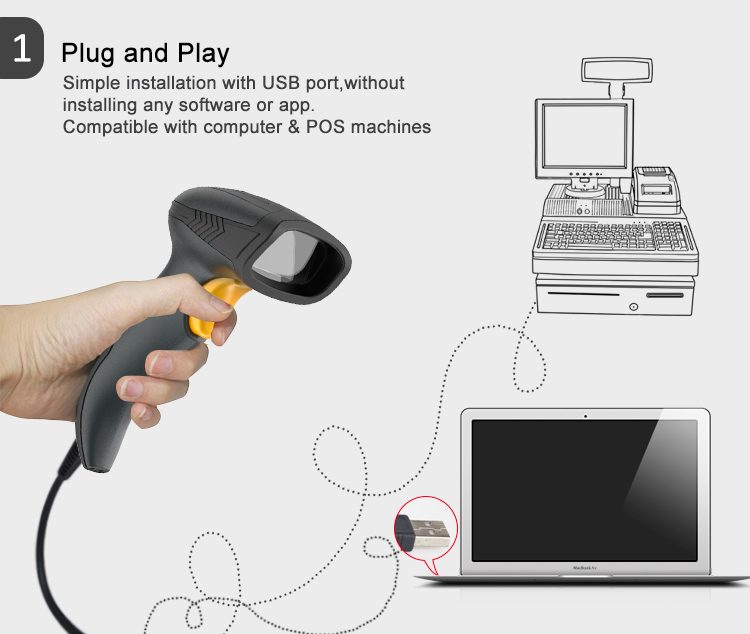

4. Plug and play, easy to operate
5. Factory directly sale,cheap, competitive price

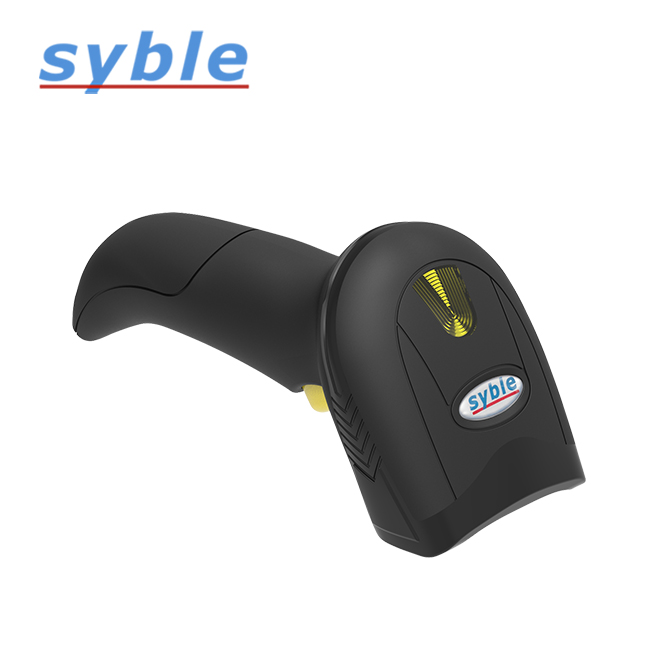

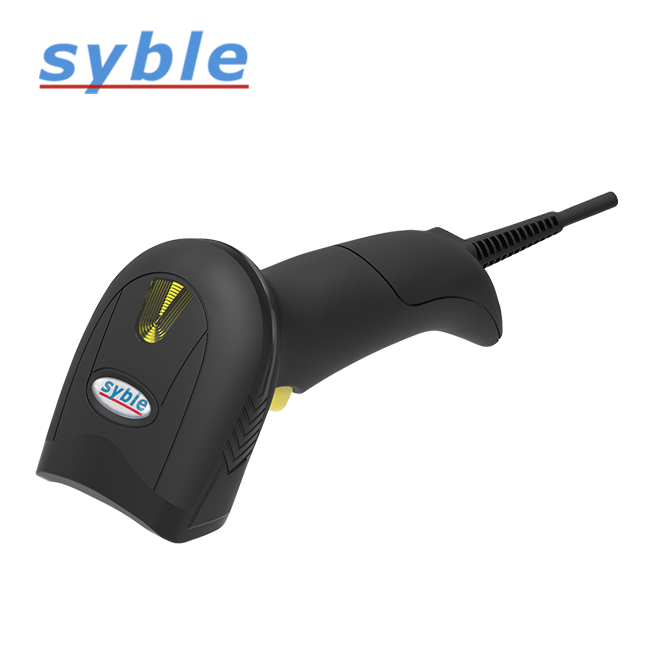

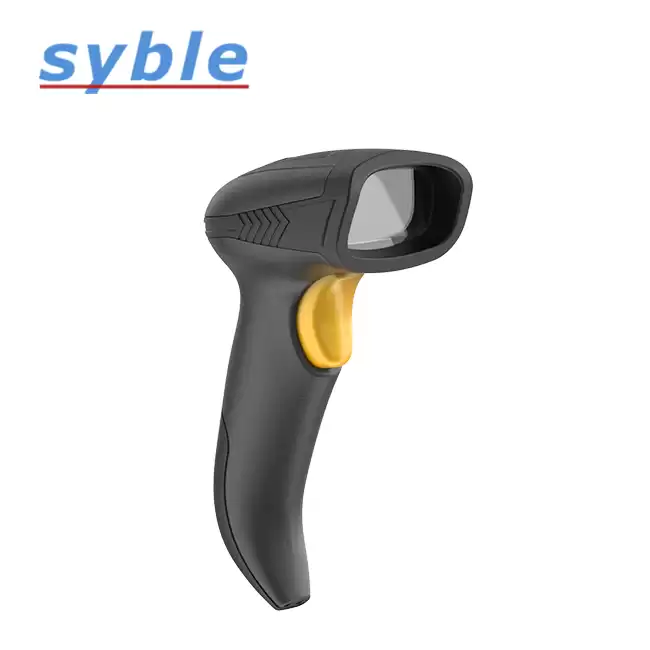

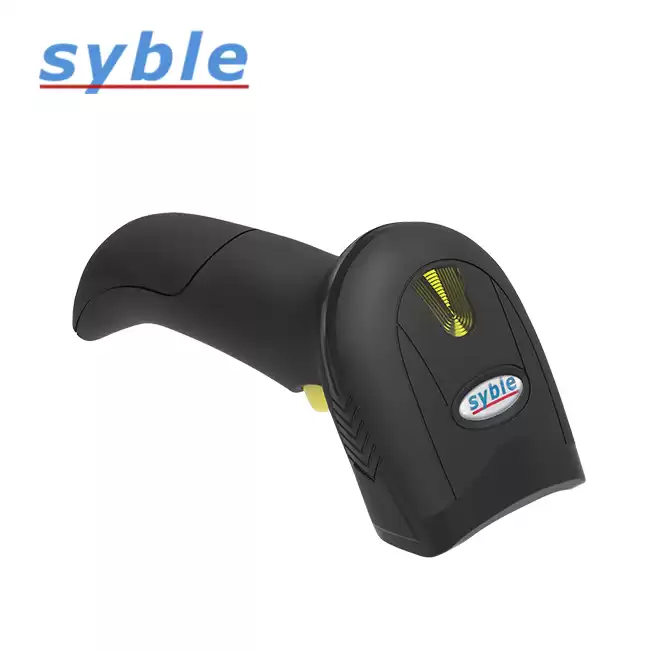

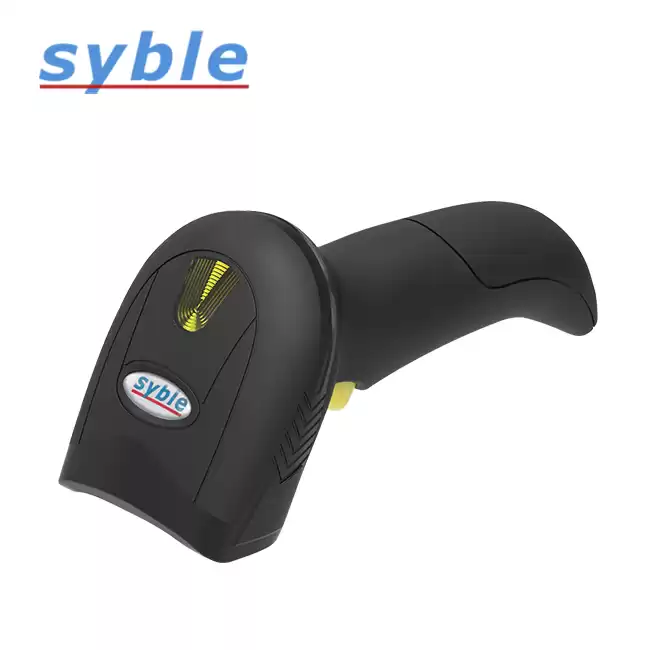

Model No: XB-6221
2d cmos barcode Scanner provides high performance affordable 2D imaging, delivering blazing laser-quality speed on both 1D and 2D bar codes displayed on paper labels and the electronic displays on mobile phones, tablets and more, allowing you to accommodate 2D bar codes without sacrificing scanning quality or performance.
Specification
|
Model Number
|
XB-6221
|
|
Performance Parameters
|
|
Light Sources
|
617nm LED Aimer,White LED
|
|
Supported Symbologies
|
1D:Codebar, Code11, Code39, Code93, UPC/EAN, Code128, EAN-128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar.
2D:QR Code, Data Matrix, PDF417
|
|
Scan Type
|
Image CMOS
|
|
Scan Method
|
Manually/Contnuous/Automatic inductive scanning
|
|
Scan Angle
|
Yaw 60°,Rotation 360°,Pitch 60°
|
|
Precision
|
≥5mil
|
|
Depth of scan field
|
6-250mm
|
|
Error Rate
|
Less than 1/5 million
|
|
Interface
|
USB-HID，RS232
|
|
Indicator
|
LED,Buzzer
|
|
Physical Parameters
|
|

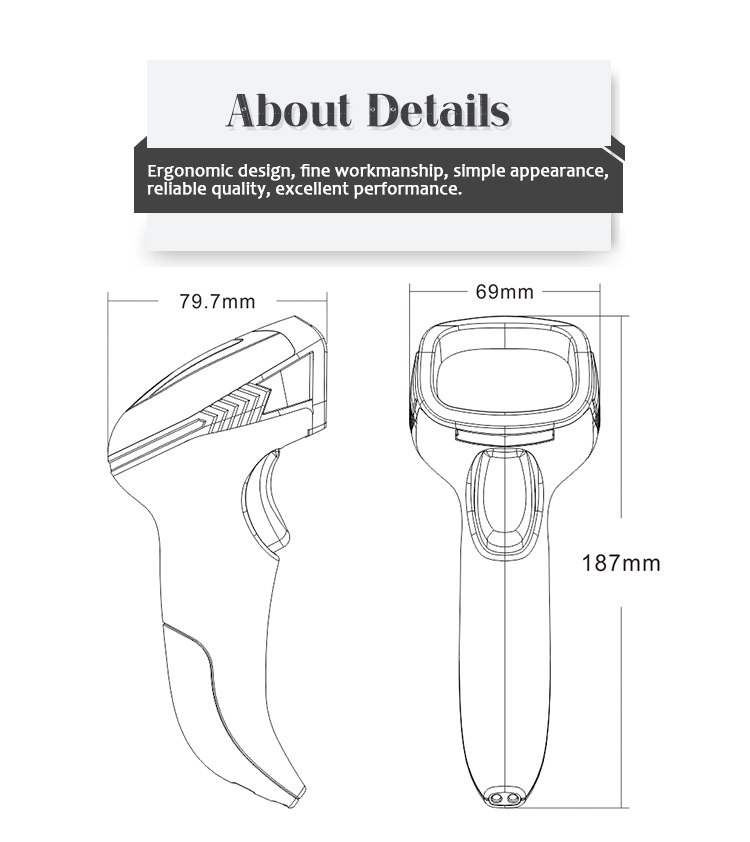

Dimensions
|
79.7mm*69mm*187mm
|
|
Weight
|
134g
|
|
Material
|
ABS+PC
|
|
Cable Length
|
1.8M
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃~60℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
Relative Humidity
|
5%~95%（Non-condensing）
|
|
Electrical Parameters
|
|
Voltage
|
DC5V±5%
|
|
Current
|
135mA(Operating)
|
Our services:
1. MOQ--We can accept 1 set
2. Product warranty—24months
3. OEM-- customize logo, label, packaging, etc.
4.ODM--customize hardware and appearance structure according to customer requirements
5.If you encounter any problems during the use of the product, you can directly contact us by email or telephone.
