2D Imager qr code reader Barcode Scanner
Product Feature:
1.New decoding chip to interpret various 1D codes/QR codes
2.Scan WeChat, Alipay barcode
3.QR code reader supports Chinese two-dimensional code direct transmission
4.Plug and play, easy to set up, and can be used quickly with other office equipment
5.Wire life is longer lasting

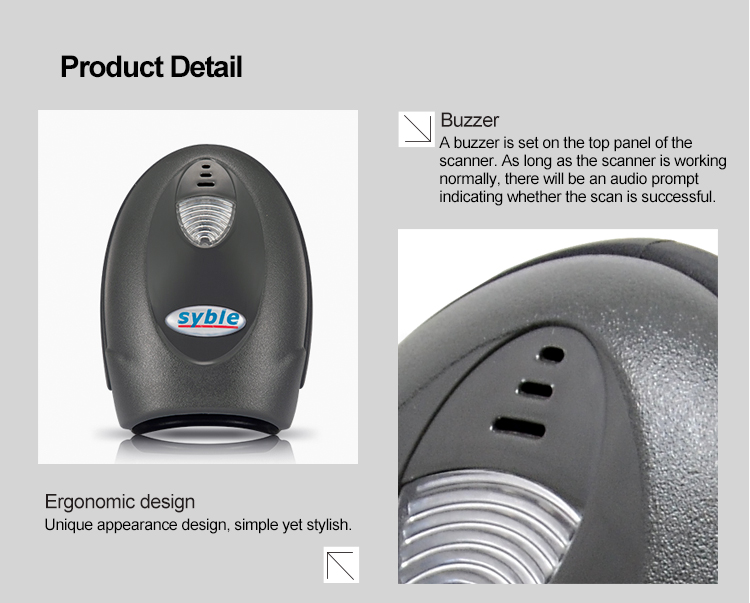

6.Ergonomic design: unique appearance design, simple yet stylish.
Model No: XB-6208
Syble XB-6208, Imager CMOS 2DBarcode Scanner ,Supports Screen and Paper 1D &2D Bar Code. Plug and play ,easy to set up and quickly match. Widely Used in Hospital ,Logistics,Library,Mall,Pharmacy,Warehouse etc.
Specification
|
Model Number
|
XB-6208
|
|
Performance Parameters
|
|
Light Sources
|
617nm LED Aimer,White LED
|
|
Supported Symbologies
|
1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5.
2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode，HanXin Code.
|
|
Scan Type
|
Image CMOS
|
|
Resolution
|
640*480
|
|
Scan Method
|
Manually/Continuous/Automatic inductive scanning
|
|
Scan angle
|
Yaw ±55°, Rotation 360°, Pitch ±55°
|
|
Contrast
|
≥20%
|
|
Precision
|
≥5mil
|
|
Depth of scan field
|
EAN13 50-200MM(13MIL);QR 25-240MM(20MIL);PDF147 30-130MM(6.67MIL)
|
|
Error Rate
|
Less than 1/5 million
|
|
Interface
|
USB-HID,USB-COM,RS232
|
|
Physical Parameters
|
|
Dimensions
|
102mm*71mm*177mm
|
|
Weight
|
185g
|
|
Material
|
ABS+PC
|
|
Cable Length
|
1.8M
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃~50℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
Ambient lighting
|
0~100000LUX
|
|
Relative Humidity
|
5%~95%（Non-condensing）
|
|
Electrical Parameters
|
|
Voltage
|
DC5V±5%
|
|
Operating Current
|
170mA
|
|
Standby Current
|
USB 25mA; RS232 2uA
|
Product Overview:

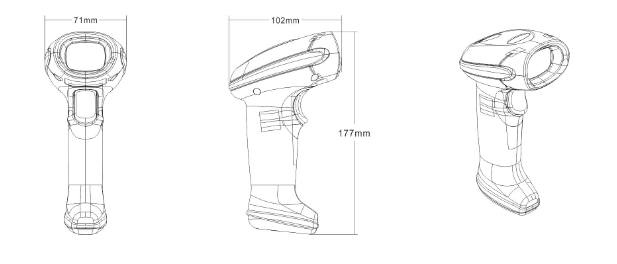

Product Size :
FAQ
Q1: What kind of technology of this iPad Wireless Barcode Scanner ? Laser or Linear ?
This is Laser iPad Bluetooth Barcode Scanner
Q2:Does this Android Bluetooth Barcode Reader support IOS ?
yes ,it compatible with Android and IOS devices
Q3: What kinds of Bluetooth use for this Wifi Barcode Scanner ?
we adopt latest advanced bluetooth 4.0 for this item
Q4:Can your company OEM this Bluetooth Barcode Reader for us ?
yes ,OEM service is available
Q5:What is your company’s quality policy ?
The warranty on the Barcode Scanner is 2 years , on cable is 6 months
